Technical Highlights

  • Support for 2/4 channel OEM systems, no BOSE/Nokia DSP systems.
  • 10 pin ISO connector, yellow/red: +12V Amp Remote, check pin 6 for connection.
  • Compatible with Audi, VW vehicles from 1982 to 2000.
  • More technical details
€29.00
€29.00 €29.00
2% discount with credit card
Incl. VAT , plus shipping
Estimated delivery Sep 14 to Sep 17.
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Datasheet
ACV-ASA Audi/VW ISO/10Pin ISO>ISO-Aktivadapter-masori-kaufen
€29.00
€29.00 €29.00

More power than ASA Audi/VW ISO/10Pin ISO>ISO with this!

Show all

Product description

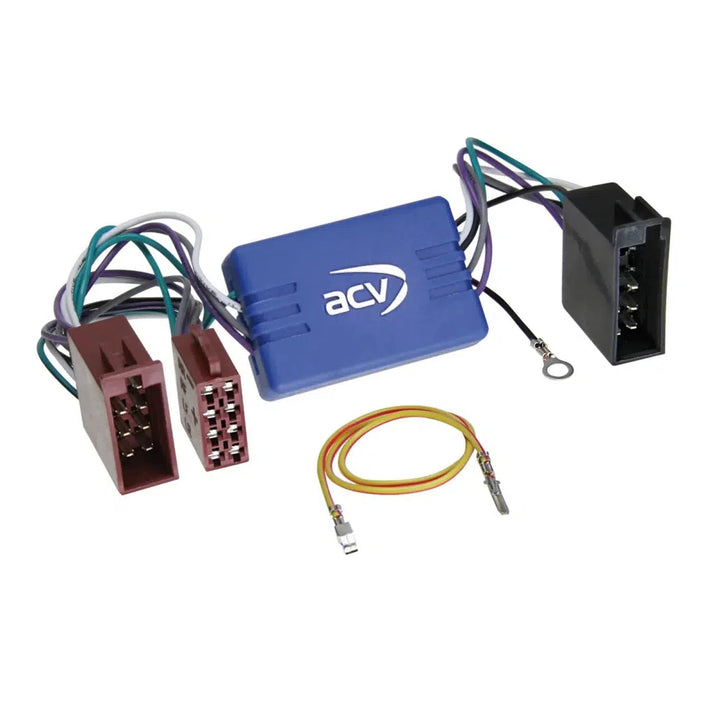

ASA Audi/VW ISO/10Pin ISO>ISO is an Active Adapter from ACV. Connection: ISO speaker Plug and 10 Pin ISO Plug to ISO speaker Plug. Designed for vehicles with 2 channel or 4 channel OEM sound system. Not for vehicles with BOSE or Nokia DSP OEM sound system. Remote yellow red with +12 V Amp Remote according to vehicle connection diagram, 10 Pin ISO Plug Pin 6 as well as ISO power Plug Pin 3 or Pin 5. Ground black at terminal 31. Compatible with Audi 80, Audi 90, Audi 100, Audi 80 Cabriolet, VW Corrado, and VW Golf II according to the listed production periods.

Features
  • Active Adapter
  • Manufacturer: ACV
  • Connection: ISO speaker Plug / 10 Pin ISO Plug to ISO speaker Plug
  • Vehicles with 2 channel OEM sound system
  • Vehicles with 4 channel OEM sound system
  • Vehicles without BOSE or Nokia DSP OEM sound system
  • yellow/red: +12 V Amp Remote according to vehicle connection diagram
  • yellow/red: +12 V Amp Remote check, 10 Pin ISO Plug Pin 6
  • yellow/red: +12 V Amp Remote check, ISO power Plug Pin 3 or Pin 5
  • black: Ground terminal 31
Technical Data
  • Suitable for Audi: 80 (B3/89) 07/1986 - 12/1991; 80 (B4/8C/P1) 09/1990 - 03/1996; 80 Cabriolet (B4/8C) 02/1997 - 06/2000; 90 (B2/81/85) 04/1986 - 10/1986; 90 (B3/89) 05/1987 - 12/1991; 100 (C3/44) 10/1982 - 01/1988; 100 (C3/44) 01/1998 - 12/1990
  • Suitable for VW: Corrado (531) 08/1988 - 07/1991; Corrado (531) 07/1991 - 12/1995; Golf II (19E) 08/1983 - 08/1987; Golf II (19E/1G1) 08/1987 - 12/1992
  • Functionality depends on vehicle and OEM active system, functions such as fader and sound and subwoofer settings may be omitted
  • Check functionality before final assembly

Datasheet

Open datasheet

Common questions about ASA Audi/VW ISO/10Pin ISO>ISO

What is the ASA Audi/VW ISO/10Pin ISO>ISO Adapter?

The ASA Audi/VW ISO/10Pin ISO>ISO Adapter from ACV is an active system adapter that allows the retention of factory-installed sound systems. It enables the connection of aftermarket radios to the vehicle's active systems, while both the OEM amplifier and the connected speakers remain intact. Compatibility is ensured by converting and adapting the output signals from the signal source to the signal input of the OEM amplifier. However, depending on the vehicle and OEM active system, functions such as fader or sound and subwoofer settings may be omitted.

How is the power supplied to the ASA Audi/VW ISO/10Pin ISO>ISO Adapter?

The power supply for the ASA Audi/VW ISO/10Pin ISO>ISO Adapter is provided through a connection via the ISO power connector. Pin 3 or Pin 5 of the ISO power connector is used, with the black contact representing the ground connection at terminal 31. Important technical details include the +12V Amp Remote wire at the yellow/red pin of the 10 Pin ISO connector at Pin 6. This should be checked with the OEM device before final installation to ensure compatibility.

In which vehicles can the ASA Audi/VW ISO/10Pin ISO>ISO Adapter be used?

The ASA Audi/VW ISO/10Pin ISO>ISO Adapter is specifically designed for Audi and VW models. Suitable vehicles include Audi 80 models (B3/B4) from 1986 to 1996, the Audi 90 and 100 models, as well as VW models such as the VW Corrado and the VW Golf II. The suitability refers to the period from 1982 to 2000 and includes vehicle generations B3, B4, C3, and the VW Corrado up to 1995. Vehicles without BOSE or Nokia DSP systems are compatible.

What technical challenges might arise during the installation of the ASA Audi/VW ISO/10Pin ISO>ISO Adapter?

During the installation of the ASA Audi/VW ISO/10Pin ISO>ISO Adapter, technical challenges may arise, such as potential incompatibility with specific OEM active system functions. For example, fader or subwoofer settings may be omitted. Additionally, the correct connection method requires careful checking of polarity and the connection of the +12V Amp Remote wire. Especially if you aim for flawless functionality, it is important to follow the installation instructions closely and to verify the power supply through the yellow/red connection precisely.

What is the function of the 10 Pin ISO connector in the ASA Audi/VW ISO/10Pin ISO>ISO Adapter?

The 10 Pin ISO connector in the ASA Audi/VW ISO/10Pin ISO>ISO Adapter plays a crucial role in signal transmission between the aftermarket radio and the OEM amplifier. It conveys the necessary audio signals and the +12V Amp Remote connection. A particularly important function is performed by Pin 6 in the 10 Pin ISO connector, which takes over the control of the amplifier remote. This pin is used in the adapter for the remote amplifier activation and must be correctly matched with the OEM device to ensure system compatibility.

How does the ASA Audi/VW ISO/10Pin ISO>ISO Adapter affect sound quality?

The ASA Audi/VW ISO/10Pin ISO>ISO Adapter helps maintain the original sound characteristics of the vehicle. By continuing to use the factory speakers and the OEM amplifier, the original sound quality remains largely unaffected. However, the omission of certain functions like fader and subwoofer settings may cause minor, yet often barely noticeable, changes in sound. Since a thorough examination and adjustment of signal levels is performed, the sound reproduction focuses on the central functionality of the vehicle speakers.

Which vehicle types are explicitly excluded from using the ASA Audi/VW ISO/10Pin ISO>ISO Adapter?

Vehicles with BOSE or Nokia DSP systems are excluded from using the ASA Audi/VW ISO/10Pin ISO>ISO Adapter. These sound systems have specific requirements and require separate solutions for integrating aftermarket radios. Models outside the specified production years and series are also excluded. These are audio and amplifier systems that do not easily harmonize with the given ISO connections and the architecture of the adapter, which is why other specific adaptations may be necessary.

How does the ASA Audi/VW ISO/10Pin ISO>ISO Adapter support signal adaptation?

The ASA Audi/VW ISO/10Pin ISO>ISO Adapter converts the output signals of the aftermarket radio into suitable input levels for the vehicle's internal OEM amplifier. Signal adaptation is achieved through the electronic translation of signal intensities, enabling full integration of the external radio. With precise signal processing, amplifier performance is maintained while preserving the sound characteristics of the original system as much as possible. The focus is on the consistency of audio signals to ensure system integrity and sound quality.

What should be considered before the final installation of the ASA Audi/VW ISO/10Pin ISO>ISO Adapter?

Before the final installation of the ASA Audi/VW ISO/10Pin ISO>ISO Adapter, it is essential to test its functionality in a temporary installation. The correct signal transmission between the aftermarket radio and the OEM amplifier should be checked. The focus is on monitoring the +12V Amp Remote line and its proper connection via the yellow/red ISO connector. A complete functionality check is crucial before securing all connectors to rule out faulty connections and ensure ongoing system performance.

Are there tips for placing the ASA Audi/VW ISO/10Pin ISO>ISO Adapter in the car?

The ASA Audi/VW ISO/10Pin ISO>ISO Adapter should be placed in a location within the vehicle that is easily accessible while also providing mechanical protection. Typically, the space behind the car radio is the most suitable place for installation, as this allows the connecting cables to be kept as short as possible. Proper cable management avoids mechanical stress on the connectors and protects against potential interference. The placement should also ensure that heat generation is minimal and that the adapter is protected from potential vibrations.
