  3. LFB Citroen ISO/Mini ISO
ACV LFB Citroen ISO/Mini ISO Steering Wheel Remote Control
SKU:  42SCT006
EAN:  4026724423341

LFB Citroen ISO/Mini ISO

SKU:  42SCT006
EAN:  4026724423341

Technical Highlights

  • Current requirement greater than 100 mA, load capacity of the total outputs 100 mA max.
  • Relay coil resistance 75 Ohm min., coil resistance 150 Ohm min.
  • Compatible with Citroen/Fiat, ISO CAN Bus/Mini ISO for LFB use.
  • More technical details
€99,00
€99,00 €99,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 29, - Jun 1,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €8,25 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

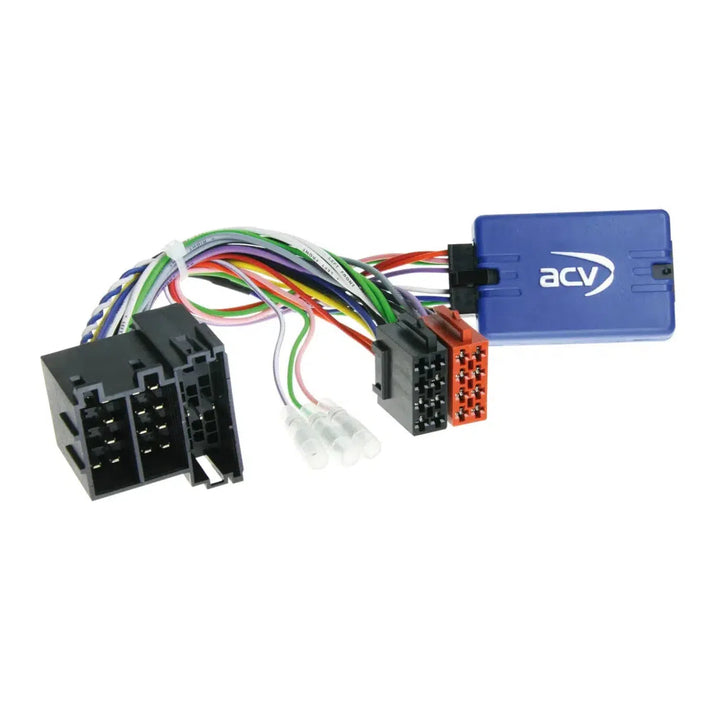

ACV-LFB Citroen ISO/Mini ISO-Lenkradfernbedienung-masori-kaufen
€99,00
€99,00 €99,00

LFB Citroen ISO/Mini ISO by ACV

ACV LFB Citroen ISO/Mini ISO is a Steering Wheel Remote Control with CAN Bus and analog connection. The connection is made via ISO and Mini ISO, with the analog LFB located in the Mini ISO Plug C2 at pins 10/11/12. Designed for vehicles with OEM devices and 8 Steering Wheel Remote Control buttons/functions. In vehicles with Blue&Me, the Silverbox module must remain installed. It provides +12V ignition terminal 15, +12V lighting terminal 58, +12V reverse signal, speed signal, and ground GND handbrake signal, with a total output capacity of 100 mA max. For current requirements greater than 100 mA, relays with a coil resistance of 75 Ohm min. for 1 relay or 150 Ohm min. for 2 relays are required. Suitable for Citroen Jumper (250) 10/2006 - 11/2011, Citroen Jumper (250) 11/2011 - 05/2014, Citroen Relay (250) 2006 - 2011, and Citroen Relay (250) 2011 - 2014. For vehicles with Delphi 2-DIN OEM device in piano black with central control knob, LFB Citroen/Fiat/Opel/Peugeot ISO CAN Bus/Mini ISO item 42sfa004 is specified.

Features
  • Steering Wheel Remote Control
  • Connection: ISO / Mini ISO
  • CAN Bus and analog
  • Vehicles with OEM device
  • Vehicles with 8 Steering Wheel Remote Control buttons/functions
  • Analog LFB in Mini ISO Plug C2 Pin 10/11/12
  • Vehicles with Blue&Me: Silverbox module must remain installed
  • Citroen Jumper (250) 10/2006 - 11/2011
  • Citroen Jumper (250) 11/2011 - 05/2014
  • Citroen Relay (250) 2006 - 2011
  • Citroen Relay (250) 2011 - 2014
  • Vehicles without Delphi 2-DIN OEM device piano black with central control knob
  • Vehicles with Delphi 2-DIN OEM device piano black with central control knob: LFB Citroen/Fiat/Opel/Peugeot ISO CAN Bus/Mini ISO item 42sfa004
  • Connection cable 42s/acv > Alpine jack: 42ctalpinelead
  • Connection cable 42s/acv > Parrot 4 Pin: 42ctasteroidlead
  • Connection cable 42s/acv > Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
  • Connection cable 42s/acv > Blaupunkt/China HU/Kenwood 3 cables: 42ctchinahulead
  • Connection cable 42s/acv > Clarion jack: 42ctclarionlead
  • Connection cable 42s/acv > JVC 1 cable/jack: 42ctjvclead
  • Connection cable 42s/acv > Kenwood 1 cable: 42ctkenwoodlead
  • Connection cable 42s/acv > Multilead various devices: 42ctmultilead
  • Connection cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead3
  • Connection cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead5
  • Connection cable 42s/acv > Panasonic 1 cable: 42ctpanasoniclead
  • Connection cable 42s/acv > Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
  • Connection cable 42s/acv > Pioneer AVH/DMH/SPH 2022> jack loose: 42ctpioneerlead2
  • Connection cable 42s/acv > Devices with LFB learning function: 42ctsmartlead
  • Connection cable 42s/acv > Blaupunkt/Kenwood/Sony jack: 42ctsonylead
  • Connection cable 42s/acv > XZent/Zenec 1 cable: 42ctzeneclead
  • Reimport vehicles or vehicles with different software may be incompatible in functions
Technical Data
  • Provided signal: Steering Wheel Remote Control
  • red: +12V ignition terminal 15
  • orange: +12V lighting terminal 58
  • purple/white: +12V reverse signal
  • pink: speed signal
  • green: ground GND handbrake signal
  • Total output capacity: 100 mA max.
  • Current requirement greater than 100 mA: 1 relay coil resistance 75 Ohm min.
  • Current requirement greater than 100 mA: 2 relays coil resistance 150 Ohm min.
  • Mini ISO Plug C2: Pin 10/11/12

Your benefits at Masori

ACV LFB Citroen ISO/Mini ISO Datasheet

Open datasheet

Frequently Asked Questions about LFB Citroen ISO/Mini ISO

How does the LFB Citroen ISO/Mini ISO Adapter work?

The LFB Citroen ISO/Mini ISO Adapter allows the steering wheel remote control functions to be retained in vehicles with CAN Bus and analog LFB using the Mini ISO Plug C2 pins 10/11/12. Integration is achieved through specific signal cables, including red for +12V ignition (terminal 15), orange for +12V lighting (terminal 58), purple/white for the reverse signal, and pink for the speed signal. The adapter supports a total output load of up to 100 mA, with the current demand potentially higher when different functions are activated in the vehicles. This ensures the continuity of the LFB in vehicle models such as the Citroen Jumper or Relay.

Which Citroen models is the LFB Citroen ISO/Mini ISO Adapter suitable for?

The LFB Citroen ISO/Mini ISO Adapter is compatible with Citroen Jumper (250) models from October 2006 to November 2011 and from November 2011 to May 2014, as well as with the Citroen Relay (250) in the same production years. This compatibility extends to vehicles equipped with OEM radios that utilize an analog steering wheel remote control via the Mini ISO Plug C2. In vehicles equipped with Delphi 2-DIN OEM devices, full functionality is maintained as long as the specific connection cables such as 42sfa004 are used. The adapter ensures the retention of steering wheel remote control functions despite possible software differences in individually imported vehicles.

What signals does the LFB Citroen ISO/Mini ISO Adapter support?

The LFB Citroen ISO/Mini ISO Adapter supports several important signals: the red cable for +12V ignition terminal 15, the orange cable for +12V lighting terminal 58, the purple/white cable for the reverse signal, and the pink cable for the speed signal. A connection to the handbrake signal is also integrated through the green GND cable. This allows for control functionality via the steering wheel remote control even when installing aftermarket radios. The ability to process all these signals ensures adaptable integration into the vehicle structure without compromising control capability.

What components are required for the installation of the LFB Citroen ISO/Mini ISO Adapter?

For the installation of the Steering Wheel Remote Control Citroen ISO/Mini ISO adapter, specific connection cables are required, such as the 42s/acv cable for various retrofit devices. Depending on the chosen radio manufacturer, different models of these cables are necessary, such as 42ctalpinelead for Alpine or 42ctkenwoodlead for Kenwood systems. The compatibility of these cables with the existing plugs in the vehicle must be checked to ensure the functionality of the Steering Wheel Remote Control. The installation should ideally be prepared after a thorough review of the vehicle's internal functions and guaranteed by matching with the technical specifications of the adapter.

Is the Steering Wheel Remote Control Citroen ISO/Mini ISO adapter compatible with all OEM devices?

The Steering Wheel Remote Control Citroen ISO/Mini ISO adapter is compatible with certain OEM devices, especially when no Delphi 2-DIN device is installed in the vehicle. For vehicles with a Delphi 2-DIN OEM device, vehicles without or with a piano black central control knob must be specifically considered. It is crucial to check before installation whether the original factory radio can be aligned with the adapter to ensure the full functionality of the Steering Wheel Remote Control. Any differences in re-imported vehicles should also be taken into account, as deviations in software and function may occur.

What cables are included with the Steering Wheel Remote Control Citroen ISO/Mini ISO adapter?

The Steering Wheel Remote Control Citroen ISO/Mini ISO adapter includes several specific connection cables for various radio manufacturers. These include, for example, the 42ctalpinelead for Alpine radios, the 42ctkenwoodlead for Kenwood devices, and the 42ctsonylead for Sony radios. Each of these cables is designed for specific connections and functions of the Steering Wheel Remote Control to ensure smooth integration. To adapt to different devices, multi-compatible cables such as the 42ctmultilead are also included, which can adjust to various interfaces to ensure compatibility with a wide range of radio manufacturers.

How is the installation of the Steering Wheel Remote Control Citroen ISO/Mini ISO adapter carried out?

The installation of the Steering Wheel Remote Control Citroen ISO/Mini ISO adapter requires precise matching of the ISO/Mini ISO plug profiles with the original connectors in the vehicle. The installation should only take place after checking the functionality of vehicle settings and Steering Wheel Remote Controls. It is important to use the connection cables according to the manufacturer's specifications, e.g., the 42s/acv Multilead connection for common radio manufacturers. Care must be taken regarding the correct voltage of the cables, especially for the signals for ignition, reverse signal, and speed. The installation is recommended in an environment that allows for checking the connections.

What technical conditions must be considered for the LFB Citroen ISO/Mini ISO adapter?

When operating the LFB Citroen ISO/Mini ISO adapter, all technical parameters, such as the maximum permissible output load of 100 mA, must be adhered to. Improper exceeding can lead to malfunctions. Integration in the vehicle requires an ISO or Mini ISO plug, with the corresponding analog LFB present in the Mini ISO plug C2 at pins 10/11/12. Vehicles with CAN Bus and specific signal lines, such as terminal 15 for ignition, are particularly suitable. Such technical precautions ensure proper functionality and full retention of control.

What should be considered when selecting an aftermarket radio for the LFB Citroen ISO/Mini ISO adapter?

When selecting an aftermarket radio for use with the LFB Citroen ISO/Mini ISO adapter, compatibility of the connection cables, such as the 42skalpinelead or 42ctkenwoodlead, must be ensured. Integration with vehicles that require CAN Bus support and specific analog LFB units, e.g., via Mini ISO plugs, should be the focus. Additionally, it is important to check the radio's software to ensure it supports control capability via the Steering Wheel Remote Control. It is also crucial that the aftermarket radio has the necessary signal processing parameters to not impair the effectiveness of the adapter.

Can the LFB Citroen ISO/Mini ISO adapter be used with imported vehicles?

The LFB Citroen ISO/Mini ISO adapter can also be used with imported vehicles; however, possible software deviations must be considered. Especially with re-imports, functional economy is not always guaranteed, as it is influenced by the specific technical specifications such as the existing plug configurations in the vehicle. It is advisable to check the OEM original performance of the installed factory radio beforehand and compare it with the adapter to ensure that all Steering Wheel Remote Control functions are retained. Additionally, attention should be paid to the signal data and full compatibility of the pre-programming.
