  3. LFB Audi/Seat/Skoda/VW 40Pin Quadlock
ACV LFB Audi/Seat/Skoda/VW 40Pin Quadlock Steering Wheel Remote Control
SKU:  42A-1324-001
EAN:  4026724672602

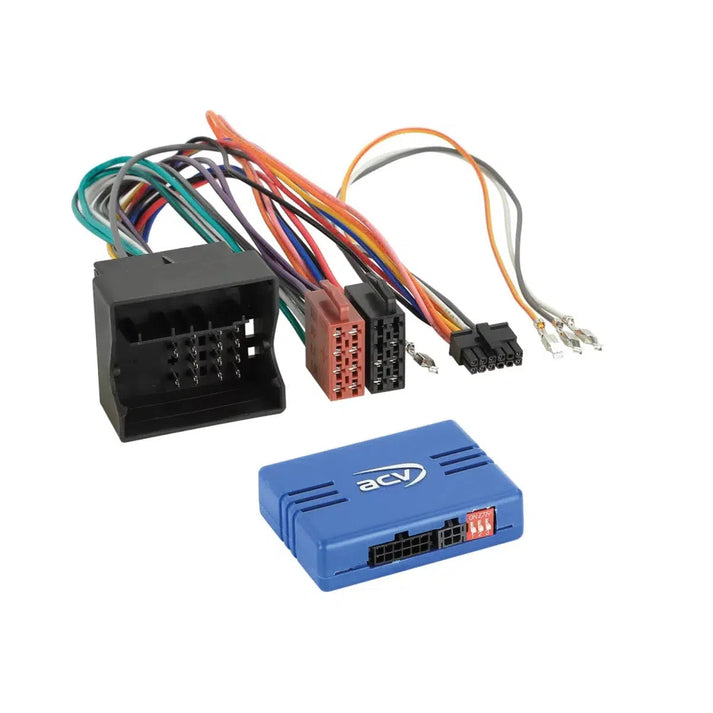

LFB Audi/Seat/Skoda/VW 40Pin Quadlock

SKU:  42A-1324-001
EAN:  4026724672602

Technical Highlights

  • CAN bus connector, 40 pin Quadlock VAG connector, suitable for Audi.
  • Supports various radio types, check dip switch position.
  • With 1.5A max. ignition supply, +12V lighting connection.
  • More technical details
€109,00
€109,00 €109,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 29, - Jun 1,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €9,08 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
ACV-LFB Audi/Seat/Skoda/VW 40Pin Quadlock-Lenkradfernbedienung-masori-kaufen
€109,00
€109,00 €109,00

LFB Audi/Seat/Skoda/VW 40Pin Quadlock by ACV

ACV LFB Audi/Seat/Skoda/VW 40Pin Quadlock is a Steering Wheel Remote Control with CAN Bus and 40 Pin Quadlock VAG connection. Compatible with numerous Audi, Seat, Skoda, and VW models according to the compatibility list. Provides ignition terminal 15 with +12 V and 1.5 A max., lighting terminal 58 with +12 V and 0.1 A max., reverse signal with +12 V and 1.5 A max., as well as a speed signal. Check dip switch setting for the retrofit device. For vehicles without 52 Pin Quadlock. For Audi without MMI system. For vehicles Audi and Seat Exeo with 2-DIN OEM device. Connection via 40 Pin Quadlock VAG Plug Article 42cx25. Connection cables for Alpine, Blaupunkt, Clarion, Digital Dynamics, ESX, JVC, Kenwood, Pioneer, Snooper, Sony, XZent, and Zenec available according to part numbers.

Features
  • Steering Wheel Remote Control
  • Manufacturer: ACV
  • CAN Bus
  • Connection: 40 Pin Quadlock VAG Plug, Article 42cx25
  • Vehicles without 52 Pin Quadlock
  • Vehicles Audi without MMI system
  • Vehicles Audi Seat Exeo with 2-DIN OEM device
  • Suitable for the following vehicles
    • Audi
      • Audi A1 (8X) 07/2010 - 04/2018*
      • Audi A3 (8P) 05/2003 - 04/2005***
      • Audi A3 (8P) 10/2004 - 04/2013***
      • Audi A4 B6 (8E) 11/2000 - 10/2005***
      • Audi A4 B7 (8E) 11/2004 - 02/2009***
      • Audi A5 (8T/8F) 06/2007 - 10/2011***
      • Audi A6 (C5/B4) 05/2001 - 03/2006***
      • Audi Q3 (8U) 10/2011 - 11/2014*
      • Audi Q3 (8U) 02/2015 - 06/2018***
      • Audi Q5 (8R) 09/2008 - 05/2012***
      • Audi Q5 (8R) 09/2012 - 01/2017***
      • Audi R8 (42) 04/2007 - 05/2015***
      • Audi TT (8J) 04/2006 - 04/2010***/*****
      • Audi TT (8J) 08/2010 - 03/2014***/*****
    • Seat
      • Seat Alhambra (7N) 10/2010 - 04/2015
      • Seat Altea (5P) 06/2004 - 03/2009
      • Seat Altea (5P) 04/2009 - 07/2015
      • Seat Exeo (3R) 03/2009 - 05/2013***
      • Seat Ibiza (6J) 06/2008 - 02/2012
      • Seat Ibiza (6J) 03/2012 - 06/2015
      • Seat Leon (1P) 09/2005 - 03/2009
      • Seat Leon (1P) 04-2009 - 11/2012
      • Seat Mii (AA) 12/2011 - 06/2019****
      • Seat Toledo (5P) 01/2005 - 10/2009
      • Seat Toledo (NH) 03/2013 - 05/2015
    • Skoda
      • Skoda Citigo (AA) 06/2012 - 05/2017****
      • Skoda Fabia (5J) 03/2007 - 04/2010
      • Skoda Fabia (5J) 06/2010 - 06/2014
      • Skoda Octavia (1Z) 06/2004 - 05/2009
      • Skoda Octavia (1Z) 01/2009 - 03/2013
      • Skoda Rapid (NH) 10/2012 - 04/2015
      • Skoda Roomster (5J) 09/2006 - 04/2010
      • Skoda Roomster (5J) 06/2010 - 02/2015
      • Skoda Superb (3T) 07/2008 - 05/2013
      • Skoda Superb (3T) 06/2013 - 05/2015
      • Skoda Yeti (5L) 08/2009 - 10/2013
    • VW
      • VW Amarok (2H) 07/2010 - 08/2016
      • VW Beetle (16) 11/2011 - 06/2016
      • VW Caddy III (2K) 10/2003 - 08/2010
      • VW Caddy III (2K) 09/2010 - 04/2015
      • VW Caddy IV (DU) 06/2015 - 09/2020******
      • VW Caravelle (7H) 10/2004 - 09/2009**
      • VW Caravelle (7H) 09/2009 - 05/2015**
      • VW CC (3C/35) 06/2008 - 11/2011
      • VW CC (3C/35) 02/2012 - 08/2016
      • VW Eos (1F) 05/2006 - 10/2010
      • VW Eos (1F) 10/2010 - 04/2015
      • VW Fox (5Z) 04/2005 - 06/2011
      • VW Golf V (1K) 11/2003 - 09/2008
      • VW Golf V (1KM) 06/2007 - 10/2009
      • VW Golf V Plus (1KP) 01/2005 - 02/2009
      • VW Golf VI (1K) 11/2008 - 09/2012
      • VW Golf VI (1KM) 11/2009 - 04/2013
      • VW Golf VI (1K) 06/2011 - 07/2016
      • VW Golf VI Plus (1KP) 03/2009 - 01/2014
      • VW Jetta III (1K5/1KM) 09/2005 - 10/2010
      • VW Jetta IV (162) 01/2011 - 08/2014
      • VW Passat B6 (3C2) 11/2005 - 07/2010
      • VW Passat B6 (3C5) 08/2005 - 07/2010
      • VW Passat B7 (3C/362) 11/2010 - 10/2014
      • VW Phaeton (3D) 05/2007 - 05/2010
      • VW Polo IV (9N) 03/2005 - 03/2009
      • VW Polo V (6R) 06/2009 - 01/2014
      • VW Scirocco III (13) 08/2008 - 04/2014
      • VW Sharan II (7N) 08/2010 - 04/2015
      • VW T5 Transporter (7H) 08/2003 - 09/2009**
      • VW T5 Transporter (7H) 09/2009 - 05/2015**
      • VW T6 (7HC) 07/2015 - 08/2019******
      • VW Tiguan I (5N) 10/2007 - 02/2011
      • VW Tiguan I (5N) 06/2011 - 04/2016
      • VW Touareg I (7L) 06/2003 - 11/2006**
      • VW Touareg I (7L) 11/2006 - 02/2010**
      • VW Touran (1T) 01/2003 - 09/2006
      • VW Touran (1T) 11/2006 - 04/2010
      • VW Touran (1T) 08/2010 - 04/2015
      • VW UP! (AA) 12/2011 - 06/2016****
Technical data
  • Check dip switch position for retrofit device
  • The following signals are provided
    • Reimport vehicles or vehicles with different software may be incompatible in functions
    • pink: +12 V ignition terminal 15, 1.5 A max.
    • orange: +12 V lighting terminal 58, 0.1 A max.
    • white: +12 V reverse signal, 1.5 A max.
    • yellow/green yellow/red: speed signal
    • gray: no function
    • Steering Wheel Remote Control
    • *Vehicles with Chorus OEM device with monochrome display
    • **Vehicles with OEM Sound System Item 13-1424-26
    • ***Vehicles with Chorus OEM device with monochrome display
    • ***Vehicles with OEM Sound System Item 13-1424-25
    • ****Vehicles without OEM Sound System
    • *****OEM Sound System CAN Activation
    • ******Vehicles with Composition Audio MIB Entry OEM device with Front AUX/SD/USB
  • Connection cable for the following radio manufacturers
    • Multilead various devices: 42arc100
    • Alpine 3.5 mm Jack Connection: 42arc101
    • Blaupunkt 2010 3.5 mm Jack Connection: 42arc107
    • Blaupunkt 2010 Key1 Key2 GND Connection: 42arc000
    • China HU Key1 Key2 GND Connection: 42arc000
    • Clarion 3.5 mm Jack Connection: 42arc104
    • Digital Dynamics Single Cable Connection: 42arc108
    • ESX Key1 Key2 connection: 42arc000
    • JVC 3.5 mm jack connection: 42arc104
    • JVC single cable connection: 42arc105
    • Kenwood single cable connection: 42arc105
    • Kenwood 2017 3.5 mm jack connection: 42arc107
    • Kenwood 2020 Key1 Key2 GND connection: 42arc000
    • Pioneer 3.5 mm jack connection: 42arc107
    • Pioneer AVH DMH SPH 3.5 mm jack connection: 42arc1072
    • Snooper Key1 Key2 connection: 42arc000
    • Sony 3.5 mm jack connection: 42arc107
    • XZent single cable connection: 42arc108
    • Zenec single cable connection: 42arc108
  • General installation instructions
    • Connection and connection order
      • Make settings and configuration of the interface without voltage
      • Check configuration of the radio connection cable
      • Make connection of the radio connection cable according to the operating manual of the retrofit device
      • Make connections of all other connections according to the operating manual of the retrofit device
      • Connection of the entire installation to the vehicle with live connection last
      • Configuration of the retrofit device according to the operating manual of the retrofit device Steering Wheel Remote Control Camera FSE Antenna Phantom Power Supply and more
    • Changes to the configuration of the interface and the radio connection cable
      • Make modifications without voltage
      • Connection after modification see above 5 and 6
    • Connections, connection changes, alternative connections, connections of loose cables, or connection extensions of loose cables specified in the note text or the operating manual are for orientation and information for trained professionals only
    • Connections, changes to the wiring configuration of the wiring harness, or use of alternative connections or connection extensions
      • Connections and modifications are to be carried out exclusively by trained professionals
      • Connections and modifications must be checked for any manufacturer approvals or any manufacturer Warranty conditions that may be affected by the modifications before connection
      • Connections and modifications must be checked for functionality and correctness before connection by measuring and comparing with the vehicle's wiring diagram
      • Connections and modifications are made at your own risk without Warranty for functionality
      • Connections and modifications are made at your own risk without Warranty for damages to the vehicle, the retrofit device, or the interface
      • Changes to the pre-assembled wiring harness may void the product's Warranty

Your benefits at Masori

ACV LFB Audi/Seat/Skoda/VW 40Pin Quadlock Datasheet

Open datasheet

Frequently Asked Questions about LFB Audi/Seat/Skoda/VW 40Pin Quadlock

What does the 40 Pin Quadlock VAG Plug mean for the Steering Wheel Remote Control Audi/Seat/Skoda/VW 40Pin Quadlock?

The 40 Pin Quadlock VAG Plug is a specific connector designed for the integration of aftermarket radios in vehicles from the brands Audi, Seat, Skoda, and VW. This type of plug allows for the retention of Steering Wheel Remote Control functions and is compatible with a wide range of OEM devices without an MMI system. The Quadlock connects important control signals to the aftermarket radio, ensuring the integration of factory functions. It is important to compare the plug shape and functionality of your vehicle with the Quadlock before proceeding with the installation to ensure compatibility.

What signals are transmitted by the Steering Wheel Remote Control Audi/Seat/Skoda/VW 40Pin Quadlock?

The Steering Wheel Remote Control Audi/Seat/Skoda/VW 40Pin Quadlock transmits several important signals that may be necessary for the functionality of an aftermarket radio. These include the +12V ignition signal (pink, 1.5A max.), the +12V lighting signal (orange, 0.1A max.), the +12V reverse signal (white, 1.5A max.), and the speed signal (yellow/green, yellow/red). These signals support various functions of the radio, such as activation with ignition, adjusting the lighting based on vehicle status, and integrating the rearview camera display. Additionally, individual functions may be tailored to the vehicle's software.

Is the Steering Wheel Remote Control Audi/Seat/Skoda/VW 40Pin Quadlock suitable for my vehicle model?

The Steering Wheel Remote Control Audi/Seat/Skoda/VW 40Pin Quadlock is compatible with a variety of vehicle models. Supported models include Audi A1, A3, A4, A5, A6, Q3, Q5, R8, and TT, Seat models like Alhambra, Altea, Exeo, Ibiza, and Leon, as well as Skoda models like Citigo, Fabia, Octavia, Rapid, and Superb. Various VW models such as Amarok, Beetle, Caddy, Golf, Jetta, and Passat are also covered. It is important to compare the specific model year range of your vehicle with the specified years to ensure compatibility.

Can I still use the Steering Wheel Remote Control with the Steering Wheel Remote Control Audi/Seat/Skoda/VW 40Pin Quadlock?

Yes, the Steering Wheel Remote Control Audi/Seat/Skoda/VW 40Pin Quadlock has been specifically designed to ensure that the steering wheel remote control functions remain operational in many vehicles, even when an aftermarket radio is installed. It is important to consider both the vehicle's equipment and the functionality of the aftermarket radio. It may happen that for certain configurations, functional changes are necessary or the layout of the control buttons may change slightly. Therefore, the functionality of the steering wheel remote control should be thoroughly checked before final assembly.

How do I install the Steering Wheel Remote Control Audi/Seat/Skoda/VW 40Pin Quadlock in my car?

The installation of the Steering Wheel Remote Control Audi/Seat/Skoda/VW 40Pin Quadlock should be done carefully and according to the instructions. First, all relevant cables must be configured without voltage, especially the radio connection cable. The device manual for the aftermarket radio also provides precise instructions on the correct connection sequence. It is important that all connections, including the steering wheel remote control, are connected to the power source at the end. Changes to the configuration should always be made without voltage, and the subsequent commissioning takes place after successful configuration of the devices according to the manufacturer's specifications.

Which radio manufacturers are compatible with the Steering Wheel Remote Control Audi/Seat/Skoda/VW 40Pin Quadlock?

The Steering Wheel Remote Control Audi/Seat/Skoda/VW 40Pin Quadlock is compatible with a variety of aftermarket radios from different manufacturers. This includes Alpine with a 3.5 mm jack connection, Blaupunkt, Clarion, JVC, Kenwood, Pioneer, Sony, as well as brands like ESX, XZent, Zenec, and Digital Dynamics. The compatibility of the connections varies depending on the radio model, so the specifications or guidelines of the respective radio should be checked to ensure that the connections can be correctly made. Various connection configurations are possible to optimize integration.

Which vehicles require specific special configurations for the Steering Wheel Remote Control Audi/Seat/Skoda/VW 40Pin Quadlock?

Some vehicles that are compatible with the Steering Wheel Remote Control Audi/Seat/Skoda/VW 40Pin Quadlock may require special configuration steps. This includes re-import vehicles or models with different software, where certain functions may not work as expected. It is crucial to check the vehicle software and make adjustments to the dip switches if necessary. Vehicles with OEM sound systems or without such systems may also require special configurations to seamlessly integrate all functions. These specific requirements should be evaluated before installation.

What are the main technical features of the LFB Audi/Seat/Skoda/VW 40Pin Quadlock?

The LFB Audi/Seat/Skoda/VW 40Pin Quadlock has several technical characteristics that set it apart from other products. It offers a 40 Pin Quadlock Plug for VAG vehicles and supports the integration of various signals such as ignition, lighting, reverse signal, and speed signal. It is compatible with several Audi, Seat, Skoda, and VW models. The Steering Wheel Remote Control is still supported upon installation with compatible devices. Additionally, it can connect with multiple radio brands, allowing for versatile usability. Before installation, compatibility and signal transmission should be checked.

Are adjustments to vehicle functions necessary with the LFB Audi/Seat/Skoda/VW 40Pin Quadlock?

Yes, during the installation of the LFB Audi/Seat/Skoda/VW 40Pin Quadlock, adjustments to vehicle functions may be required. Depending on the vehicle type and the software of the aftermarket radio, changes to the Steering Wheel Remote Control or other control functions may be necessary. This may include adjusting the dip switches on the aftermarket radio to ensure compatibility with the vehicle hardware. Modern vehicles and their electronic systems introduce variability in integration, which must be balanced through correct wiring and configuration. A thorough check of product and vehicle compatibility is essential.

What role does the software play in the installation of the LFB Audi/Seat/Skoda/VW 40Pin Quadlock?

The software of the vehicle as well as the aftermarket radio plays a crucial role in the successful installation of the LFB Audi/Seat/Skoda/VW 40Pin Quadlock. Differences or incompatibilities in the software can result in not all functions of the Steering Wheel Remote Control being fully utilized. It is necessary to check the software versions and, if needed, perform updates or adjustments to ensure smooth functionality. For older vehicles or specific models, it may also be advisable to consider the specific OEM configuration to carry out the installation correctly.
