3. 6.5" (16.5cm) speaker set
  5. Steg
  7. Masterstroke MSS-Set

Steg Masterstroke MSS-Set

6.5" (16.5cm) speaker set

1.399,00€
1.399,00€ 1.399,00€
inkl. MwSt. , possibly plus shipping
  • 165mm, power 200W RMS, impedance 4Ohm, neodymium magnet, 6.5" diaphragm.
  • 100mm, power 70W RMS, impedance 4Ohm, neodymium magnet, 4" membrane.
  • 25mm tweeter, power 30W RMS, impedance 4Ohm, fabric/graphene.
  • Mehr technische Details
x set

Saving options

Klarna Zahle in 3 zinsfreien Raten von 466,33€ mit Klarna. Mehr Klarna
Paypal Schnelle Zahlung mit PayPal – inklusive Käuferschutz.
Nur 1.329,05€ mit  5% Skonto bei Vorkasse.
Bezahle sicher mit VISA, Mastercard oder Amex – ohne Umleitung.

Seen cheaper?We are moving along - report price now!

Discount desired? Secure your personal offer now!

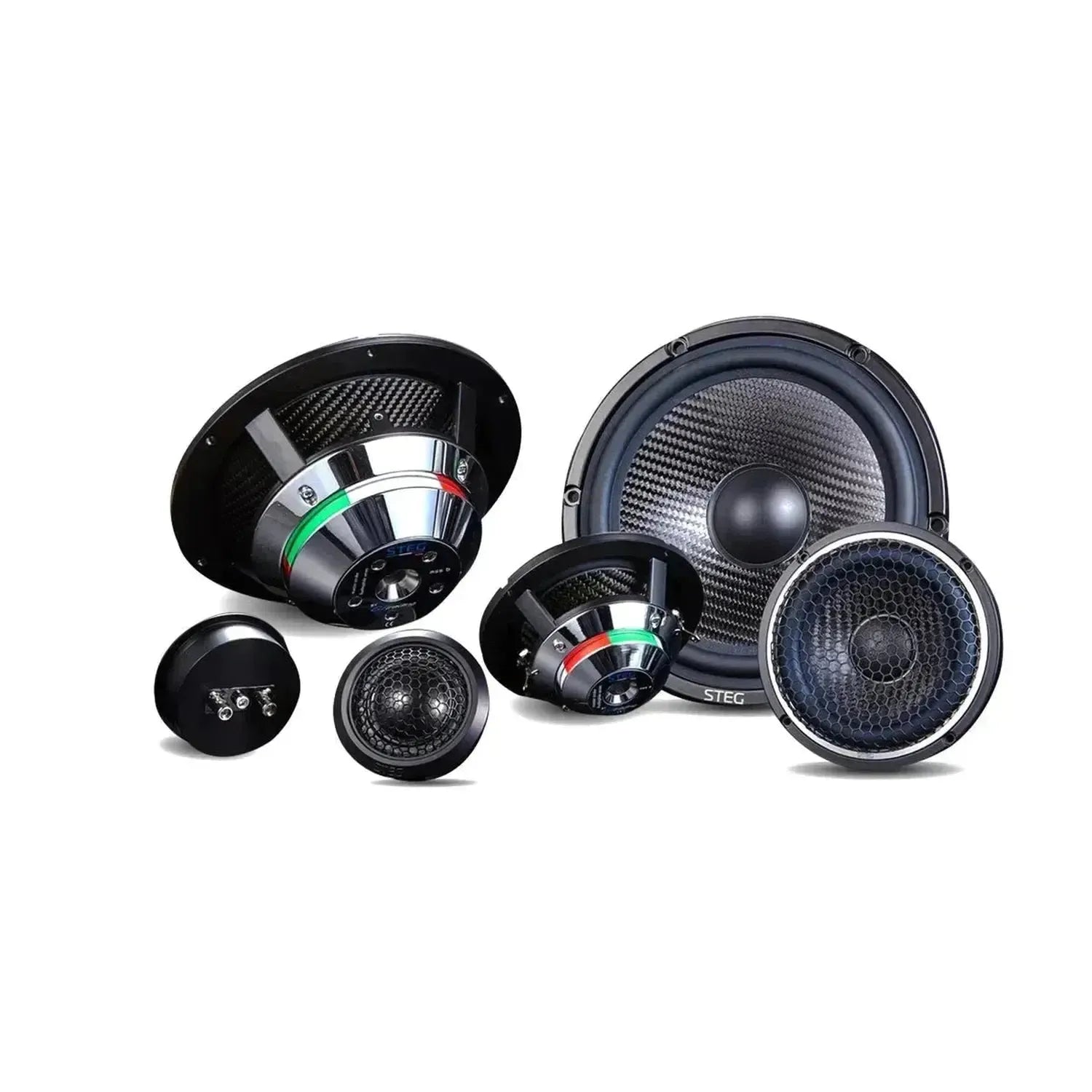

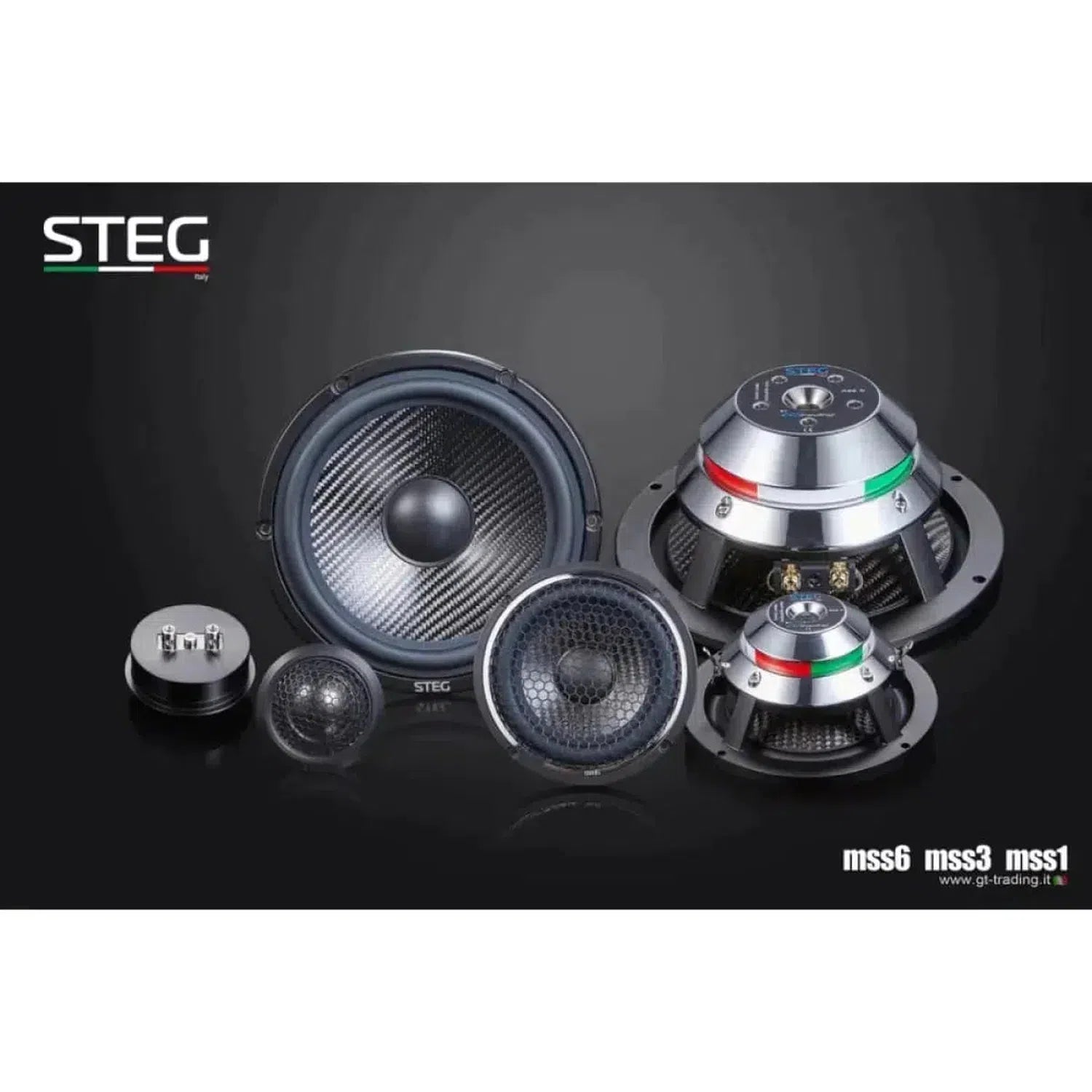

Masterstroke MSS-Set 6.5" (16.5cm) speaker set von Steg

The Masterstroke MSS set from Steg takes your audio experience to a new level. It is a high-quality 3-way 165 mm speaker system. The delivery includes, among other things, two 25mm MSS1 fabric tweeters and two MSS3 100mm (4") midrange speakers. Additionally, the set includes two MSS6 165mm (6.5") woofers. All components impress with high performance, robust construction, and excellent acoustic properties, which is reflected in an impressive sound quality.

features

  • High End 3-Way 165 mm Speaker System consisting of
    • 2 pcs. 25mm MSS1 fabric tweeter
      • 25mm tweeter with fabric/graphene membrane
      • Power 30W RMS
      • Neodymium magnet
      • Impedance 4Ohm
      • Incl. hexagonal grid (glued)
    • 2 pcs. MSS3 100mm (4") midrange driver
      • 4" midrange driver with carbon fiber membrane
      • Power 70W RMS
      • Aluminum casting basket
      • Polkern drilled
      • Neodymium magnet
      • fs=97Hz
      • Qms=6.08
      • Qts=0.65
      • VAS=2.04L
      • Impedance 4Ohm
      • SD=50cm²
      • OutsideD: 110mm
      • ET: 44mm
      • InstallationD: 92.2mm
      • LK: 105mm
      • Incl. hexagonal grid (glued)
    • 2 pcs. MSS6 165mm (6.5") mid-bass drivers
      • 6.5" midrange driver with carbon fiber membrane
      • Power 200W RMS
      • Aluminum casting basket
      • Polkern drilled
      • Neodymium magnet
      • fs=68Hz
      • Qts=0.81
      • VAS=14.5L
      • Impedance 4Ohm
      • SD=138.9cm²
      • OutsideD: 168mm
      • ET: 62.3mm
      • InstallationD: 141mm
      • LK: 6 x 158mm

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Welche Komponenten enthält das Masterstroke MSS-Set von Steg?

The Masterstroke MSS set includes a 3-way speaker system with two 25mm MSS1 fabric tweeters, two 100mm (4") MSS3 midrange drivers, and two 165mm (6.5") MSS6 woofers. The tweeters feature a fabric/graphene diaphragm with a power rating of 30W RMS and use a neodymium magnet. The midrange drivers have a carbon fiber diaphragm, deliver 70W RMS, and are equipped with an aluminum die-cast basket. The woofers also offer a carbon fiber diaphragm with a power rating of 200W RMS, also in an aluminum die-cast basket. Packaged in hexagonal grids, the Masterstroke MSS set from Steg provides a robust and powerful sound experience.

Welche technische Performance liefern die 25mm MSS1 Hochtöner im Masterstroke MSS-Set?

The 25mm MSS1 tweeters of the Masterstroke MSS set from Steg are characterized by their fabric/graphene membrane, which provides excellent acoustic properties. These tweeters have a power rating of 30W RMS and use neodymium magnets, allowing for a compact design with high magnetic performance. They have an impedance of 4 Ohms, ensuring compatibility with common amplifiers. The high-frequency reproduction of these speakers is remarkable, making them ideal for complex and dynamic music styles. Additionally, they feature a hexagonal grille that contributes to protection and is aesthetically pleasing.

Wie wirkt sich die Verwendung von Kohlefaser auf die MSS3 Mitteltöner aus?

The carbon fiber membrane of the MSS3 midrange drivers in the Masterstroke MSS set by Steg delivers an excellent balance between stiffness and weight, resulting in remarkable sound quality. With a power rating of 70W RMS and a drilled pole core in the aluminum die-cast basket, they offer outstanding heat management properties. Carbon fiber allows for low distortion and fast response, ideal for mid-frequency ranges. The midrange drivers have Thiele/Small parameters such as fs=97Hz, Qms=6.08, Qts=0.65, with VAS=2.04L and SD=50cm² being important specifications. This design choice emphasizes precision and clarity in the midrange sound.

Welche Rolle spielt der Aluminium-Gusskorb bei den Tiefmitteltönern MSS6?

The aluminum die-cast basket of the MSS6 165mm mid-bass driver in the Masterstroke MSS set from Steg features a stable and resonance-free structural design. The use of aluminum ensures excellent heat dissipation, reducing distortion caused by heat. These 6.5-inch woofers provide 200W RMS power and utilize carbon fiber membranes, which, in conjunction with the aluminum die-cast basket, produce clear and powerful bass reproduction without generating unwanted self-resonances. Technical parameters such as fs=68Hz and Qts=0.81 as well as VAS=14.5L and SD=138.9cm² characterize the precision and performance strength of this design.

Wie sind die Einbaumaße der Mitteltöner im Masterstroke MSS-Set gestaltet?

The 100mm (4") MSS3 midrange speakers in the Masterstroke MSS set from Steg have been designed with specific installation dimensions to ensure maximum compatibility when installed in various vehicles. The outer diameter is 110mm, while the installation depth is 44mm. The cutout size is set at 92.2mm, and the screw hole spacing is 105mm. These dimensions allow for relatively flexible adaptation to the intended vehicle structure. For optimal performance and sound quality, installation should take place in acoustically suitable enclosures or locations that support resonance-free sound reproduction.

Welche spezifische Funktion erfüllt die Gewebe/Graphene Membran der Hochtöner?

The fabric/graphene membrane of the 25mm tweeter in the Masterstroke MSS set by Steg is specifically optimized for outstanding sound reproduction. The fabric provides a fine structure that enables detailed high frequencies, while graphene reinforces the membrane and increases its stiffness without adding extra weight. This combination results in precise sound images and minimal distortion at high frequencies, which is important for clear and detailed sound. The structure also allows for uniform vibration, which helps create a clean and precise soundscape, ideal for music lovers with high demands on audio performance.

Wie werden die Neodymmagnete in den Lautsprechern des Masterstroke MSS-Set verwendet?

In the Masterstroke MSS set from Steg, neodymium magnets are used in all types of speakers to ensure high magnetic strength while maintaining a compact design. This provides efficient drive for the membranes, which is an essential component for high sound quality and performance. Neodymium is particularly popular due to its strong magnetic properties and small size, as it minimizes the overall mass of the speaker system without sacrificing performance. This allows for easier integration into compact mounting frames and helps improve the overall acoustics of the system through faster and more accurate membrane movement.

Worauf sollte bei der Montage der Tiefmitteltöner im Masterstroke MSS-Set geachtet werden?

When installing the 165mm (6.5") MSS6 mid-bass drivers in the Masterstroke MSS set from Steg, it is crucial to observe the specified installation parameters. With an outer diameter of 168mm and a mounting depth of 62.3mm, these speakers should be placed in acoustically suitable surfaces to avoid resonances. The cutout is designed for 141mm, and the bolt circle size is specified as 6 x 158mm. Careful planning during placement can significantly improve sound quality by avoiding unwanted cabinet vibrations, thus ensuring clean bass reproduction.

Warum ist die Impedanz von 4 Ohm wichtig für das Masterstroke MSS-Set?

The impedance of 4 ohms in the speakers of the Masterstroke MSS set by Steg is crucial for compatibility with a variety of audio amplifiers. A lower impedance means that the speaker can be driven more easily by an amplifier, which, however, also depends on the performance of the amplifiers. At 4 ohms, the set works efficiently with most common car audio systems, as these are typically designed for this impedance. This maximizes volume and sound quality with minimal power loss, which is particularly useful for powerful and detailed music playback in a mobile audio environment.

Wie tragen die Thiele Small Parameter zu den Eigenschaften der Mitteltöner bei?

The Thiele Small parameters of the 100mm (4") MSS3 midrange driver in the Masterstroke MSS set from Steg, such as fs=97Hz, Qms=6.08, Qts=0.65, and VAS=2.04L, are essential technical features that describe the electromechanical properties of the speaker. They help in understanding how the speaker sounds in both closed and open enclosures, influence the resonance behavior, bass reproduction, and overall dynamics. A correct understanding and application of these parameters allows for optimal use of the midrange drivers in various acoustic environments, achieving the perfect balance between precision and volume, thereby contributing to the outstanding sound quality of the system.
