Heavy Duty 6-Spot XL2 ANL

fuse holder

209,00€
209,00€ 209,00€
incl. VAT , possibly plus shipping

Stock options

Zahle in 3 zinsfreien Raten von 69,66€ mit Klarna. Mehr erfahren

Highlights

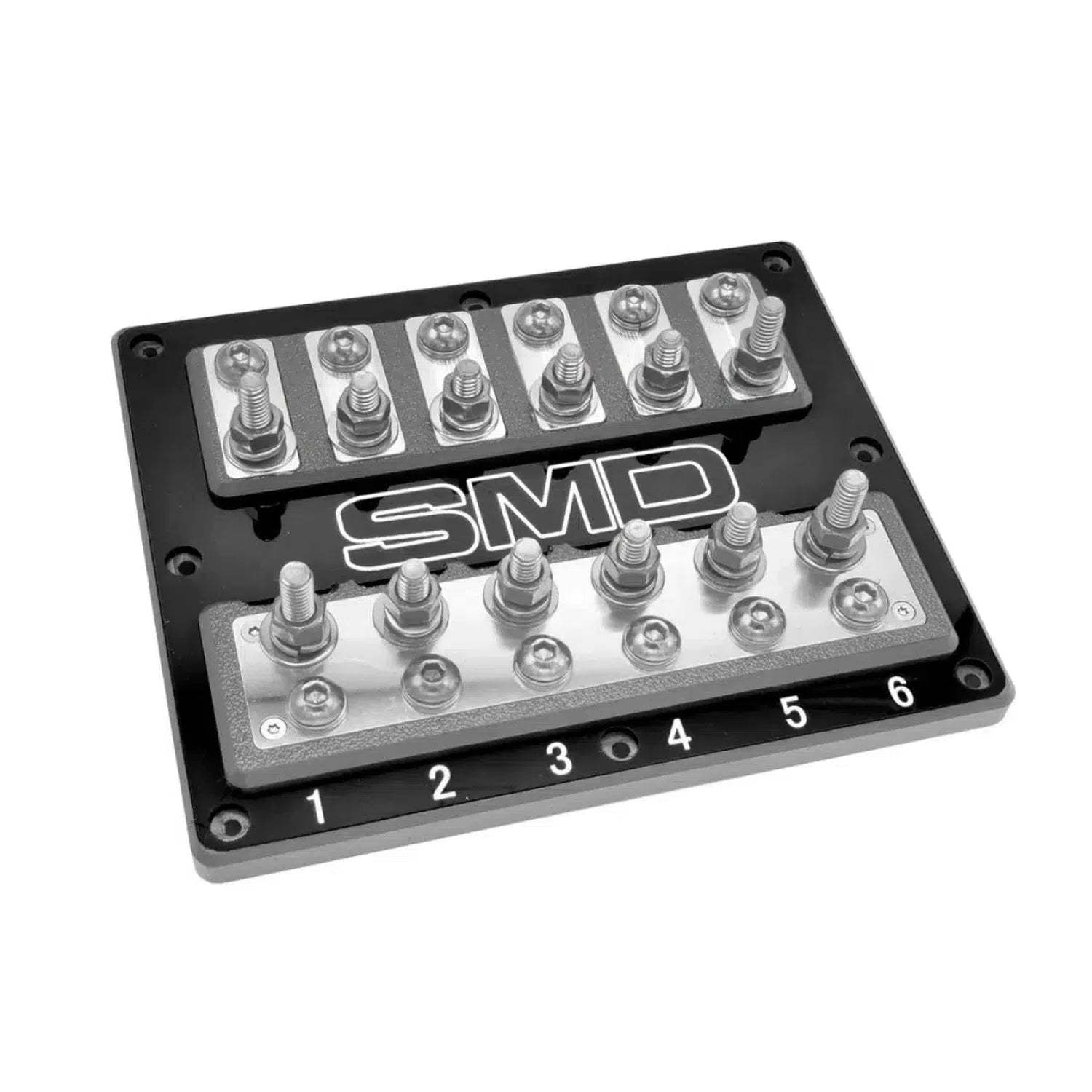

  • CNC machined, aluminum connectors, sealed against corrosion.
  • Supports 6 ANL fuses, maximum fuse value 300 A.
  • Suitable for high temperature environments, installation in the engine compartment.
Seen more cheaply Personal Offer
brand: SMD
Delivery time:
Available, in 2-5 days with you
Number:
Piece
Expert Image

Rob

Expert Image

Max

E-Mail Beratung von Experten

Werktags innerhalb von 24h

info@masori.de

SMD-Heavy Duty 6-Spot XL2 ANL-Sicherungshalter-masori-kaufen
209,00€
209,00€ 209,00€

properties

  • Protect your vehicle with this product from the dreaded "Car-B-Q". Whether you have a high-end aftermarket sound system or other accessories like lighting, winches, air pumps, etc., it is important to install a fuse as close to the battery as possible to protect yourself from fire and catastrophic damage due to a short circuit.

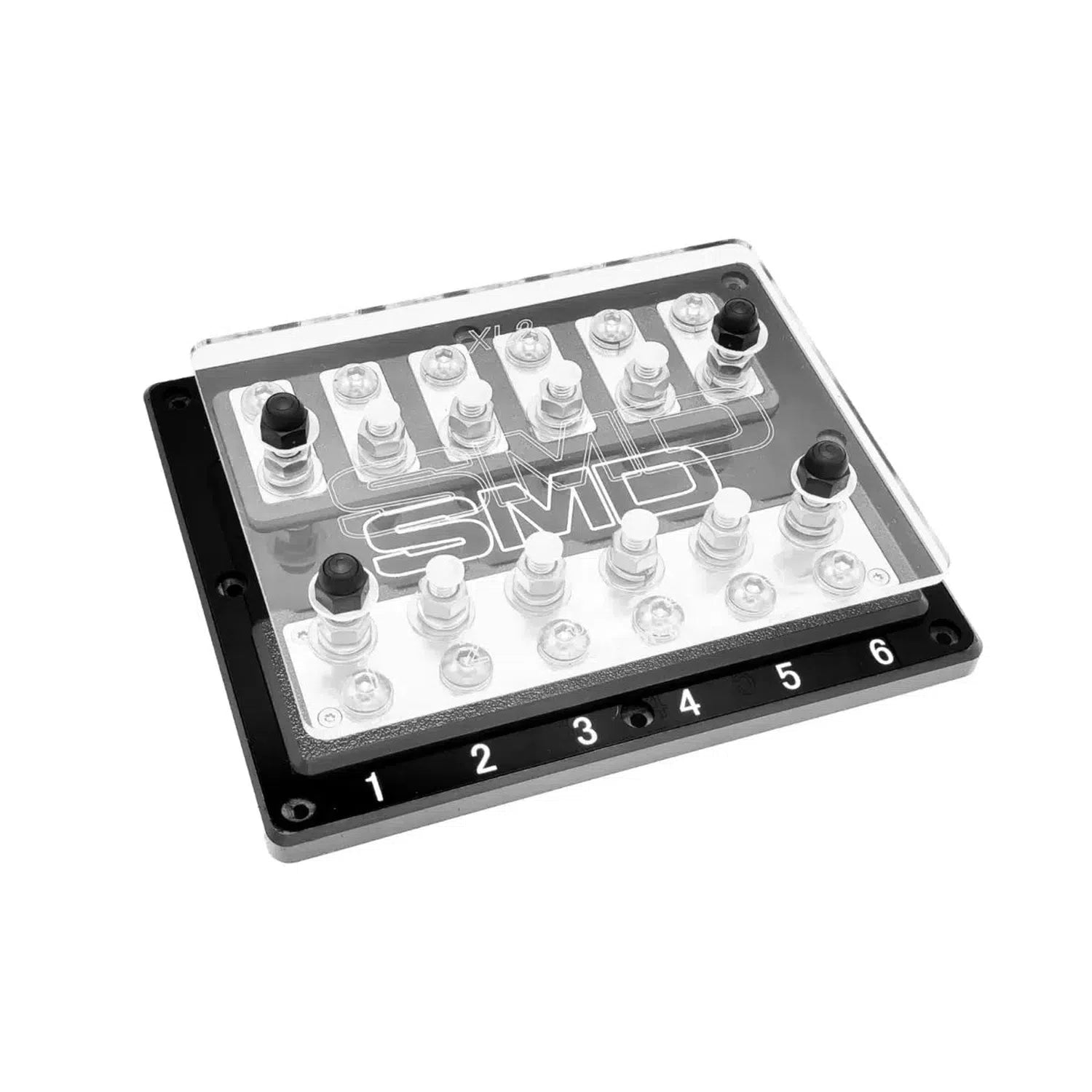

  • This industrial-grade ANL fuse holder is 100% manufactured in the USA at the SMD headquarters and looks as good as it functions. It is machined from HDPE, uses metals like aluminum, stainless steel, and copper, and is topped off with a 3/16-inch clear acrylic cover. (to protect against accidental contact with live terminals.)
  • This device has been designed to withstand the elements and function for many years wherever you want to install it! Since it is our high-temperature model, it is recommended to mount it under the hood (in the engine compartment). However, you can also mount it in the cabin or in the trunk. These parts are also suitable for use in marine applications, as they do not corrode!
  • *Recommended installation location within 18" of the power source (e.g., front battery, alternator, or an auxiliary battery)

Technical Data

  • CNC-milled fuse holder
  • For the connection of 6 power cables
  • Aluminum connections
  • Sealed against corrosion
  • For 6 ANL fuses!
  • Proudly made in California, USA

Recommended Security Values

cable cross-section optimal
collateral value		 maximal
collateral value
1.5 mm² 10 A 15 A
2.5 mm² 20 A 25 A
4.0 mm² 25 A 30 A
6.0 mm² 35 A 40 A
10 mm² 50 A 60 A
16 mm² 70 A 80 A
20 mm² 90 A 100 A
25 mm² 100 A 125 A
35 mm² 125 A 150 A
50 mm² 160 A 200 A
70 mm² 200 A 250 A
95 mm² 250 A 300 A
The Heavy Duty 6-Spot XL2 ANL fuse holder from SMD is designed to accommodate six ANL fuses. This configuration allows for the connection of up to six power cables, ensuring optimal distribution and protection of the power supply for demanding equipment in your vehicle. Choosing the appropriate fuse rating is crucial for ensuring power supply and protecting electrical components from short circuits or overloads. Selecting fuses based on cable cross-section ensures that your system operates optimally and remains protected.
The Heavy Duty 6-Spot XL2 ANL fuse holder is made from a high-quality material mix that ensures durability and functionality. The housing is machined from high-density polyethylene (HDPE), making it particularly robust. Additionally, it features terminals made of aluminum, stainless steel, and copper, which provide excellent conductivity and corrosion resistance. A 3/16-inch clear acrylic cover protects against accidental contact with live parts. This combination of materials makes the fuse holder ideal for use in harsh conditions, including its application in marine environments, where corrosion protection is essential.
The Heavy Duty 6-Spot XL2 ANL fuse holder from SMD is designed for use under high temperatures, which is why installation under the hood is recommended. Placing it close to the power source, such as the battery or alternator, minimizes the length of unsecured cable sections and reduces the risk of short circuits. This proximity maximizes the effectiveness of short circuit protection. Despite this recommendation, the product offers flexibility. It can also be mounted in the vehicle cabin or trunk, depending on individual requirements and space conditions.
The fuse holder of the Heavy Duty 6-Spot XL2 ANL from SMD supports a wide range of cable cross-sections, from 1.5 mm² to 95 mm². This allows for flexible application in various vehicles and installations. For each cable cross-section, there are optimal and maximum fuse values that vary between 10 A and 300 A, depending on the cable thickness. This information is essential to ensure that the fuses are correctly sized to quickly blow in case of overcurrent, thus preventing electrical damage or even fire.
The corrosion resistance of the Heavy Duty 6-Spot XL2 ANL fuse holder is achieved through the use of high-quality materials. Aluminum, stainless steel, and copper as contact materials provide high resistance to corrosive influences, enabling use in marine environments. Additionally, the HDPE housing ensures a stable and durable structure that does not rust. The acrylic cover protects against weather influences and physical damage to the contacts. This combination of features makes the product ideal for use in challenging environments.
The CNC-milled production of the Heavy Duty 6-Spot XL2 ANL fuse holder ensures the highest precision and quality of the components. The CNC process produces the HDPE housing with high accuracy, resulting in optimal fit tolerances of the parts. This manufacturing method reduces tolerances and allows for consistent reproducibility, ensuring the reliability of each individual product. CNC manufacturing also contributes to the product having an aesthetically pleasing surface that looks as good as it functions, which is particularly important for visible installations.
The Heavy Duty 6-Spot XL2 ANL fuse holder from SMD is extremely flexible and suitable for use in a variety of environments. Its corrosion-resistant construction makes it ideal for marine applications. At the same time, it is robust enough to withstand the harsh conditions in a vehicle's engine compartment, where temperatures and humidity can vary. The versatility in installation positioning - whether under the hood, in the interior, or in the trunk - allows for its use in different types and models of vehicles without compromising performance.
The 3/16-inch transparent acrylic cover of the Heavy Duty 6-Spot XL2 ANL fuse holder offers several advantages. It allows for visual inspection of the fuses without removing the cover, making maintenance and inspection easier. The clear acrylic protection prevents accidental contact with live terminals, thereby minimizing safety risks. Additionally, the use of acrylic provides a robust and resilient barrier against external influences. This combination of functionality and protection makes the acrylic cover an important feature for everyday use.
The use of aluminum in the connections of the Heavy Duty 6-Spot XL2 ANL fuse holder optimizes the weight and conductivity of the product. Aluminum is known for its good electrical conductivity, ensuring that the electric current is effectively conducted through the fuse holder. This choice of metal also contributes to corrosion resistance, a crucial factor for durability in humid or saline environments. Additionally, aluminum offers an excellent balance between strength and lightness, making the overall construction of the fuse holder robust yet manageable.
The high temperature resistance of the Heavy Duty 6-Spot XL2 ANL fuse holder results from the choice of materials and construction method. The housing made of high-density polyethylene (HDPE) is resistant to temperature influences, while aluminum components help to dissipate heat quickly. This property allows for the installation of the fuse holder in engine environments with high temperature fluctuations. The design consideration to make all components suitable for operation under extreme conditions ensures that the fuse holder functions reliably even at high ambient temperatures and minimizes the risk of thermal failure.

Cool Network
Kishan Loilargosain
Koninginnestraat 77
2515 Hospital The Hague
Netherlands

Contact: info@coolnetwerk.nl

Product Specifications

Manufacturer

SMD

Product type

Fuse holder

Features

  • Highlights

    • CNC machined, aluminum connectors, sealed against corrosion.
    • Supports 6 ANL fuses, maximum fuse value 300 A.
    • Suitable for high temperature environments, installation in the engine compartment.

  • Uvp

    205

weight

0.5 kg

configurators

Recently viewed products

Masori-Komplettanlage Car HiFi mit DSP-Einbauservice-masori-kaufen
Masori-Akustikdämmung & Hitzeisolierung Dachhimmel-Einbauservice-masori-kaufen

Have it installed directly!

  • Individual products or entire systems
  • Insulation of doors and more
  • Calibration and system settings, as well as troubleshooting
  • And much more in our installation service in Frankfurt (Oder)
Learn more!

Your advantages with Masori

Buy the Heavy Duty 6-Spot XL2 ANL Fuse Holder from SMD with the Masori Lowest Price Guarantee

The SMD Heavy Duty 6-Spot XL2 ANL Fuse Holder offers everything you need to protect your vehicle. Featuring an innovative 3/16-inch acrylic cover, this industrial ANL fuse holder prevents accidental short circuits—an absolute must for demanding aftermarket sound systems and accessories like lights or winches. Manufactured from HDPE at SMD's headquarters in the USA, this holder meets the highest quality standards and offers significant safety. The unique aluminum terminals are corrosion-resistant, ideal for marine applications or harsh environments. Benefit from the lowest price guarantee at masori.de. Buy online now and secure a high-quality product for the best possible installation of your vehicle's electronics.

High performance and construction of the SMD Heavy Duty 6-Spot XL2 ANL

The fuse holder is fully CNC-machined, ensuring a precise fit in the vehicle. The use of robust materials such as aluminum, stainless steel, and copper makes it extremely durable and resistant to various environmental influences. The aluminum terminals are designed to accommodate six power cables, allowing for versatility. The material ensures high resistance to corrosion, which is particularly advantageous in marine environments. These properties make it an ideal choice for all types of vehicle modifications, especially in demanding applications.

Recommended installation locations and integration in the vehicle

This fuse holder is ideal for installation under the hood, but also in the cabin or trunk. The recommended maximum proximity of 18 inches to the power source ensures optimal protection against short circuits. The flexible installation location allows for adaptation to individual needs, whether indoors or outdoors. Thanks to its robust construction and high-temperature resistance, it withstands even extreme conditions and offers reliable protection.

Copper and stainless steel: Durable materials for maximum longevity

The SMD fuse holder features copper and stainless steel, which provide excellent conductivity and also ensure durability and reliability. These materials are corrosion-resistant and robust, ensuring the holder will perform optimally for years to come. These materials are particularly valuable in vehicles regularly exposed to extreme conditions. Lower quality materials could significantly impact service life and efficiency.

Acrylic cover for safety and protection against accidental contact

The Heavy Duty 6-Spot XL2 ANL features a 3/16-inch clear acrylic cover. This cover acts as a protective barrier against accidental contact with live terminals, thus preventing electrical accidents. Acrylic is a material known for its transparent and stable structure, ideal for protecting sensitive components. Without such a protective cover, short circuits and associated damage could occur more frequently.

Aluminum connectors for 6 power cables

The fuse holder's design allows for the connection of up to six power cables, providing versatility and expansion options. Aluminum is conductive and lightweight, making it easier to handle while ensuring a secure connection. A fuse holder with fewer connections would limit its use in complex systems and offer less flexibility.

Optimal fuse values ​​for different cable cross-sections

The fuse holder supports various cable cross-sections and offers matching fuse ratings: from 10 A for 1.5 mm² to 300 A for 95 mm² cable. These ratings ensure precise protection at different current levels and optimal protection of the electronics. A fuse holder without this flexibility could be unsuitable for certain applications and limit its use.

Installation recommendation in the engine compartment under extreme conditions

Thanks to its high-temperature model characteristics, the fuse holder is particularly recommended for use in the engine compartment. Its high resistance to heat, moisture, and shock makes it ideal for environments with significant temperature fluctuations. Use in less rugged environments could result in lower efficiency and reliability.

Manufacturing and quality assurance in the USA at SMD

The Heavy Duty 6-Spot XL2 ANL is proudly manufactured in California, USA. This provenance ensures adherence to quality standards and carefully monitored production. Local manufacturing not only ensures quality but also demonstrates social responsibility. Imported products can often exhibit fluctuations in quality, which are not present with this fuse holder. For installation support, you can count on on-site installation in Frankfurt (Oder) . Use the expert support FAQ & Help for further questions or visit the Audio Blog for more in-depth information and tips.
