Quartorigo Fantasia 1.2 2-Channel Amplifier
SKU:  FANTASIA-1.2
80 Watt

Fantasia 1.2

SKU:  FANTASIA-1.2

Technical Highlights

  • Input impedance 48 KΩ, output power 80 W x 2 in stereo.
    Output power 360 W x 1, mono operating mode at 4 Ω.
    Frequency response from 7 Hz to 70,000 Hz, over 100 dB SNR.
  • More technical details
€969,00
€969,00 €969,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
May 18, - May 21,
x Piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €80,75 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
QuartorigoOpus 8 inch

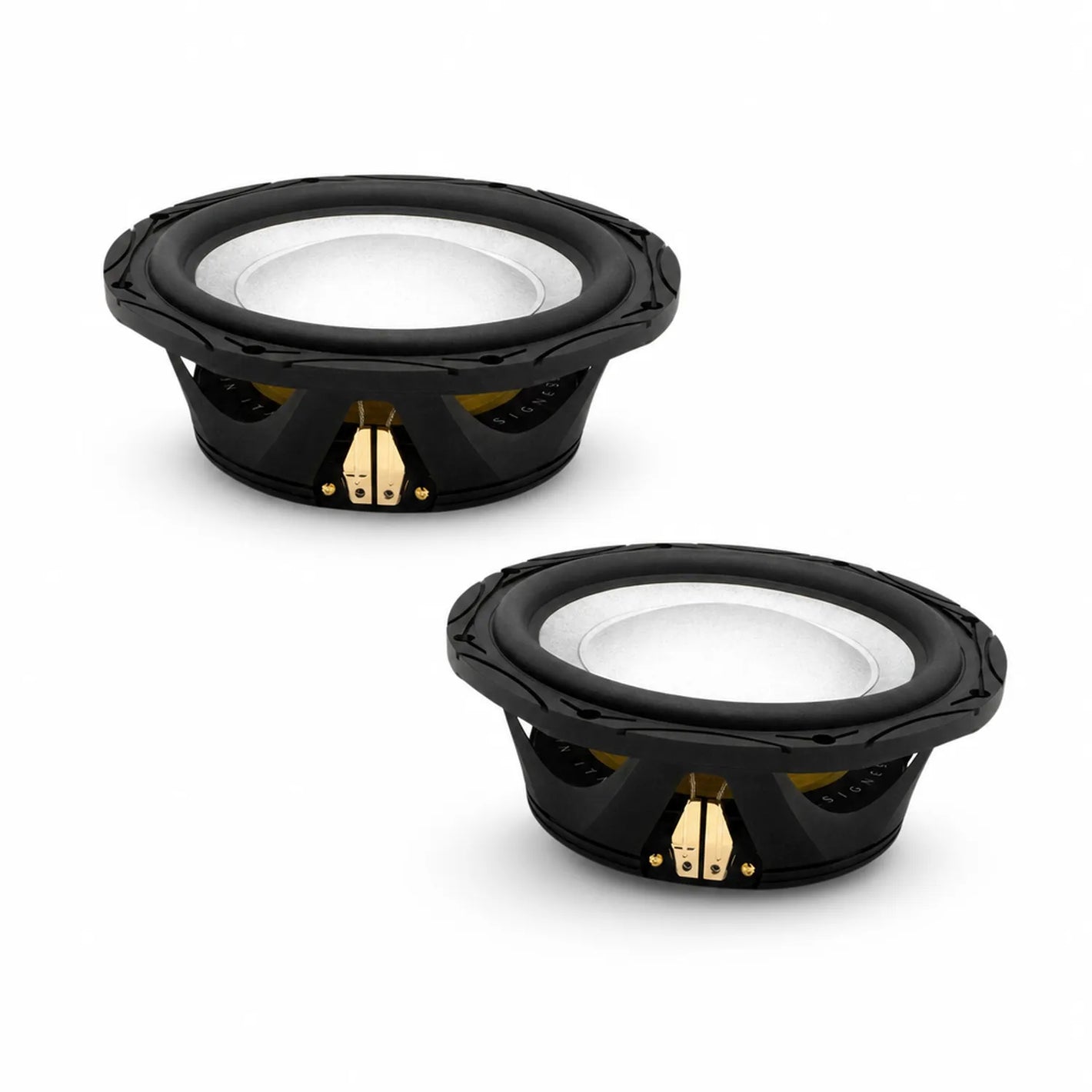

Quartorigo-Opus 8 Zoll-8" (20cm) Tiefmitteltöner-masori-kaufen

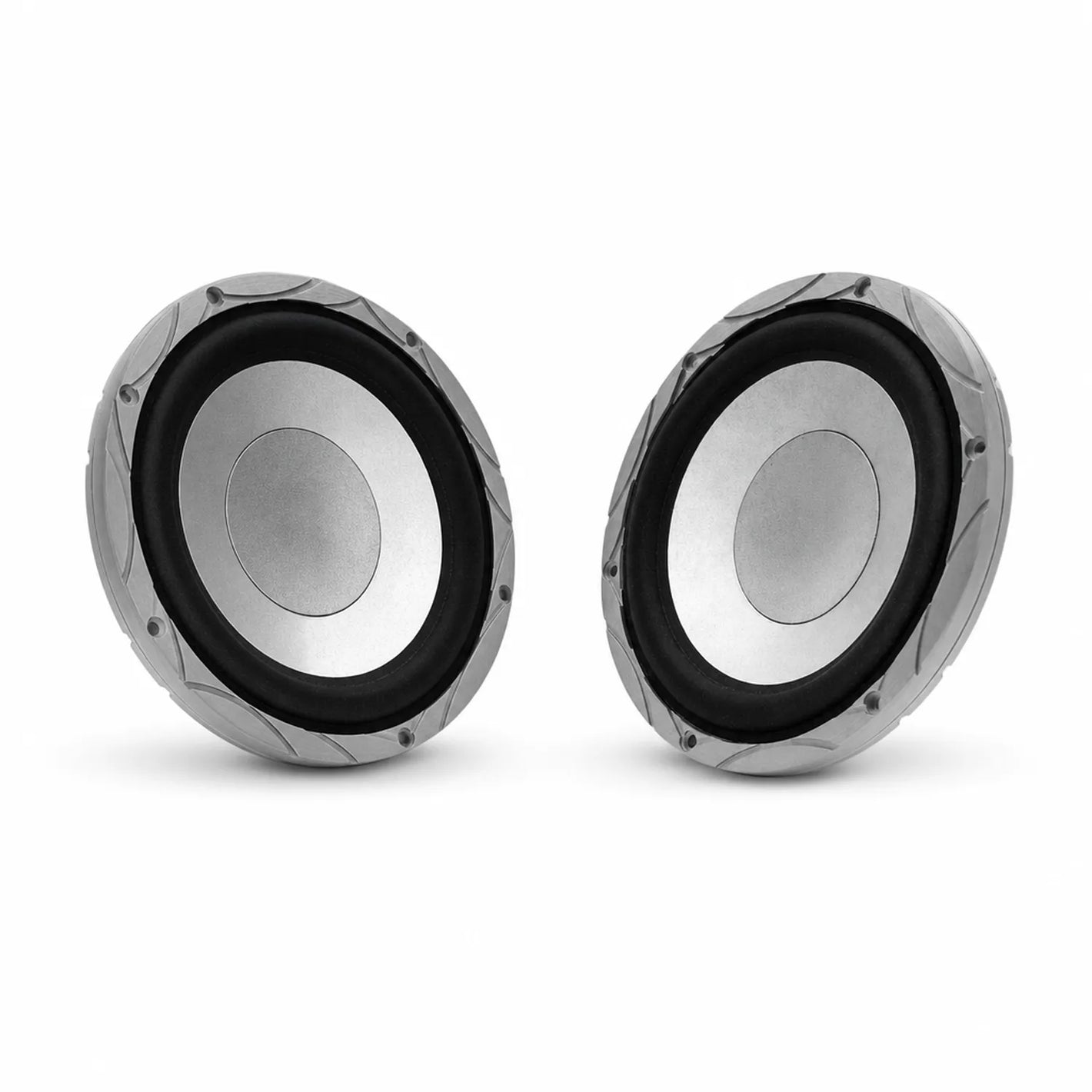

Quartorigo-Opus 6.5 Zoll-6.5" (16,5cm) Tiefmitteltöner-masori-kaufen
QuartorigoOpus 6.5 inch
Quartorigo-Fantasia 1.2-2-Kanal Verstärker-masori-kaufen
€969,00
€969,00 €969,00

Fantasia 1.2 by Quartorigo

The Fantasia 1.2 by Quartorigo is a 2-Channel Amplifier with a stabilized power supply of 9 to 15 Vcc. The output power in stereo operation at 4 Ohm is 80 Watts x 2, while in mono operation at 4 Ohm, a power of 360 Watts x 1 is achieved. The device has an input sensitivity of 0.4 to 8 V and an input impedance of 48 kOhm. The frequency response ranges from 7 Hz to 70,000 Hz with a signal-to-noise ratio of over 100 dB. The dimensions of the amplifier are 225 x 187 x 40 mm with a total weight of 2.8 kg. The standby power consumption is under 1.2 A.

Features
  • 2-Channel Amplifier
  • Output power stereo 4 Ohm: 80 Watts x 2
  • Output power mono 4 Ohm: 360 Watts x 1
  • Stabilized power supply: 9–15 Vcc
  • Input impedance: 48 kOhm
  • Dimensions: 225 x 187 x 40 mm
  • Weight: 2.8 kg
Technical Specifications
  • Frequency response: 7 Hz – 70,000 Hz
  • Signal-to-noise ratio: >100 dB
  • Input sensitivity: 0.4–8 V
  • Standby current: <1.2 A

Your benefits at Masori

Quartorigo Fantasia 1.2 Datasheet

Open datasheet

Frequently Asked Questions about Fantasia 1.2

What performance specifications does the Quartorigo Fantasia 1.2 Amplifier offer?

The Quartorigo Fantasia 1.2 Amplifier impresses with its remarkable performance. In stereo mode, it delivers 80 W per channel at an impedance of 4 ohms. In mono mode, it achieves a powerful 360 W at the same 4 ohms. This allows for excellent sound quality and versatility for various applications. The amplifier also offers a wide frequency response of 7 Hz to 70,000 Hz, making it ideal for precise sound reproduction. The signal-to-noise ratio is over 100 dB, ensuring clear and interference-free audio playback. With such high power, the audio quality remains top-notch, which passionate music lovers appreciate.

What are the dimensions and weight of the Fantasia 1.2 from Quartorigo?

The Fantasia 1.2 from Quartorigo is compact yet powerful. Its dimensions are 225 x 187 x 40 mm, allowing it to fit easily in many environments. Despite its compact size, the amplifier weighs 2.8 kg. This combination of size and weight enables the amplifier to be used efficiently in both stationary and mobile applications. Thanks to these dimensions, the amplifier can be installed even in tight spaces without sacrificing performance. For example, it could easily be placed on a compact shelf while still providing powerful audio output.

What is the input sensitivity and impedance of the Fantasia 1.2?

The Fantasia 1.2 from Quartorigo offers flexible input sensitivity, ranging from 0.4 to 8 V. This means that the amplifier is compatible with both low-output signal sources and those that provide higher levels. The input impedance is 48 kΩ, promising excellent signal transmission and minimal distortion. These technical features ensure that the Fantasia 1.2 works optimally with a variety of audio sources while consistently delivering top-notch audio quality. Music enthusiasts benefit from this versatility, as the amplifier offers a wide range of applications.

How efficient is the power consumption of the Fantasia 1.2?

The Quartorigo Fantasia 1.2 is designed to be both powerful and efficient in power consumption. It operates with a stabilized power supply that runs between 9 and 15 V and consumes less than 1.2 A in standby mode. This feature is particularly advantageous for saving energy, especially in applications where the amplifier regularly remains in standby. The optimized power supply ensures that the amplifier operates efficiently even at high power output, without wasting unnecessary energy. This makes it an excellent choice for environmentally conscious audiophiles.

What frequencies can the Quartorigo Fantasia 1.2 reproduce?

The Quartorigo Fantasia 1.2 amplifier offers an exceptionally wide frequency range from 7 Hz to 70,000 Hz. This ability to reproduce very deep bass to extreme highs is remarkable and provides a comprehensive and detailed sound landscape. This bandwidth ensures that all aspects of the music, from subtle nuances to powerful highs, are reproduced clearly and precisely. Especially in high-quality audio setups, this enables an impressive listening experience that respects the authenticity and dynamics of the original sound recording.

Does the Quartorigo Fantasia 1.2 sound clean even at high volumes?

Yes, because the Fantasia 1.2 offers a signal-to-noise ratio of over 100 dB, which forms the basis for crystal-clear reproduction even at high volumes. Such a value ensures that the amplified music does not exhibit any noticeable noise level even at maximum output volumes, which is crucial for a pure sound image. Especially if you enjoy listening to music loudly, you can trust that the Fantasia 1.2 reproduces complex musical passages without distortion or loss of quality. This adequately covers even the most demanding audio ranges.

How do I optimally place the Quartorigo Fantasia 1.2 in the car?

When placing the Quartorigo Fantasia 1.2 in the car, the compact dimensions of 225 x 187 x 40 mm should be considered. These allow for flexible installation in various locations, such as under the seat or in the trunk. It is important that the amplifier is properly secured to ensure stable and vibration-free use. Adequate ventilation options should also be provided to avoid overheating. The power supply should be professionally installed to ensure loss-free power delivery and maintain efficiency and audio quality at a high level.

Can the Fantasia 1.2 be used with common car brands?

Thanks to standardized technical requirements and compact dimensions, the Fantasia 1.2 can be versatilely combined with many common car brands. The variable voltage setting between 9 and 15 V allows for flexible integration into cars with different electrical systems. However, the installation should be adapted to the specific conditions of the respective vehicle to ensure a perfect fit. If there are uncertainties, support from a professional can be helpful to ensure an optimal connection between the vehicle and the amplifier and to achieve maximum listening enjoyment.

Is the audio quality of the Quartorigo Fantasia 1.2 at studio level?

The Quartorigo Fantasia 1.2 achieves audio quality that approaches studio standards with its frequency response of 7 Hz to 70,000 Hz and a signal-to-noise ratio of over 100 dB. This means that music pieces are reproduced with high precision and detail fidelity. The wide frequency range ensures that both low and high tones are reproduced without distortion, which is crucial for high-quality recordings. This distortion-free range makes the Fantasia 1.2 ideal for HiFi enthusiasts who value authentic sound reproduction.

What advantages does the stabilized power supply of the Fantasia 1.2 offer?

The stabilized power supply of the Fantasia 1.2, which operates between 9 and 15 V, ensures a constant and reliable power supply. This feature reduces potential influences of voltage fluctuations on audio quality while also protecting the internal components of the amplifier from damage. This is particularly advantageous in vehicles, where such fluctuations can occur more frequently. With stabilization, the amplifier's performance remains consistently high, leading to a consistently clean and high-quality audio playback while also extending the device's lifespan.
