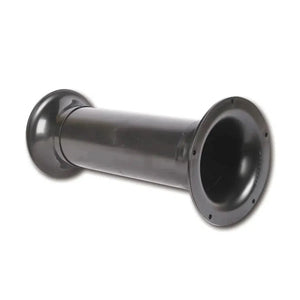

bass reflex tubes

Bass reflex tubes cheap buy – Maximum performance for your car audio online shop Masori project

Bass reflex tubes are the foundation of many car hi-fi setups and ensure an increased sound pressure level in the lower frequency range. Due to their special design, they direct the rear sound energy of your subwoofer specifically outward, thus increasing efficiency. If you want to equip your subwoofer in VW, Audi, BMW, Opel, SEAT, or Mercedes with powerful deep bass, a precisely tuned reflex channel is an excellent choice. For an exact calculation, values such as Fs (resonant frequency), Qts (total Q factor), and Vas (equivalent volume) are decisive. A thoughtfully designed bass reflex system allows you to reproduce low frequencies clearly and loudly without unwanted flow noise. Compact, precisely fitting, and robust reflex tubes are indispensable both in the car hi-fi sector and in the high-end home audio area.

Important key data: From diameter to tuning depth

To optimally tune your subwoofer enclosure, you should know the basic specifications of your desired bass reflex port. Key factors are:

• Diameter (Port Ø): Large diameters minimize air velocity and flow noise but require more space.
• Length (Port Length): Primarily determines the tuning frequency. Longer channels lower the tuning frequency, which affects level and power handling.
• Material: Often, sturdy ABS, aluminum, or MDF is used. Each material has different resonance properties.
• Shape (straight or angled): In tight car interiors, angled ports are often the only way to make optimal use of space.
• Flange or sound guide: A flange ensures clean installation and tightness, while a sound guide further optimizes airflow.

Especially in the car hi-fi sector, when space is tight, it is important to choose the cross-section and length so that the chassis can radiate the low frequencies undisturbed. Those who want the strongest punch tend to use larger diameters, while adapted or modular systems are used in very compact trunks.

Powerful bass reflex tubes for every car make

Many vehicle manufacturers design their interiors differently, which must be taken into account when integrating a bass reflex tube for your car sound. Well-positioned ports often achieve different results in sedans (e.g., BMW or Mercedes) than in hatchbacks from VW or SEAT. If you want to optimize an Opel Corsa, you need to consider the trunk volume and possible installation angles. With a suitable enclosure design and the correct tube diameter, efficiency and bass depth can be significantly increased.

Those who do not want to compromise on sound quality can also rely on special plug-and-play solutions that already include tuned port lengths and flange constructions. Products from Gladen or Masori themselves offer modular systems that can be configured depending on the desired frequency response. For example, you can install a long module in an Audi with a spacious trunk to emphasize the deep bass.

Tabular Overview: Typical Port Dimensions and Areas of Application

*The recommended length specifications are only rough guidelines. Depending on Vas, Fs, Qts, and the desired tuning frequency, other dimensions may be more appropriate.

Installation and Setup: How to Get the Most Out of Your Bass Reflex System

Especially with car subwoofers, correct installation of the bass reflex tube is crucial to achieve the best possible sound. You should pay attention to the following points:

• Positioning: Do not place the port too close to the enclosure walls to avoid turbulence. For many car audio systems, it is advisable to orient the tube sideways.
• Stability: The subwoofer enclosure must be made of sturdy materials (e.g., MDF with at least 19 mm thickness). This is the only way to avoid unwanted vibrations.
• Insulation: Suitable damping in the remaining enclosure (such as polyester wadding or special insulation material) can reduce standing waves and refine the sound.
• Sealing: Leaks around the pipe or at housing joints significantly impair efficiency. A clean sealing ring is mandatory.

If you don't feel confident installing it yourself or simply want professional support, you can use our Installation service in Frankfurt Oder in use. There, your bass reflex enclosure will be precisely installed and professionally tailored to your vehicle.

Variants for Fine-Tuning: Modular and Adjustable Bass Reflex Ports

Those who want to change the sound afterwards will find adjustable pipes with telescopic mechanisms at Masori. This allows you to regulate the net effective length step by step to perfect the frequency adjustment. This can be useful if you want to switch between different music styles or if your system is used in several vehicle types (e.g., VW Polo, Audi A3). Innovative materials such as polypropylene or aluminum composite materials also offer lower self-resonances and high stability. The following optimizations are conceivable:

• Non-tilting flanges for clean installation and removal
• Flow-optimized port bends for reduced turbulence
• Aerodynamic guides that distribute the air evenly
• Additional damping materials in the outlet area

Accessories and additional components for your sound upgrade

To get the most out of your bass reflex system, you usually need additional car audio accessories. Above all, powerful amplifiers (e.g., Class-D amps) and adequately sized wiring kits are required to keep the power supply in the car stable. Also pay attention to:

• Suitable speaker cables: Cross-section depending on power, usually 2.5 mm² to 4 mm² for powerful amplifiers.
• Capacitors or auxiliary batteries: Especially important for high-SPL setups with large woofers from 12 inches.
• Insulation material: Special mats for doors and trunk reduce vibrations and heat resonances.
• Special connection terminals: Saves space and ensures secure connection of the cables.

With the right components, you ensure that not only the bass reflex tube works optimally, but also that all other parts are coordinated with each other.

Series woofers and upgrade options: Plug-&-Play in focus

Some manufacturers offer pre-configured bass reflex enclosures that are tailored to their own drivers. They pay close attention to the exact Thiele-Small parameters and ensure that the ratio of port cross-section, length, and volume is perfectly balanced. These complete systems can often be directly adapted to the existing vehicle environment. Examples:

• Gladen: Known for precise sound tuning and robust housing design
• Hifonics: Designed more for high continuous load and SPL levels
• Masori: Own development department with professionally manufactured bass reflex tubes and subwoofer enclosures in the portfolio

In many modern vehicles, such as Mercedes or BMW, there are already factory-installed mounting locations suitable for plug-and-play subwoofer upgrades. Compact bass reflex designs or passive radiators are usually used here to produce powerful bass despite limited space.

Installation Tips and Technical Details: How to Perfectly Integrate Your Reflex Tube

When doing DIY projects, precise planning is essential. If you want to build your own subwoofer, you should first read the parameters of the chassis. Based on this, the required net volume (e.g., 25 l for a 10-inch woofer) can be determined. Then you calculate the port length – often using tools that ask for frequency (e.g., 33 Hz for deep bass), Qts, and Vas. When sawing and milling the housing openings, pay attention to exact dimensional accuracy. Small leaks can easily lead to muddy kick bass.

Those who shy away from more complex calculations or are looking for quick assistance use the Expert support from Masori. With the help of an AI chatbot, compatibilities can be checked or alternative products recommended. This way, you ensure that your car audio setup works just as well in a VW Golf as in a SEAT Ibiza. If needed, Masori offers professional support so you can enjoy your bass foundation for a long time.

Assembly Instructions: Bass Reflex vs. Closed Systems

While a sealed system scores with tight bass, the bass reflex enclosure relies on efficiency and depth. This is achieved through the resonance support generated by a reflex port. This design also relieves the woofer at high levels because the airflow partially compensates for the diaphragm excursion. However, it is important to choose the tuning frequency appropriately, otherwise a so-called "port noise" can occur. Therefore, it helps not to be stingy with the diameter for larger woofers (12" to 15"). Especially in the car audio sector, where massive sound pressure levels are required, a larger dimensioned bass port is worthwhile. However, in the compact trunks of an Opel Corsa, overly long tubes can become problematic, so angled models represent a better choice.

Bass reflex tubes in the DIY sector: How to successfully implement them

Building a custom bass reflex enclosure is challenging, but if done correctly, the effort is worth it. Here are some points you should consider:

• Tool: A router for round openings, a jigsaw for rough cuts, and a random orbital sander for smooth edges.
• Wood thickness: MDF or multiplex in 19 mm thickness is the standard for creating a torsion-resistant housing.
• Bracing: For larger volumes (40 l or more), additional braces help to minimize resonances.
• Surface: Lacquer, faux leather, or carpet – depending on your taste and the interior design of your car.

If you have extensive questions, you can find tutorials, diagrams, and example constructions at Masori. Additionally, it is possible to schedule an on-site appointment at our workshop in Frankfurt Oder.

Tips for Even Better Sound: Fine-Tuning and Measurements

Those who want to experience the maximum deep bass should not only choose an optimal bass reflex tube but also check the frequency response using a measurement microphone. This way, you can identify which frequencies are played too loud or too quiet. You can then further optimize with damping material or an adjusted port length. Factors such as phase cancellation or room modes in the vehicle can bring significant improvements through slight adjustments of the subwoofer position:

• Select ferrite magnet systems or neodymium chassis for flexible placement
• Use decoupling mats to reduce vibrations
• If necessary, integrate DSP (Digital Sound Processor) to linearize the frequency response

For questions about professional measurement methods or the ideal coordination, we provide you with comprehensive advice. In our Installation Service we can also measure and adjust the system directly on site.

Bass reflex tubes online at Masori: Start your sound upgrade now

In the Masori car audio online shop, you will find a wide selection of high-quality bass reflex tubes, specially designed for car audio enthusiasts and professional users. We offer you:

• Various diameters (50 mm to 150 mm and more) for individual requirements
• Modular tuning components to flexibly adjust the sound
• Flange and sound guidance variants for flow optimization
• All accessories for professional installation (fasteners, seals, assembly aids)
• Personal consultation by specialists and access to our AI Chatbot

Whether you want to achieve a powerful deep bass in your VW Golf, seek an audiophile fine-tuning for your BMW sedan, or want to install a true SPL monster in your Opel – at Masori you will find reflex-optimized solutions that are guaranteed to fit. Of course, we support you from the initial concept to the final installation. Thanks to our experience in car hi-fi, car sound, and subwoofer configuration, we have already helped numerous enthusiasts realize their dream bass system.

If you have any questions or special requirements, you can contact our expert support team at any time. We will be happy to work with you to determine which bass reflex tube best suits your application. Our offer is rounded off by the professional Installation service in Frankfurt Oder, who takes care of the entire installation for you. This way, you can be sure that your bass system is perfectly matched to your vehicle.

Take the opportunity now to take your car audio project to the next level! Discover our bass reflex tubes, compare different materials and dimensions, and start your ultimate sound upgrade. With us, you get everything from a single source – from consultation to turnkey installation. What are you waiting for? Take advantage of the variety of high-quality products and dive into an impressively deep bass that redefines your favorite music in any car.
