  3. Door Kit 1.0
Audio System Door Kit 1.0 Insulation

12 Reviews

Audio System

Door Kit 1.0

Insulation

12 Reviews

Technical Highlights

  • All-in-one set, acoustic insulation, two doors.
  • Silence Fleece, Alu Sheet 250, Alubutyl 1500, self-adhesive.
  • Efficient solution, optimize audio quality.
  • More technical details
€55,00
€55,00 €55,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Only a few left in stock (4 pieces available)
In stock
Apr 11, - Apr 12,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €4,58 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Audio System-Door Kit 1.0-Dämmung-masori-kaufen
€55,00
€55,00 €55,00

Door Kit 1.0 by Audio System

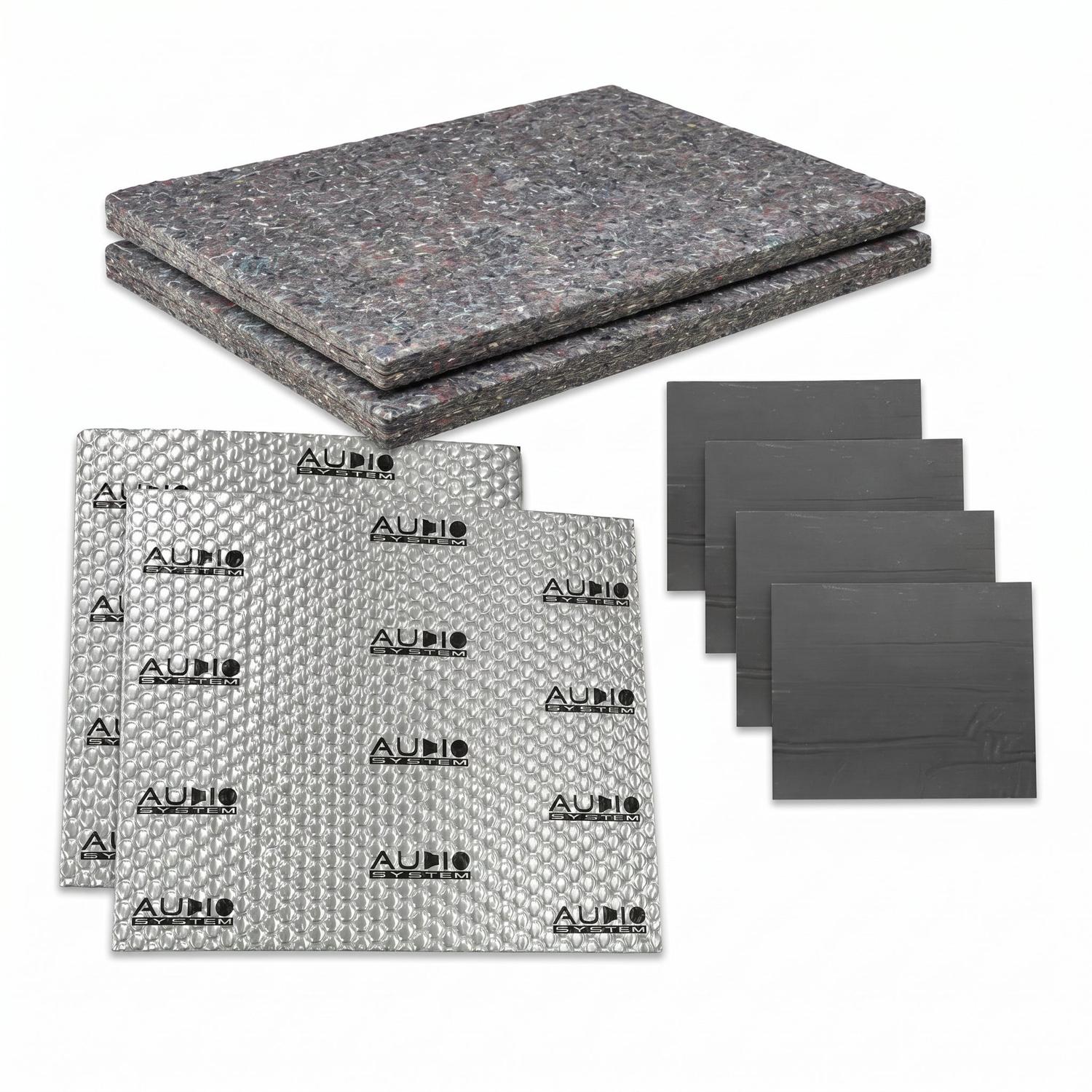

Door Kit 1.0 is an insulation from Audio System for two doors. Included are 2x SILENCE FLEECE, 4x ALU SHEET 250, and 2x ALUBUTYL 1500. SILENCE FLEECE is a self-adhesive insulation fleece measuring 800 mm x 500 mm and 8 mm thick. ALU SHEET 250 is a self-adhesive insulation material with an aluminum layer measuring 240 mm x 250 mm, with a total thickness of 1.50 mm (rubber 1.45 mm, aluminum 0.05 mm) and 1.8 kg per 1 m². ALUBUTYL 1500 is a self-adhesive insulation material with a strong aluminum layer measuring 500 mm x 600 mm, with a total thickness of 1.5 mm as well as 1.80 mm butyl rubber and 0.2 mm aluminum and 2.54 kg per 1 m².

Features
  • Insulation
  • Insulation set for 2 doors
  • Includes 2x SILENCE FLEECE, 4x ALU SHEET 250, 2x ALUBUTYL 1500
  • SILENCE FLEECE: insulation fleece
  • ALU SHEET 250: insulation material with aluminum layer
  • ALUBUTYL 1500: insulation material with strong aluminum layer
  • Self-adhesive
Technical Data
  • SILENCE FLEECE size: 800 mm x 500 mm
  • SILENCE FLEECE thickness: 8 mm
  • ALU SHEET 250 size: 240 mm x 250 mm
  • ALU SHEET 250 total thickness: 1.50 mm
  • ALU SHEET 250 rubber thickness: 1.45 mm
  • ALU SHEET 250 aluminum thickness: 0.05 mm
  • ALU SHEET 250 weight: 1.8 kg per 1 m²
  • ALUBUTYL 1500 size: 500 mm x 600 mm
  • ALUBUTYL 1500 total thickness: 1.5 mm
  • ALUBUTYL 1500 butyl rubber: 1.80 mm
  • ALUBUTYL 1500 aluminum: 0.2 mm
  • ALUBUTYL 1500 weight: 2.54 kg per 1 m²

Your benefits at Masori

Audio System Door Kit 1.0 Datasheet

Open datasheet

Frequently Asked Questions about Door Kit 1.0

What materials are included in the Door Kit 1.0 from Audio System?

The Door Kit 1.0 from Audio System includes three main materials for acoustic insulation: Silence Fleece, Alu Sheet 250, and Alubutyl 1500. The Silence Fleece is an insulating fleece measuring 0.8 m x 0.5 m and 8 mm thick. It is self-adhesive, which makes installation easier. The Alu Sheet 250 is an insulating material with an aluminum layer, with a total thickness of 1.50 mm, consisting of 1.45 mm rubber and 0.05 mm aluminum, weighing 1.8 kg per square meter. Alubutyl 1500 features a particularly strong aluminum layer, is 1.5 mm thick, and weighs 2.54 kg per square meter.

How does the Door Kit 1.0 improve audio quality in the vehicle?

The Door Kit 1.0 optimizes audio quality through effective acoustic insulation. With materials like Silence Fleece, Alu Sheet 250, and Alubutyl 1500, it reduces disturbing vibrations and resonances in the vehicle doors. Silence Fleece serves for noise isolation and ensures clear sound, Alu Sheet 250 minimizes high-frequency vibrations due to its aluminum layer, and Alubutyl 1500 absorbs strong vibrations thanks to its heavy mass. The combination of these materials creates a quiet environment for sound, which is particularly beneficial for discerning music lovers who appreciate uncolored sound reproduction.

What sizes and thicknesses do the insulation materials in the Door Kit 1.0 have?

The various insulation materials in the Door Kit 1.0 have specific sizes and thicknesses. The Silence Fleece measures 0.8 m x 0.5 m and has a thickness of 8 mm. The Alu Sheet 250 measures 0.24 m x 0.25 m and has a total thickness of 1.50 mm, consisting of 1.45 mm rubber and 0.05 mm aluminum layer. Alubutyl 1500 is 0.5 m x 0.6 m in size and has a thickness of 1.5 mm, with a butyl rubber layer of 1.80 mm and an aluminum layer of 0.2 mm. These various dimensions are designed to address specific acoustic challenges and optimize sound quality.

How do I install the Door Kit 1.0 in my vehicle?

The installation of the Door Kit 1.0 is relatively simple thanks to the self-adhesive properties of the materials. Start by thoroughly cleaning the door to ensure that the surfaces are free of dust and grease. Cut the Silence Fleece, Alu Sheet 250, and Alubutyl 1500 according to the dimensions of the door's inner surface. Remove the protective film from the self-adhesive side and place each material evenly on the door. Press the materials firmly to ensure full-area adhesion. Be careful not to overlap the components to achieve optimal insulation performance and avoid air pockets that could reduce the insulation effect.

Can I install the Audio System Door Kit 1.0 in any car door?

The Audio System Door Kit 1.0 is designed for a variety of car doors and fits numerous vehicle models. The dimensions and structure of the door are crucial for compatibility. Since the set is self-adhesive, you can work flexibly with the pre-cut sizes of the materials. However, pay attention to the dimensions of the Silence Fleece (0.8 m x 0.5 m), Alu Sheet 250 (0.24 m x 0.25 m), and Alubutyl 1500 (0.5 m x 0.6 m) to ensure that the materials fit. For very small or very large doors, adjustments may need to be made by cutting or combining materials.

What are the weight-specific differences of the materials in the Door Kit 1.0?

The weights of the materials in the Door Kit 1.0 differ significantly, as each component is optimized for different insulation tasks. The Silence Fleece is relatively light, while Alu Sheet 250 weighs 1.8 kg per square meter, due to the aluminum layer and rubber. Alubutyl 1500, on the other hand, is heavier, at 2.54 kg per square meter, due to its extensive butyl and aluminum layer. These weight differences help neutralize specific vibrations and noises, resulting in improved sound insulation and acoustic optimization.

How does Alubutyl 1500 work in a Door Kit 1.0 from Audio System?

Alubutyl 1500 in the Door Kit 1.0 is one of the most effective materials for achieving drastic reductions in vibration noise. Its composition of a strong aluminum layer and butyl rubber with a thickness of 1.5 mm provides high weight (2.54 kg per square meter) for efficient Damping. It not only absorbs vibrations but also reduces high-frequency resonances. This offers an excellent basis for clear and resonance-free playback of audio signals, profoundly eliminating disturbing vibrations. This is particularly useful for sound quality with loud bass.

What are the Alu Sheet 250 in the Door Kit 1.0 suitable for?

Alu Sheet 250 in the Door Kit 1.0 is excellent for minimizing high-frequency vibrations in vehicle doors. With a total thickness of 1.50 mm, consisting of a 1.45 mm thick rubber layer and a 0.05 mm aluminum layer, it is optimally suited for noise suppression. This special composition ensures that disturbing driving noises are reduced and the sound quality inside the vehicle is improved. The self-adhesive feature makes application easy and ensures a secure hold even under vibrations, which is particularly important for acoustic optimizations in vehicle construction.

How important is the self-adhesive feature in the Audio System Door Kit 1.0?

The self-adhesive feature in the Audio System Door Kit 1.0 is crucial as it significantly simplifies installation. This feature allows the materials to be attached directly after cutting to the desired size at the desired locations without the need for additional adhesives or fasteners. This greatly reduces installation time and complexity. The strong adhesive effect also ensures that the materials stay securely in place, even in environments exposed to significant vibrations and temperature fluctuations, as is the case in car doors.

How does Silence Fleece contribute to acoustic Insulation in the Door Kit 1.0?

Silence Fleece is an integral part of the Door Kit 1.0 and plays a crucial role in acoustic Insulation. With a size of 0.8 m x 0.5 m and a thickness of 8 mm, it contributes to the effective absorption of sound. Its density and material structure are designed to significantly reduce low-frequency vibrations and improve interior acoustics. Its self-adhesive property ensures easy and secure application, increasing efficiency in use and minimizing the risk of air pockets that could impair the Insulation effect.

Manufacturer information / responsible person

Axel Förderer
Audio System Germany
Falltorstraße 6
76707 Hambrücken
Germany

Contact: info@audio-system.de
