Club A5055

With the Club A5055, JBL presents a 5-channel amplifier that stands out with its powerful performance and cleverly combined full-range and subwoofer output. Whether you want to use the A5055 in 5-channel mode for perfect surround sound or in 3-channel mode for targeted amplification of your front speakers and subwoofer, this model offers flexibility. Integrated high-pass and low-pass crossovers, a selectable bass boost, and a phase switch open up possibilities for fine-tuning the sound. Additionally, the Club A5055 is characterized by its compact size and the ability to integrate into almost any system. With the wired RBC remote control, you always have control at hand. Designed with balanced differential inputs, this model also impresses with low noise and low distortion.

properties

• Compact size

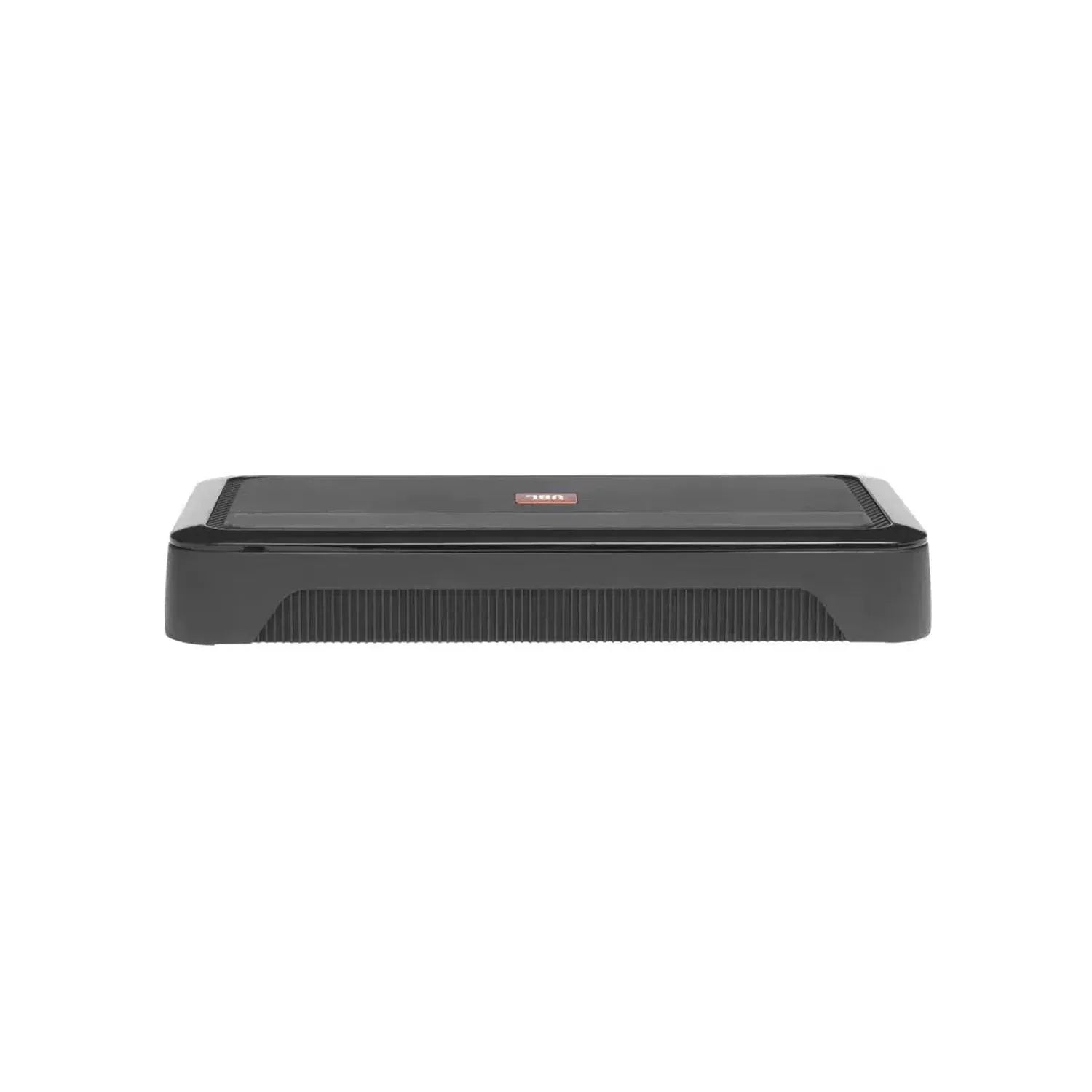

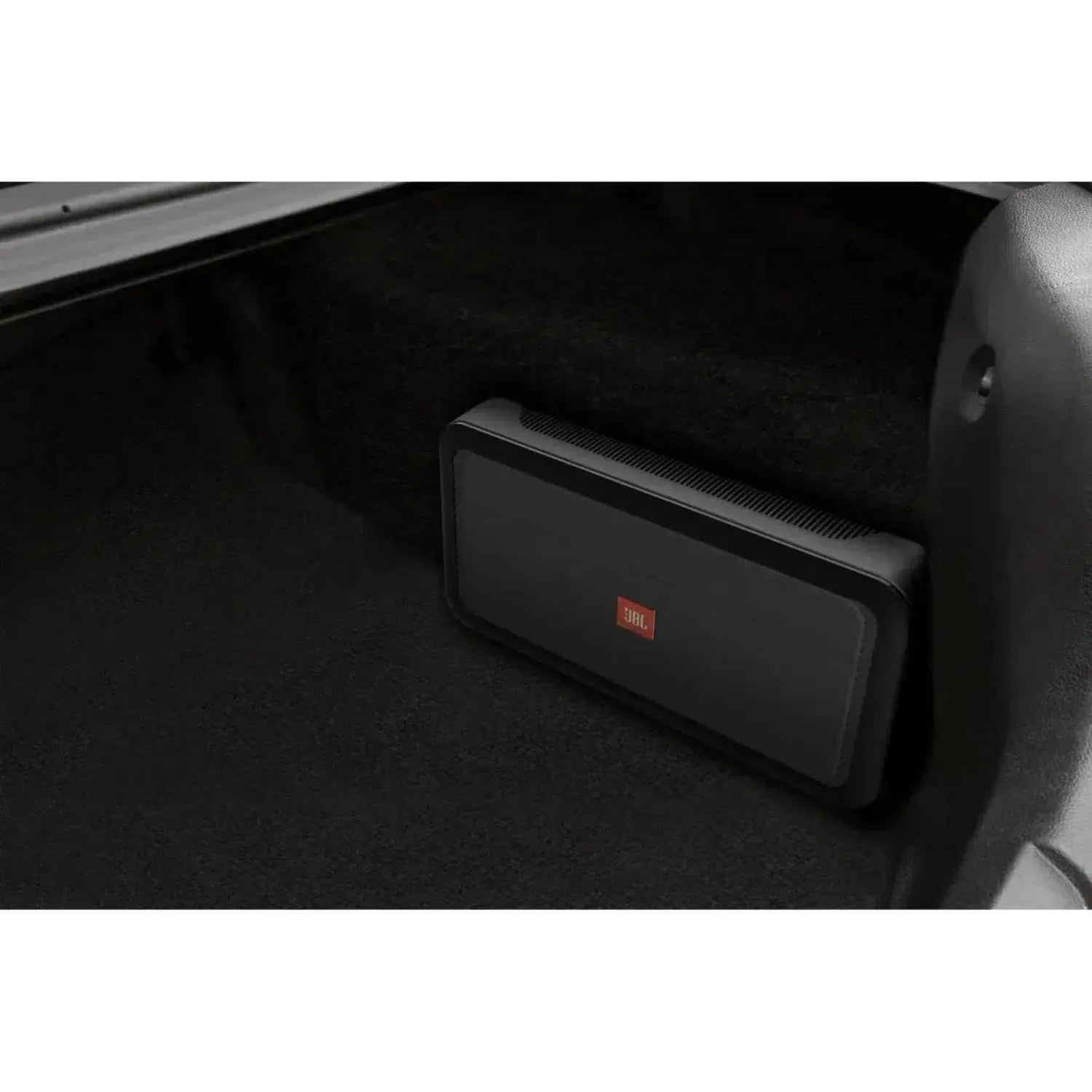

• The JBL Club A5055 The amplifier has a flat housing and a small footprint so that it can also fit into vehicles with limited space.
• High and low level inputs
• Thanks to the high and low level inputs, the club can... A5055 connect both retrofitted and factory-installed car radio systems.
• Variable crossover and bass boost
• In contrast to many other amplifiers available at similar prices, the JBL Club has A5055 about variable electronic frequency crossovers and bass boost circuits that enable precise system tuning and performance.
• Low noise and low distortion
• The Club A5055 "was developed with symmetrical differential inputs to ensure low noise and low distortion even at high output levels. This makes it much less susceptible to line-induced motor noise."
• input level control
• When using low-level inputs, this control adjusts the input sensitivity between 200 mVrms and 2.0 Vrms. When using high-level inputs, this control adjusts the input sensitivity between 2 Vrms and 20 Vrms.
• Complete On-Board Protection
• The integrated circuits protect the club. A5055 'against short circuits, overheating, overvoltage, and undervoltage. An LED display indicates when one of these conditions occurs.'
• phase switch
• 'This switch toggles the input phase to inverted or non-inverted. This is particularly helpful for system tuning depending on the type of enclosure and the position in the vehicle.'
• Wired RBC Remote Control
• The wired RBC remote control is easy to install and can be mounted for convenient volume control from the driver's seat.

General Specifications

• 5-channel car amplifier
• 50 Watt RMS x 4 + 320 Watt RMS x 1 at 4 Ohm
• 65 Watt RMS x 4 + 500 Watt RMS x 1 at 2 Ohm
• 140 Watts RMS x 2 bridged at 4 Ohms + 500 Watts RMS x 1 at 2 Ohms
• Variable high-pass and low-pass filters (32-320 Hz, 12 dB/octave) on the front and rear channels
• Low-pass filter (32-320 Hz, 12 dB/octave) in the subwoofer channel
• Bass boost in the subwoofer channel (0-12dB at 45Hz)
• Phase switch on the subwoofer channel (0, 180 degrees)

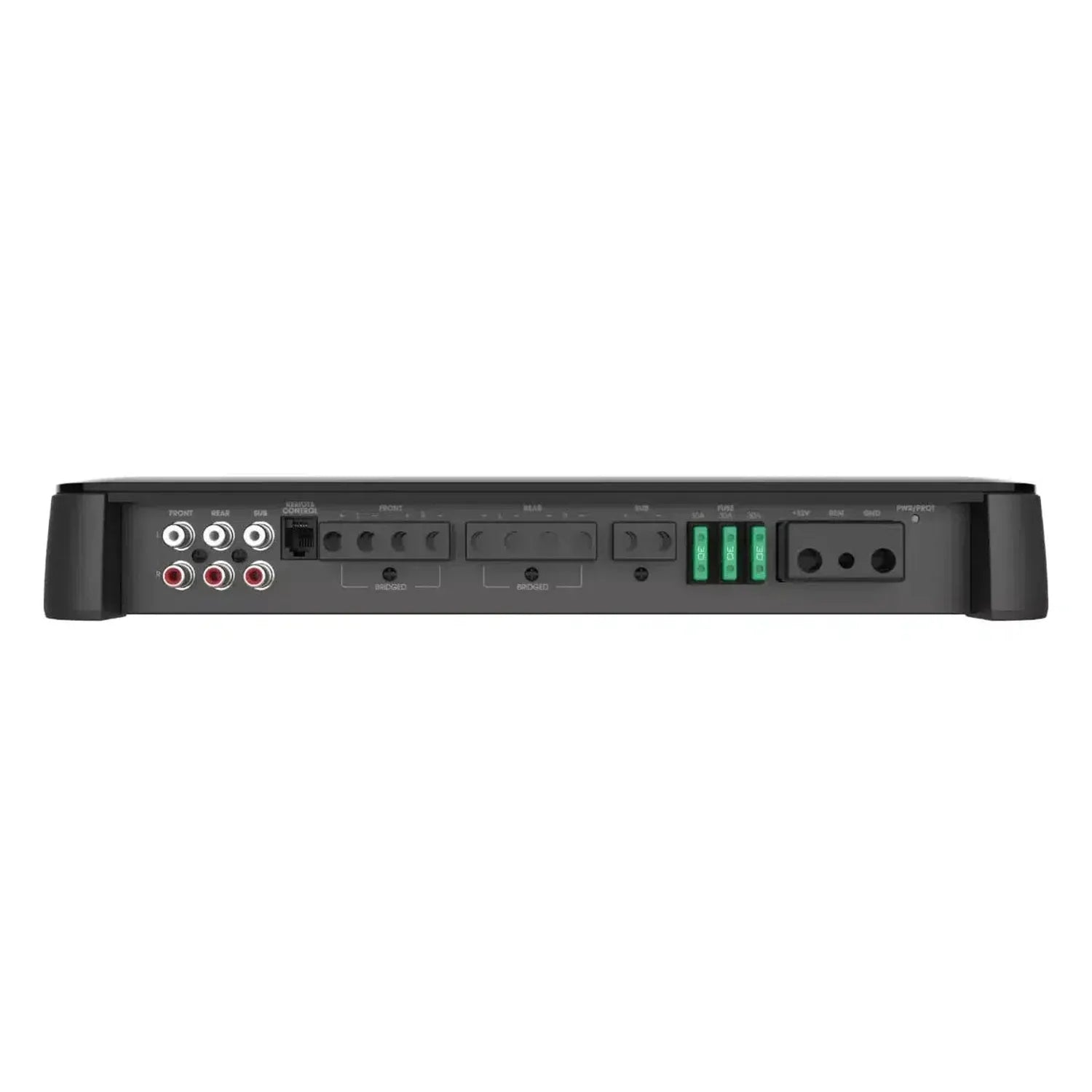

• Preamp and speaker inputs
• Protection 3x 30a
• Power and mass cables with 20mm² recommended
• Wiring and hardware are not included in the delivery of the amplifier.
• BxHxT=360mm x 51.3mm x 180mm

What is in the box?

• 1 x Club A5055 Five-channel amplifier

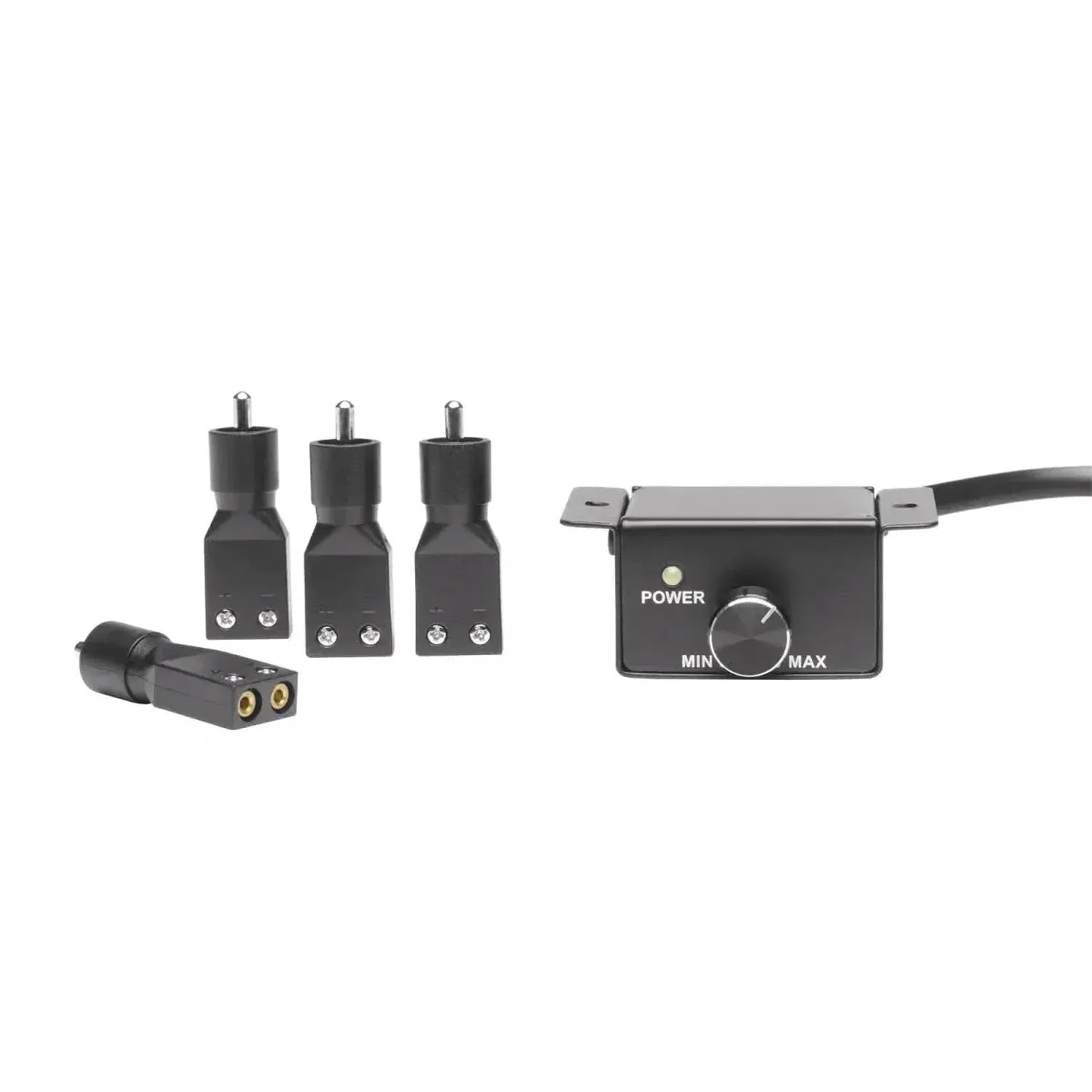

• 4 x adapter from bare cables to RCA
• 6 x 30A ATO fuses (3 built-in, 3 spare fuses)
• 1 x remote control module for the bass
• 1 x 16.5' remote control cable (RJ-25 connector on both ends)
• 2 x Self-tapping screws for the remote control (M3 x 15mm)
• 4 x fastening screws (M4 x 53 mm)
• 1 x User Manual
