Audio System Helon H-1400.4 D 4-Channel Amplifier
SKU:  H-1400-4-D
EAN:  4251834510555
350 Watt

Helon H-1400.4 D

SKU:  H-1400-4-D
EAN:  4251834510555

Technical Highlights

  • The amplifier delivers 4 x 200 WRMS at 4 ohms, 4 x 300 WRMS at 2 ohms.
  • With an output of 4 x 350 WRMS at 1 ohm it offers power.
  • Impedance options of 2 x 700 WRMS at 2 Ohm mono possible.
  • More technical details
€499,00
€499,00 €499,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 5, - Jun 8,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €41,58 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Audio SystemH-1600.4 D 24V
Audio System-H-1600.4 D 24V-4-Kanal Verstärker-masori-kaufen
Audio System-Ford/Ami R 609 Evo-Ford-Lautsprecherset-masori-kaufen
Audio SystemFord/America R 609 Evo
Audio System-Helon H-1400.4 D-4-Kanal Verstärker-masori-kaufen
€499,00
€499,00 €499,00

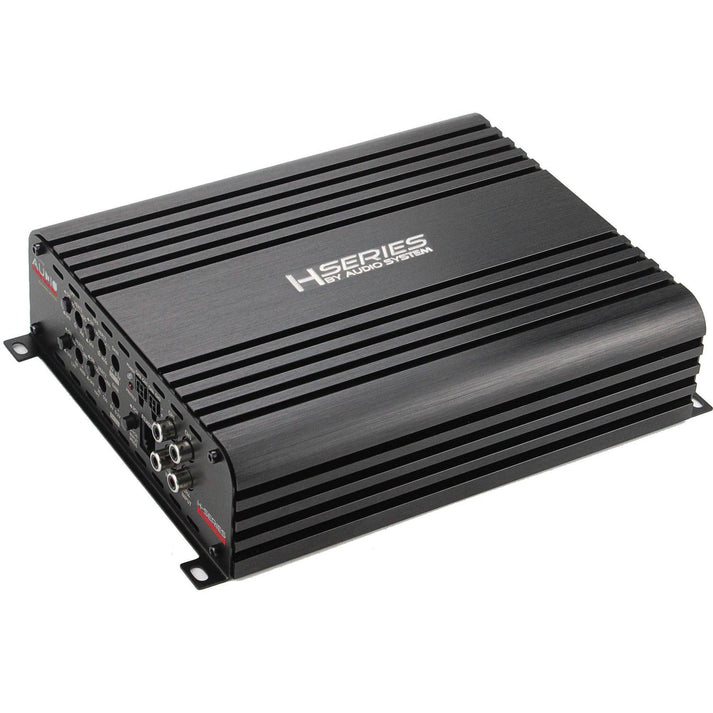

Helon H-1400.4 D by Audio System

The Helon H-1400.4 D from Audio System is a 4-Channel Amplifier from the Helon SERIES. This digital high-performance amplifier uses SMD technology and achieves an efficiency of up to 90 percent. The features include variable and switchable subsonic, high-pass, low-pass, and band-pass filters, as well as a full active mode. The power output is 4 x 200 WRMS at 4 Ohms, 4 x 300 WRMS at 2 Ohms, and 4 x 350 WRMS at 1 Ohm. In bridged mode, it provides 2 x 600 WRMS at 4 Ohms mono or 2 x 700 WRMS at 2 Ohms mono. A high-level input with automatic turn-on function and an optional RTC connection are available. The dimensions of the housing are 223 x 59 x 184 mm.

Features
  • 4-Channel Amplifier
  • Helon SERIES
  • SMD technology
  • Digital high-performance amplifier
  • Variable, switchable subsonic, HP, LP, BP filters
  • Full active mode
  • Efficiency of up to 90 percent possible
  • High-level input with automatic turn-on
  • RTC optional
  • Dimensions 223 x 59 x 184 mm
Technical Data
  • Power: 4 x 200 WRMS at 4 Ohms
  • Power: 4 x 300 WRMS at 2 Ohms
  • Power: 4 x 350 WRMS at 1 Ohm
  • Power: 2 x 600 WRMS at 4 Ohms mono
  • Power: 2 x 700 WRMS at 2 Ohms mono

Your benefits at Masori

Audio System Helon H-1400.4 D Datasheet

Open datasheet

Frequently Asked Questions about Helon H-1400.4 D

What power does the H-1400.4 D Amplifier offer?

The H-1400.4 D Amplifier from Audio System impresses with a variable power output that can be adjusted for different speaker configurations. At 4 Ohms, it delivers 4 x 200 WRMS, providing solid output power for many applications. If you lower the impedance to 2 Ohms, the power increases to 4 x 300 WRMS, which is ideal for enhanced sound intensity. At 1 Ohm, it reaches maximum potential with 4 x 350 WRMS. Additionally, bridge options are available: 2 x 600 WRMS at 4 Ohms or 2 x 700 WRMS at 2 Ohms, to achieve maximum efficiency in mono operation.

How does the high-level input of the H-1400.4 D work?

The high-level input of the H-1400.4 D from Audio System is a convenient feature that allows for easy integration into existing audio systems. It can accept signals from speaker outputs, which is ideal for systems that do not have a dedicated low-level subwoofer or amplifier output. The high-level input is equipped with an automatic turn-on function that activates the amplifier as soon as an audio signal is detected. This reduces the need for additional remote cables or switches, significantly simplifying the installation. Optionally, an RTC (Remote Control) can also be connected to enhance control over volume and sound tuning.

What filter options does the H-1400.4 D offer?

The H-1400.4 D Amplifier from Audio System is equipped with a variety of filter options to tailor the sound to individual needs. It features switchable subsonic filters that eliminate unwanted low-frequency disturbances, as well as high-pass and low-pass filters that can effectively separate frequency ranges. Additionally, a bandpass filter is available, consisting of a combination of high-pass and low-pass filters to precisely handle a specific frequency range for midrange drivers. These filter systems are highly adjustable and allow for comprehensive customization of the sound characteristics to match the specific speaker setup and personal preferences.

What are the dimensions of the H-1400.4 D and how do they affect installation?

The H-1400.4 D has compact dimensions of 223 x 59 x 184 mm, making it extremely space-saving. These compact measurements are ideal for installations where space is limited, such as in many modern vehicles. The small size facilitates integration into the vehicle interior without wasting valuable storage space. The manageable size also allows for installation in tighter spaces or concealed areas, supporting the aesthetics and preservation of the vehicle's original condition. A well-thought-out space allocation concept can be crucial to fully utilize all functions of the Audio System.

Is the H-1400.4 D compatible with my vehicle?

The H-1400.4 D from Audio System is compatible with a variety of vehicles thanks to its universal design and compact dimensions. The measurements of 223 x 59 x 184 mm allow for installation in various vehicle models, provided there is enough space to ensure ventilation and control heat generation. However, compatibility heavily depends on the specific geometry and layouts of the vehicles. In some vehicles, modifications or specific installation methods may be required to optimally integrate the amplifier.

What advantages does the SMD technology in the H-1400.4 D offer?

The SMD (Surface-Mount Device) technology of the H-1400.4 D from Audio System offers several notable advantages. It enables compact and efficient circuit wiring, leading to optimized signal transmission and improved electrical properties. Especially in high-performance applications like a 4-channel amplifier, these are central aspects for consistent performance. SMD technology also contributes to reducing space requirements and minimizes the overall weight of the hardware, which is particularly relevant for mobile applications such as in vehicles. This design also ensures greater resistance to mechanical stress and vibrations.

How efficient is the H-1400.4 D amplifier?

The H-1400.4 D amplifier from Audio System is capable of achieving an efficiency of up to 90%, making it an extremely efficient device. This high efficiency means that the amplifier wastes less energy in the form of heat and provides more power for actual sound amplification. Efficient amplifiers contribute to lower power consumption, thereby reducing the load on the vehicle battery. This allows for an intense and powerful music playback experience without quickly exhausting the performance reserves.

Can the H-1400.4 D be operated in bridge mode?

Yes, the H-1400.4 D Amplifier from Audio System offers bridging options that provide flexibility and additional power. In bridge mode, the amplifier can be configured to deliver 2 x 600 WRMS at 4 ohms or 2 x 700 WRMS at 2 ohms. This configuration option is ideal for operating high-power components that require a higher power supply. Especially in systems that demand strong bass or extensive dynamics, bridge mode is an excellent way to maximize the amplifier's full capacity and optimize the sound experience.

What advantages do the switchable filters of the H-1400.4 D offer?

The H-1400.4 D Amplifier from Audio System offers a selection of switchable filters such as subsonic, high-pass (HP), low-pass (LP), and band-pass (BP) to precisely control sound details. Subsonic filters eliminate inaudible low frequencies that would unnecessarily burden speakers, while high-pass and low-pass filters effectively adjust frequencies to speaker requirements. The band-pass filter combines this functionality and allows for the restriction of a mid-frequency range for specific applications. This flexibility enables fine-tuning of the sound profile, specifically tailored to preferred music genres and the conditions of the audio system.

What is the RTC on the H-1400.4 D and how is it used?

The RTC (Remote Control) on the H-1400.4 D from Audio System is an optional accessory that allows for easier control of sound playback without directly operating the amplifier. With the RTC, you can centrally control the volume and other audio-specific settings to precisely adjust the sound to various requirements. This is particularly useful for making quick adjustments while in the vehicle without having to access the installation location of the amplifier. The RTC adds an extra layer of user-friendliness that makes the sound experience customizable and user-friendly.
