  3. 4-channel DSP amplifier for car
  5. Thor TRX-4004DSP

Hifonics Thor TRX-4004DSP 4-Channel DSP Amplifier

5 Reviews

150 Watt

Hifonics Thor TRX-4004DSP 4-Channel DSP Amplifier

5 Reviews

Technical Highlights

  • Power 4 x 100/150 W/RMS at 4/2 Ω, 2 x 300 W/RMS@4 Ω.
  • 8-channel DSP processor with 32bit/192 kHz, screwed RCA jacks.
  • 6 RCA inputs, USB port, optical input (stereo PCM 2.0).
  • More technical details
€299,00
€299,00 €299,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
Mar 21, - Mar 24,
x Piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €24,91 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

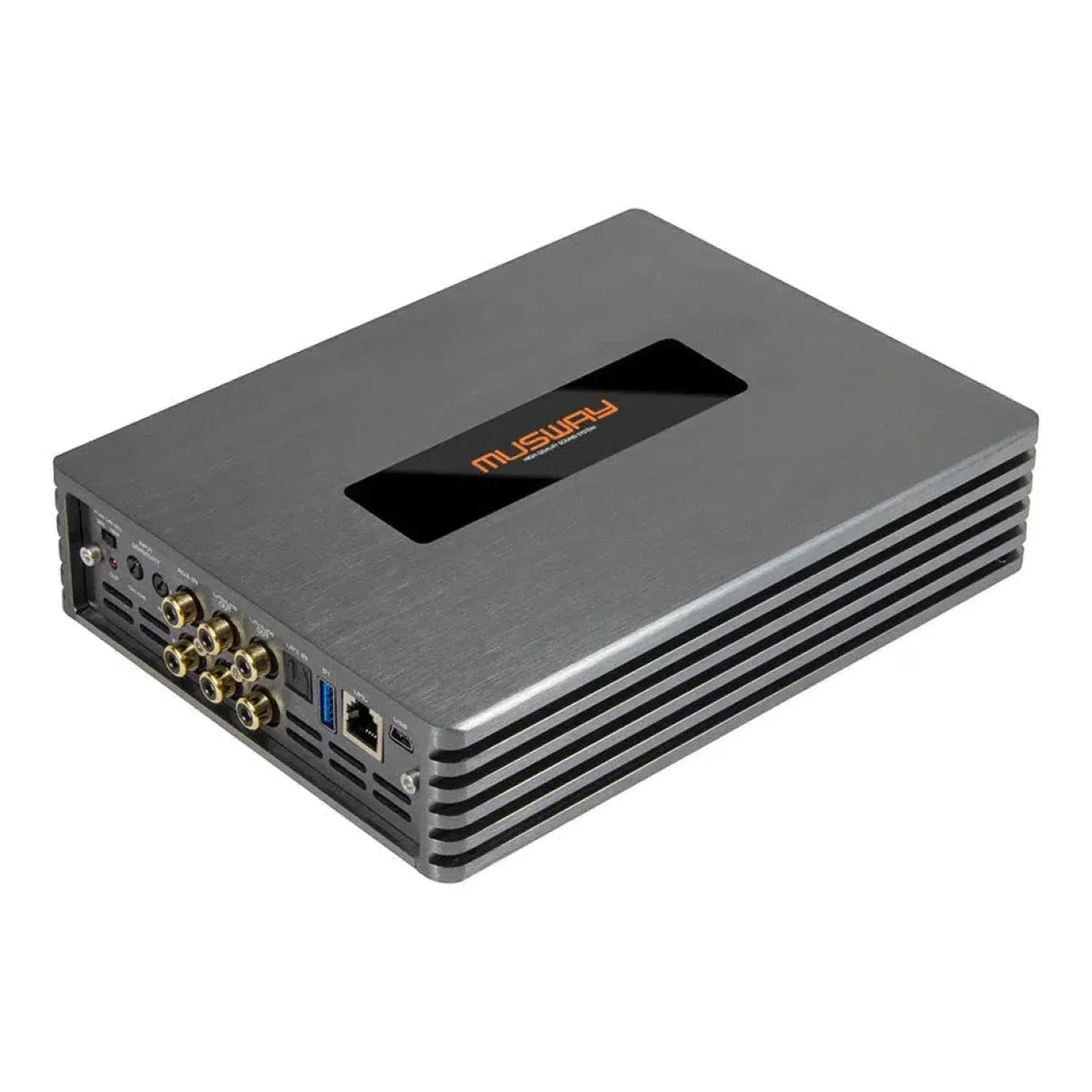

MuswayM4+v3
Musway-M4+v3-4-Kanal DSP-Verstärker-masori-kaufen
Rainbow Audio-EL-PA200 NEO-4-Kanal DSP-Verstärker-masori-kaufen
Rainbow AudioEL-PA200 NEO
Hifonics-Thor TRX-4004DSP-4-Kanal DSP-Verstärker-masori-kaufen
€299,00
€299,00 €299,00

Compatible with Thor TRX-4004DSP

Thor TRX-4004DSP by Hifonics

With the THOR TRX series, which includes the Hifonics THOR TRX-4004DSP DSP amplifier, Hifonics skillfully combines classic amplifier virtues with advanced DSP technology. The TRX models, styled in the same design as the premium Zeus, Brutus, and Atlas series, offer the familiar powerful amplifier performance from Hifonics with an integrated DSP processor that can be optimally adjusted using the included DSP software.

The M-CONTROL 2 software offers a variety of options to adapt your sound system to the vehicle acoustics. A clear and logically structured user interface enables intuitive handling and real-time sound tuning while the DSP device is connected to the software via USB. All 8 channels can be configured individually or as 4 channel pairs. In addition to the high-pass, low-pass, and band-pass crossover filters, parameters such as phase shift and time correction, along with a 31-band equalizer per channel, can be adjusted. Up to 10 different configurations can then be saved on the DSP device.

Features

  • 8-channel DSP processor 32bit / 192 kHz
  • Wired remote control with LCD display
  • Screw-mounted RCA jacks
  • Illuminated logo badge (blue or white)
  • Blue, side-lit cooling fins
  • Blue terminal lighting
  • Heavy cast end caps
  • Low-noise input OPs (9V/µS slew rate)
  • Double-sided PCB
  • M-CONTROL 2 DSP software for Windows™
  • Class A/B analog 4-channel amplifier
  • with 8-channel DSP processor, 32bit / 192 kHz

Specifications

  • 4 x 100/150 W/RMS @ 4/2 Ω
  • 2 x 300 W/RMS @ 4 Ω bridged
  • 6 RCA inputs, 2 RCA AUX inputs
  • 2 RCA line outputs, USB port
  • Optical input (stereo PCM 2.0)
  • Dimensions 255 x 62 x 395/435 mm
  • DSP software M-CONTROL 2
  • 10 storable settings
  • Gain –40~+12dB
  • 6 x 31-band EQ 20~20,000 Hz
  • 2 x 11-band EQ 20~200 Hz
  • 6~48 dB/oct. crossover HP/BP/LP
  • Time correction 0~15 ms/0~54 inches
  • Phase 0°/180°
  • Wired remote control with LCD display
  • Master volume, subwoofer level,
  • Input mode, setting selection

Your benefits at Masori

Frequently Asked Questions about Thor TRX-4004DSP

What are the technical features of the Thor TRX-4004DSP DSP Amplifier?

The Thor TRX-4004DSP from Hifonics is a DSP Amplifier that combines classic amplifier characteristics with advanced DSP technology. It offers an amplifier power of 4 x 100/150 W/RMS at 4/2 Ω and 2 x 300 W/RMS at 4 Ω bridged. The integrated 8-Channel DSP processor operates at 32bit/192 kHz and allows for precise adjustment of the vehicle acoustics using M-CONTROL 2 software. Additionally, it is possible to set high-pass, low-pass, and band-pass filters, as well as configure phase inversion, time correction, and a 31-band equalizer per channel.

What features does the M-CONTROL 2 DSP software offer?

The M-CONTROL 2 DSP software for the Thor TRX-4004DSP allows for extensive customization of the sound system. Users can configure all eight channels individually or in four channel pairs, including the setting of crossovers with high-pass, low-pass, and band-pass filters. Furthermore, the 31-band equalizer, phase inversion, and time correction can be adjusted for each channel. Up to ten different configurations can be saved on the DSP device, allowing for flexible adaptation to various acoustic environments. An intuitive user interface significantly simplifies usage.

How does the optical input affect the Thor TRX-4004DSP?

The optical input of the Hifonics Thor TRX-4004DSP accepts digital signals in Stereo PCM 2.0 format, enabling lossless transmission of high-quality audio content. This input is ideal for users who desire clean and unaltered signal processing. The converted sound is further refined by the integrated DSP processor, resulting in a clear and detailed listening experience. Particularly HiFi enthusiasts benefit from this connectivity option, as it offers higher sound fidelity compared to analog inputs.

What are the dimensions of the Thor TRX-4004DSP and how does this affect placement?

The Thor TRX-4004DSP has compact dimensions of 255 x 62 x 395/435 mm, making it suitable for a variety of installation locations in the vehicle. This size allows for flexible placement, whether in the trunk, under a seat, or in other inconspicuous spots. Due to its compact design, it fits easily into various vehicle models and hardly affects the available space. The compact amplifier helps reduce installation complications and increases the range of possible applications in different vehicle types.

What advantages does the Class A/B technology in the Thor TRX-4004DSP offer?

The Class A/B amplifier technology used in the Thor TRX-4004DSP combines the sound advantages of Class A with the efficiency of Class B. This technology ensures excellent sound quality with a high degree of efficiency, providing longer operating time without excessively taxing the vehicle battery. Especially if you enjoy listening to music loudly, you benefit from clean and precise audio reproduction that offers more warmth and detail in the sound. The integrated optimization features also provide an enhanced acoustic experience.

What configuration options does the Thor TRX-4004DSP offer for the equalizer?

With the Thor TRX-4004DSP, users can configure six 31-band equalizers from 20 to 20,000 Hz and use two 11-band equalizers between 20 and 200 Hz. This configurability allows for precise adjustment of the sound to different preferences and acoustic conditions. In addition to flexibility in equalizer settings, the gain can also be adjusted between -40 to +12 dB. These features allow for in-depth control over acoustic tuning and offer significantly more customization options compared to traditional amplifier systems.

What lighting options does the Thor TRX-4004DSP have, and do they affect functionality?

The Thor TRX-4004DSP features an LED-illuminated logo badge with blue or white lighting, blue side-lit heat sink fins, and blue connection terminal lighting. These aesthetic features not only contribute to the visual appeal of the Amplifier but also enhance the visibility of the connections, especially in low light conditions. While the lighting does not directly affect sound quality, it indirectly supports user-friendliness by allowing easier identification and handling of the connections in the vehicle.

What features does the control of the Thor TRX-4004DSP offer via the cable remote control?

The cable remote control with LCD display included with the Thor TRX-4004DSP gives you control over various audio settings directly from the driver's seat. You can quickly and easily adjust the overall volume, subwoofer level, input mode, and currently selected settings. This personal control allows you to adjust the audio settings while driving without the need for a central control unit. Especially in dynamic listening environments, the remote control proves to be a valuable tool for making real-time adjustments.

How many settings can be stored in the Hifonics Thor TRX-4004DSP?

You can store up to ten different audio configurations in the Hifonics Thor TRX-4004DSP DSP Amplifier. This feature allows you to create different audio profiles for various music genres or environments and switch between them easily. Such stored presets are particularly beneficial for quickly adapting the acoustics to changed listening conditions, whether it's driving in city traffic or on the highway. This way, you always have the option to adjust the sound to your preferences at the push of a button.

What aspects of signal processing does the Thor TRX-4004DSP improve through its OPs?

The Thor TRX-4004DSP uses noise-free input operational amplifiers (OPs) with a slew rate of 9V/µS. These OPs are crucial for the quality of signal processing as they allow for a rapid response to voltage spikes. The result is clearer and faster reproduction of high frequencies and transients. Especially with music that has dynamic elements, such as jazz or classical pieces, these OPs help preserve fine details and natural clarity. This achieves a differentiated sound image with significantly more precision and depth.
