  3. Stage3 copper ceramic ANL fuse 30-400A
Four Connect Stage3 copper ceramic ANL fuse 30-400A Fuse
SKU:  4-690371
EAN:  6430042126866

8 Reviews

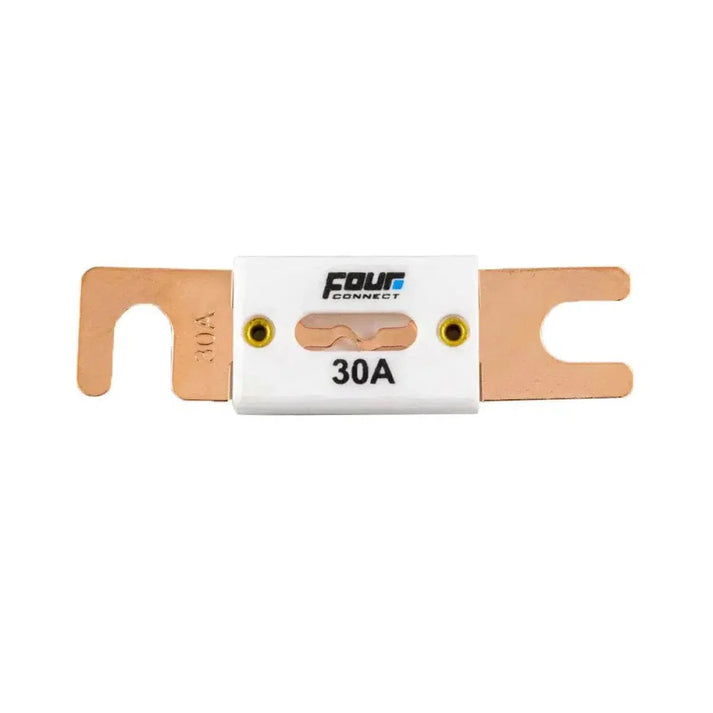

Stage3 copper ceramic ANL fuse 30-400A

SKU:  4-690371
EAN:  6430042126866

8 Reviews

Technical Highlights

  • Copper ceramic ANL fuses, 30A to 400A, up to 5700W power.
  • White ceramic fuse body, excellent insulator, high quality.
  • Optimal conductivity, solid copper construction, various cable sizes.
  • More technical details
€7,00
€7,00 €7,00
5% discount with credit card
inkl. VAT , possibly plus shipping
size: 30A
Only a few left in stock (9 pieces available)
In stock
Jun 5, - Jun 6,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Four Connect-Stage3 Kupfer Keramik ANL Sicherung 30-400A-Sicherung-masori-kaufen
€7,00
€7,00 €7,00

Stage3 copper ceramic ANL fuse 30-400A by Four Connect

Stage3 Copper Ceramic ANL Fuse 30-400A is a fuse from Four Connect in ANL design with fuse values ranging from 30 A to 400 A. The conductor is made of solid copper. The fuse body is made of white ceramic. The available values are listed with specifications for compatible cable cross-sections and approximate amplifier power. Delivery includes: 1x ANL Fuse.

Features
  • Fuse
  • ANL design
  • Material: solid copper
  • Fuse body: white ceramic
  • Fuse values: 30 A to 400 A
  • Manufacturer: Four Connect
  • Delivery includes: 1x ANL Fuse
Technical Data
  • Available fuse values:
    • 30 A – suitable for up to 5 mm² cable and approx. 450 W amplifier power
    • 60 A – suitable for up to 10 mm² cable and approx. 850 W amplifier power
    • 80 A – suitable for up to 16 mm² cable and approx. 1300 W amplifier power
    • 100 A – suitable for up to 20 mm² cable and approx. 1700 W amplifier power
    • 125 A – suitable for up to 25 mm² cable and approx. 1900 W amplifier power
    • 150 A – suitable for up to 35 mm² cable and approx. 2100 W amplifier power
    • 200 A – suitable for up to 50 mm² cable and approx. 3000 W amplifier power
    • 250 A – suitable for up to 70 mm² cable and approx. 3600 W amplifier power
    • 300 A – suitable for up to 95 mm² cable and approx. 4300 W amplifier power
    • 400 A – suitable from 100 mm² cable and approx. 5700 W amplifier power
  • Recommended fuse values by cable cross-section:
    • 1.5 mm² – optimal 10 A, maximum 15 A
    • 2.5 mm² – optimal 20 A, maximum 25 A
    • 4.0 mm² – optimal 25 A, maximum 30 A
    • 6.0 mm² – optimal 35 A, maximum 40 A
    • 10 mm² – optimal 50 A, maximum 60 A
    • 16 mm² – optimal 70 A, maximum 80 A
    • 20 mm² – optimal 90 A, maximum 100 A
    • 25 mm² – optimal 100 A, maximum 120 A
    • 35 mm² – optimal 125 A, maximum 150 A
    • 50 mm² – optimal 160 A, maximum 200 A
    • 70 mm² – optimal 200 A, maximum 250 A
    • 95 mm² – optimal 250 A, maximum 300 A
    • from 100 mm² – optimal 300 A, maximum 400 A

Your benefits at Masori

Frequently Asked Questions about Stage3 copper ceramic ANL fuse 30-400A

What are the specific cable sizes for the different Fuse ratings of the Stage3 Copper Ceramic ANL Fuse?

The Four Connect Stage3 Copper Ceramic ANL Fuses offer a wide range of Fuse ratings optimized for various cable sizes. For a current of 30A, a cable diameter of up to 5mm² is suitable, allowing for an amplifier power of about 450W. As Fuse ratings increase, the fuses require larger cable cross-sections; for example, a rating of 80A supports cables up to 16mm² for a power of around 1300W. The most powerful option, 400A, is designed for cables with a diameter of at least 100mm² and allows for an impressive power of up to 5700W. This variability ensures that the fuses operate reliably in applications with varying power levels.

How do the materials of the Stage3 ANL Fuses differ from other fuses?

The Stage3 Copper Ceramic ANL Fuses from Four Connect stand out due to their exceptional material choice, which sets them apart from many standard products. The fuse body is not made of simple plastic but of white ceramic. This choice offers numerous advantages: ceramic is an excellent insulator that enhances safety by reducing the risk of a short circuit. At the same time, the solid copper within the fuse significantly improves conductivity, allowing for more effective power transmission. This combination of copper and ceramic not only highlights the technical value of the fuse but also contributes to its durability and reliability under demanding conditions.

What amplifier power does a Stage3 ANL Fuse with a rating of 100A support?

A Stage3 copper ceramic ANL fuse with a rating of 100A supports wiring with a diameter of up to 20mm² and can handle an impressive amplifier power of approximately 1700W. This strength makes it particularly suitable for demanding car audio systems and other power applications that require a stable and efficient power supply. By choosing solid copper as the material for the fuse element, optimal conductivity is ensured, maximizing efficiency while minimizing heat generation, which is especially beneficial in high-performance systems.

How could the Stage3 ANL fuses be integrated into an existing audio system?

Integrating the Stage3 copper ceramic ANL fuses into an existing audio system requires careful planning, especially regarding cable size and amplifier power. First, you need to determine the compatible fuse rating based on your cable cross-section. For a 35mm² cable, for example, a fuse of 150A would be ideal. During installation, the fuse should be placed close to the power source to maximize its protective effect. Remember that the fuses support various amplifier powers, from 450W at 30A to 5700W at the largest 400A fuse, offering diverse application possibilities.

What are the advantages of a ceramic housing in the Stage3 ANL fuses?

The ceramic housing of the Stage3 copper ceramic ANL fuses offers distinct advantages over fuses with plastic housings. Ceramic is an excellent electrical insulator that reduces potential hazards of electrical short circuits, significantly enhancing safety in electrical systems. Additionally, ceramic has high heat resistance, making it ideal for applications where temperatures can rise quickly. These heat-resistant properties prevent the housing from melting or deforming, playing a vital role in ensuring stable functionality over extended periods. This combination of safety and stability makes the ceramic housing a preferred material in demanding applications.

What cable cross-section is optimal for a 60A Stage3 ANL Fuse?

A 60A Stage3 copper ceramic ANL Fuse from Four Connect is optimal for cables with a diameter of up to 10mm². This combination allows the system to support a safe amplifier output of up to approximately 850W, making it a solid choice for medium power systems. The use of a copper core within the fuse ensures superior conductivity, minimizing unwanted power losses and thus increasing the efficiency of the overall system. The robust ceramic construction provides additional safety and durability, allowing the fuse to withstand more demanding applications.

How do customers choose the optimal fuse rating for their audio system?

To choose the optimal fuse rating for an audio system with the Stage3 copper ceramic ANL Fuses, customers should consider the cable cross-section and the maximum desired amplifier output. For example, it is advisable to use a 100A fuse for a 20mm² cable, which is suitable for around 1700W of power. It is also important to check that the chosen fuse can withstand the maximum current load without becoming excessive, which could jeopardize the protection of the system. The wide range of available fuse ratings from 30A to 400A allows for flexibility and adaptation to diverse requirements.

What temperature resistance does the Stage3 copper ceramic ANL Fuse offer?

The Stage3 copper ceramic ANL Fuse from Four Connect utilizes a housing made of high-quality ceramic, giving it excellent temperature resistance. Ceramic is known for its ability to withstand high temperatures without deforming or melting. This thermal stability is crucial for use in environments where heat generation can rise rapidly. Thus, the fuse is not only protected from heat damage but also ensures sustained electrical shielding and safety. The temperature resistance complements the electrical properties by ensuring smooth and reliable operation, even under demanding conditions.

Is the Stage3 ANL Fuse from Four Connect suitable for use in car audio systems?

Yes, the Stage3 Copper Ceramic ANL Fuse from Four Connect is optimal for use in car audio systems. Its available fuse ratings from 30A to 400A cover a wide range of requirements and are compatible with various cable sizes, allowing for flexible integration into existing systems. Especially for high-performance audio systems in vehicles, the combination of solid copper for excellent conductivity and a heat-resistant ceramic housing that protects against overheating offers significant advantages. These fuses can safely and efficiently handle even demanding amplifier outputs of up to 5700W.

What influence does the copper content in the Stage3 ANL Fuse have on electrical performance?

The high copper content in the Stage3 Copper Ceramic ANL Fuse from Four Connect plays a crucial role in the electrical performance of the fuse. Copper is known for its excellent conductivity properties, maximizing the efficiency of power transmission within the fuse. This leads to minimal power losses, a characteristic that is particularly critical in high-performance applications. The copper content not only improves temperature resistance through reduced heating but also enhances the overall stability and lifespan of the electrical system. This ensures that the audio system operates reliably even at maximum load.
