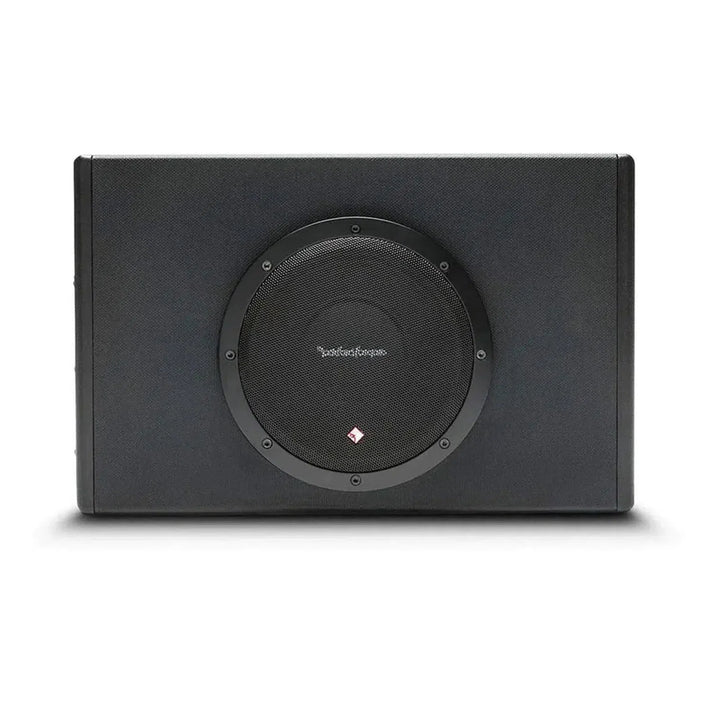

Rockford Fosgate Punch P300-8P Active 8" (20cm) Active Enclosed Subwoofer
SKU:  P300-8P
EAN:  4251950323220
300 Watt

Punch P300-8P Active

SKU:  P300-8P
EAN:  4251950323220

Technical Highlights

  • 300 watt Class-D amplifier, 8" subwoofer, 30Hz frequency.
  • Impedance optimized, bass EQ, phase switch integrated.
  • MDF housing, heat-activated vinyl, 8.6 kg weight.
  • More technical details
€329,00
€329,00 €329,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 29, - Jun 1,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €27,41 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Rockford Fosgate-Punch P300-8P Aktiv-8" (20cm) Aktiv-Gehäusesubwoofer-masori-kaufen
€329,00
€329,00 €329,00

Compatible with Punch P300-8P Active

Punch P300-8P Active by Rockford Fosgate

Rockford Fosgate Punch P300-8P Active is an 8 inch (20 cm) active enclosure subwoofer with an integrated Amplifier. The Class-D Amplifier with 300 Watts RMS uses an optimized Closed Loop design, a 12 dB/octave low-pass filter, a bass EQ, and a phase switch. The bass reflex enclosure is made from precision-crafted MDF and is coated with heat-activated vinyl. The frequency response ranges from 30 Hz to 200 Hz. Separate low-level (RCA) and high-level inputs with 1 RCA pair (L/R summed), input sensitivities from 150 mV to 6 V and 300 mV to 12 V, as well as 20 kOhm input impedance. Intelligent automatic on and off function via remote trigger, DC offset, and audio sensor. Includes Punch Level Control remote, robust power/ground connections, and quick input connections. Thermal protection as well as over and under voltage protection; dimensions 289 mm x 448 mm x 141 mm; shipping weight 8.6 kg.

Features
  • 8 inch (20 cm) active enclosure subwoofer
  • Bass reflex enclosure
  • Class-D Amplifier with optimized Closed Loop design
  • Optimized 8 inch woofer with low impedance
  • Integrated phase switch
  • Adjustable 12 dB/octave low-pass crossover
  • Adjustable bass EQ
  • Separate low-level (RCA) and high-level inputs (Speaker Line)
  • Signal input: 1 RCA pair, L/R summed
  • Intelligent automatic on and off function
  • Punch Level Control remote included
  • Robust power/ground connections
  • Quick input connections for easy removal
  • Thermal protection as well as over and under voltage protection
  • Precision-crafted MDF enclosure with heat-activated vinyl coating
Technical Specifications
  • Frequency response: 30 Hz to 200 Hz
  • Power handling: 300 Watts RMS
  • Circuit topology: Class-D
  • Enclosure type: Bass reflex
  • Crossover control: variable 50 Hz to 200 Hz
  • Filter: 12 dB/octave Butterworth
  • Sound control: Bass Boost
  • Bass Boost: 0 dB to +12 dB
  • Phase control: 0° to 180°
  • Remote control: Punch Level Control (included)
  • Auto-on options: Remote trigger, DC offset sensor, audio sensor
  • Input switch: High-level and low-level
  • Signal input: 1 RCA pair (L/R summed)
  • Input sensitivity low-level: 150 mV to 6 V
  • Input sensitivity high-level: 300 mV to 12 V
  • Input impedance: 20 kOhm
  • Cable cross-section B+/GND: 8 mm²
  • Woofer size: 8 inch (20 cm)
  • Dimensions H x W x D: 289 mm x 448 mm x 141 mm
  • Shipping weight: 8.6 kg

Your benefits at Masori

Frequently Asked Questions about Punch P300-8P Active

How does the Punch P300-8P Active Subwoofer work?

The Rockford Fosgate Punch P300-8P is a standalone Subwoofer with an integrated 300-watt Class D Amplifier. The unit utilizes an optimized 'Closed Loop' design that ensures maximum efficiency. The 8-inch Subwoofer is impedance-optimized, allowing for ideal tuning with the Amplifier. The built-in low-pass filter can be adjusted between 50 Hz and 200 Hz, while the adjustable bass boost ranges from 0 dB to +12 dB. This configuration allows for precise adjustment to the desired sound profile to achieve the best acoustic output. With the remote control, you can conveniently adjust the bass level.

What frequency ranges can the Punch P300-8P reproduce?

The Punch P300-8P Active Subwoofer covers a frequency range from 30 Hz to 200 Hz. This makes it particularly suitable for reproducing deep bass frequencies that are often missed in an audio system. The Subwoofer is equipped with an adjustable low-pass crossover that can vary from 50 Hz to 200 Hz. The 12dB/octave Butterworth crossover also ensures a seamless transition from the sub-bass frequencies to the other speakers in the system. These frequency characteristics make the Subwoofer ideal for musicians and audiophiles who appreciate deep, resonant bass.

How do I install the Punch P300-8P in my vehicle?

When installing the Rockford Fosgate Punch P300-8P, it is important to consider the dimensions of 289 mm height, 448 mm width, and 141 mm depth. These compact dimensions make the Subwoofer especially suitable for installation in trucks, where space is often limited. Use power/ground cables with a diameter of 8mm² for a stable power connection. The installation is facilitated by robust power/ground connections. Ensure that the speaker inputs are properly configured to integrate the Subwoofer with the interior of your vehicle. Use the included remote control to conveniently adjust the bass level from the driver's seat.

Is the Punch P300-8P compatible with my car radio?

The Punch P300-8P features both high-level and low-level inputs, making it compatible with most car radios. The low-level inputs support input sensitivities from 150 mV to 6 V, while the high-level inputs are designed for 300 mV to 12 V. The Subwoofer offers an audio sensor that automatically responds to audio signals, eliminating the need for a special remote cable. The input impedance is 20 kOhm, ensuring safe integration into the existing car audio infrastructure. This flexibility makes the Subwoofer a versatile solution for many audio upgrades across various car brands.

What safety features does the Punch P300-8P have?

The Rockford Fosgate Punch P300-8P is equipped with several safety features that ensure safe operation. These include thermal protection and over/under voltage protection, which ensure the Subwoofer operates under various conditions. These features protect the electronics from overheating and voltage fluctuations that may occur during operation. Additionally, the Subwoofer has an automatic on and off function that activates the Subwoofer upon audio signal detection. This functionality optimizes energy consumption and increases the device's lifespan by avoiding excessive power usage.

What materials are used in the Punch P300-8P enclosure?

The enclosure of the Punch P300-8P is made from MDF (Medium Density Fiberboard), a material known for its excellent acoustic properties. MDF provides a stable and resonance-free structure, which is crucial for minimizing sound distortion and vibrations. The surface is coated with a heat-activated vinyl that not only offers aesthetic benefits but also provides effective protection against stains and scratches. This combination of materials ensures that the Subwoofer not only sounds good but also looks appealing and remains resilient against everyday wear and tear.

How is the bass of the Punch P300-8P adjusted?

The Punch P300-8P offers several options for adjusting the bass level. The Subwoofer is equipped with a variable bass boost equalizer that covers a range from 0 dB to +12 dB. This setting allows you to optimize the bass according to your music taste and speaker configuration. Additionally, a remote control is included, allowing you to adjust the bass level directly from the driver's seat. This adaptability gives you the ability to tailor the sound in your vehicle to match your acoustic preferences without making manual adjustments to the Subwoofer.

What type of amplifier does the Punch P300-8P use?

The Punch P300-8P features a built-in Class-D amplifier that delivers 300 watts RMS. Class-D amplifiers are known for their high efficiency and low power consumption, making them ideal for use in vehicles where energy savings are crucial. The amplifier is connected in a 'Closed Loop' configuration with the 8-inch subwoofer, ensuring optimal synergy between the speaker and the amplifier. This combination allows for deep and powerful bass with minimal energy consumption, ultimately contributing to an extended lifespan of the vehicle's battery.

How does the Punch P300-8P differ from other subwoofers?

The Punch P300-8P stands out with its all-in-one design, which combines a subwoofer and an amplifier in one system. This integrated construction significantly reduces installation effort and makes external amplifiers unnecessary. Additionally, it features innovative elements such as an intelligent automatic on/off function and a bass level remote control, making it extremely user-friendly. Technical refinements like an optimized impedance subwoofer and an adjustable bass boost equalizer offer customization options that many other subwoofers do not provide. Its robust MDF construction with a vinyl coating also ensures durability and an attractive appearance.

What are the dimensions and how do they affect placement in the car?

The dimensions of the Rockford Fosgate Punch P300-8P are 289 mm in height, 448 mm in width, and 141 mm in depth. This relatively compact size allows for versatile placement in the car, especially in smaller vehicles and trucks where space is limited. The compact design enables the subwoofer to be installed, for example, under seats or in tight trunks without compromising valuable space for passengers or luggage. This flexibility in placement makes it easier to position the subwoofer for optimal sound without interfering with the vehicle's interior.
