Vehicle Search

  3. Punch P300-10 Active

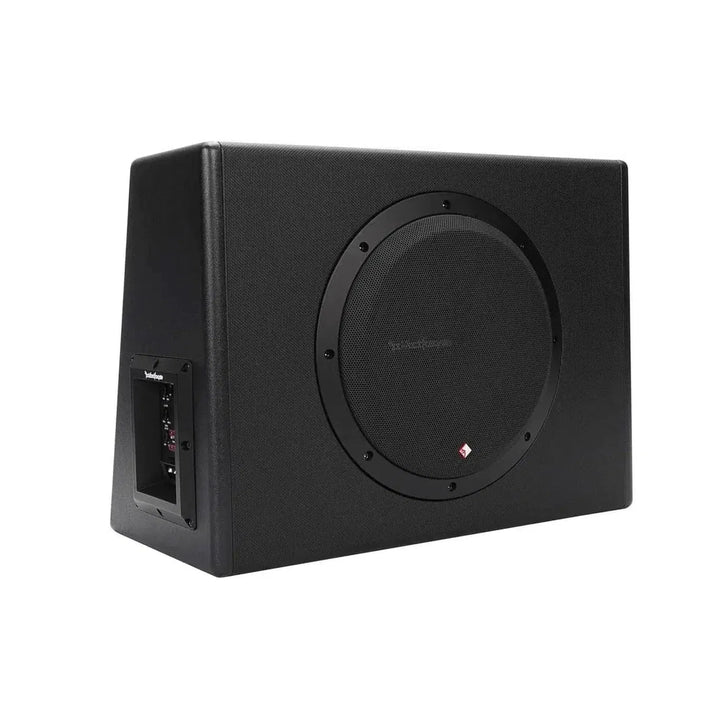

Rockford Fosgate Punch P300-10 Active 10" (25cm) Active Enclosed Subwoofer
SKU:  P300-10
EAN:  4251950323244
300 Watt

Punch P300-10 Active

SKU:  P300-10
EAN:  4251950323244

Technical Highlights

  • 300 watt amplifier, 10" subwoofer, 25Hz frequency.
  • Closed-loop design, bass boost EQ, phase switch.
  • MDF housing, 10.79 kg weight, 33.7 cm height.
  • More technical details
00 d
00 h
00 m
00 s
€341,10
-10% €379,00 €341,10
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 29, - Jun 1,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €28,42 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Rockford Fosgate-Punch P300-10 Aktiv-10" (25cm) Aktiv-Gehäusesubwoofer-masori-kaufen
€341,10
€379,00 €341,10

Compatible with Punch P300-10 Active

Punch P300-10 Active by Rockford Fosgate

Punch P300-10 Active is a 10-inch (25 cm) active enclosure subwoofer from Rockford Fosgate with an integrated 300 Watt RMS Class-D Amplifier. The sealed MDF enclosure houses a proprietary 10-inch Punch woofer and utilizes a closed-loop design between the woofer, amplifier, and enclosure. Integrated features include a 0°/180° phase switch, an adjustable 12 dB/octave low-pass crossover, and a bass boost EQ. Separate low-level and speaker-level inputs are available, including remote-controlled bass level adjustment. The automatic on/off function, thermal protection, and over/under voltage protection are built-in. A detachable power/ground connection, large AWG input terminals, and a highly efficient design with low power consumption are present. The frequency response ranges from 25 Hz to 200 Hz, with a crossover range of 35 Hz to 150 Hz. An extruded aluminum heat sink supports heat dissipation. Dimensions (H x W x D x Tu): 33.7 x 45.72 x 22.6 - 14.98 cm.

Features
  • 10-inch (25 cm) active enclosure subwoofer
  • Sealed enclosure with proprietary 10-inch Punch woofer
  • 300 Watt RMS integrated Amplifier
  • Closed-loop design between woofer, amplifier, and enclosure
  • Built-in 0°/180° phase switch
  • Separate low-level and speaker-level inputs
  • Adjustable bass boost EQ
  • Adjustable 12 dB/octave low-pass crossover
  • Detachable power/ground connection
  • Intelligent automatic on/off function
  • Highly efficient design with low power consumption
  • Thermal protection and over/under voltage protection
  • Remote control of bass level included
  • MDF enclosure
  • Large AWG input terminals
  • Covered with heat-activated industrial vinyl
Technical Specifications
  • Power handling RMS: 300 Watts
  • Frequency response: 25 Hz to 200 Hz
  • Crossover control: variable 35 Hz to 150 Hz
  • Filter: 12 dB/octave Butterworth
  • Cable diameter: 8 mm²
  • Heat sink: extruded aluminum
  • Circuit topology: Class-D
  • Number of woofers: 1
  • Woofer size: 10 inches
  • Signal input low-level: 1 RCA pair
  • Signal input high-level: summed left/right inputs
  • Sound controls: gain and bass boost
  • Dimensions (H x W x D x Tu): 33.7 x 45.72 x 22.6 - 14.98 cm
  • Shipping weight: 10.79 kg

Your benefits at Masori

Frequently Asked Questions about Punch P300-10 Active

How much power does the Punch P300-10 Active Subwoofer have?

The Rockford Fosgate Punch P300-10 Active Subwoofer offers a continuous output power of 300 Watts RMS. This power is provided by a built-in Amplifier that is specifically optimized to work with the 10-inch (25 cm) high-performance Subwoofer and the sealed enclosure. Thanks to the Closed-Loop design, optimal performance between the Subwoofer, Amplifier, and enclosure is ensured. The built-in Amplifier allows for precise control of bass reproduction, while thermal protection safeguards the system against overheating, which is beneficial during intense use.

Can I install the Punch P300-10 in my car?

The Punch P300-10 Subwoofer from Rockford Fosgate has specific installation requirements that need to be considered for most vehicles. With dimensions of 33.7 x 45.72 x 22.6 - 14.98 cm, it fits in many trunks, but accurate measurement of the installation space is crucial. The detachable power and ground connections facilitate installation, while the compact design allows for integration into various vehicle configurations. No specific compatibility information is required for certain car brands, as the dimensions are the key factor in ensuring a successful installation.

What protection mechanisms are built into the Punch P300-10?

The Rockford Fosgate Punch P300-10 Subwoofer is equipped with several protection mechanisms that ensure the longevity and reliability of the system. These include thermal protection as well as over and under-voltage protection, which safeguard the device from damage due to extreme operating conditions. The intelligent power on and off automation system minimizes unnecessary power consumption by activating the Amplifier only when needed. These protection mechanisms are particularly important when the system is operated at high volume for extended periods.

How does the sound control work on the Punch P300-10?

The sound control of the Punch P300-10 Subwoofer is managed through an adjustable gain and bass boost control, as well as a 12 dB/octave low-pass crossover. The bass boost EQ allows adjustments to the bass intensity to tailor the sound to personal preferences or music genres. The variable crossover control operates in the range of 35 Hz to 150 Hz to ensure the correct frequency separation between the subwoofer and other speakers. The included remote control allows for quick volume adjustments from the driver's seat without needing to manually operate the audio system.

What types of inputs does the Punch P300-10 support?

The Rockford Fosgate Punch P300-10 Subwoofer offers both low-level and high-level inputs for flexible integration into various audio systems. Low-level inputs consist of an RCA pair, providing a clear signal connection for audio systems that support RCA outputs. The high-level inputs sum left and right channels and allow connection to speaker outputs from car radios without a dedicated subwoofer output. These versatile connection options facilitate integration into numerous audio setups and ensure that the subwoofer is compatible with different audio systems.

What is the enclosure material of the Punch P300-10 active subwoofer?

The enclosure of the Rockford Fosgate Punch P300-10 active subwoofer is made from medium-density fiberboard (MDF), a material known for its sound absorption properties and robust sound reproduction. The enclosure is specifically designed to house the 10-inch woofer and provides optimal resonance control. The surface material is made from heat-activated industrial vinyl, ensuring additional durability and an appealing look. This choice of materials contributes to overall performance and ensures even sound projection without unwanted rumbling or vibrations.

What phase settings does the Punch P300-10 offer?

The Rockford Fosgate Punch P300-10 Active Subwoofer is equipped with a built-in phase switch that can be adjusted between 0° and 180°. This feature allows you to adjust the phase of the subwoofer to match the other speakers in the audio system for a more coherent sound image. For example, if the subwoofer and other speakers are not perfectly synchronized, it can lead to interference. By adjusting the phase switch, you can ensure that all sound sources work together in the intended rhythm, which is especially important for optimizing room acoustics.

What is the circuit topology of the Punch P300-10?

The circuit topology of the Rockford Fosgate Punch P300-10 Active Subwoofer is based on a Class-D amplifier design. This topology is known for its efficiency at low thermal load, meaning the amplifier consumes less power and dissipates less heat. Class-D amplifiers are ideal for mobile use in vehicles, as they require less space and can handle the energy provided by the vehicle's electrical system more efficiently. This efficiency allows for robust and consistent bass without excessive heat generation.

What frequency range does the Punch P300-10 cover?

The frequency response of the Punch P300-10, an actively operated Enclosed Subwoofer from Rockford Fosgate, ranges from 25 Hz to 200 Hz. This range allows for the reproduction of deep bass, which is particularly important in music genres like hip-hop or electronic music, as well as heavy sound effects in movies. The crossover unit, which is variable between 35 Hz and 150 Hz, allows you to adjust the high-pass and low-pass frequencies to achieve the best possible interaction with the other speakers. This ensures seamless integration and optimal sound balance throughout the audio system.

How is cooling implemented in the Punch P300-10 Subwoofer?

The Punch P300-10 Subwoofer from Rockford Fosgate uses a heatsink made of extruded aluminum for efficient heat dissipation. This material is highly effective at dissipating excess heat generated by the Class-D amplifier during operation. Aluminum as a cooling material is not only lightweight but also very conductive, meaning that heat is quickly transferred to the surrounding air. This cooling method is crucial for maintaining the performance of the subwoofer under demanding conditions and maximizing its lifespan.
