  3. VN1045-DBJ-4G
ESX VN1045-DBJ-4G Fiat Ducato Navigation Receiver
SKU:  VN1045-DBJ-4G
EAN:  4251476406759

VN1045-DBJ-4G

SKU:  VN1045-DBJ-4G
EAN:  4251476406759

Technical Highlights

  • 4x50 watt amplifier, enables powerful sound, optimal performance.
  • Supports 4G LTE for mobile internet, fast access to apps.
  • Octa-core processor, 4GB RAM, 64GB internal flash hard drive.
  • More technical details
€1.199,00
€1.199,00 €1.199,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Options: VN1045-DBJ-4G (without iGO)
Delivery
May 29, - Jun 1,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €99,91 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

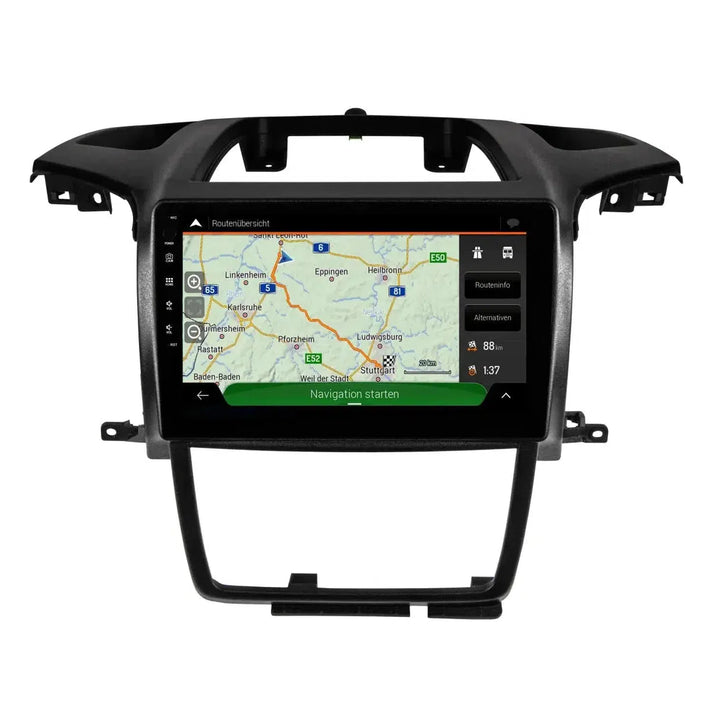

ESX-VN1045-DBJ-4G-Fiat Ducato Naviceiver-masori-kaufen
€1.199,00
€1.199,00 €1.199,00

VN1045-DBJ-4G by ESX

The ESX VN1045-DBJ-4G is a Fiat Ducato Navigation Receiver with a 25.6 cm touchscreen, touch buttons, internal DAB+ and 4G internet via dongle. The base unit VN1040-4G operates with Android 10 and an octa-core processor. Equipped with 4 GB of RAM, 64 GB of internal flash storage, and a Wi-Fi hotspot (2.4/5.0 GHz). Navigation through apps like Google Maps and Waze as well as access to Google Play are provided. DAB+ digital radio with station logos, AM/FM with RDS, Bluetooth hands-free and audio streaming are integrated. Front and rear camera inputs with a camera direct button, Media Connect iOS wireless (Apple CarPlay compatible) and Media Connect Android via USB (Android Auto compatible) are supported. There are pre-amplifier outputs for front/rear/Subwoofer, 2 USB ports with charging function, and a GPS module. The large installation console VNA-CON-DBJ, ACC function via button, internal and external microphone, custom boot logos/background images, and the pre-installed Promobil parking radar app complete the features.

Features
  • Fiat Ducato Navigation Receiver
  • 25.6 cm touchscreen (1024 x 600 px), matte anti-glare
  • Including custom large installation console VNA-CON-DBJ
  • Internal DAB+ digital radio (incl. DAB antenna)
  • AM/FM radio with RDS function
  • Media Connect iOS wireless (Apple CarPlay compatible)
  • Media Connect Android via USB (Android Auto compatible)
  • Front and rear camera inputs, compatible with analog HD cameras
  • Camera direct button on the control panel
  • Bluetooth hands-free and audio streaming
  • Support for Steering Wheel Remote Control (optional adapter required depending on vehicle)
  • 2 x USB port incl. charging function for smartphones
  • Pre-amplifier outputs for front/rear/Subwoofer
  • ACC function via button, operation also without ignition
  • Integrated GPS module
  • Mobile internet via 4G/LTE dongle or Wi-Fi hotspot (2.4/5.0 GHz)
  • Access to Google Play and compatible apps
  • Promobil parking radar app pre-installed
  • Custom boot logos and background images
  • Compatible with remote control VNA-REM40
Technical Data
  • Base unit: VN1040-4G
  • Operating system: Android 10
  • Processor: Octa-Core
  • RAM: 4 GB
  • Internal flash storage: 64 GB
  • Amplifier power: 4 x 50 watts
  • Wi-Fi hotspot: 2.4/5.0 GHz
  • 4G/LTE dongle (with optional SIM card)
  • DAB+ digital radio with station logos
  • AM/FM radio with RDS
  • Internal and external microphone
  • Pre-amplifier outputs: front/rear/Subwoofer
  • Front and rear camera connections
  • Camera direct button on the control panel
  • Compatible with analog HD cameras
  • Support for Steering Wheel Remote Control (optional adapter required depending on vehicle)
  • Custom boot logos and background images
  • Promobil parking radar with 23,000 parking and camping sites
  • Access to Google Play (Google account required)
  • Navigation via Google Maps (online and offline) and Waze
  • ACC function: operation also without ignition
  • Compatibility: Fiat Ducato III (Type 250, from 2006), Ducato IV (Type 290, from 2015), not compatible with blind spot assistant
  • Compatibility: Citroën Jumper II (Type 250, from 2006), Jumper III (Type 290, from 2015), not compatible with blind spot assistant
  • Compatibility: Peugeot Boxer II (Type 250, from 2006), Boxer III (Type 290, from 2015), not compatible with blind spot assistant
  • Compatibility: Opel Movano III (from 10/2021), not compatible with blind spot assistant
  • For vehicles with CAN bus (Type 290, from 2015): Adapter set VNA-LFB-FD3.40 available
  • For certain vehicles of type 250 (year of manufacture 2006–2011), special measures must be taken
  • Variants: ESX VN1045-DBJ-4G (without iGO)
  • Variants: ESX VNC1045-DBJ-4G (incl. A60) – iGO Europe camper navigation (46 countries including Turkey), 3 years of multi-map updates, editable vehicle parameters
  • Variants: ESX VNC1045-DBJ-4G (incl. A61) – like A60, plus 1 year of live traffic
  • Variants: ESX VNC1045-DBJ-4G (incl. A63) – like A60, plus 3 years of live traffic

Your benefits at Masori

ESX VN1045-DBJ-4G Datasheet

Open datasheet

Frequently Asked Questions about VN1045-DBJ-4G

How does navigation work with the VN1045-DBJ-4G?

The VN1045-DBJ-4G enables navigation through apps like Google Maps and Waze, optimized for satellite-based route planning in the Fiat Ducato. You can use maps both online and offline, with the pre-installed iGO Nextgen software available as an additional option. This includes European map coverage for up to 46 countries, including Turkey. Additionally, the Navigation Receiver offers live traffic information to avoid congestion. The resolution of 1024 x 600 px on a 25.6 cm (10.1 inch) TLC provides a clear map display. Touch buttons make it easy to navigate between applications.

What connection options does the ESX VN1045-DBJ-4G offer?

The VN1045-DBJ-4G offers versatile connection options, such as USB interfaces for Android Auto and Apple CarPlay to connect your smartphone directly. Two USB ports charge smartphones and provide data exchange. The integrated DAB+ tuner delivers crystal-clear radio stations with logos, while AM/FM with RDS functionality provides basic coverage. For added safety and convenience, you can connect front and rear cameras, with the Navigation Receiver supporting analog HD cameras. The Media Connect feature enables wireless iOS integration and Android user connection via USB. Preamp outputs for front, rear, and Subwoofer expand audio adjustments.

What storage capacities does the VN1045-DBJ-4G have?

Equipped with 64 GB of flash memory, the VN1045-DBJ-4G allows for the storage of extensive data, including maps and apps. The 4 GB of RAM ensures smooth operations and quick loading of applications. You have access to the Google Play Store, which opens up further storage of over 2 million apps. This storage concept is particularly useful for intensive multitasking tasks on the go. You can supplement or update additional information via USB interfaces. Thanks to this setup, storage consumption remains efficiently managed and the device's functionality stable.

Is the VN1045-DBJ-4G compatible with my vehicle?

The VN1045-DBJ-4G fits perfectly into specific Fiat Ducato configurations from 2006 (Type 250 and 290). It is also compatible with Citroën Jumper and Peugeot Boxer (from 2006) and Opel Movano III (from 10/2021). Note that some vehicles may require an additional CAN Bus Adapter. This Navigation Receiver is not compatible with vehicles that have blind spot assistants. Features like the large VNA-CON-DBJ installation console support a seamless installation. If you have an older Fiat model (built between 2006-2011), special adjustments may be necessary. However, smooth integration is ensured with most Ducato models.

What is special about the ACC function of the VN1045-DBJ-4G?

The ACC function of the VN1045-DBJ-4G allows the device to operate independently of the ignition, which is particularly advantageous for longer stops. This enables you to use navigation and entertainment options without having to start the engine. Supported by 4G/LTE connectivity, you can still access the internet and use Google Play Store apps. This function is especially useful when you want to park at a campsite and still not lose functionality. The ability to operate independently increases the value of the Navigation Receiver in standby mode.

What processing power does the VN1045-DBJ-4G offer?

The VN1045-DBJ-4G is equipped with a powerful octa-core processor that ensures efficient multitasking and smooth operation. Especially for data-intensive applications like navigation or audio streaming, the processor provides sufficient computing power. Combined with 4 GB of RAM, the processor guarantees shorter loading times and smooth use of multiple apps simultaneously. This technical setup is optimally tuned for modern features like integrated mobile network connectivity and access to numerous apps via the Google Play Store, completing the powerful system of the Navigation Receiver.

How does media connection with smartphones work on the VN1045-DBJ-4G?

The Media Connect feature of the VN1045-DBJ-4G allows wireless access for iOS devices through Apple CarPlay, while Android smartphones are connected via USB. This setup enables the use of compatible apps while driving and supports audio streaming as well as phone integration. The media connection enhances the use of your mobile content in the vehicle and increases comfort through direct control from the touch screen of the Navigation Receiver. Thanks to the Bluetooth hands-free system, safe and hands-free communication is possible. Additionally, the option to choose personal boot logos and wallpapers allows for a personalized display.

What role does the integrated 4G/LTE dongle play in the VN1045-DBJ-4G?

The 4G/LTE dongle of the VN1045-DBJ-4G enables mobile internet, ensuring continuous access to online-based services. Google Maps can display real-time traffic updates. It requires an optional SIM card for data connections, providing you with flexible network adaptation. An integrated Wi-Fi hotspot supports connections in the 2.4 or 5.0 GHz range and allows sharing the internet connection with other devices in the vehicle. This feature supports comfortable browsing and streaming of content during your journey.

How can cameras be integrated with the VN1045-DBJ-4G?

The VN1045-DBJ-4G offers dedicated inputs for front and rear cameras. The camera direct button on the control panel allows quick access to the camera view. Both analog HD cameras and standard recordings are supported, addressing various requirement profiles flexibly. This integration enhances safety while driving and parking, especially in urban or busy areas. User-friendliness is ensured through direct control and display on the high-resolution touch screen, which enables seamless transitions between navigation and camera functions, providing greater clarity.

What musical features does the ESX VN1045-DBJ-4G offer?

The VN1045-DBJ-4G is equipped with a DAB+ radio that provides crystal-clear reception with station logos and is complemented by the RDS AM/FM tuner. The built-in 4 x 50 Watt Amplifier delivers powerful sound, while pre-amplifier outputs for front, rear, and Subwoofer allow for expanded configuration. Bluetooth audio streaming enables wireless playback of your smartphone's music. The built-in USB interfaces also provide access to music playback and allow simultaneous charging of your devices. This combination of audiophile features enriches every driving experience and supports audio quality.
