  3. Voce II AVX 6.5 II

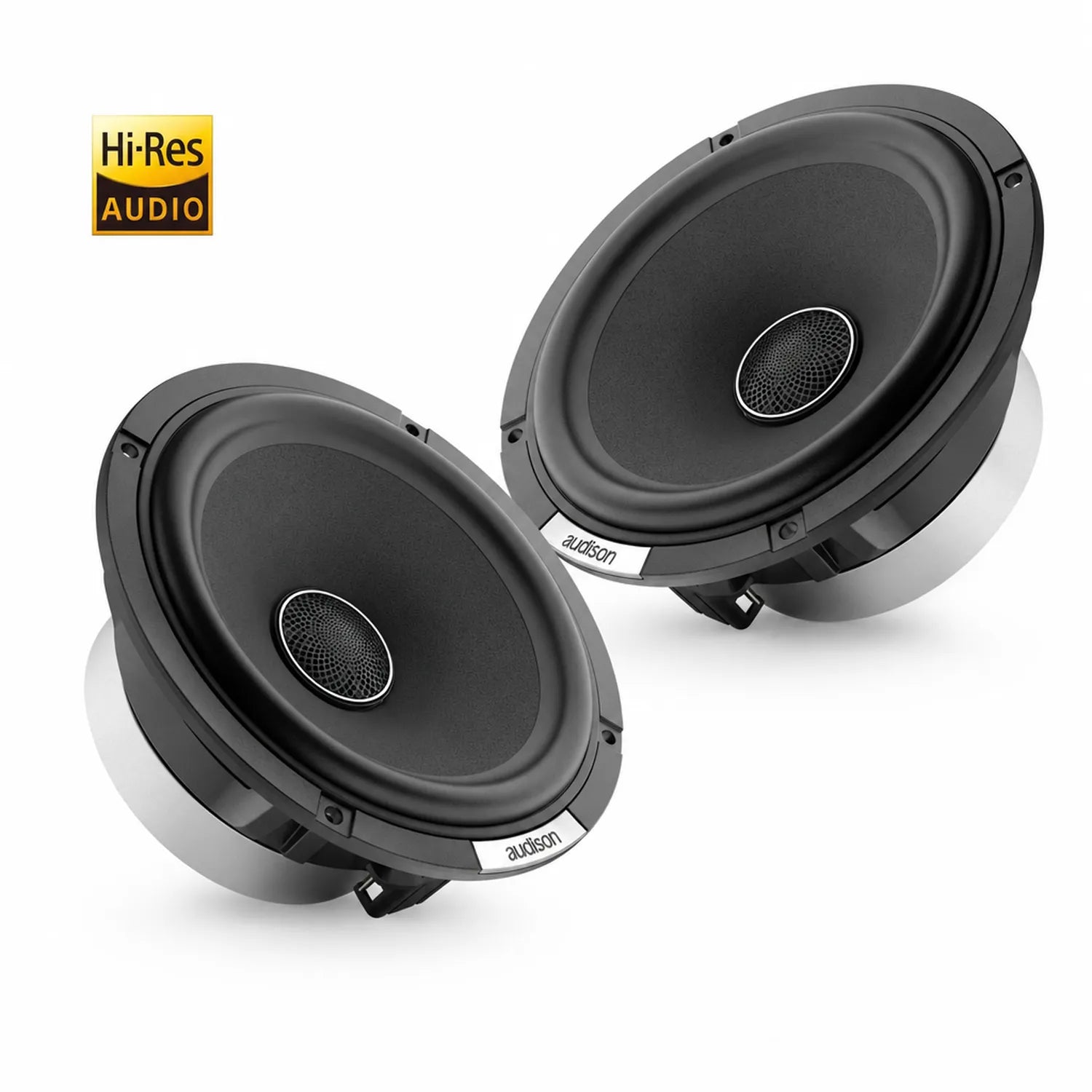

Audison Voce II AVX 6.5 II 6.5" (16,5cm) Coaxial Speaker

120 Watt

Audison Voce II AVX 6.5 II 6.5" (16,5cm) Coaxial Speaker

Technical Highlights

  • Power 240 W peak, impedance 4 Ohm, frequency response 45-40000 Hz.
  • Woofer 165 mm, voice coil 40 mm, paper cone, rubber surround.
  • Tweeter 25 mm, magnet neodymium, membrane Tetolon, 98 dB sensitivity.
  • More technical details
€499,00
€499,00 €499,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
Mar 22, - Mar 25,
x Couple
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €41,58 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Audison-Voce II AVX 6.5 II-6.5" (16,5cm) Koaxial-Lautsprecher-masori-kaufen
€499,00
€499,00 €499,00

Voce II AVX 6.5 II by Audison

The Voce AVX 6.5 II from Audison is a 6.5-inch coaxial speaker known for its Hi-Res audio certification. Featuring an integrated 1-inch dome tweeter, this speaker delivers exceptional high-frequency reproduction. It is designed for bi-amping, allowing active optimization with DSP. Thanks to versatile OEM connectors, the speaker can be easily integrated into various vehicles. The speaker uses materials such as aluminum, fiberglass, and semi-pressed pulp for stiffness and precise sound reproduction. With an RMS power of 120 W and a sensitivity of 91.5 dB, it offers powerful and detailed audio performance. The Audison VOCE II AVX 6.5 coaxial speaker is an outstanding component in the VOCE II line, offering a unique combination of a 6.5-inch woofer and a 1-inch Hi-Res certified dome tweeter.

TECHNICAL DATA LF

  • Woofer Size: 165 mm
  • Impedance: 4 Ohm
  • Minimum Impedance: 3.1 Ohm
  • Power Handling - Peak: 240 W
  • Power Handling - Continuous: 120 W
  • Sensitivity: 91.5 dB
  • Frequency Response: 45 ÷ 40000 Hz
  • Voice Coil Diameter: 40 mm
  • Chassis Material: Aluminum
  • Magnet Material: High Density Flux Ferrite
  • Magnet Size: 100-45-18
  • Voice Coil Material: CCAW
  • Basket Material: Glass Fiber
  • Cone Material: Semi-Pressed Paper
  • Surround Material: Rubber
  • Flux Density: 0.84
  • Xmax: 4.95 mm
  • Xmech: 7.5 mm
  • Gap Height: 6 mm
  • Voice Coil Winding Height: 13 mm

TECHNICAL DATA HF

  • Tweeter Size: 25 mm
  • Impedance: 4 Ohm
  • Minimum Impedance: 3.7 Ohm
  • Program Power: 20 W
  • AES Power Rating: 10 W
  • Sensitivity: 98 dB
  • Frequency Response: 1500 - 40000 Hz
  • Voice Coil Diameter: 25 mm
  • Voice Coil Material: CCAW
  • Basket Material: Aluminum
  • Diaphragm Material: Teloton Fibre
  • Surround Material: Tetolon Fibre
  • Magnet Material: Neodymium

ELECTRO-ACOUSTIC PROPERTIES

  • Re: 2.9 Ohm
  • Fs: 67 Hz
  • Mms: 14.9 g
  • Cms: 0.38
  • Bl: 5.4
  • Qms: 8
  • Qes: 0.62
  • Qts: 0.58
  • Vas: 9.1 l
  • LE: 0.3 mH
  • Reference Efficiency: 90.5

GENERAL

  • Weight: 1.6 kg

DIMENSIONS

  • Dimension A: 165 mm
  • Dimension B: 140 mm
  • Dimension C: 74.2 mm
  • Dimension D: 69.8 mm

FEATURES

  • Hi-Res Audio certified, extended up to 40 kHz: Delivers detailed high-frequency reproduction with improved off-axis response.
  • Concentric coaxial tweeter: Integrated into the woofer coil to create an impressive soundstage.
  • Cone optimized by FEM simulations: Ensures a uniform and precise sound image.
  • Dual crossover with active filtering: Provides precise frequency control and professional tuning options.
  • 1" (25 mm) Tetolon soft dome with integrated mesh grille: Ensures warm and natural sound reproduction.
  • 1.6" (40 mm) woofer voice coil made of CCAW: Maximizes heat dissipation and excursion capability.
  • Low inductance design: Enhances clarity of vocals and instruments.
  • Oversized magnetic assembly: Ensures optimal dynamic reserves.
  • FEM-optimized magnetic circuit geometry: Maximizes efficiency.
  • Semi-pressed pulp cone with cotton fibers: Combines stiffness and lightness for clean reproduction.
  • Die-cast aluminum basket with magnet cover: Improves heat dissipation.
  • High excursion butyl rubber surround and optimized spider: Reduces distortion.
  • Installation flexibility: Equipped with OEM and Faston connectors.
  • Optional black or silver metal grille: Provides robust protection and elegant integration.
  • eID technology: Ensures traceability and authenticity.

Your benefits at Masori

Audison Voce II AVX 6.5 II Datasheet

Open datasheet

Frequently Asked Questions about Voce II AVX 6.5 II

What special features does the Audison Voce AVX 6.5 II speaker have?

The Audison Voce AVX 6.5 II is a Hi-Res certified coaxial speaker with a 6.5-inch woofer and a 1-inch dome tweeter. It integrates a combined tweeter in the low-frequency range, allowing for precise sound radiation. With its dual passive crossovers, it can be filtered separately for the woofer and tweeter, resulting in clear sound quality. Its cone is optimized through FEM simulations to improve frequency response and radiation behavior. The balanced design ensures a powerful sound image. The speaker also offers the flexibility of active filtering, which can be integrated with a DSP for the optimal sound environment in vehicle installations.

What are the technical parameters of the woofer in the Voce AVX 6.5 II?

The woofer of the Audison Voce AVX 6.5 II is 165 mm in size and has an impedance of 4 Ohms, with a minimum impedance of 3.1 Ohms. It has a peak power handling of 240 W and a continuous power handling of 120 W. The sensitivity is 91.5 dB with a frequency response of 45 Hz to 40 kHz. The voice coil diameter is 40 mm and the voice coil material is CCAW. The cone is made of semi-stiff pressed cellulose, while the chassis is made of aluminum. The maximum excursion (Xmax) is 4.95 mm, with an Xmech of 7.5 mm, which favors the speaker for deep bass.

What materials are used in the construction of the tweeter in the Voce AVX 6.5 II?

The tweeter of the Audison Voce AVX 6.5 II uses a 1-inch Tetolon soft dome with a voice coil diameter of 25 mm. The impedance is 4 Ohms with minimum values at 3.7 Ohms. With a sensitivity of 98 dB, the frequency response of the tweeter ranges from 1500 Hz to 40 kHz. The material Tetolon Fibre is used for both the diaphragm and the surround. The basket is made of lightweight aluminum, while high-performance neodymium is used as the magnet material. These material specifications contribute to the finesse of sound reproduction.

What power parameters and frequency data does the Audison Voce AVX 6.5 II offer?

The Voce AVX 6.5 II speaker offers rich performance with a peak power of 240 W and a continuous power handling of 120 W. This is supported by a woofer with 91.5 dB sensitivity, covering frequencies from 45 Hz to 40 kHz. The tweeter has a sensitivity of 98 dB and provides a frequency response from 1500 Hz to 40 kHz, promising impressive, detailed high-frequency reproduction. The combination of these performance parameters enables a powerful and precise sound spectrum, expressed in Hi-Res audio certification, particularly excelling in high-end audio systems.

How is heat dissipation and dynamics ensured in the Voce AVX 6.5 II speaker?

The Voce AVX 6.5 II from Audison combines an oversized magnetic design with an aluminum die-cast basket, providing effective heat dissipation and maintaining thermal stability. A magnetic assembly optimizes performance during intense dynamic ranges—this gives the speaker the capacity to deliver powerful bass sounds. A torsion-resistant butyl rubber mounting ring and a specialized spider support linearized movements. The use of FFT-calculated magnetic circuits enhances the precision and integrity of sound reproduction, thus creating conditions for intriguing sound volumes.

What installation options does the Voce AVX 6.5 II speaker offer for vehicles?

The Audison Voce AVX 6.5 II speaker not only delivers outstanding sound characteristics but also offers high flexibility in car installation. With dimensions of 165 mm × 74.2 mm, it can be installed in various vehicle models. It comes with OEM and Faston connectors, allowing for a variety of installation options without compromise. The option of a black or silver metal grille provides both protection and elegance for customization in the vehicle interior. Two self-adhesive Audison logos enhance the branding aesthetic, ideal for brand-consistent adjustments. These highly variable options enable creative and seamlessly integrated installation solutions.

What crossovers does the Voce AVX 6.5 II speaker use for sound precision?

The Audison Voce AVX 6.5 II combines a dual crossover structure with active filtering to achieve optimal sound precision. The independent AVCX 2 XT and AVCX 2 XW crossovers for bass and tweeter provide individual frequency control and the highest clarity in every frequency range. This flexibility allows for professional adjustment and integration into high-end audio systems, enhancing the speaker's ability to precisely adapt to the acoustic properties of any environment. The active filtering allows for a seamless connection with DSP systems and gives users control over the sound.

How does the Voce AVX 6.5 II speaker optimize sound quality in the midrange?

The Audison Voce AVX 6.5 II features a low inductance design to maximize sound quality in the upper midrange. This is achieved through an aluminum short-circuit ring built into the motor, which reduces inductance and improves the clarity of voices and instruments. This technology enables optimized reproduction in the critical frequency range of 2 to 3 kHz. Additionally, the semi-pressed cellulose cone material, reinforced with cotton fibers, provides stiffness and lightness, supporting a wide frequency response and clean reproduction even in the mid-frequency range.

What sound optimization mechanisms are applied in the Voce AVX 6.5 II?

The Audison Voce AVX 6.5 II utilizes several mechanisms to optimize sound. The cone is optimized through advanced FEM methods, improving the frequency response and radiation characteristics of the speakers. This technology helps create a balanced and precise sound image, which plays a crucial role, especially in car installations. Furthermore, the FEM-optimized magnetic circuit geometry provides maximum efficiency by focusing the magnetic field on the voice coil. These mechanisms combine to create an enriched and detailed listening experience, contributing to dynamic sound fidelity in various acoustic scenarios.

How does eID technology contribute to the security of the Voce AVX 6.5 II?

The eID technology in the Audison Voce AVX 6.5 II enables complete traceability of the product, from manufacturing to the end user. It ensures that each speaker is authentic and secure by providing systematic control and verification throughout the entire supply chain. This identification system adds an extra layer of protection by preventing counterfeits and giving customers the assurance that they are purchasing a genuine and high-quality product. Thus, this technology not only enhances security but also builds user trust in the integrity and origin of the speaker.
