Audison Voce II AVBX 10 D4 II 10" (25cm) Enclosed Subwoofer

550 Watt

Audison Voce II AVBX 10 D4 II 10" (25cm) Enclosed Subwoofer

Technical Highlights

  • Impedanz: 4+4 Ohm Doppelschwingspule, Leistung: 550 W.
  • Frequenzgang: 25 Hz bis 400 Hz, Resonanz: 36 Hz (Fs).
  • Max. Hub: 16,8 mm, Bewegte Masse: 250 g, BL: 11,2 Tm.
  • More technical details
€629,00
€629,00 €629,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
Mar 23, - Mar 26,
x Stück
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €52,41 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Audison-Voce II AVBX 10 D4 II-10" (25cm) Gehäusesubwoofer-masori-kaufen
€629,00
€629,00 €629,00

Compatible with Voce II AVBX 10 D4 II

Voce II AVBX 10 D4 II by Audison

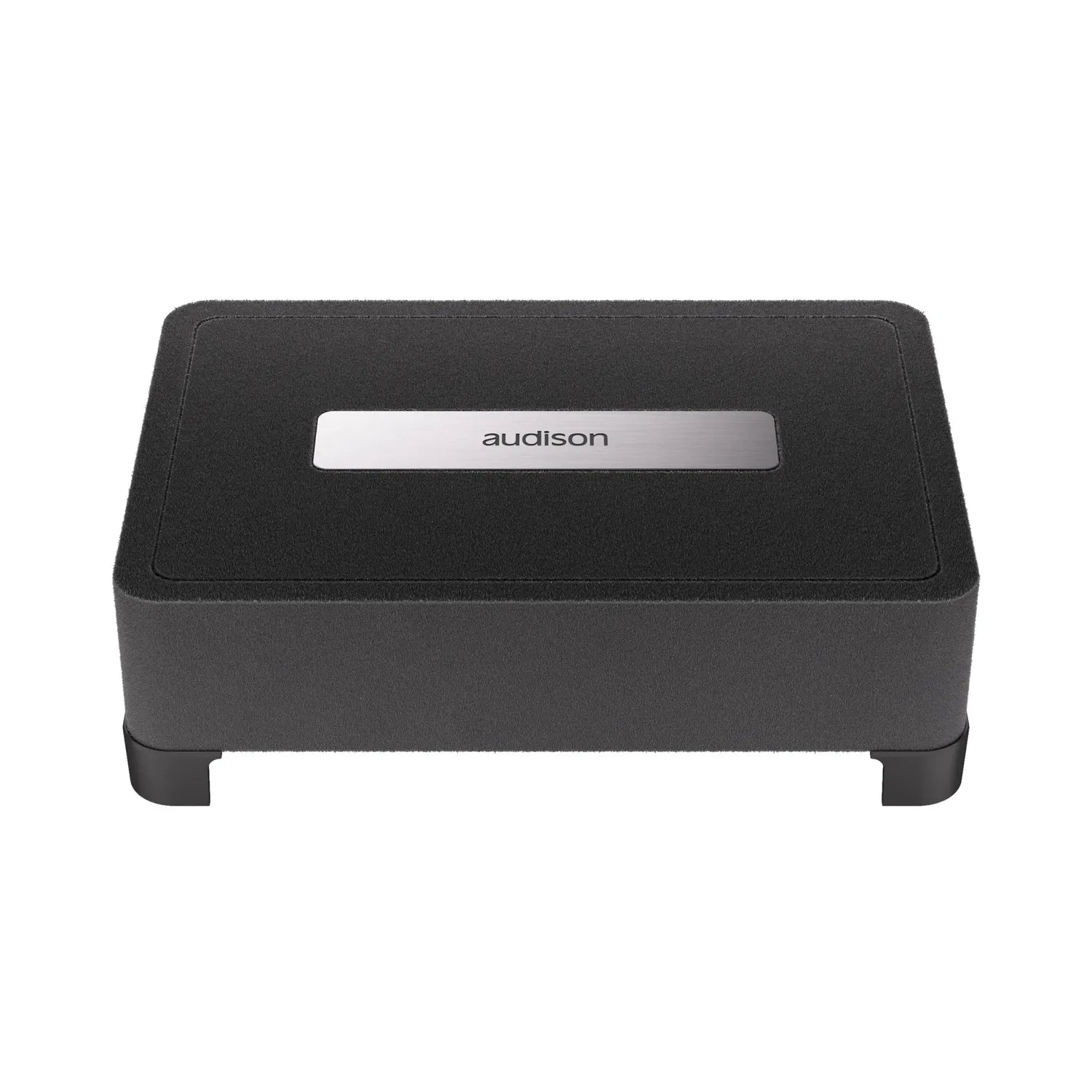

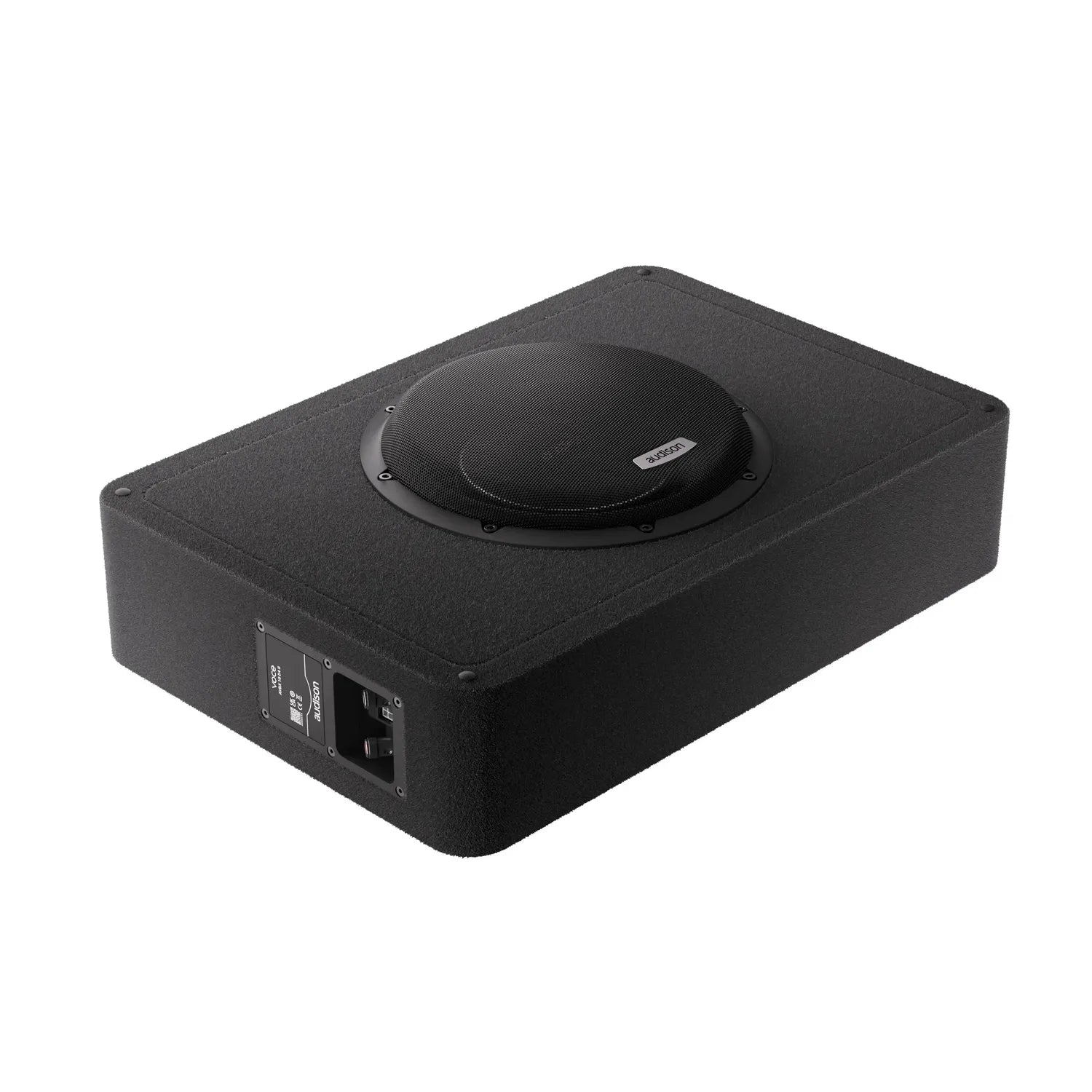

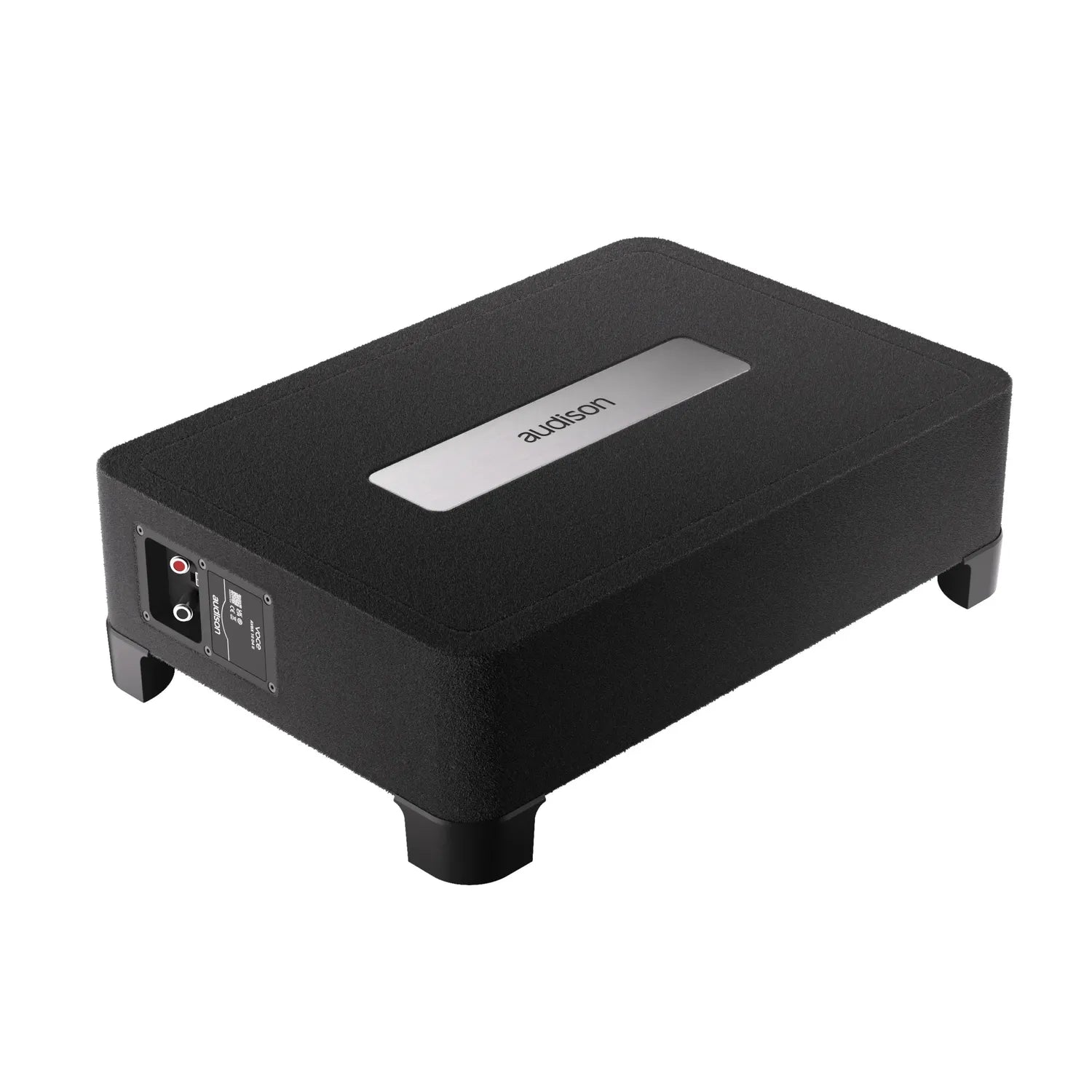

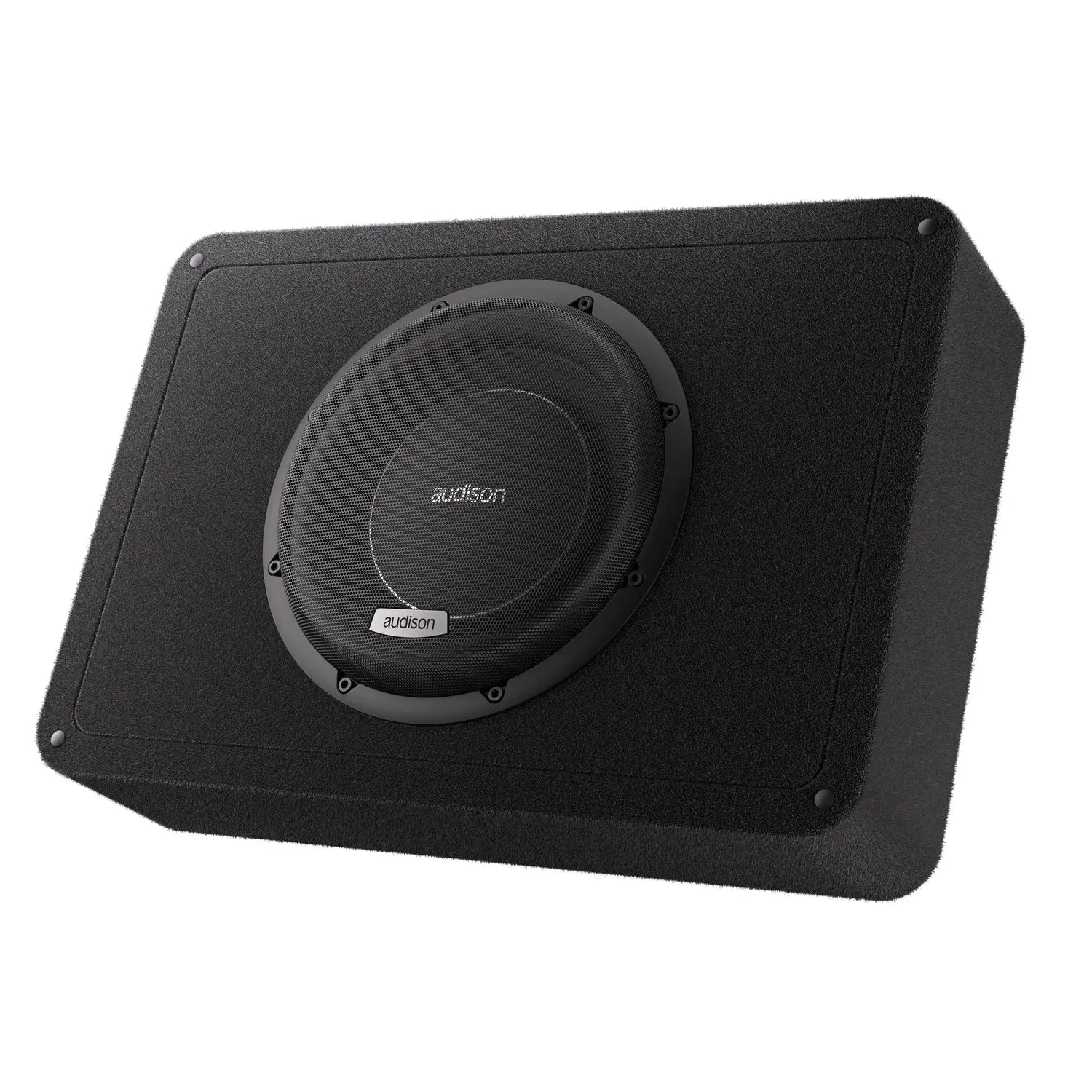

The Voce II AVBX 10 D4 II from Audison is a 10-inch enclosure Subwoofer that offers flexibility in installation with its multiple impedance options of 4+4 Ohm with dual voice coil. The Subwoofer impresses with a constant power handling of 550 W and a peak power of 1100 W. With a frequency response of 25 Hz to 400 Hz, it produces deep and powerful bass. The combination of an aluminum basket, a polypropylene diaphragm with mica injection, and a rubber surround ensures stability and durability. The highly compressed ferrite magnet maximizes efficiency, while the compact design with a net volume of 0.6 liters saves space.

Technical Specifications

  • Nominal Diameter: 250 mm (10 inch) Subwoofer Chassis
  • Impedance: 4+4 Ohm Dual Voice Coil
  • Power Handling: 550 W Continuous (1100 W Peak)
  • Frequency Response: 25 Hz to 400 Hz
  • Voice Coil: 37 mm Winding Height from CCAW on Fiberglass Carrier
  • Magnet Material: Highly Compressed Ferrite
  • Material Mix: Aluminum Basket, Polypropylene Diaphragm with Mica Injection and Rubber Surround
  • Net Volume: 0.6 liters Driver Displacement

Electroacoustic Parameters

  • Resonance Frequency (Fs): 36 Hz
  • Equivalent Volume (Vas): 14.8 liters
  • Maximum Stroke (Xmax): 16.8 mm (Xmech 20 mm)
  • Moving Mass (Mms): 250 g
  • Total Quality (Qts): 0.7 (Qms 5.62)
  • DC Resistance (Re): 1.82 Ohm
  • Drive Factor (BL): 11.2 T•m
  • Effective Diaphragm Area (D): 368 cm²

Dimensions & Installation

  • Outer Length (A): 531 mm
  • Outer Width (B): 361 mm
  • Enclosure Depth (C): 160 mm
  • Overhang (D): 32.9 mm
  • Inner Depth (C1): 118 mm

Your benefits at Masori

Frequently Asked Questions about Voce II AVBX 10 D4 II

What performance features does the Voce II AVBX 10 D4 II Subwoofer have?

The Voce II AVBX 10 D4 II from Audison impresses with a continuous power handling of 550 watts and a peak power of 1100 watts, making it ideal for extreme musical conditions. With a frequency response between 25 Hz and 400 Hz, it offers comprehensive bass reproduction. The dual voice coil with an impedance of 4+4 ohms significantly enhances musical flexibility by allowing customizable resistance settings according to the amplifier design. The high-density ferrite ensures that the applied power is converted into unparalleled sound fidelity.

What is special about the Subwoofer chassis of the Voce II AVBX 10 D4 II?

The Subwoofer chassis of the Voce II AVBX 10 D4 II has a nominal diameter of 250 mm, which translates to 10 inches. This size, combined with the selected material mix of aluminum basket and a polypropylene diaphragm with mica injection, ensures stability and resonance-free performance. Additionally, a rubber surround is used, providing movement space and thus harmoniously enabling a maximum excursion of 16.8 mm. This material combination is specifically tailored to the demands of modern sound systems in vehicles, which require both durability and precise bass reproduction.

What are the electroacoustic parameters of the Audison Voce II AVBX 10 D4 II?

Electroacoustically, the Voce II AVBX 10 D4 II sets standards with a resonance frequency of 36 Hz and an equivalent volume (Vas) of 14.8 liters. A maximum excursion of 16.8 mm allows for dynamic bass impulses, while the total quality factor (Qts) of 0.7 provides the necessary balance between depth and precision. The moving mass of the system is 250 g, enabling fast and accurate diaphragm movement. The drive factor (BL) of 11.2 T•m demonstrates the strong magnetic driving force, which results in clear and powerful bass.

What are the dimensions of the Voce II AVBX 10 D4 II and how does this affect installation?

The Voce II AVBX 10 D4 II measures 531 mm in length, with a width of 361 mm and a depth of 160 mm. An overhang of 32.9 mm is considered for placement. The internal depth is 118 mm, which must be taken into account in the installation context to ensure optimal fit. Especially in vehicles with limited space, such as sporty coupes, these dimensions should be noted. Adjusting the installation dimensions is essential to avoid compromising acoustic performance.

What materials dominate the Voce II AVBX 10 D4 II?

In terms of materials, Audison uses a harmonious combination of aluminum, polypropylene, and rubber in the Voce II AVBX 10 D4 II. The aluminum basket provides structural integrity, while the diaphragm made of polypropylene with mica injection ensures optimized resonance and robustness. The rubber surround allows the diaphragm to move optimally without exceeding mechanical load capacity. This combination ensures that the Subwoofer is equipped for both extreme acoustic and mechanical demands, making it ideal for demanding sound setups.

How does the drive factor (BL) of the Voce II AVBX 10 D4 II affect sound quality?

The drive factor, specifically that of the Voce II AVBX 10 D4 II, which is at 11.2 T•m, plays a central role in the sound quality of the Subwoofer. This factor describes the efficiency with which the magnetic flux is converted into motion energy. A high BL value like this means a powerful drive unit that provides strong and precise bass hits. In practice, this results in a crisp and precisely focused bass that remains defined regardless of volume and allows for complex musical analyses.

What frequencies does the Voce II AVBX 10 D4 II cover?

The Voce II AVBX 10 D4 II Subwoofer covers a frequency range from 25 Hz to 400 Hz, placing it at the heart of the bass spectrum. This range meets the typical requirement to produce powerful deep bass that is not only audible but also felt. The lower limit of 25 Hz ensures that even the deepest bass tones can be reproduced with precision, while the upper limit of 400 Hz guarantees seamless transitions to midrange speakers. This is particularly relevant for those seeking full frequency coverage without compromise.

How does the load capacity of the Voce II AVBX 10 D4 II behave under maximum use?

With a continuous load capacity of 550 watts, the Voce II AVBX 10 D4 II meets even demanding musical requirements. At peak load, the power reserves can be increased to 1100 watts, supporting temporary music peaks without distortion. This capacity is crucial for an undistorted musical experience, especially in dynamic music styles. Additionally, high-load materials such as the CCAW winding of the voice coil ensure that even under sustained high power, no structural failure occurs, which guarantees operational safety in high-performance sectors.

How do the electromechanical parameters of the Voce II AVBX 10 D4 II affect the sound?

The electromechanical parameters of the Voce II AVBX 10 D4 II, such as the increased voice coil height of 37 mm on a fiberglass carrier, noticeably affect sound quality. Furthermore, the DC resistance of 1.82 ohms and the total quality factor of 0.7 support the electrical and mechanical balance of the Subwoofer. These parameters are essential for controlling the movements of the diaphragm and ultimately for fine-tuning the sound in the resonance range. This ensures consistent impulse reproduction at any volume-related load, which is vital for precise bass reproduction.

What parameters define the optimal enclosure configuration for the Voce II AVBX 10 D4 II?

The Voce II AVBX 10 D4 II is designed with a displacement of 0.6 liters, which influences the required enclosure volume. Parameters such as the equivalent volume (Vas) of 14.8 liters and the effective diaphragm area of 368 cm² define the resonance characteristics of the system. It is important to consider the resonance frequency value of 36 Hz to calculate an enclosure that allows for optimized bass reproduction. These specific parameters help design a closed or bass-reflex type enclosure with tuned volume for the ideal sound profile.
