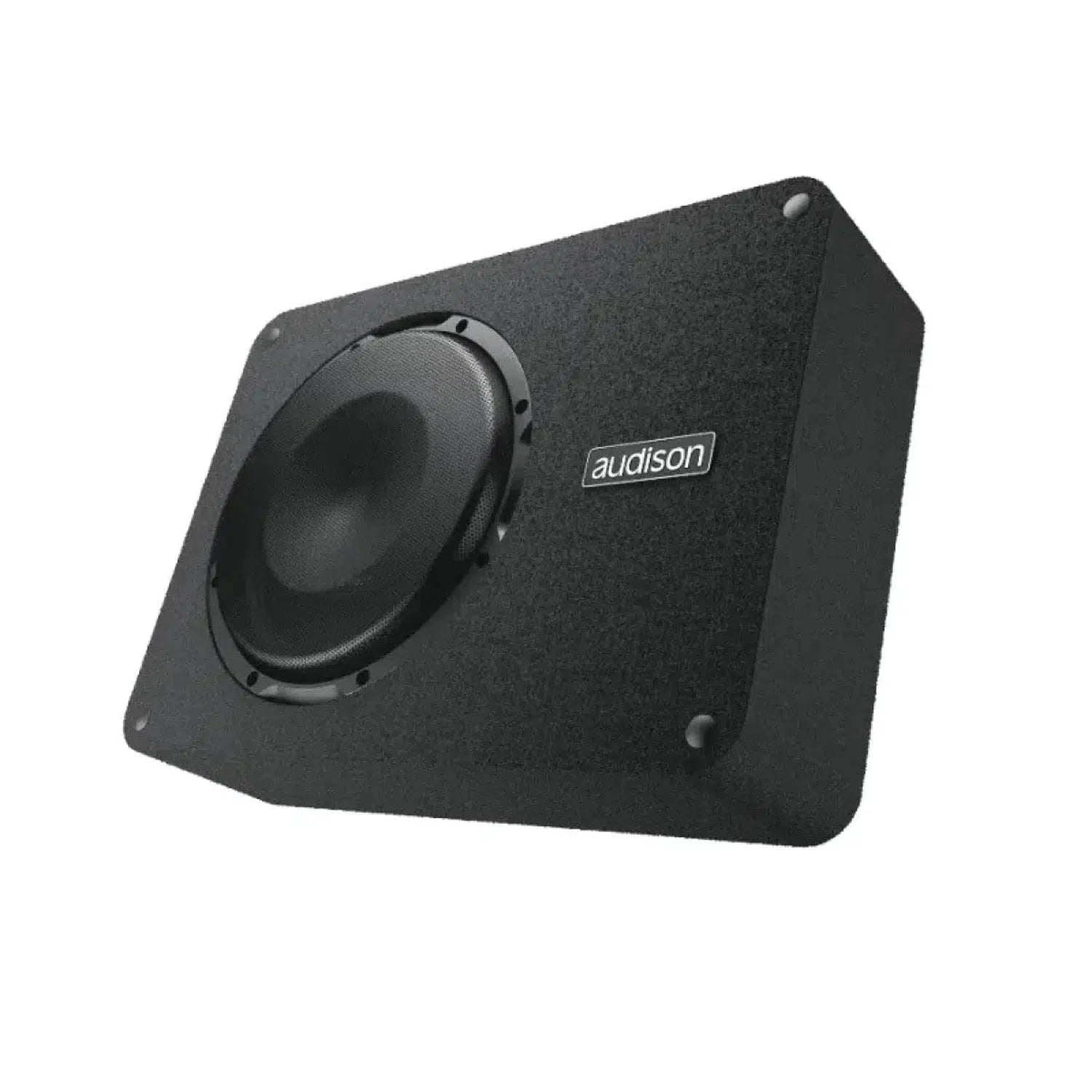

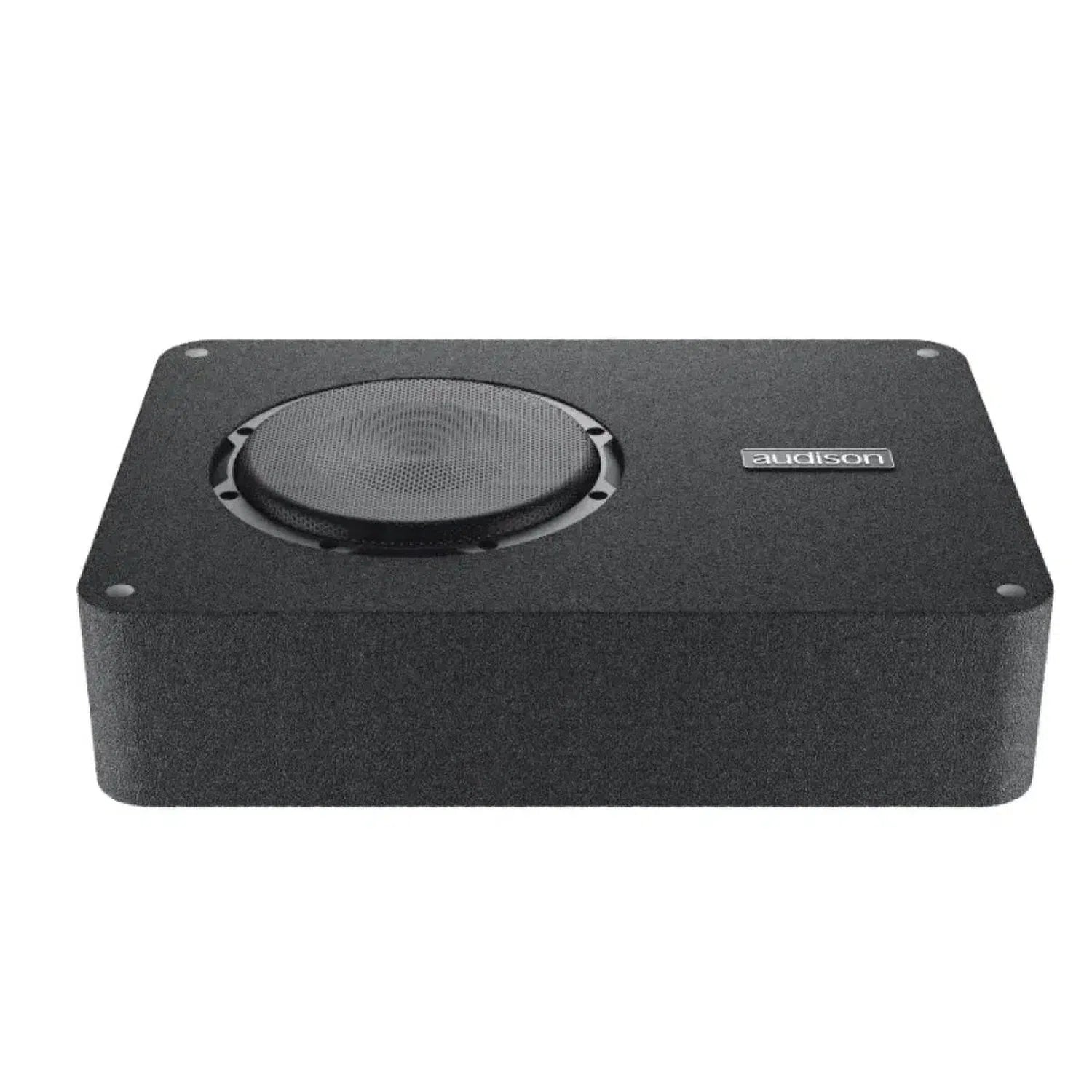

Audison Prima APBX 8 R 8" (20cm) Enclosed Subwoofer

2 Reviews

250 Watt

Audison Prima APBX 8 R 8" (20cm) Enclosed Subwoofer

2 Reviews

Technical Highlights

  • 500W peak power, 4 Ohm voice coil, efficient bass.
  • Bass reflex design, pressure chamber effect, precise sound.
  • Ultra-thin housing, innovative technologies, high performance.
  • More technical details
€259,00
€259,00 €259,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
Mar 23, - Mar 26,
x Piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €21,58 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Audison-Prima APBX 8 R (B-Ware)-8" (20cm) Gehäusesubwoofer-masori-kaufen
€259,00
€259,00 €259,00

Compatible with Prima APBX 8 R

  • Four Connect-4-600431 20mm²-70mm² ANL Spritzwassergeschützt-Sicherungshalter-masori-kaufen Four Connect-4-600431 20mm²-70mm² ANL Spritzwassergeschützt-Sicherungshalter-masori-kaufen

    4-600431 20mm²-70mm² ANL Splashproof

    Four Connect
    €19,90
    €19,90 €19,90
    Delivery
    Mar 26, - Mar 31,
  • Masori-Perfect Match T5/T6 Stage 1-VW-Komplettset-masori-kaufen Four Connect-Stage2 OFC Flex 20mm²-20mm² Stromkabel-masori-kaufen

    Stage2 OFC Flex 20mm²

    Four Connect
    €89,00
    €89,00 €89,00
    Delivery
    Mar 26, - Mar 31,
  • Four Connect-Stage3 Kupfer Keramik ANL Sicherung 30-400A-Sicherung-masori-kaufen Four Connect-Stage3 Kupfer Keramik ANL Sicherung 30-400A-Sicherung-masori-kaufen

    Stage3 copper ceramic ANL fuse 30-400A

    Four Connect
    €7,00
    €7,00 €7,00
    In stock
    Mar 22, - Mar 23,
  • Soundigital-800.1 EVO5-1-Kanal Verstärker-masori-kaufen Soundigital-800.1 EVO5-1-Kanal Verstärker-masori-kaufen
    800 Watt

    800.1 EVO5

    Soundigital
    €239,00
    €239,00 €239,00
    In stock
    Mar 22, - Mar 23,
  • Soundigital-800.4 EVO 6.0-4-Kanal Verstärker-masori-kaufen Soundigital-800.4 EVO 6.0-4-Kanal Verstärker-masori-kaufen
    225 Watt

    800.4 EVO 6.0

    Soundigital
    €199,00
    €199,00 €199,00
    Delivery
    Mar 22, - Mar 25,

Prima APBX 8 R by Audison

Look forward to the Prima APBX 8 R, an 8-inch enclosure subwoofer from Audison, designed to deliver perfect bass reproduction in your car. Based on a bass reflex design, this robust model delivers powerful and precise sound in the lowest frequency range. With 500W peak power and a 4-ohm voice coil, the subwoofer is optimized for maximum efficiency. Particularly remarkable is its ability to optimally utilize the natural power increase below 60 Hz, known as the pressure chamber effect. The reflex enclosure of the subwoofer positively influences excursion across the entire audio spectrum. Finally, it allows use with a pair of bridged AP4.9 bit / AP4 D channels, which can deliver 260 watts RMS. Despite its power, it features an ultra-flat enclosure and includes high-quality and innovative technologies and features that set it apart from other subwoofers of its kind.

TECHNICAL DATA

  • Size 200 mm
  • Power Handling - Peak 500 W
  • Power Handling - Continuous 250 W
  • Magnet Material HIGH DENSITY FLUX FERRITE
  • Cone Material COTTON-FIBRE PRESSED PAPER CONE

DIMENSIONS

  • Length 470 mm
  • Width 334 mm
  • Height 109 mm

FEATURES

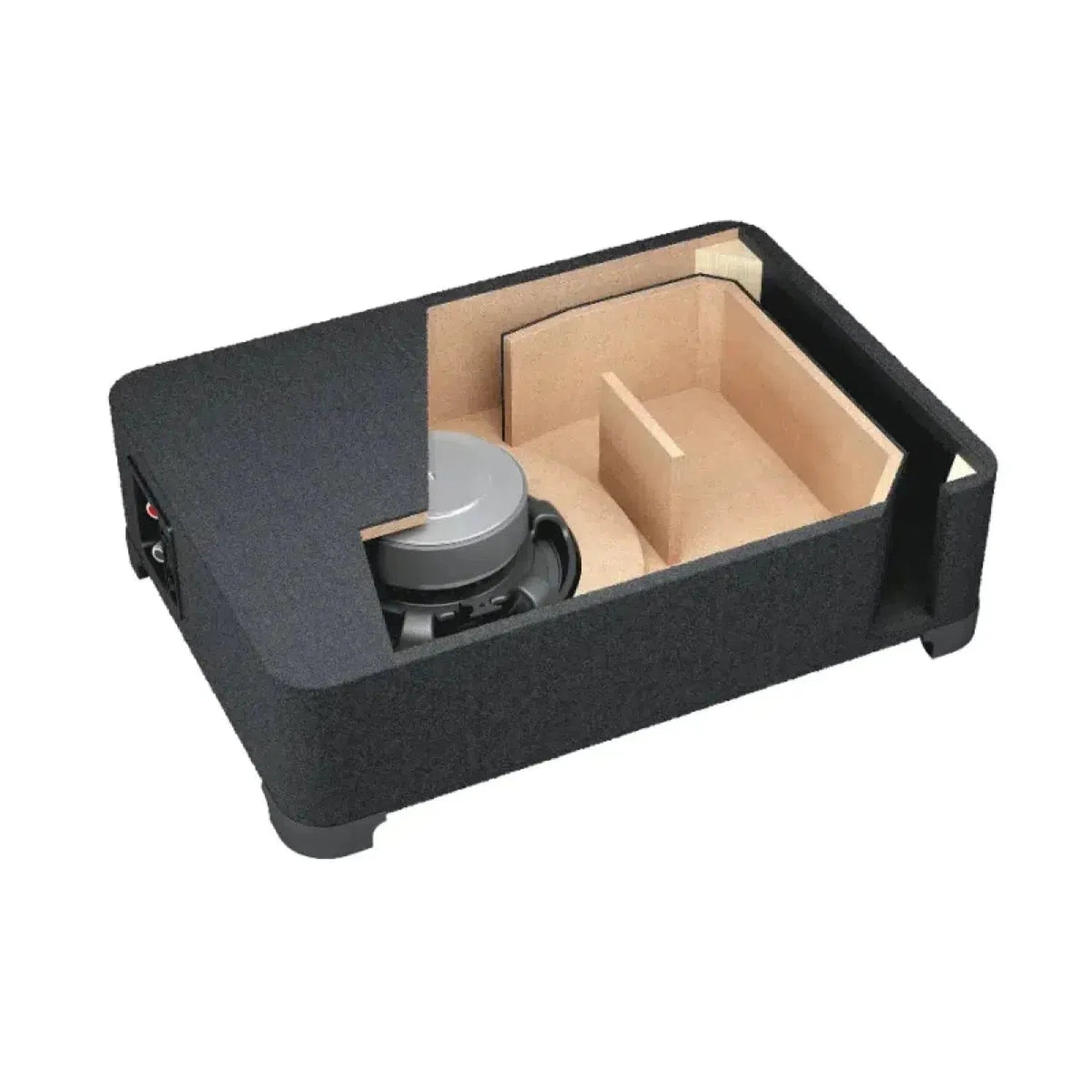

  • Ultra-flat enclosure with perfect slot-port design tuned to fully exploit the APS 8 R driver.
  • The 2S² design (2 Sides/2 Sounds) offers the option to choose between down-firing mounting to enhance low frequencies and up-firing to achieve more punch and definition.
  • Includes leveling feet with Velcro for secure grip on carpet and easy removal.
  • SSP (Sub Smart Plug) features both traditional pressure contacts and a plug-&-play terminal block for easy impedance configuration and quick release.
  • Rounded corners allow easy positioning in the trunk and serve as reinforcement as well as reducing enclosure resonances.
  • Specially designed cone-dust cap-basket geometry providing long linear excursion capability (9 mm, one-sided).
  • Massive driver motor assembly optimized with FEM (Finite Element Method) modeling for perfect control at high excursions.
  • Water-repellent, pressed paper 8-inch cone with developed profile calculated with FEM and optimized with the Klippel Scan Vibrometer.
  • Specifically designed for combination with AP8.9 bit (2 CH bridged) or AP4.9 bit / AP4 D (2 CH bridged) amplifiers utilizing the bass boost function and the integrated parametric equalizer of the built-in DSP.
  • A sturdy metal grille provides comprehensive protection for the subwoofer driver.

Your benefits at Masori

Audison Prima APBX 8 R Datasheet

Open datasheet

Frequently Asked Questions about Prima APBX 8 R

What features does the Enclosed Subwoofer Prima APBX 8 R from Audison have?

The Prima APBX 8 R from Audison is an enclosed subwoofer with an 8-inch (20 cm) bass reflex design. This subwoofer is known for its 500 W peak power and 4-ohm voice coil, which together utilize the pressure chamber effect below 60 Hz ideally. It offers precise bass reproduction and exceptional efficiency in the car. The enclosure is ultra-flat, measuring 470 mm in length, 334 mm in width, and 109 mm in height. An innovative slot-porting design is present to maximize the ASPX 8 R driver. Rounded corners improve positioning in the trunk and reduce resonance-related issues.

How does the reflex enclosure of the Prima APBX 8 R affect audio playback?

The reflex enclosure of the Prima APBX 8 R from Audison plays a critical role in audio playback. The optimally tuned slot-porting design fully utilizes the subwoofer driver, revolutionizing bass reproduction. Particularly impressive is how the enclosure exploits the pressure chamber effect to enhance the frequency response below 60 Hz. The enclosure not only prevents unwanted resonances but also ensures consistent and uniform displacement across the entire audio frequency spectrum. This results in a richer and more impressive sound quality.

What materials are used in the Prima APBX 8 R subwoofer?

The Prima APBX 8 R from Audison uses high-quality materials that enhance the performance and durability of the subwoofer. The cone is made of water-resistant, pressed paper with cotton fibers, equipped with a specially designed profile optimized through Klippel scan vibrometer. The magnet is made of high-density flux ferrite, providing stable performance. The massive driver motor assembly is optimized with FEM modeling to ensure maximum control at high displacements. All these material choices contribute to a robust and durable construction.

What installation tips are there for the Prima APBX 8 R?

The installation of the Prima APBX 8 R from Audison requires some specific considerations to achieve optimal performance. For flexible mounting, the 2S² design offers various options: Down-Firing for frequency enhancement or Up-Firing for more punch. The ultra-flat enclosure with rounded corners allows it to be easily placed in the trunk. With the integrated leveling feet and Velcro straps, the Subwoofer can be securely mounted yet remains removable. The SSP (Sub Smart Plug) ensures easy impedance configuration with traditional push contacts or the plug-and-play terminal block.

What amplifier compatibility does the Prima APBX 8 R offer?

The Prima APBX 8 R from Audison has been specifically designed to work seamlessly with the AP8.9 bit, AP4.9 bit, or AP4 D amplifiers. These amplifiers provide bridged channels that deliver up to 260 watts RMS power, ensuring powerful bass reproduction. The integration of these amplifiers allows you to fully utilize the BassBoost function as well as the integrated parametric equalizer of the DSP. In combination with these amplifiers, you not only get increased power but also improved sound characteristics that further optimize the already excellent bass performance of the Subwoofer.

How can the Prima APBX 8 R be placed in the car?

The placement of the Prima APBX 8 R from Audison in the car is exceptionally flexible due to its ultra-flat design and rounded corners. With a length of 470 mm, a width of 334 mm, and a height of 109 mm, it fits easily into the trunk of many vehicles. The rounded corners not only facilitate quicker and easier positioning but also help significantly reduce enclosure resonances. Thus, the design offers not only acoustic advantages but also practical installation options that can adapt to different vehicle types.

Does the Prima APBX 8 R have a protective device?

Yes, the Prima APBX 8 R from Audison comes with a sturdy metal grille that comprehensively protects the Subwoofer driver. This is particularly important to preserve the sensitive components from external damage that can occur during everyday vehicle use. This grille not only provides protection against physical impacts but also contributes to the structural integrity of the enclosure. With this protective device, the Subwoofer is better shielded from environmental influences and can maintain its optimal performance for a longer time.

How does the Massive Driver Motor Assembly of the Prima APBX 8 R affect performance?

The Massive Driver Motor Assembly of the Prima APBX 8 R from Audison was developed with a focus on precision and control at high excursions. It utilizes FEM modeling to ensure perfect balance and control under high power demands. This design allows for a long linear excursion of 9 mm (one-sided), which ensures clear and distortion-free bass reproduction. This technical sophistication ensures that bass frequencies are transmitted with maximum efficiency and without loss of sound quality, even at high volumes, making it ideal for discerning audiophiles.

What are the advantages of the 2S² design in the Prima APBX 8 R?

The 2S² design of the Prima APBX 8 R from Audison offers flexibility and adaptability to meet various sound needs. It allows for the choice between down-firing and up-firing installation. The down-firing option enhances the deep frequencies, which is ideal if you prefer a rich bass presence. In contrast, the up-firing method provides more punch and definition, ensuring clear and concise bass. These dual installation options allow the Subwoofer to be tailored to the acoustic needs of the vehicle's interior or the desired sound aesthetic to achieve the best listening experience.

How easy is the installation of the Prima APBX 8 R in the car?

The installation of the Prima APBX 8 R from Audison is simplified by clever design features. Thanks to the SSP, a Sub Smart Plug that offers both traditional push contacts and a plug-and-play terminal block, the impedance can be easily configured and adjusted. Furthermore, leveling feet with Velcro allow for secure attachment to car carpets, while the Subwoofer can be quickly removed when needed. These thoughtful features ensure a straightforward installation process and allow the Subwoofer to be easily put into operation without excessive effort.
