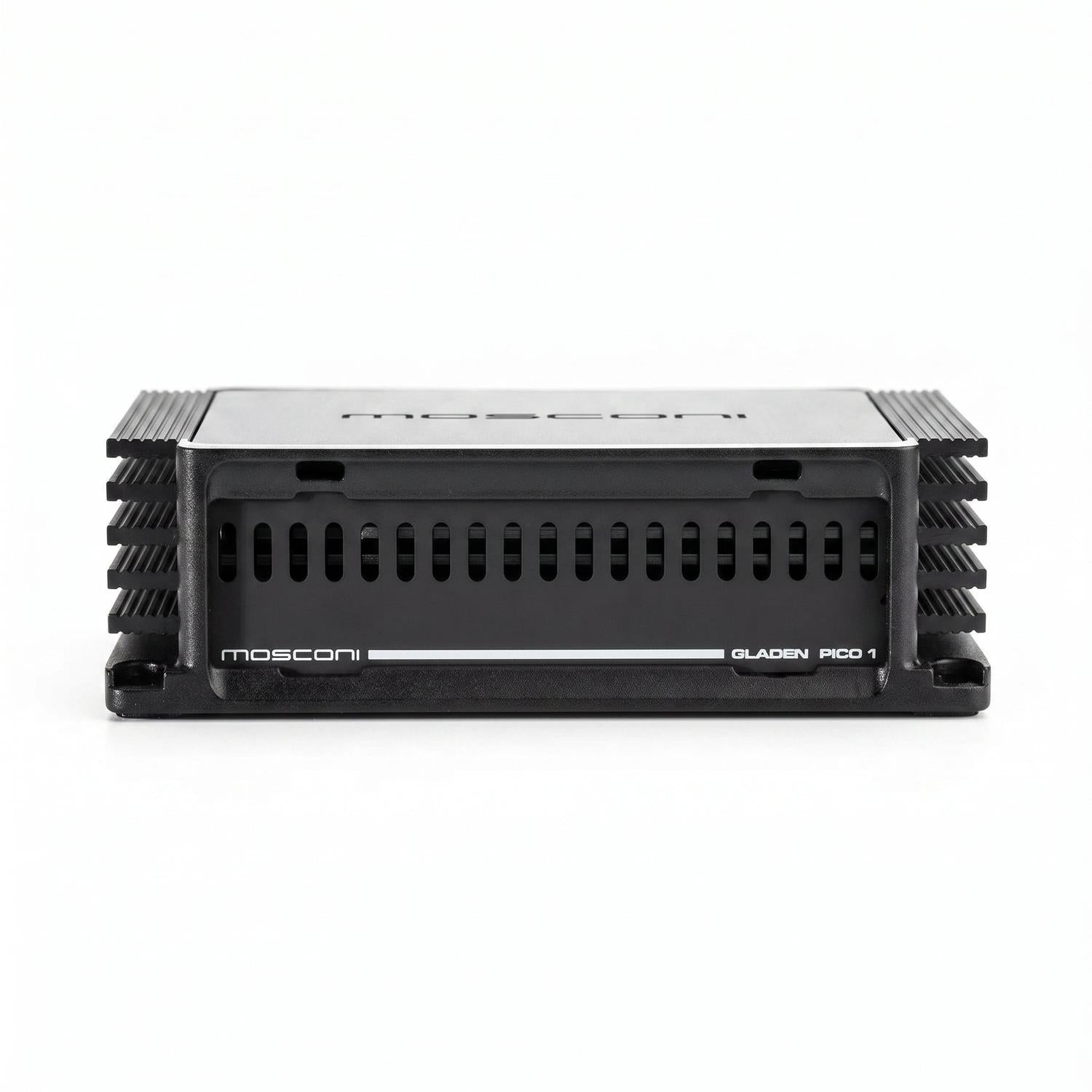

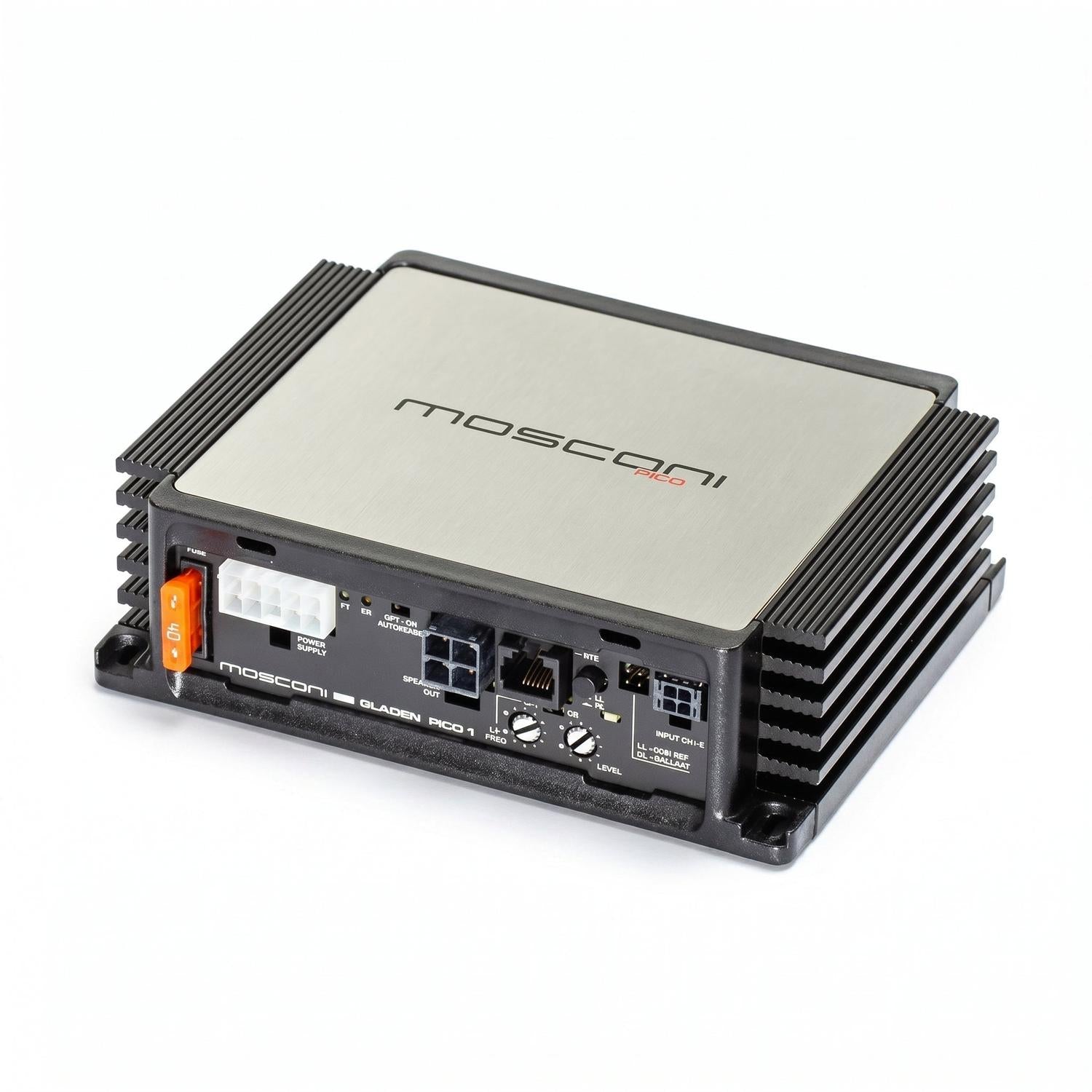

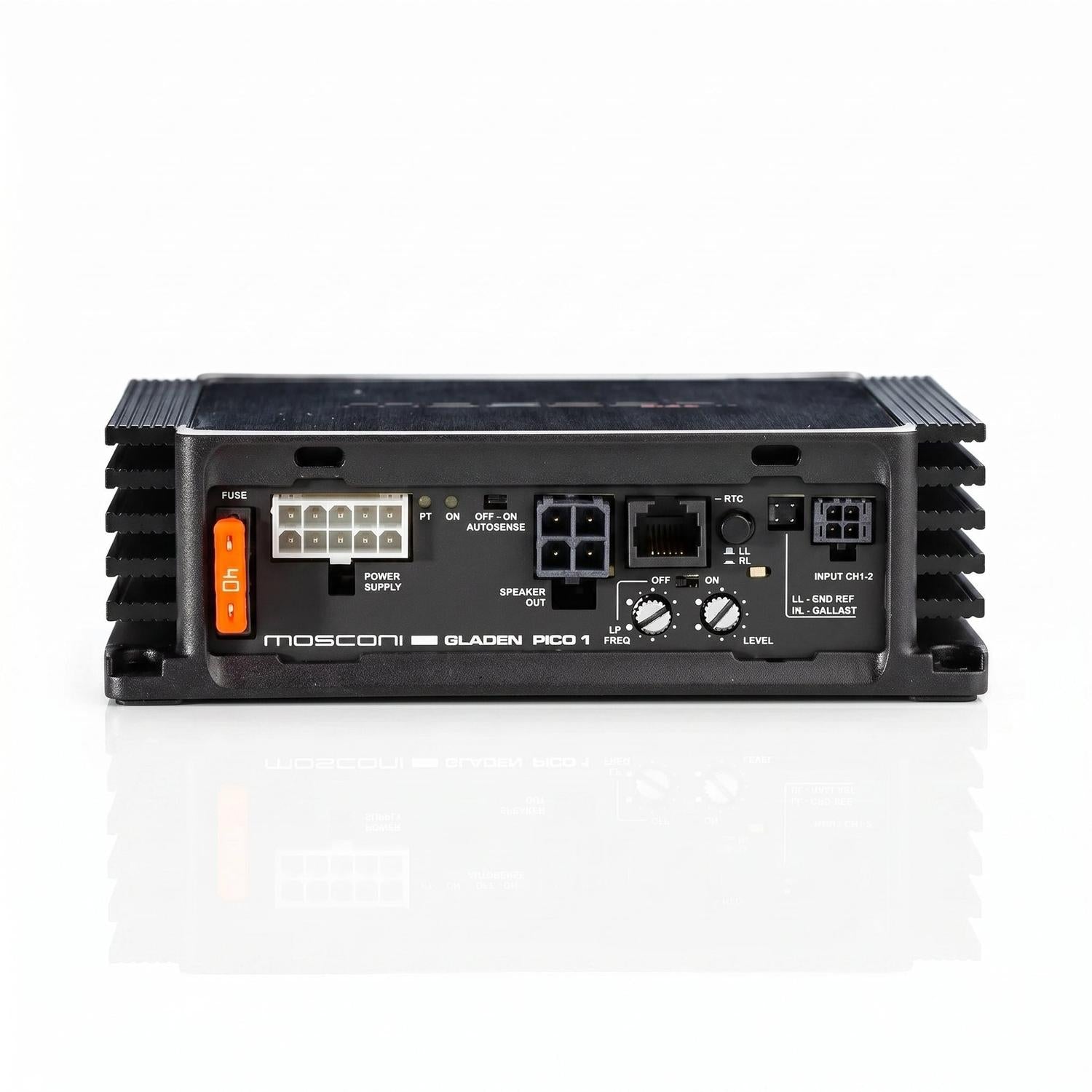

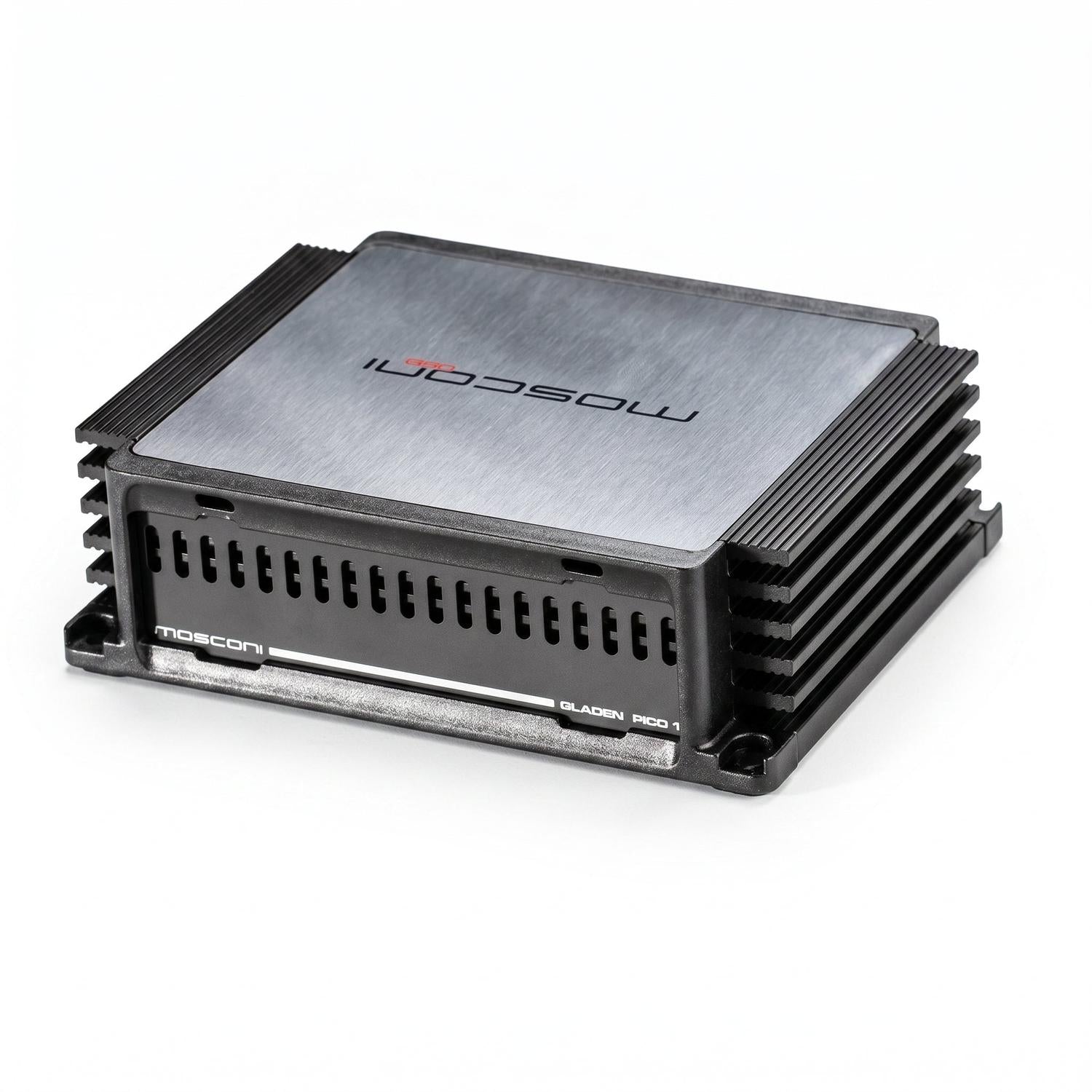

Mosconi PICO 1 by Gladen

The Mosconi PICO 1 is a 1-Channel Amplifier from Gladen with full-range PWM amplification technology. The output power is 1 x 750 Watts RMS at 2 Ohms and 1 x 500 Watts at 4 Ohms. The circuit uses a separate, synchronized modulation and fast high-current MOSFETs. High-level and low-level inputs as well as dedicated filters are available. An auto-on feature in high-level operation (SE or BTL mode), the option for remote volume control, and Molex connectors are integrated. A low-pass filter from 45 to 310 Hz (12 dB/Oct) and a subsonic filter at 13 Hz (12 dB/Oct) are included.

Features
  • 1-Channel Amplifier
  • Full-range PWM amplification technology
  • Separate, synchronized modulation
  • Fast high-current MOSFETs
  • High-level and low-level inputs
  • Dedicated filters
  • Auto-on feature (only high level, SE or BTL mode)
  • Remote volume control (optional)
  • Molex connectors
Technical Specifications
  • Output power at 4 Ohms: 1 x 500 Watts
  • Output power at 2 Ohms: 1 x 750 Watts RMS
  • Input voltage (signal): 0.3 V to 20 V
  • Efficiency: > 75 %
  • Auto-On (only high level): Off to BTL
  • Low-pass filter: Off or 45 to 310 Hz (12 dB/Oct)
  • Subsonic filter (always on): 13 Hz (12 dB/Oct)
  • Dimensions: 150 x 115 x 46 mm
  • Weight: 1050 grams

Your benefits at Masori

Gladen Mosconi PICO 1 Datasheet

Open datasheet

Frequently Asked Questions about Mosconi PICO 1

What power does the Mosconi PICO 1 Amplifier offer at 2 Ohms?

The Mosconi PICO 1 Amplifier from Gladen delivers an impressive 750 Watts RMS at 2 Ohms. This high output power is ideal for applications that require strong sound reproduction. The amplification is achieved through a full-range PWM amplification technology, which also includes separate, synchronized modulation and fast high-current MOSFETs. These technical features ensure powerful and precise sound, even under intense use and high power output. Especially if you enjoy having parties in your car, you will appreciate the power and penetrating sound quality of the Mosconi PICO 1.

What filters are integrated in the Mosconi PICO 1?

The Mosconi PICO 1 is equipped with a low-pass filter that is adjustable between 45 and 310 Hz with a slope of 12 dB/octave. This filter allows for optimal adjustment of low-frequency sounds to the speakers and helps avoid distortion. Additionally, a subsonic filter (always activated) at 13 Hz with a slope of 12 dB/octave is integrated. These filter technologies provide flexibility in sound adjustment and are essential for optimizing the audio system in the vehicle to ensure maximum performance even at high volumes.

What connections does the Mosconi PICO 1 offer?

The Mosconi PICO 1 features various connections that highlight its versatility. It offers both high-level and low-level inputs, making it universally applicable. Additionally, Molex connectors are present, ensuring a secure and reliable connection. The high-level inputs support an automatic turn-on feature that operates in SE or BTL mode. Optionally, a remote volume control can be integrated, allowing for additional control and adjustment of the sound profile from a distance. This is particularly advantageous in complex sound installations.

What are the dimensions of the Mosconi PICO 1 and what does that mean for installation in the car?

The Mosconi PICO 1 has compact dimensions of 150 x 115 x 46 mm and weighs 1050 grams. These small measurements make installation in almost any vehicle easy, even in limited spaces like under the seat or in the door panel where the Amplifier can be integrated. Its small size allows for flexible placement without sacrificing performance and sound quality. When installing, you should ensure that there is adequate ventilation to prevent overheating during extended playtimes, especially if the Amplifier is placed in tight areas.

How does the automatic turn-on feature of the Mosconi PICO 1 work?

The automatic turn-on feature of the Mosconi PICO 1 is active only when using the high-level inputs and can be used in SE or BTL mode. This function allows the Amplifier to turn on and off automatically, depending on the incoming audio signal, which also contributes to energy efficiency. This is particularly advantageous when there is no separate control wire available or when the installation should be simplified. The automatic activation is optimal for modern vehicles where the Amplifier is integrated into existing audio systems without additional control wires or complicated circuit solutions.

What advantage does the full-range PWM amplification technology of the Mosconi PICO 1 offer?

The full-range PWM amplification technology of the Mosconi PICO 1 enables efficient and clear sound reproduction across the full spectrum. This technology offers the advantage of separate, synchronized modulation in conjunction with fast high-current MOSFETs. This combination ensures that the Amplifier responds quickly to signal changes while maintaining sound fidelity. This process optimizes sound quality and reduces potential distortions, guaranteeing vibrant and dynamic playback of music pieces, even at high volumes or complex sound compositions.

What frequencies does the low-pass filter of the Mosconi PICO 1 cover?

The low-pass filter of the Mosconi PICO 1 is adjustable and covers a frequency range of 45 to 310 Hz. With a slope of 12 dB per octave, this filter is responsible for filtering out higher frequencies, allowing only the lower tones to reach the Subwoofer. This improves bass reproduction and minimizes the risk of sound overlaps that can occur with a wide coverage. Depending on the music playback and personal taste, the filter can be precisely adjusted to achieve the best sound in the specific installation context and get the most out of the system.

What is the efficiency of the Mosconi PICO 1 Amplifier?

The Mosconi PICO 1 achieves an efficiency of over 75%, which is remarkable in the amplifier technology class. This high efficiency means that a large portion of the energy consumed is converted into power for music playback, with only a small amount lost as heat. Such efficiency ensures stable operation and minimizes energy consumption, which is particularly important in vehicles to avoid unnecessarily straining the Battery. This efficiency is especially evident under high power demand and allows for longer playtime without compromising sound quality.

How flexible is the Mosconi PICO 1 regarding input voltages?

The Mosconi PICO 1 shows high flexibility with input voltages and operates in the range of 0.3 V to 20 V. This voltage range allows the amplifier to be used with a variety of signal sources, from quiet line-level signals to louder speaker outputs. This flexibility makes the PICO 1 extremely versatile in various audio systems and simplifies retrofitting or adapting to existing setups. Vehicles with special factory radios particularly benefit from this feature, as installation in existing systems is made easier.

What optional features does the Mosconi PICO 1 offer?

The Mosconi PICO 1 offers various optional features that enhance user comfort. Among other things, a remote volume control is available, allowing sound adjustments conveniently from the driver's side. This option is especially useful for users who frequently switch between different audio modules or want to change the sound situationally during operation. In addition to the remote control, the optional use of Molex connectors allows for even easier and safer linking of the amplifier with other audio components, which is advantageous for outstanding sound solutions and individual customization of the sound system.
