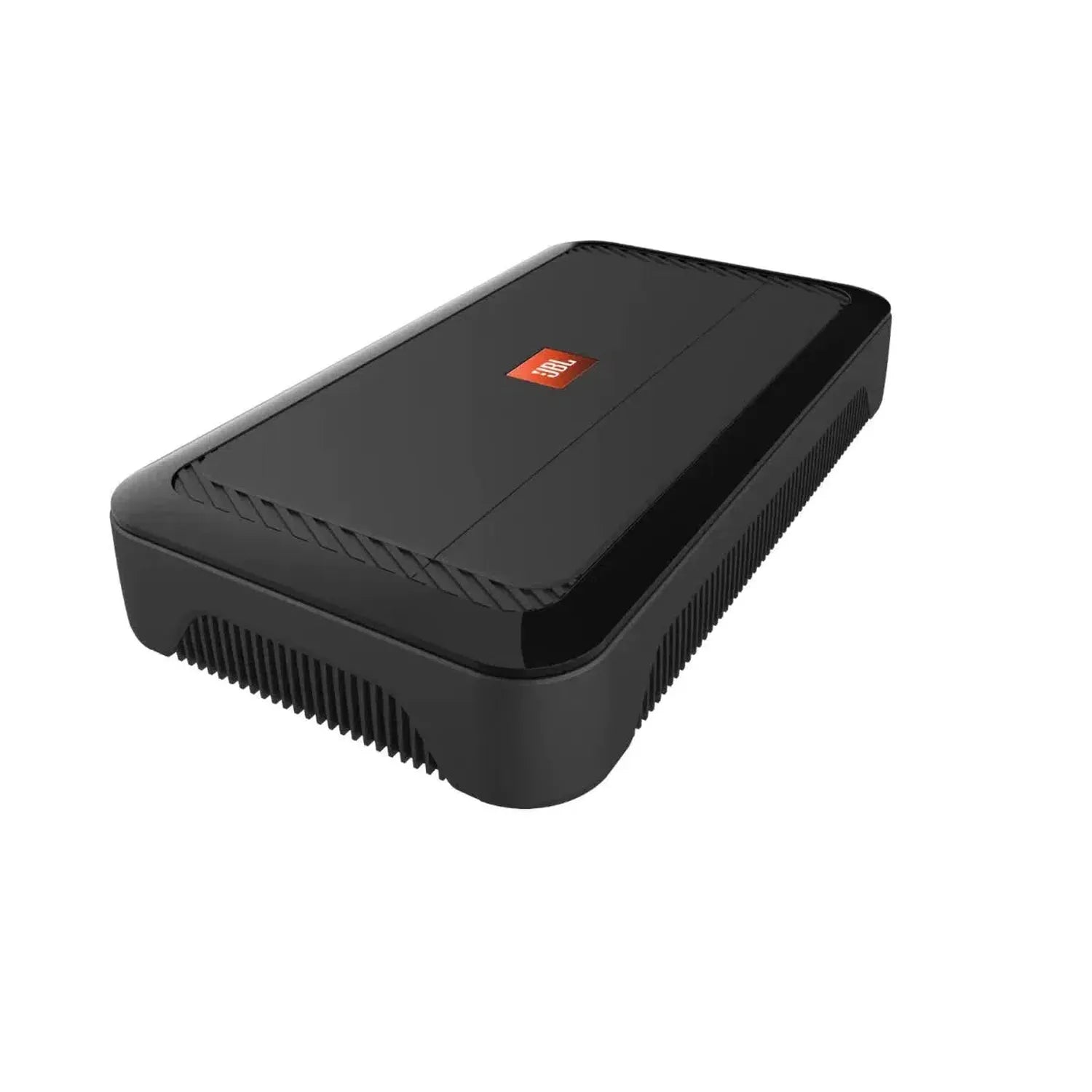

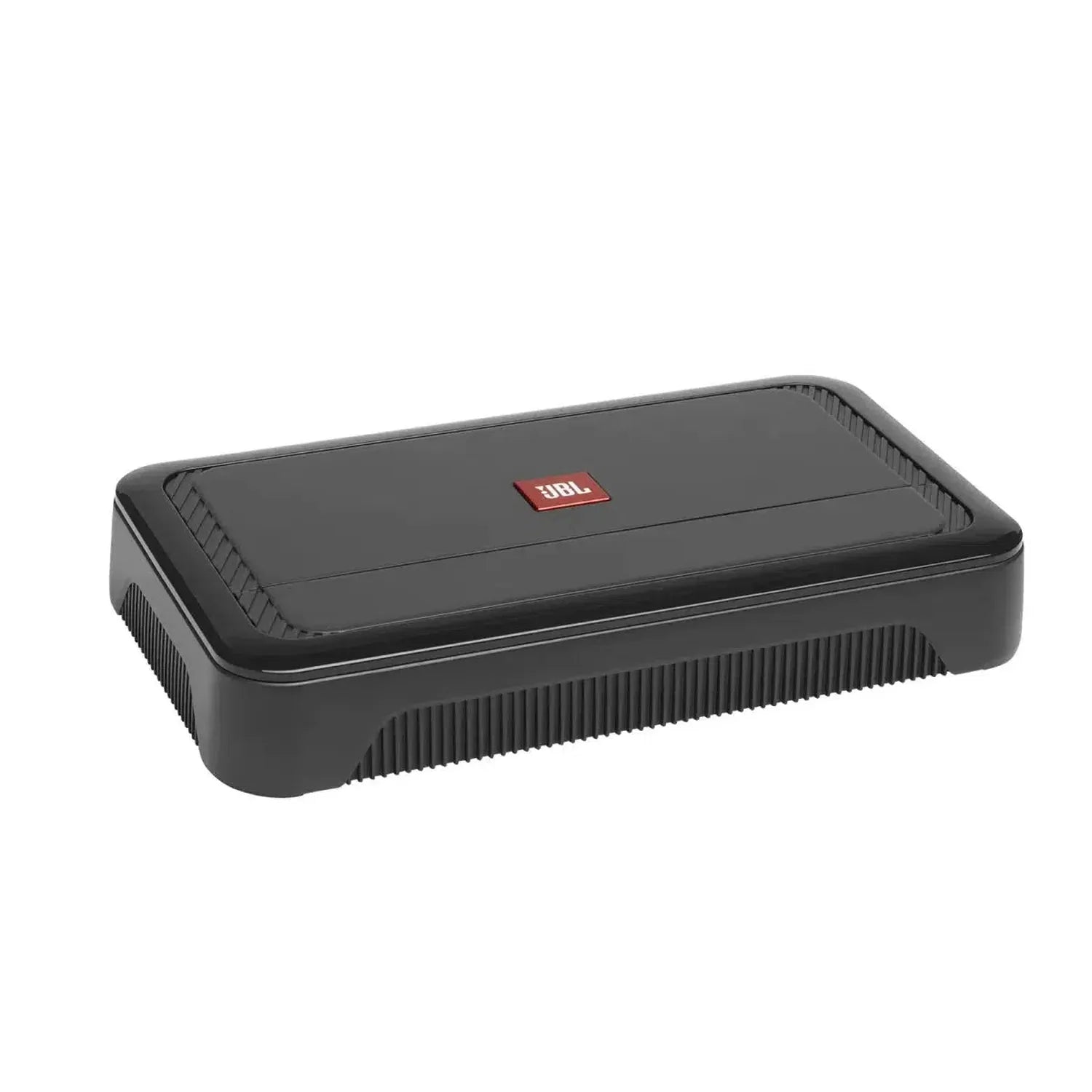

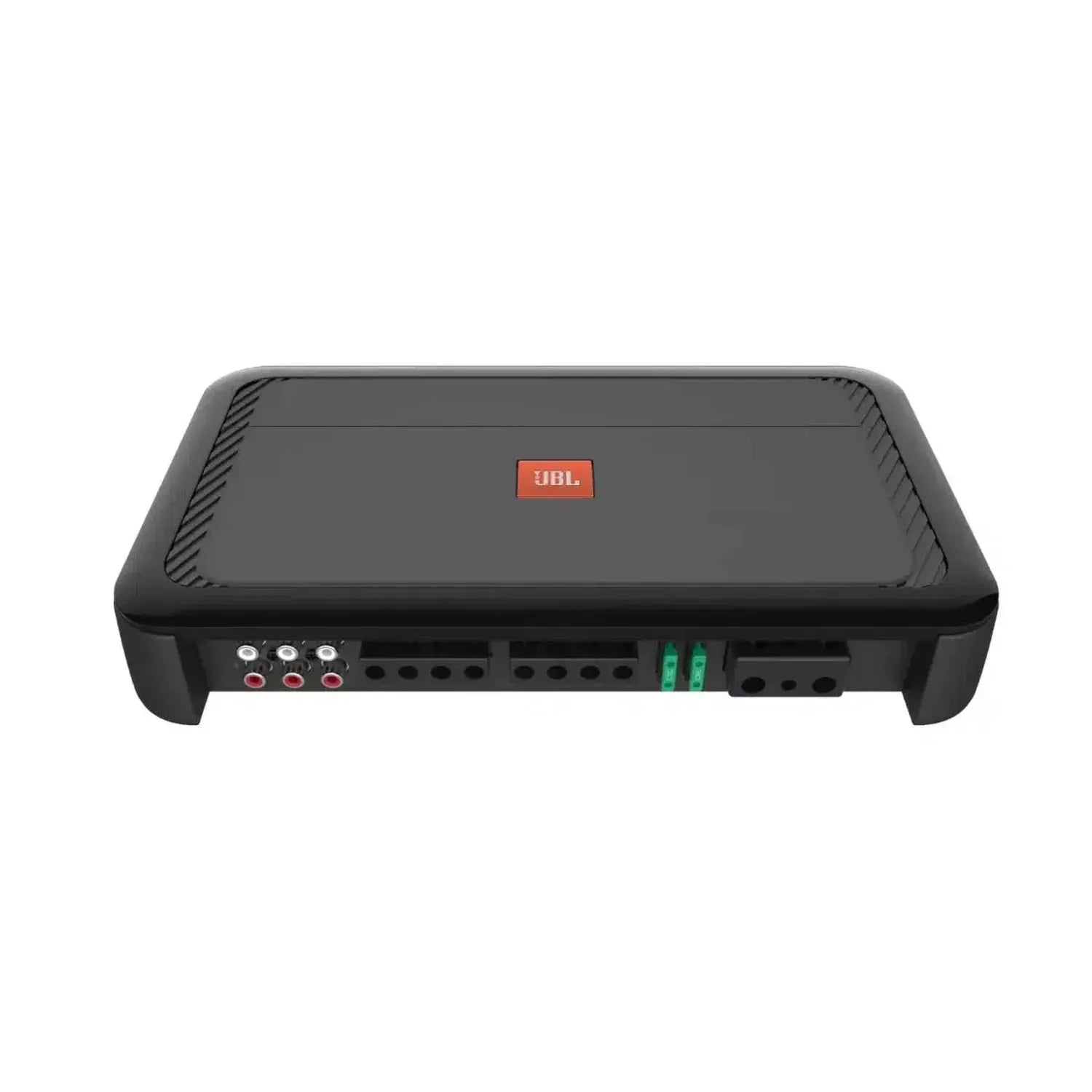

Club A754

With the CLUB A754, JBL presents a 4-channel amplifier that impresses not only with its compact size but also with its power. Just get started and experience how this amplifier supplies your front and rear speakers with an impressive 75 watts RMS. Exciting features like high and low level inputs or the variable crossover make the CLUB A754 an excellent companion for any drive. Thanks to low noise and low distortion, as well as the ability to switch between different modes, this model offers an optimal sound experience. Additionally, the amplifier scores with its versatility: from use with aftermarket or factory stereo systems to adjusting the input sensitivity, the CLUB A754 offers a wealth of possibilities.

properties

• Compact size

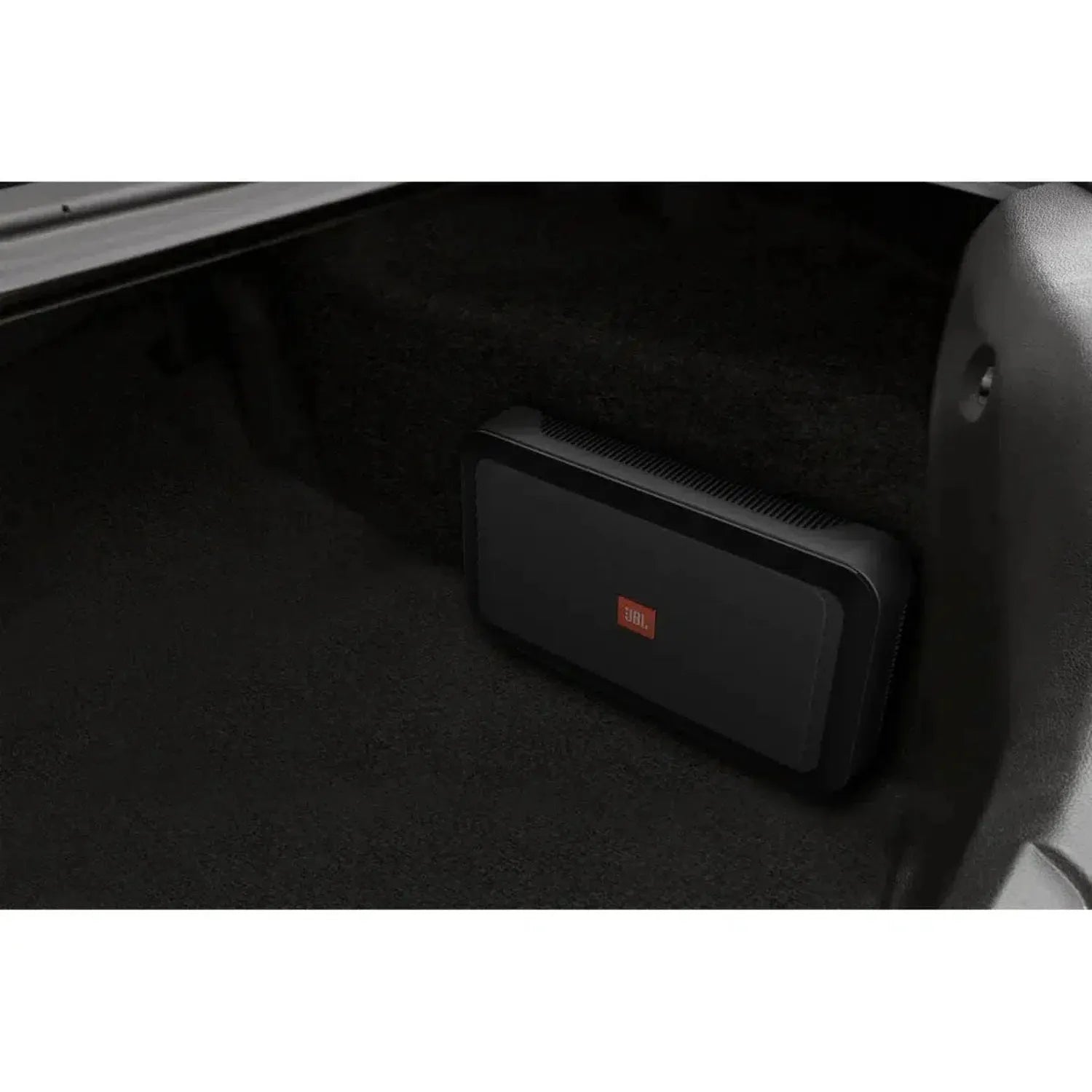

• The JBL Club A754 amplifier has a flat housing and a small footprint, so it fits in vehicles with limited space.
• High and low level inputs
• Thanks to the high and low level inputs, the Club A754 can be connected to both aftermarket and factory stereo systems.
• Variable crossover
• Unlike many other amplifiers available at similar prices, the JBL Club A754 features variable electronic crossovers for precise system tuning and performance.
• Low noise and low distortion
• The Club A754 was developed with symmetrical differential inputs to ensure low noise and low distortion even at high output levels. This makes it much less susceptible to line-induced motor noise.
• input level control
• When using low-level inputs, this control adjusts the input sensitivity between 200 mVrms and 2.0 Vrms. When using high-level inputs, this control adjusts the input sensitivity between 2 Vrms and 20 Vrms.
• Complete On-Board Protection
• The integrated circuits protect the Club A754 from short circuits, overheating, overvoltage, and undervoltage. An LED display indicates when one of these conditions is present.
• preamp outputs
• "If you use multiple amplifiers, the Club A754 has preamp outputs across the entire range, allowing you to power an additional amplifier without a splitter."

General Specifications

• 75 Watt RMS x 4 at 4 Ohm
• 100 Watt RMS x 4 at 2 Ohm
• 200 Watt RMS x 2 at 4 Ohm in Bridged Mode
• 4-ohm stability in bridged mode
• Variable high-pass and low-pass filters (32-320 Hz, 12 dB/octave) on the front and rear channels

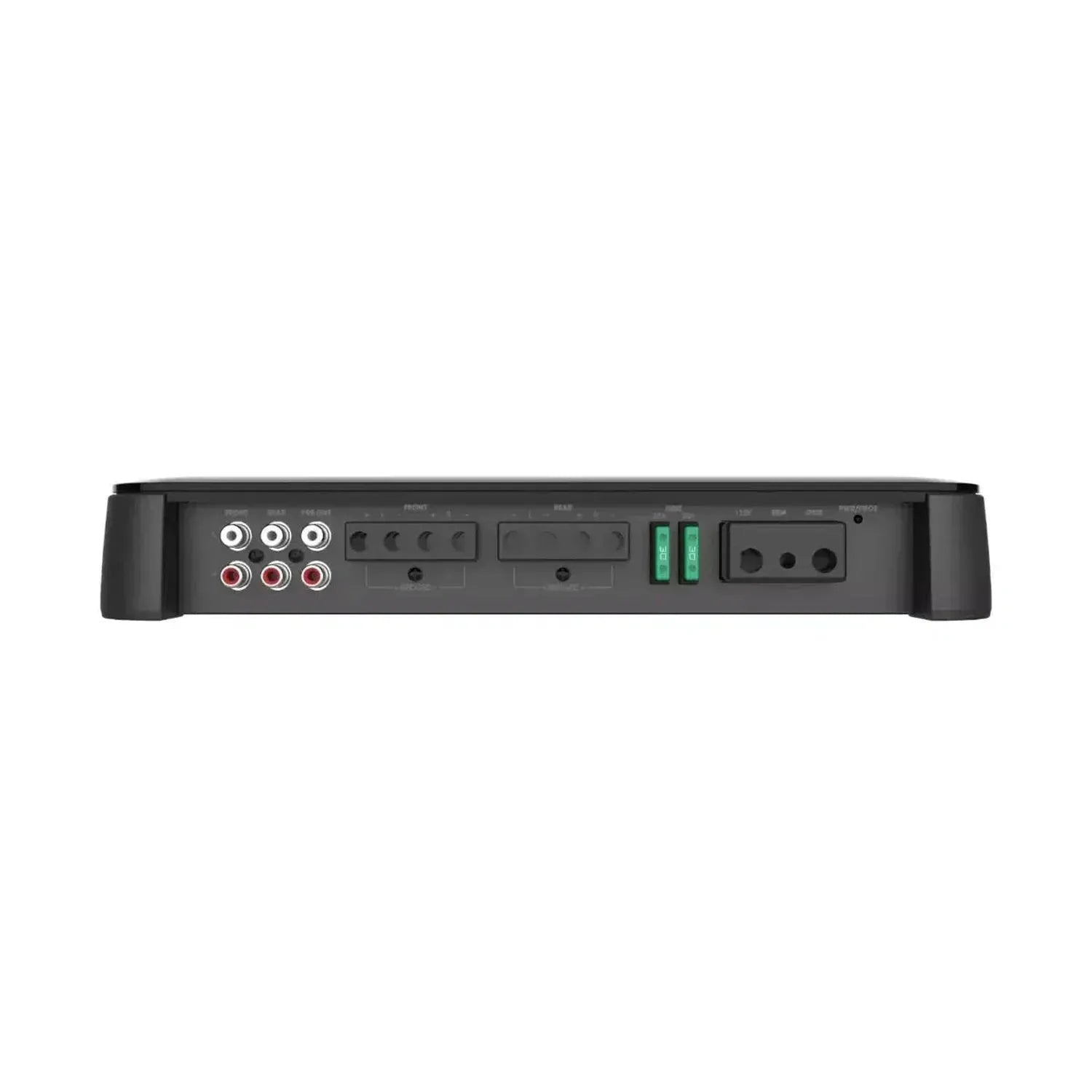

• Preamp and speaker inputs
• preamp outputs
• Safety value 3x 30a
• 10mm² power and ground cable recommended
• Wiring and hardware are not included in the delivery of the amplifier.
• BxHxT=320mm x 51.3mm x 180mm

What is in the box?

• 1 x Club A754 Four-Channel Amplifier
• 4 x adapter from bare cables to RCA
• 4 x 30A ATO fuses (2 installed, 2 spare fuses)
• 4 fastening screws (M4 x 53 mm)
• 2 x JBL stickers
• 1 x User Manual
