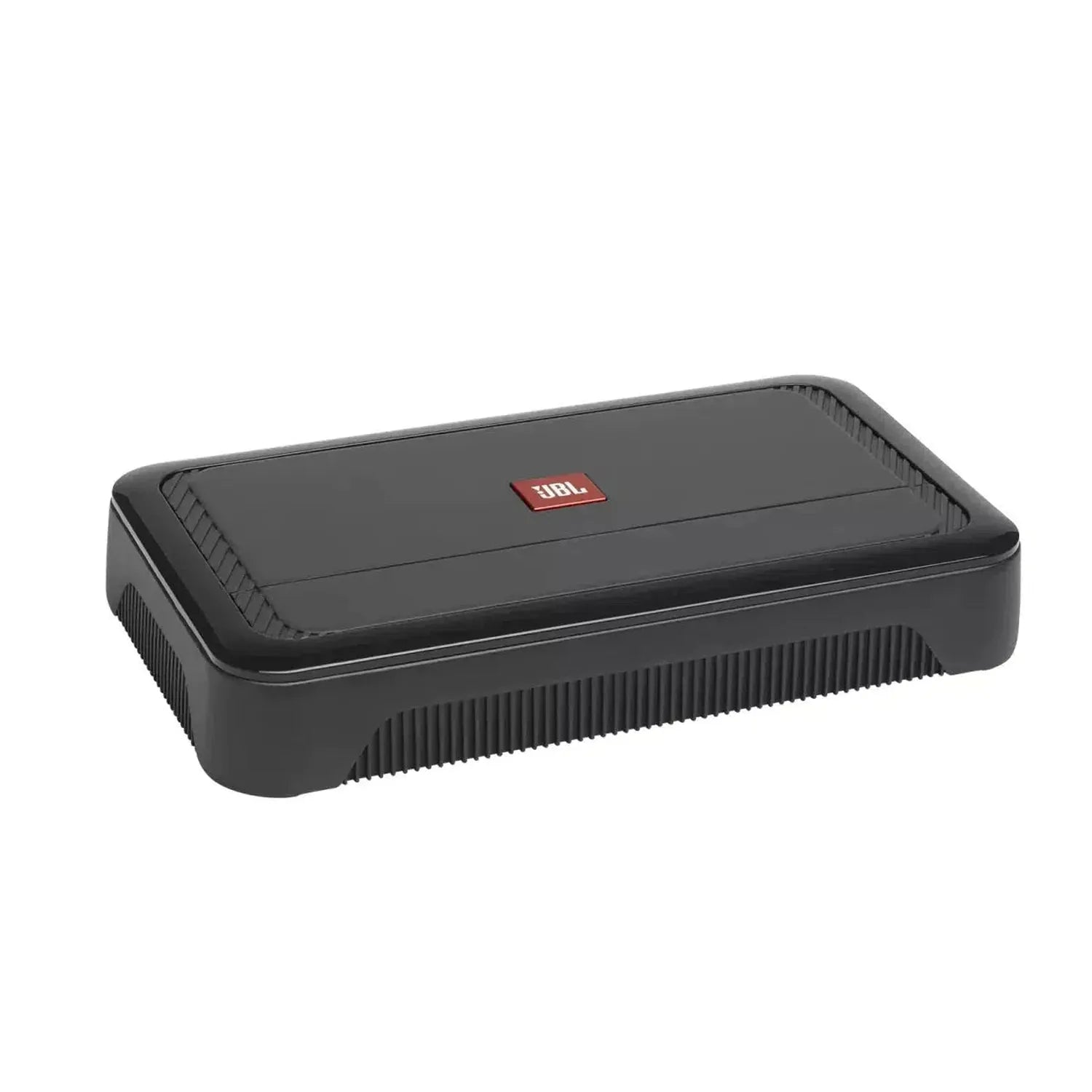

Club A1000

The JBL Club A1000 is a top-class 1-channel amplifier. With its compact and flat design, this mono subwoofer amplifier fits effortlessly into vehicles with limited space. But don't let its small size fool you. The internal values of the A1000 impress with an output of 1000 watts RMS and Class-D amplifier technology. It convinces with variable crossovers and bass enhancement for precise performance tuning. Low noise and low distortion ensure clean playback, and with the high and low level inputs, the amplifier can be easily connected to your existing system. With the practical RBC remote control, you can conveniently adjust the volume from the driver's seat. In short, the JBL Club A1000 is a powerful, flexible, and user-friendly amplifier that takes your sound experience to the next level.

properties

• Compact size
• The JBL Club A1000 amplifier has a flat housing and a small footprint, so it fits in vehicles with limited space.
• High and low level inputs
• Thanks to the high and low level inputs, the Club A1000 can be connected to both retrofitted and factory-installed car radio systems.
• Variable crossover and bass boost
• Unlike many other amplifiers available at similar prices, the JBL Club A1000 features variable electronic crossovers and bass boost circuits that allow for precise system tuning and performance.
• Low noise and low distortion
• The Club A1000 was developed with symmetrical differential inputs to ensure low noise and low distortion even at high output levels. This makes it much less susceptible to line-induced motor noise.
• input level control
• When using low-level inputs, this control adjusts the input sensitivity between 200 mVrms and 2.0 Vrms. When using high-level inputs, this control adjusts the input sensitivity between 2 Vrms and 20 Vrms.
• Complete On-Board Protection
• The integrated circuits protect the Club A1000 from short circuits, overheating, overvoltage, and undervoltage. An LED display indicates when one of these conditions occurs.
• phase switch
• This switch toggles the input phase between inverted and non-inverted. This is particularly helpful for system tuning depending on the type of enclosure and the position in the vehicle.
• Wired RBC remote control
• The wired RBC remote control is easy to install and can be mounted for convenient volume control from the driver's seat.
• Bridgeable for up to 2,000 watts power at 4 ohms
• "You can link two Club A1000s together to double the power. The primary amplifier then has absolute control over the secondary in terms of the crossovers, gain, and remote volume control."

General Specifications

• 600 Watt Rms x1 at 4 Ohm
• 1000 Watt RMS x1 at 2 Ohm
• Class D amplifier technology
• Frequency response 10-320 Hz
• Variable Low-Pass Filter (32-320 Hz, 12 dB/Octave)
• Variable bass boost (0-12dB at 45Hz)
• Phase switch (0, 180 degrees)
• Wired remote control of the volume
• Including preamplifier inputs and outputs
• Speaker inputs (Adapter from speaker cable to RCA included)
• Power and grounding cables with 20mm² recommended
• Wiring and hardware are not included in the delivery of the amplifier.
• Security value x3 35a
• BxHxT=320mm X 51.3mm X 180mm

What is in the box?

• 1 x Club A1000 Mono-Subwoofer Car Amplifier
• 6 x 35A ATO fuses (3 installed, 3 spare fuses)
• 2 x Blank Cable-to-RCA Adapters
• 1 x remote control module for the bass
• 1 x 16.5' remote control cable (RJ-25 connector at both ends)
• 2 x Self-tapping screws for the remote control (M3 x 15 mm)
• 4 x fastening screws (M4 x 53 mm)
• 2 x JBL stickers
• 1 x User Manual
