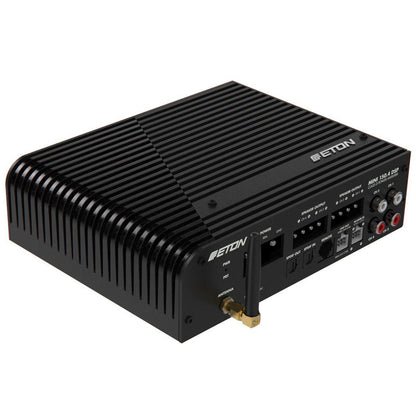

ETON Mini 150.4 DSP 4-Channel DSP Amplifier

1 Review

100 Watt

Mini 150.4 DSP

1 Review

Technical Highlights

  • 4-channel DSP, WiFi module, lossless streaming.
  • 4 x 155 W into 2 ohms, 4 x 100 W into 4 ohms, Class-D.
  • ETON DSP Control App, high/low level inputs.
  • More technical details
00 d
00 h
00 m
00 s
€418,28
-34% €629,00 €418,28
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
Apr 27, - Apr 30,
x Piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €34,85 with Klarna .
Expert Image

Rob

Expert Image

Max

Avoid a bad purchase? We check your setup!

Rob & Max check your project: So you are guaranteed to get the maximum performance for your budget.

Response on weekdays within 24 hours

Your benefits at Masori

AxtonA544DSP
Axton-A544DSP-4-Kanal DSP-Verstärker-masori-kaufen
Rainbow Audio-EL-AP300D NEO-4-Kanal DSP-Verstärker-masori-kaufen
Rainbow AudioEL-AP300D NEO
ETON-Mini 150.4 DSP-4-Kanal DSP-Verstärker-masori-kaufen
€418,28
€629,00 €418,28

More power than Mini 150.4 DSP here!

Show all
  • Deaf Bonce-Apocalypse Atom 3.5K Pro-1-Kanal Verstärker-masori-kaufen
    3500 Watt

    Apocalypse Atom 3.5K Pro

    €389,00
    €389,00 €389,00
    Delivery
    May 1, - May 6,
  • Deaf Bonce-Apocalypse Atom 2000.1 Pro-1-Kanal Verstärker-masori-kaufen
    2000 Watt

    Apocalypse Atom 2000.1 Pro

    €329,00
    €329,00 €329,00
    In stock
    Apr 27, - Apr 28,
  • Deaf Bonce-Apocalypse Atom 1600.1 PRO-1-Kanal Verstärker-masori-kaufen
    1600 Watt

    Apocalypse Atom 1600.1 PRO

    €239,00
    €239,00 €239,00
    Delivery
    May 1, - May 6,
  • Deaf Bonce-Apocalypse Atom 2.5K Pro-1-Kanal Verstärker-masori-kaufen
    2500 Watt

    Apocalypse Atom 2.5K Pro

    €309,00
    €309,00 €309,00
    Delivery
    May 1, - May 6,
  • Deaf Bonce-Machete Light MLA-900.1-1-Kanal Verstärker-masori-kaufen
    900 Watt

    Machete Light MLA-900.1

    €199,00
    €199,00 €199,00
    Delivery
    May 1, - May 6,
DSP_Verstaerker_bestseller

This could also look like this for you!

A good Amplifier not only delivers watts, it controls your speakers. Many mainstream amps dazzle with high numbers but lose stability under load. Our selection of power amplifiers from Deaf Bonce and DD Audio stands for honest power ratings and maximum efficiency – so your system plays cleanly even at the limit.

Discover now

Mini 150.4 DSP by ETON Description

The Mini 150.4 DSP from ETON is a 4-channel DSP amplifier that impresses with its compact design and advanced DSP technology. It is characterized by excellent sound quality, sensationally low distortion values, and versatile connectivity options. With an integrated WiFi module, it offers lossless music streaming, while the "ETON DSP Control" app allows for optimized sound adjustment. Other outstanding features include high-level and low-level inputs, an integrated measurement microphone input, and freely selectable inputs and outputs. The amplifier is also suitable for vehicles with start-stop functionality. Developed in Germany, the Mini 150.4 DSP meets the highest demands for performance and flexibility.

Product features

Class D amplifier with integrated DSP with high computing power. Ultra Low THD+N 0.003% @ 5 W RMS, Hi-Lo level inputs. SPDIF input and output, HiRes streaming (Android & iOS). Full control via the innovative ETON app. Remote out & DSP out, auto-sense on function (DC/SIG), suitable for vehicles with start-stop function. 10 fully parametric EQ bands per output including high/low shelf filter (freely selectable, 80 band). 21 fully parametric EQ bands per input including high/low shelf filter (freely selectable, 168 band), LZK up to 20 ms in 0.002 ms steps, HP/LP/BP: 6 - 48 dB, phase shift 0/180° per channel. Freely assignable inputs & outputs including mixer, freely selectable remote control lighting color (RGB setting). Integrated measurement microphone input (optional ETON RTA 3.5 required, not included in the set). Developed in Germany.

Technical Data

  • Channels 4
  • Class-D amplifier technology
  • Amplifier power at 1 | 2 Ohm - 4x155 W(RMS)
  • Amplifier power at 4 Ohm 4x100 2x310 W(RMS)
  • Digital sound processor (DSP) yes
  • Auto-Sense On Function SIG / DC
  • Hi-Lo inputs, SPDIF input 4 / 1
  • Lo-Level Subwoofer Output 1 SPDIF
  • Level remote control yes
  • Dimensions (LxWxH) 183x146x50 mm

ETON Mini 150.4 DSP Datasheet

Open datasheet

Frequently Asked Questions about Mini 150.4 DSP

Welche Leistungsdaten bietet der Mini 150.4 DSP Verstärker?

The Mini 150.4 DSP from ETON is a powerful 4-channel Class-D amplifier. It delivers a power of 4x155 W RMS at an impedance of 1 or 2 Ohms and 4x100 W or 2x310 W RMS at 4 Ohms. This high power ensures top-notch sound reproduction. The distortion values are exceptionally low, with a THD+N of only 0.003% at 5 W RMS. Additionally, the amplifier features Hi-Lo level inputs and an SPDIF input, making it extremely flexible in use. This combination of power and precision makes it ideal for demanding audio applications in vehicles.

Wie kann der Mini 150.4 DSP im Auto installiert werden?

The Mini 150.4 DSP is easy to install in many vehicles due to its compact dimensions of 183x146x50 mm, which is particularly advantageous for vehicles with limited space. Its versatile connection options via high-level or low-level inputs allow for easy integration into existing audio systems. The Auto-Sense On function further simplifies installation by automatically activating the amplifier as soon as a signal is detected. Its suitability for vehicles with start-stop automation makes it particularly flexible to use.

Wie erfolgt die Soundanpassung beim Mini 150.4 DSP?

The Mini 150.4 DSP uses the ETON DSP Control App for individual sound adjustment. This allows full control over 10 fully parametric equalizer bands per output and 21 bands per input. These bands, including high and low shelf filters, can be freely selected. Additionally, up to 20 ms of delay correction is available in 0.002 ms steps, along with a high-pass, low-pass, and band-pass filter with 6-48 dB. Phase inversion can be set per channel at 0/180°, enabling precise sound optimization.

Welche Verbindungsmöglichkeiten bietet der Mini 150.4 DSP?

The Mini 150.4 DSP offers numerous connection options. In addition to the high-level and low-level inputs, it features an SPDIF input and output as well as a low-level subwoofer output. This variety of inputs and outputs, which can also be freely assigned, ensures maximum flexibility in the installation and adjustment of the audio system. The integrated WiFi module enables lossless music streaming, and the remote control offers an RGB setting for the lighting color.

Welche speziellen Technologien sind im Mini 150.4 DSP integriert?

The Mini 150.4 DSP impresses with several innovative technologies. The built-in digital sound processor (DSP) offers high computing power for precise sound processing. Additionally, the Auto-Sense On function (DC/SIG) is integrated, which automatically activates the amplifier as soon as a signal is detected. HiRes streaming for Android and iOS ensures high-quality sound reproduction, while the amplifier is fully controllable with the innovative ETON app, which is particularly helpful for fine-tuning.

Wie wird der Mini 150.4 DSP bei der Nutzung von Start-Stopp-Systemen beeinflusst?

The Mini 150.4 DSP has been specifically designed to work flawlessly in vehicles with start-stop functionality. The amplifier's electronics are designed to reliably compensate for voltage fluctuations that can occur when starting the engine. This means that the amplifier operates continuously even during a start-stop process, ensuring that the car's audio system is not affected.

Wie wird das HiRes-Streaming im Mini 150.4 DSP realisiert?

The Mini 150.4 DSP uses an integrated WiFi module to enable lossless HiRes streaming. This allows audio content to be streamed in the highest quality over Android and iOS without the need for additional cable connections, ensuring a clean and high-quality audio profile. Especially if you enjoy listening to high-quality produced music, this feature provides a compelling argument for this amplifier.

Welche EQ-Einstellungen sind beim Mini 150.4 DSP verfügbar?

The Mini 150.4 DSP from ETON offers outstanding equalizer functions. For each output, there are 10 fully parametric EQ bands available for fine-tuning, while each input even has 21 fully parametric bands including high and low shelf filters. This high number of adjustment options ensures precise sound control and adaptation to individual acoustic preferences or spatial conditions. Additionally, the filters allow for exact adjustment of the respective frequency bands.

Welche Rolle spielt der Messmikrofoneingang beim Mini 150.4 DSP?

The Mini 150.4 DSP features a built-in measurement microphone input, which is an exceptional feature for audiophile tinkerers. This input allows for the measurement and analysis of the acoustic environment to precisely adjust the sound. With the optional ETON RTA 3.5 measurement microphone, which is sold separately, the acoustic environment can be accurately captured. This enables perfect adjustment of the sound system, especially in special spatial challenges within the vehicle.

Welche Phaseneinstellungen bietet der Mini 150.4 DSP?

The Mini 150.4 DSP from ETON allows for precise phase adjustment per channel with a rotation of 0/180°. This function is particularly useful to ensure that the sound waves of all speakers in the vehicle are synchronized. This guarantees an optimal listening experience, as phase correction ensures a clear and precise representation of the sound image. This can help avoid blurry sound images and is an important aspect of perfectly tuning the sound to the vehicle environment.
