B2 Audio Rage 1200.4 V2 4-Channel Amplifier
SKU:  RAGE1200-4V2
EAN:  4251950311739

1 Review

300 Watt

Rage 1200.4 V2

SKU:  RAGE1200-4V2
EAN:  4251950311739

1 Review

Technical Highlights

  • Power: 4 x 200 Watts RMS @ 4 Ω, 4 x 300 Watts RMS @ 2 Ω.
  • Impedance: 4 Ω bridge, 2 x 600 watts RMS, at 14.4 V.
  • Bandpass crossovers: ACCU8, clip and voltage sensors.
  • More technical details
€499,00
€499,00 €499,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 8, - Jun 12,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €41,58 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
B2 AudioRage 61

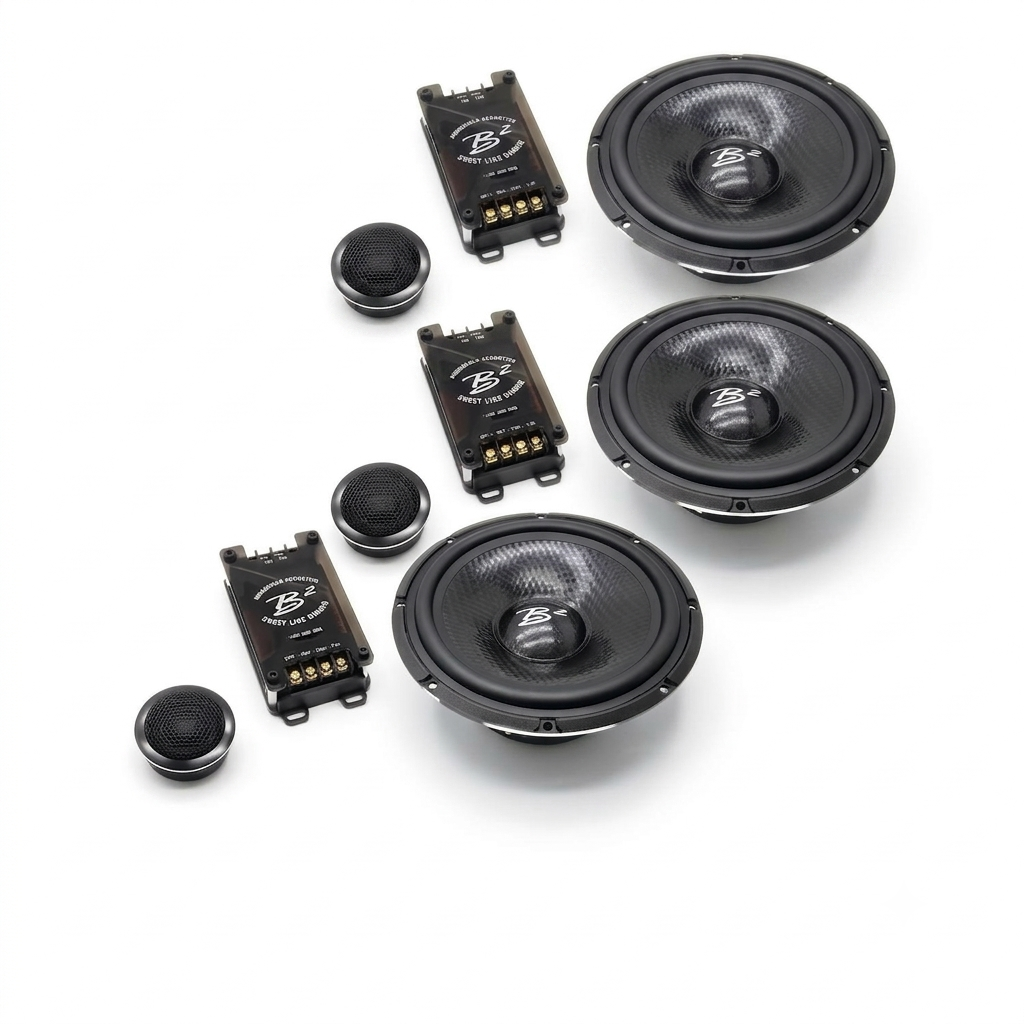

The B2 Audio Rage 61 set includes two 2-way speakers, two tweeters, and two crossovers, all shown on a white background.
The B2 Audio Rage 63 is a black 6.5 Zoll component set with speakers, crossovers, tweeters, midrange, and grilles displayed on a white background.
B2 AudioRage 63

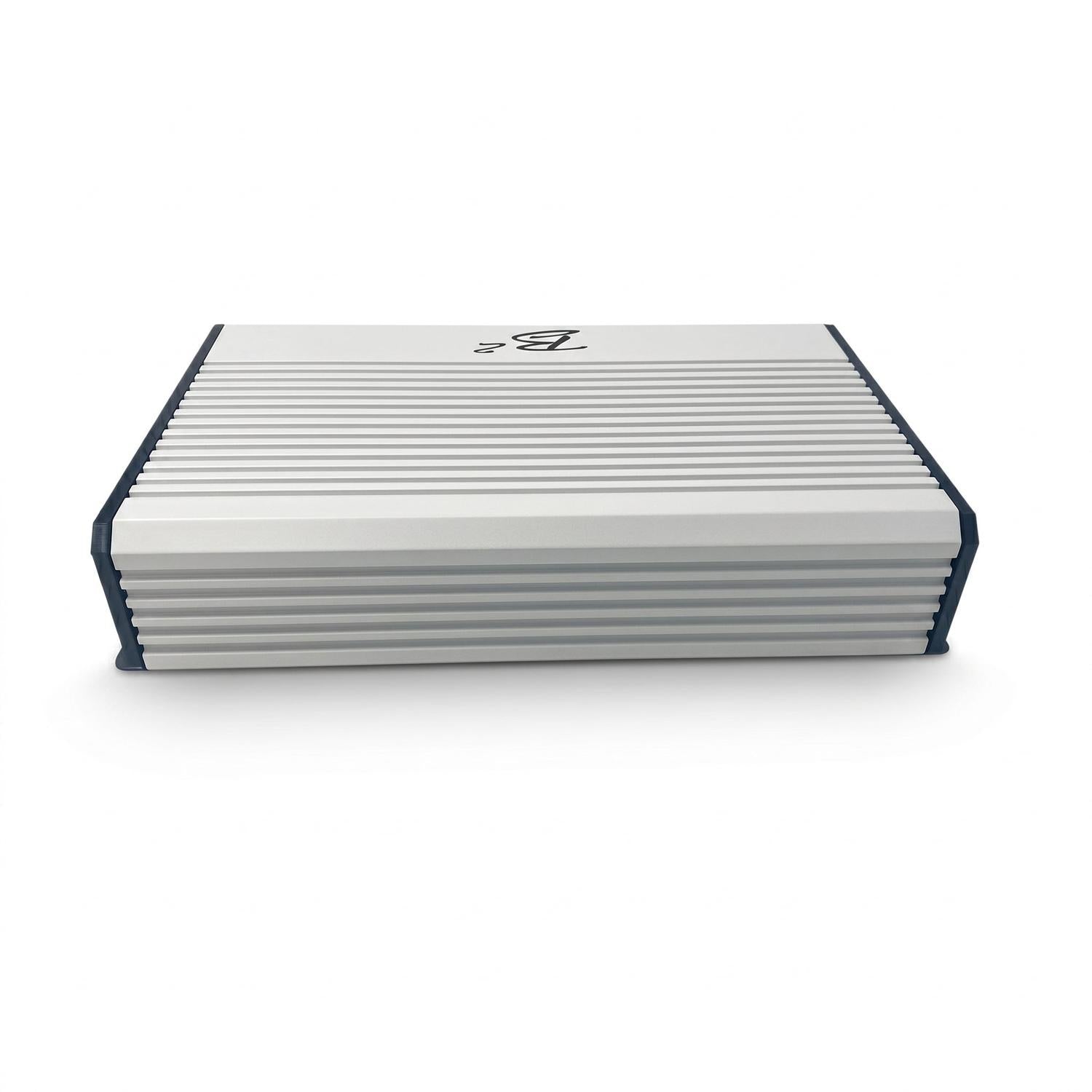

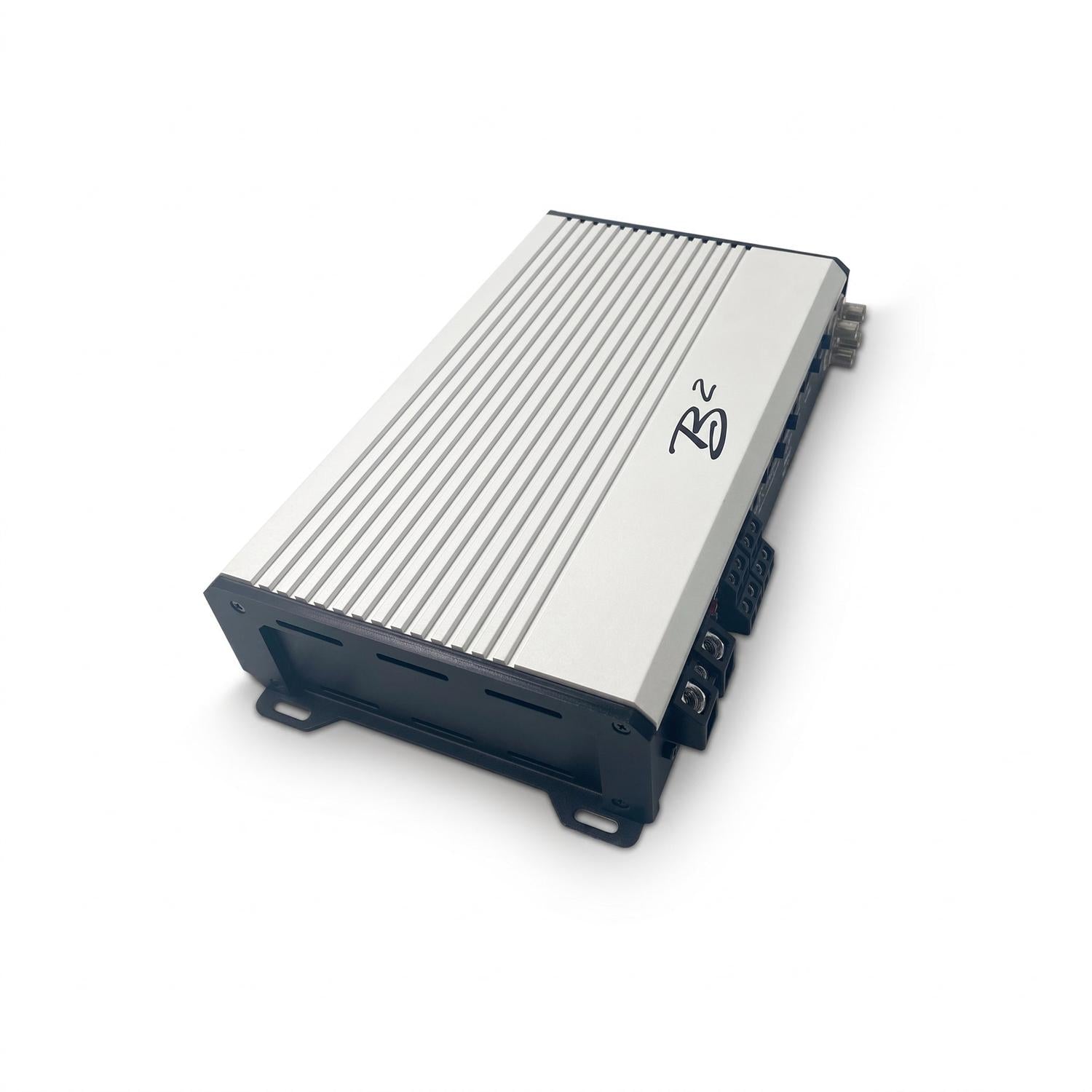

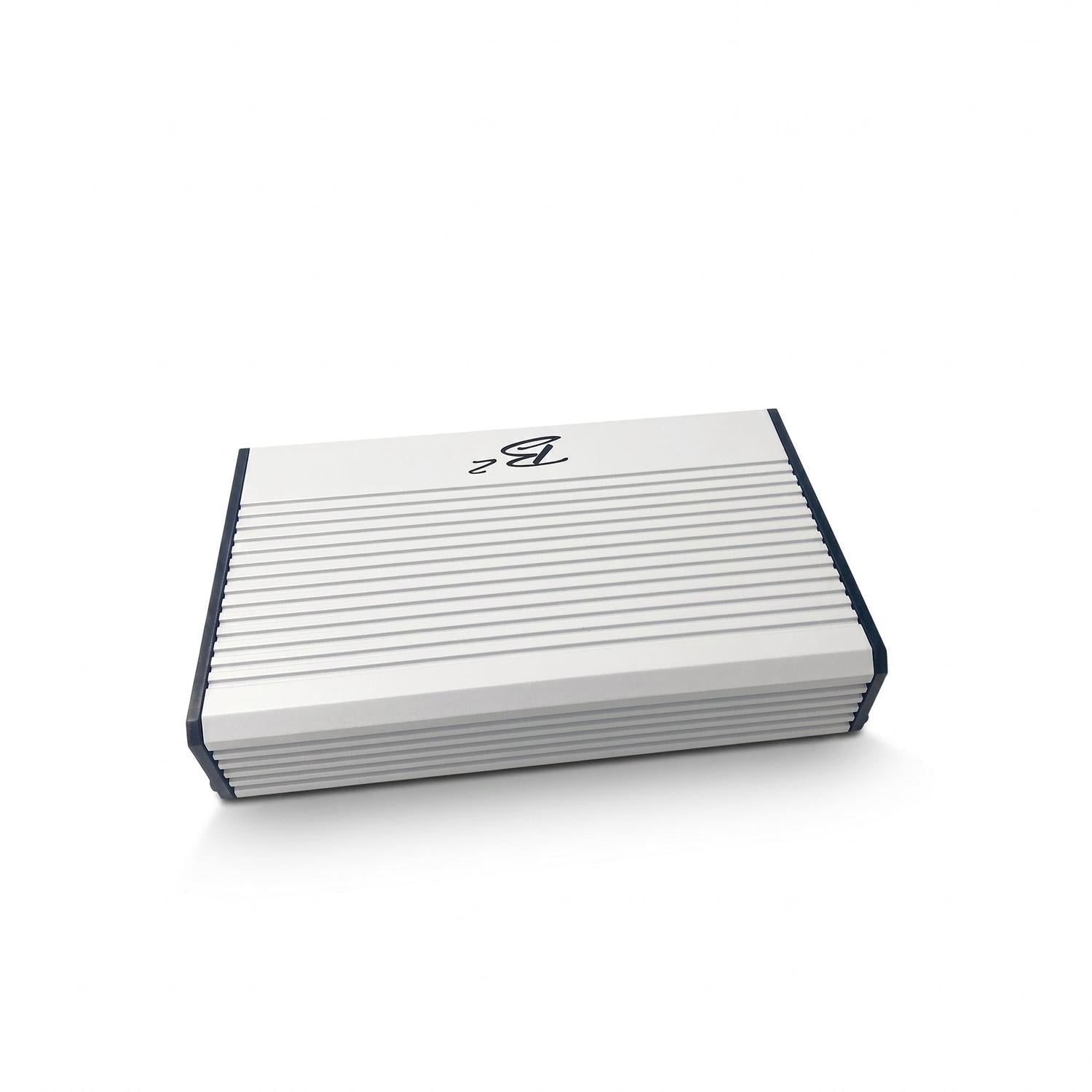

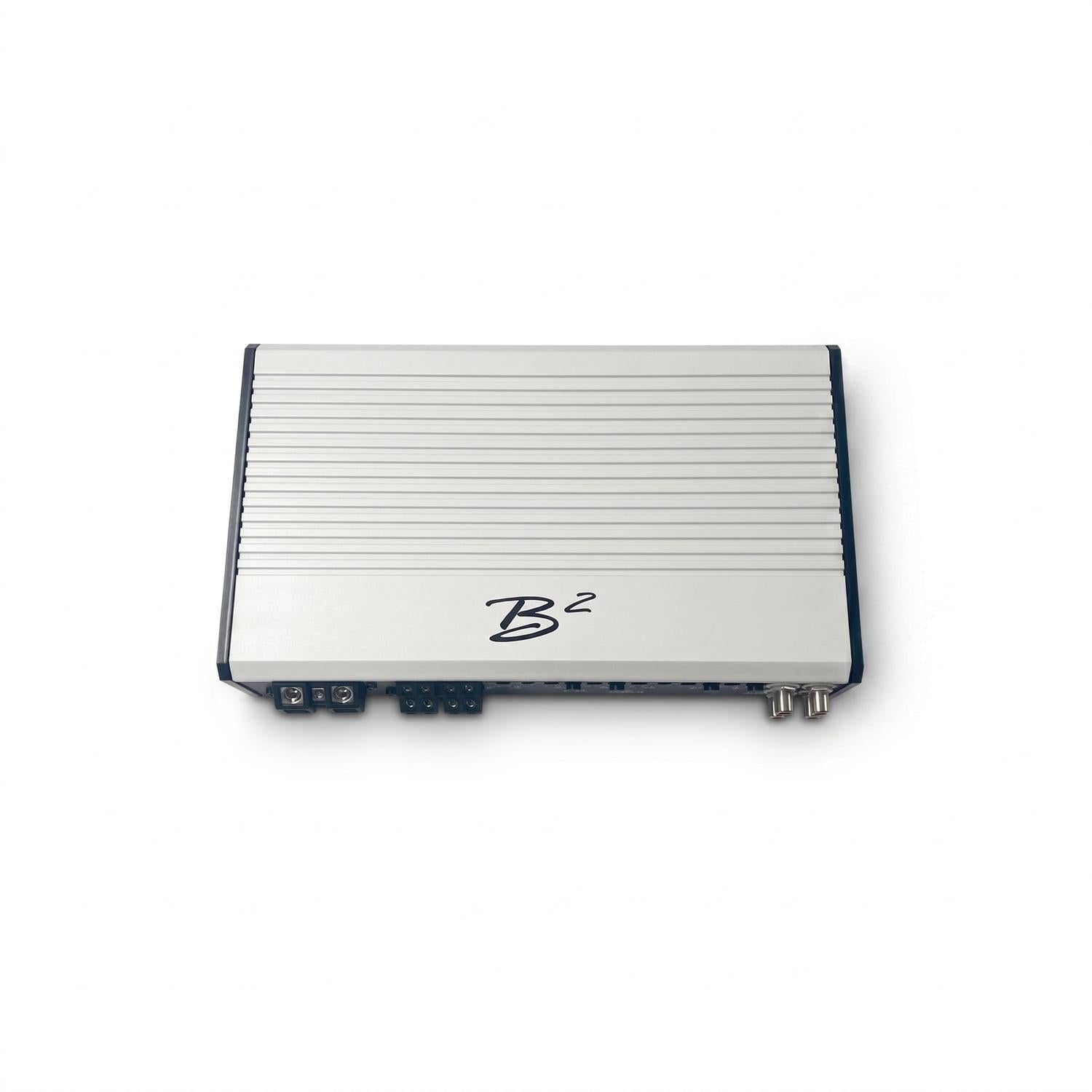

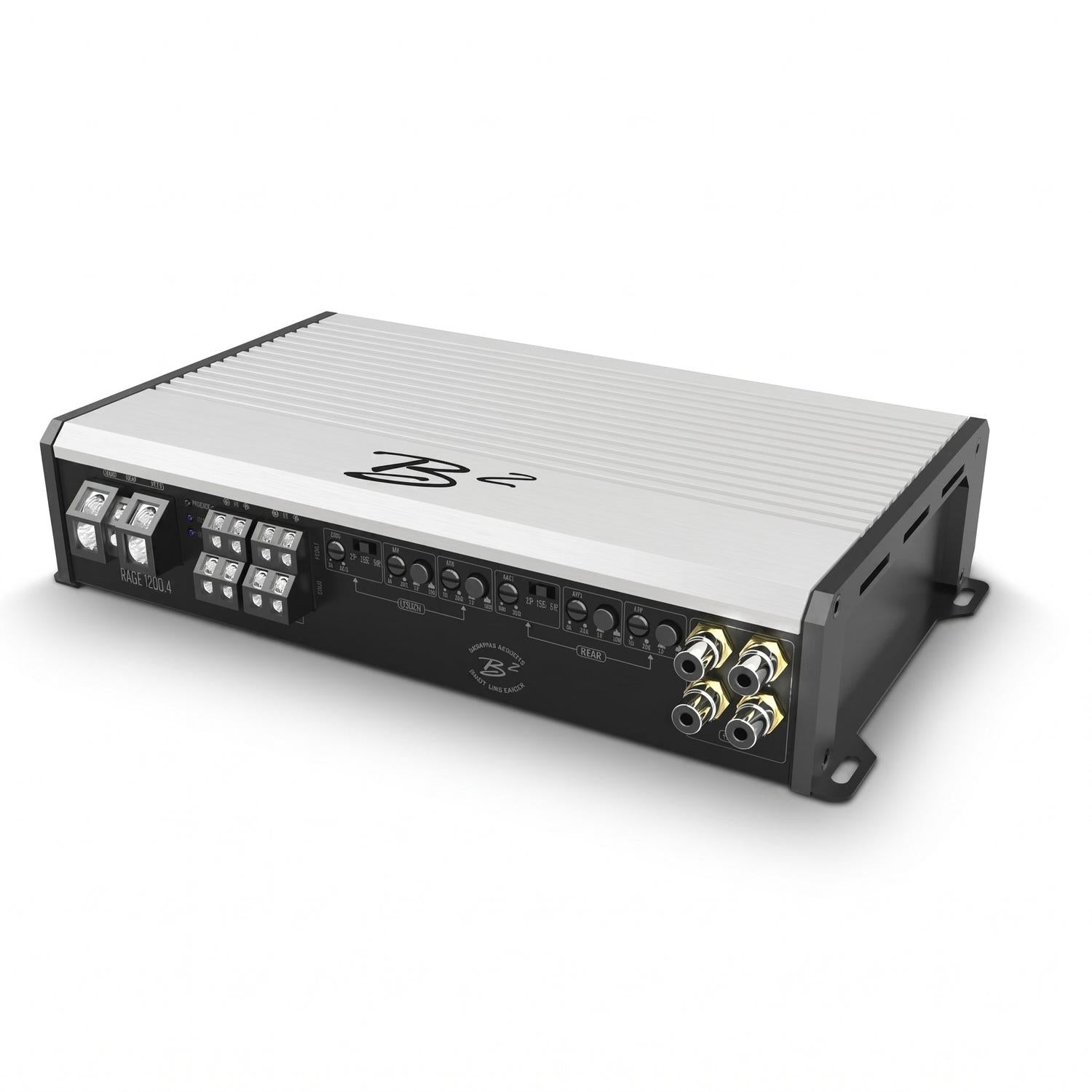

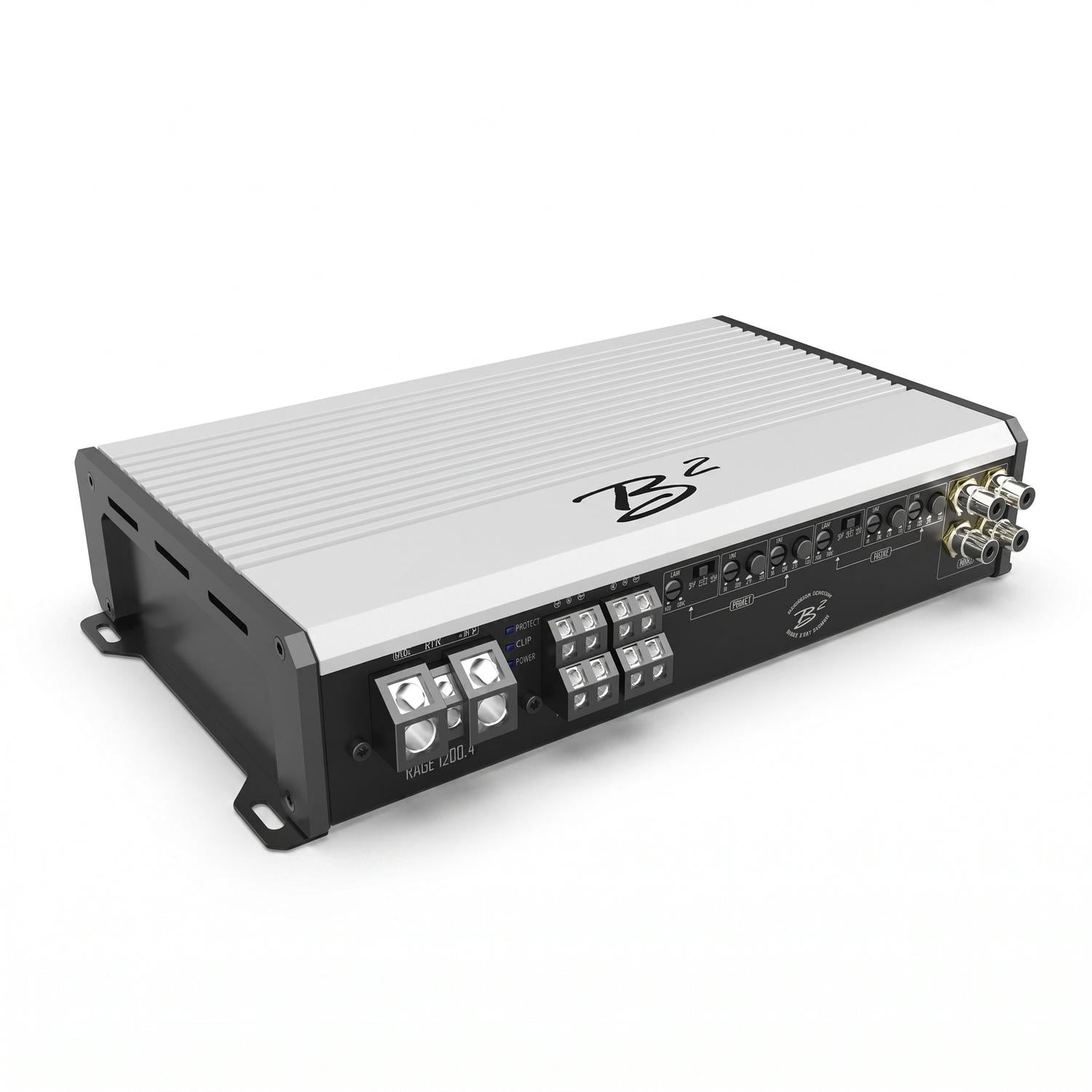

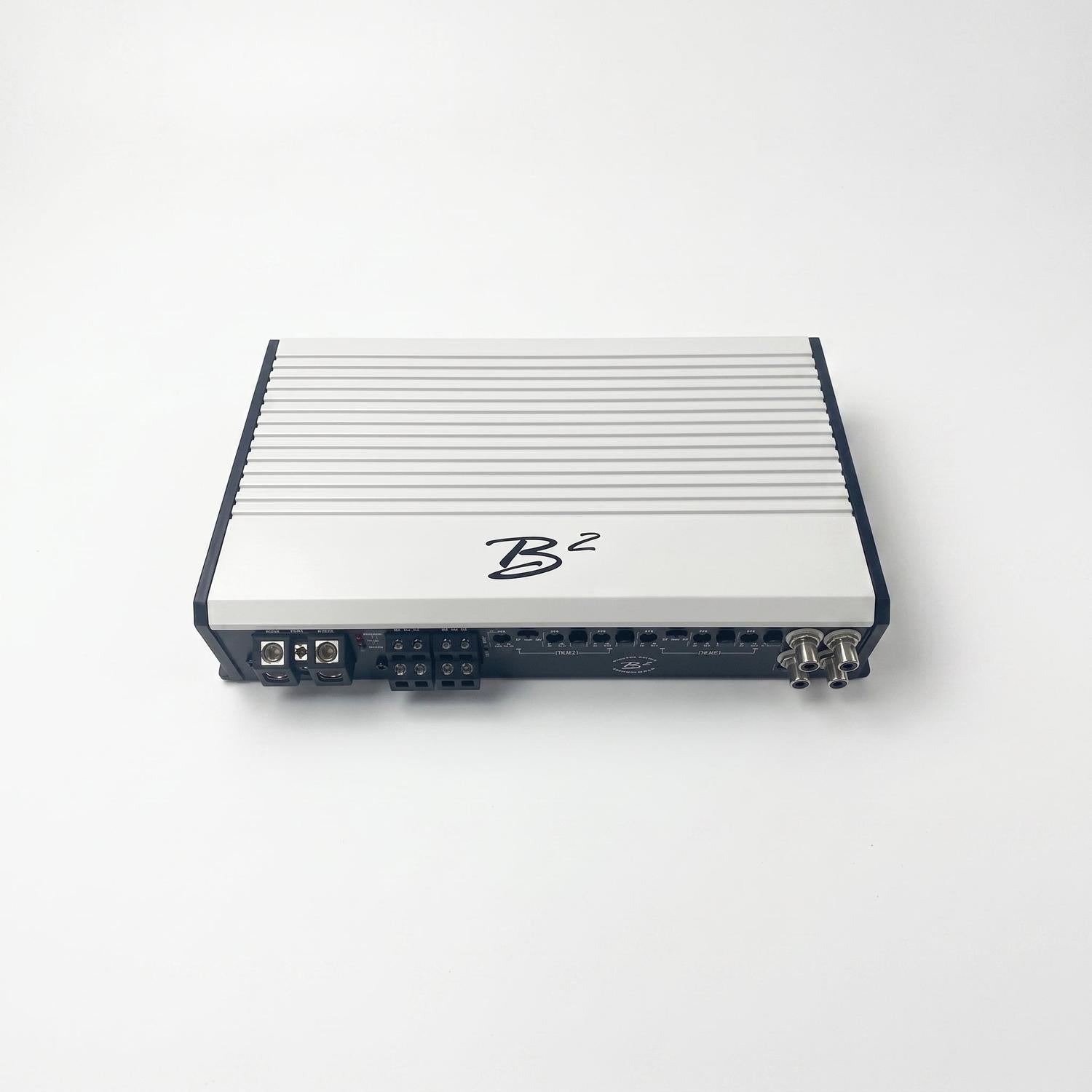

B2 Audio-Rage 1200.4 V2-4-Kanal Verstärker-masori-kaufen
€499,00
€499,00 €499,00

Compatible with Rage 1200.4 V2

Rage 1200.4 V2 by B2 Audio

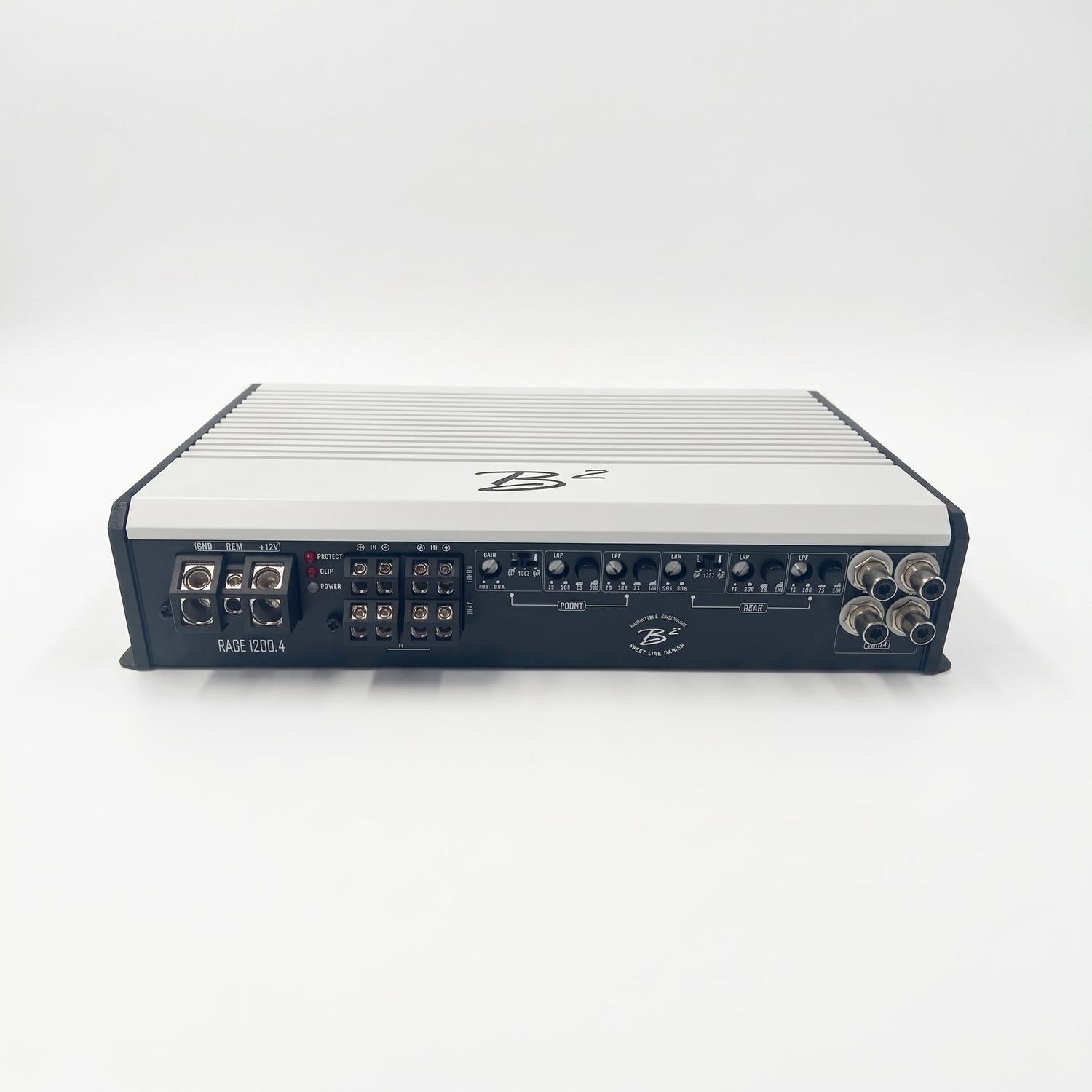

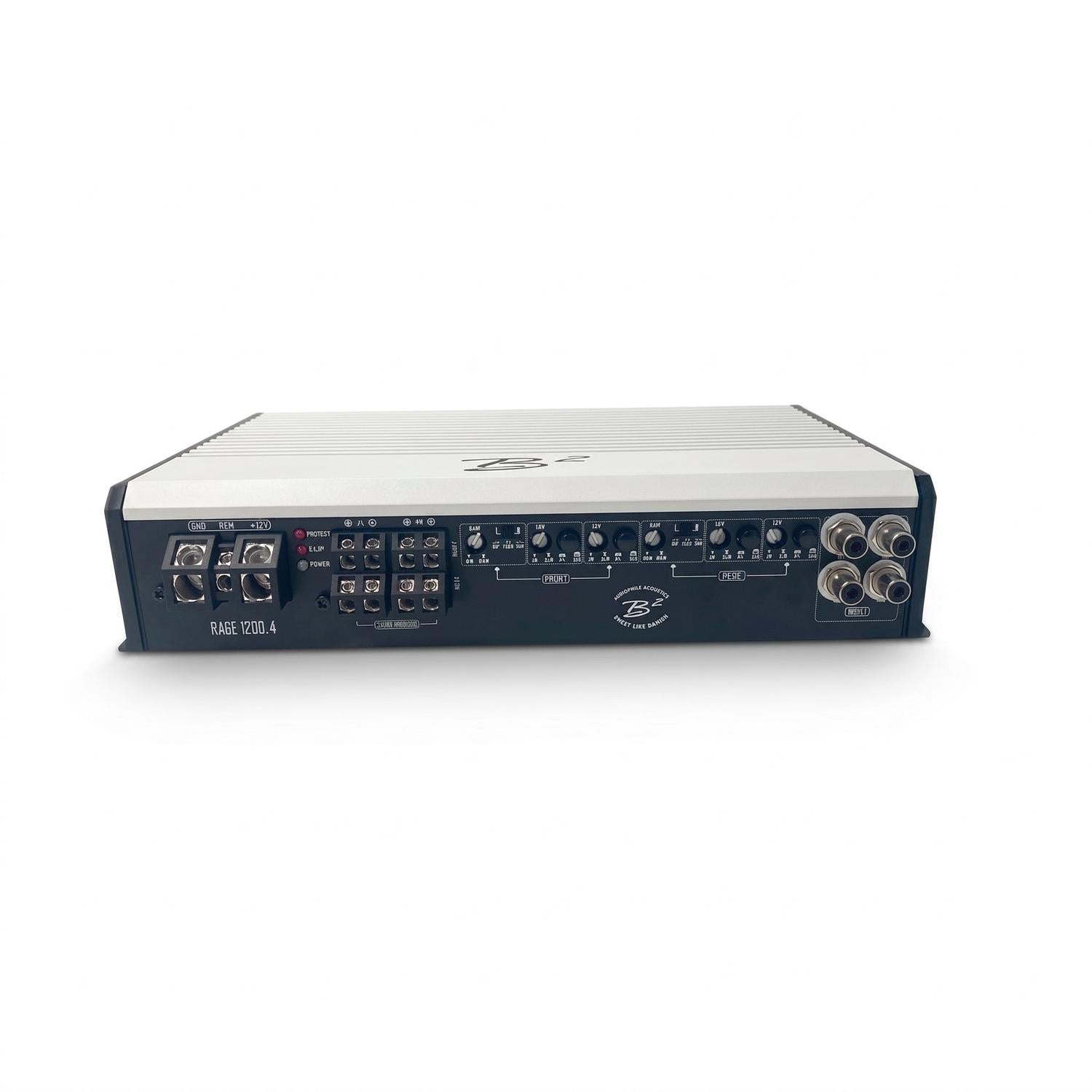

The Rage 1200.4 V2 is a 4-Channel Amplifier from B2 Audio from a new series with a single-sided connection front. Equipped with sensors for low voltage and clip. Integrated ACCU8 crossovers allow for bandpass configuration on all channels. The frequency response ranges from 10 Hz to 24 kHz, with a signal-to-noise ratio of over 90 dB. The input sensitivity is 6 V to 0.2 V. Low-pass and high-pass filters operate at 12 dB/Oct and cover 50 Hz to 5 kHz and 20 Hz to 4 kHz, respectively. The damping factor is over 200, the operating voltage is 9 V to 17.5 V, the power terminal is designed for 35 mm², the external fuse recommendation is 100 A, and the dimensions are 278 x 170 x 57 mm.

Features
  • 4-Channel Amplifier
  • New series with a single-sided connection front
  • Sensors for low voltage and clip
  • ACCU8 crossovers with bandpass configuration on all channels
  • Power @ 4 Ω at 14.4 V: 4 x 200 Watts RMS
  • Power @ 2 Ω at 14.4 V: 4 x 300 Watts RMS
  • Power @ 4 Ω bridge at 14.4 V: 2 x 600 Watts RMS
Technical Specifications
  • Frequency response: 10 Hz to 24 kHz
  • Signal-to-noise ratio: > 90 dB
  • Input sensitivity: 6 V to 0.2 V
  • Low-pass crossover 12 dB/Oct: 50 Hz to 5 kHz
  • High-pass crossover 12 dB/Oct: 20 Hz to 4 kHz
  • Damping factor: > 200
  • Power terminal: 35 mm²
  • External fuse recommendation: 100 A
  • Operating voltage: 9 V to 17.5 V
  • Dimensions (L x W x H): 278 mm x 170 mm x 57 mm

Your benefits at Masori

B2 Audio Rage 1200.4 V2 Datasheet

Open datasheet

Frequently Asked Questions about Rage 1200.4 V2

What technical features does the Rage 1200.4 V2 Amplifier from B2 Audio offer?

The Rage 1200.4 V2 is a highly advanced 4-Channel Amplifier from B2 Audio. Its technical features include a frequency response of 10 Hz to 24 kHz and a signal-to-noise ratio of over 90 dB. The input sensitivity ranges from 6 V to 0.2 V. Built-in crossovers allow for bandpass configurations with 12 dB/octave for both high-pass and low-pass at frequencies of 20 Hz-4 kHz and 50 Hz-5 kHz, respectively. Additional features such as low voltage and clip sensors, as well as a single-sided connection front, enhance functionality. The high power output supported by an operating voltage of 9 V to 17.5 V demonstrates its versatility.

What power does the Rage 1200.4 V2 Amplifier provide at different ohm values?

The Rage 1200.4 V2 delivers substantial power output at different ohm values. At 4 ohms and a power supply of 14.4 V, the amplifier provides a power of 4 x 200 watts RMS. At 2 ohms, it delivers 4 x 300 watts RMS. In bridged mode at 4 ohms, it even provides 2 x 600 watts RMS. This power capability at different resistance ratios makes the amplifier ideal for a wide range of applications in the car audio sector. The damping factor of over 200 underscores effective control over the amplifier's output, which is particularly important for crystal-clear sound results.

What crossovers are integrated in the Rage 1200.4 V2?

The Rage 1200.4 V2 features integrated ACCU8 crossovers that support both low-pass and high-pass configurations on all channels. These offer 12 dB/octave slope and allow for adjusting the low-pass between 50 Hz and 5 kHz, as well as the high-pass from 20 Hz to 4 kHz. This flexibility enables a tailored adjustment of the sound to personal preferences and ensures an outstanding audio experience. The bandpass configurations further expand the possibilities for achieving individual sound settings for a full and dynamic sound.

Why are the low voltage and clipping sensors in the Rage 1200.4 V2 important?

The low voltage and clipping sensors in the Rage 1200.4 V2 are crucial for ensuring sound integrity and technical safety. Low voltage sensors ensure that the amplifier always operates within the optimal voltage range of 9 V to 17.5 V, while clip sensors prevent distortion to minimize sound degradation. Especially if you enjoy listening to music at high volumes, these parameters are important for securing sound quality and enhancing the amplifier's longevity. They also provide protection against potential speaker damage, which increases operational stability.

Is there a recommended fuse size for the Rage 1200.4 V2?

Yes, an external fuse with a capacity of 100 A is recommended for the Rage 1200.4 V2 amplifier. This fuse protects the vehicle's electronics and the amplifier from overload and sudden voltage spikes, which could potentially lead to a short circuit in the worst case. The fuse acts as a protective measure, particularly useful under high power demands. The power terminal with 35mm² supports this by ensuring a stable and secure power supply. Adequate current protection is thus essential for the reliable operation of the amplifier.

What are the dimensions of the Rage 1200.4 V2 amplifier?

The compact dimensions of the Rage 1200.4 V2 allow for a variety of installation options in the vehicle. The amplifier measures 278 mm in length, 170 mm in width, and 57 mm in height. This size facilitates integration into existing audio setups and offers flexibility in placement, even in tight installation areas. The one-sided connection front contributes to easy installation by providing easier access to the connections. Thus, the mounting of the amplifier is both space-saving and user-friendly, highlighting the versatility of the design.

What operating voltage does the Rage 1200.4 V2 amplifier support?

The Rage 1200.4 V2 amplifier can operate at an operating voltage of 9 V to 17.5 V. This wide voltage range allows the amplifier to work reliably in different vehicles and under varying electrical conditions. This is particularly advantageous when the vehicle uses alternative voltage sources, such as in systems with variable output voltage. Such a broad operating voltage window also enables stable performance output during voltage-critical phases, further emphasizing the amplifier's flexibility and adaptability, making it an attractive choice in the car audio sector.

How complicated is the installation of the Rage 1200.4 V2 in the car?

The installation of the Rage 1200.4 V2 in the car is relatively straightforward. Thanks to its compact dimensions of 278 x 170 x 57 mm, it can be easily integrated into various vehicles. The one-sided connection front facilitates access to the necessary connections. When mounting, it is important to ensure adequate ventilation to guarantee optimal operating conditions. The specified power terminals support cable cross-sections of up to 35 mm², allowing for a stable electrical connection. A professional installation is recommended to make the most of all technical aspects and avoid malfunctions.

What precautions should be taken when placing the Rage 1200.4 V2?

Placing the Rage 1200.4 V2 requires some basic precautions to ensure safe and efficient operation. It is important to position it in a well-ventilated area to avoid overheating. The amplifier should also not be installed in close proximity to liquid sources. Adhering to the recommended distances from other electrical components can minimize electromagnetic interference. Important dimensions to consider are: length 278 mm, width 170 mm, height 57 mm. These specifications facilitate integration into various setups without significant adjustments to the existing configuration.

What application areas is the Rage 1200.4 V2 amplifier best suited for?

The Rage 1200.4 V2 amplifier is excellent for a variety of car audio applications. Thanks to its versatility in power output – from 200 watts RMS per channel at 4 ohms to 600 watts RMS in bridged mode at 4 ohms – it covers both use in conventional stereo systems and in more power-intensive setups. The precise crossover control supports individual sound designs, making it particularly suitable for audio enthusiasts who value detailed and powerful playback. It can also be well integrated as the centerpiece of more extensive audio installations in complex vehicle environments.
