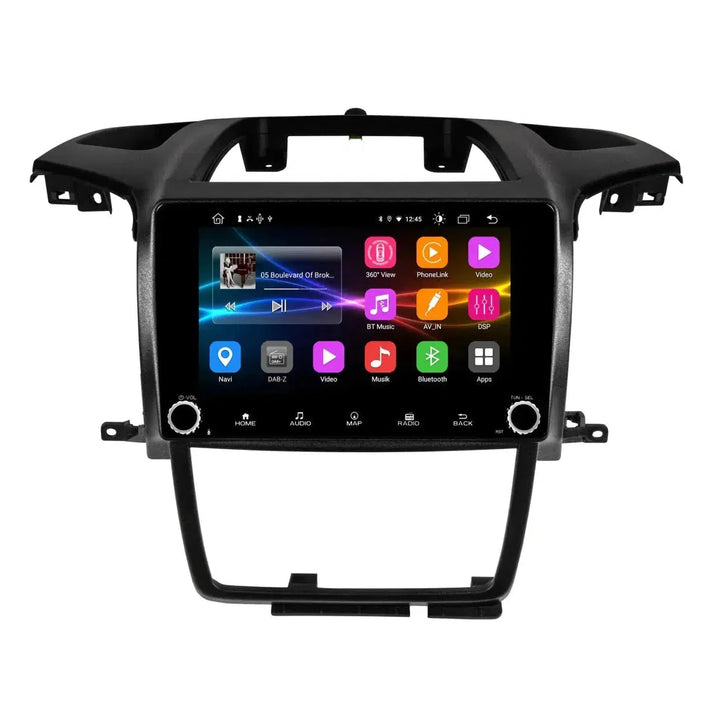

ESX VN945-DBJ-4G Fiat Ducato Navigation Receiver
SKU:  VN945-DBJ-4G
EAN:  4251476406889

VN945-DBJ-4G

SKU:  VN945-DBJ-4G
EAN:  4251476406889

Technical Highlights

  • 9" Naviceiver, 4 GB RAM, 64 GB Flash, DAB+, 4G Internet.
  • Navigation via apps, Google Play Store, front/rear camera.
  • Media Connect for iOS/Android, Promobil parking space radar.
  • More technical details
€1.149,00
€1.149,00 €1.149,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Options: VN945-DBJ-4G (v4. without iGO)
Delivery
Jun 1, - Jun 4,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €95,75 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Four Connect4-MP100BTi
Four Connect-4-MP100BTi-1-DIN Autoradio-masori-kaufen
Reiss Audio-Newfron NF-CP10-1-DIN Autoradio-masori-kaufen
Reiss AudioNewfron NF-CP10
ESX-VN945-DBJ-4G-Fiat Ducato Naviceiver-masori-kaufen
€1.149,00
€1.149,00 €1.149,00

VN945-DBJ-4G by ESX

ESX VN945-DBJ-4G is a Fiat Ducato Navigation Receiver with 9 inch display, internal DAB+ and 4G internet. Including large Ducato installation console VNA-CON-DBJ. Base unit VN940-4G with Android 10, Octa-Core processor, 4 GB RAM and 64 GB internal flash drive. 22.8 cm touchscreen with 1024 x 600 px, matte anti-glare, large rotary knobs and buttons as well as camera direct button. Navigation via apps like Google Maps and Waze, access to Google Play and Promobil parking space radar with 23,000 parking and camping sites. 4G/LTE dongle for mobile internet, Wi-Fi hotspot 2.4 and 5.0 GHz, internal SD card slot and GPS module. DAB+ digital radio with station logos including DAB antenna, AM/FM radio with RDS, Bluetooth hands-free with audio streaming, internal and external microphone. 4 x 50 Watt amplifier and pre-amplifier outputs for front, rear and Subwoofer. Media Connect for iOS wirelessly and Android via USB, support for Steering Wheel Remote Control, 2 x USB with charging function. Connections for dual or front and rear camera, compatible with analog HD cameras, custom boot logos and wallpapers, compatible with VNA-REM40, operation without ignition via ACC function.

Features
  • Fiat Ducato Navigation Receiver
  • 9 inch Navigation Receiver with internal DAB+ and 4G internet
  • Including large Ducato installation console VNA-CON-DBJ
  • Android 10, Octa-Core, 4 GB RAM, 64 GB internal flash drive
  • 22.8 cm touchscreen, matte anti-glare
  • Large rotary knobs and buttons
  • Camera direct button
  • 4G/LTE dongle for mobile internet
  • Wi-Fi hotspot 2.4 and 5.0 GHz
  • Promobil parking space radar app pre-installed
  • Navigation via apps and access to Google Play
  • DAB+ digital radio, AM/FM radio with RDS
  • Bluetooth hands-free and audio streaming
  • Internal and external microphone
  • 4 x 50 watt amplifier
  • Pre-amplifier outputs for front, rear and Subwoofer
  • Media Connect iOS wirelessly
  • Media Connect Android via USB
  • Compatible with Apple CarPlay and Android Auto
  • Support for Steering Wheel Remote Control
  • 2 x USB with charging function
  • Internal SD card slot
  • GPS module
  • Connections for dual or front and rear camera
  • Compatible with analog HD cameras
  • Custom boot logos and wallpapers
  • Operation without ignition possible ACC function
  • Compatible with remote control VNA-REM40
Technical specifications
  • Display diagonal 228 mm
  • Resolution 1024 x 600 px
  • Base unit VN940-4G
  • Operating system Android 10
  • Processor Octa-Core
  • RAM 4 GB
  • Internal storage 64 GB flash
  • 4 x 50 watt amplifier
  • Pre-amplifier outputs Front
  • Pre-amplifier outputs Rear
  • Pre-amplifier outputs Subwoofer
  • DAB+ digital radio with station logos, including DAB antenna
  • AM/FM radio with RDS
  • Bluetooth hands-free system
  • Bluetooth audio streaming
  • 4G/LTE dongle for mobile internet with optional SIM card
  • Mobile internet via Wi-Fi hotspot 2.4 and 5.0 GHz
  • Internal SD card slot
  • GPS module
  • Front and rear camera inputs, dual camera support
  • Camera direct button
  • Media Connect iOS wireless Apple CarPlay compatible
  • Media Connect Android via USB Android Auto compatible
  • Support Steering Wheel Remote Control optional adapter depending on vehicle
  • Operation without ignition possible ACC function
  • Access to Google Play and compatible apps Google account required
  • Promobil parking space radar 23,000 parking and camping spaces
  • Compatibility Fiat Ducato III type 250 from 2006 and Ducato IV type 290 from 2015, not compatible with blind spot assistant
  • Compatibility Citroen Jumper II type 250 from 2006 and Jumper III type 290 from 2015, not compatible with blind spot assistant
  • Compatibility Peugeot Boxer II type 250 from 2006 and Boxer III type 290 from 2015, not compatible with blind spot assistant
  • Compatibility Opel Movano III from 10/2021, not compatible with blind spot assistant
  • Note for certain vehicles of type 250 model year 2006 to 2011, special measures must be taken
  • Adapter for vehicles with CAN bus type 290 from 2015 adapter set VNA-LFB-FD3.40 available
  • Variants VNC945-DBJ-4G v4 incl A60 like VN945-DBJ-4G additionally iGO Europe Camper Navigation 46 countries including Turkey, 3 years multi map updates, editable vehicle parameters
  • Variants VNC945-DBJ-4G v4 incl A61 like VN945-DBJ-4G additionally iGO Europe Camper Navigation 46 countries including Turkey, 3 years multi map updates, editable vehicle parameters, 1 year live traffic
  • Variants VNC945-DBJ-4G v4 incl A63 like VN945-DBJ-4G additionally iGO Europe Camper Navigation 46 countries including Turkey, 3 years multi map updates, editable vehicle parameters, 3 years live traffic

Your benefits at Masori

ESX VN945-DBJ-4G Datasheet

Open datasheet

Frequently Asked Questions about VN945-DBJ-4G

What technical features does the VN945-DBJ-4G from ESX offer?

The VN945-DBJ-4G from ESX is a 9-inch Navigation Receiver, equipped with an internal DAB+ radio, a 4G internet module, and 4 GB of RAM. The internal flash drive has a capacity of 64 GB. Additionally, it features a fast octa-core processor. Navigation is done through various apps like Google Maps and Waze. There are connections for front and rear cameras as well as an integrated Promobil parking radar. The device runs on Android 10, which allows access to the Google Play Store. A Media Connect for iOS and Android ensures the connection of smartphones.

Is the VN945-DBJ-4G compatible with all vehicles?

The VN945-DBJ-4G is specifically designed for the Fiat Ducato III and IV, and is also compatible with Citroën Jumper II and III as well as Peugeot Boxer II and III. The Opel Movano III also supports this Navigation Receiver. There are limitations with vehicles that have blind spot assistants. For certain vehicles with CAN bus, the adapter set VNA-LFB-FD3.40 is required. For vehicles of type 250, built between 2006 and 2011, special measures are necessary to ensure compatibility.

What display features does the VN945-DBJ-4G have?

The VN945-DBJ-4G from ESX features a large 9-inch touchscreen with a resolution of 1024 x 600 pixels. The screen is matte anti-glare, which reduces reflections and thus improves visibility in direct sunlight. Large rotary knobs and buttons allow for comfortable operation while driving. Additionally, a camera direct button is integrated for immediate access to connected cameras, providing extra user-friendliness. Especially on long journeys, the combination of size and anti-glare technology offers a comfortable visual experience.

What connectivity features does the VN945-DBJ-4G offer?

The ESX VN945-DBJ-4G offers versatile connectivity options. With the integrated 4G/LTE module, mobile internet can be used, for which a SIM card is optional. A Wi-Fi hotspot (2.4/5.0 GHz) allows the connection of multiple devices. Media Connect enables connection to iOS and Android smartphones, compatible with Apple CarPlay and Android Auto. Two USB ports, with charging function for smartphones, are available. Over two million apps are available through the Google Play Store. The Bluetooth hands-free system ensures safe calling while driving and supports audio streaming.

How does navigation work in the VN945-DBJ-4G?

Navigation in the VN945-DBJ-4G is done both online and offline using Google Maps. Additionally, apps like Waze can be used. Optional iGO Nextgen navigation software in various versions allows for enhanced map features. This software provides Europe camper navigation for 46 countries with multi-map updates over different periods. The Promobil parking space radar is pre-installed and offers information on 23,000 parking and camping sites. For a seamless navigation experience, vehicle parameters are provided in an editable format, which is particularly beneficial for campers.

What audio features are integrated into the VN945-DBJ-4G?

The ESX VN945-DBJ-4G is equipped with a DAB+ digital radio with station logos and also offers AM/FM radio with RDS functionality. The integrated amplifier delivers a power of 4 x 50 watts. For individual sound enjoyment, pre-amplifier outputs for front, rear, and Subwoofer are available. The Bluetooth function supports audio streaming, complemented by an internal and external microphone to enhance voice quality. All these features ensure that you can enjoy a high-quality sound experience on every drive, regardless of the music source.

What storage options does the VN945-DBJ-4G offer?

The VN945-DBJ-4G features a generous 4 GB RAM memory, allowing for smooth use of functions and apps. The internal flash drive offers 64 GB of storage capacity for applications, maps, and media files. This is complemented by an internal SD card slot that can further expand the storage capacity. This configuration supports multitasking and the use of memory-intensive applications, while also enabling the storage of large amounts of data, which is particularly beneficial for regular use of various functions.

How is the installation of the VN945-DBJ-4G in the vehicle?

The installation of the VN945-DBJ-4G is done using the custom-fit installation console VNA-CON-DBJ, which is specifically designed for vehicles like the Fiat Ducato. Due to the specific dimensions, the installation is relatively straightforward. In addition to placing the Navigation Receiver, it should be checked whether the optional adapter set for the Steering Wheel Remote Control is needed. The operation is thus ergonomically and vehicle-specifically optimized. Before installation, it must be ensured that all connections are correctly made, including the USB, camera, and antenna connections.

What camera functions does the VN945-DBJ-4G offer?

The VN945-DBJ-4G is equipped with front and rear camera inputs that support the connection of analog HD cameras. A camera direct button on the right rotary knob allows quick access to the camera images. This significantly facilitates parking and maneuvering in tight spaces. The connection of the cameras must meet the specifications to ensure optimal image quality. This functionality is particularly useful for large vehicles or in complex parking situations, as it provides additional safety and visibility.

What entertainment options does the VN945-DBJ-4G offer?

The ESX VN945-DBJ-4G offers a variety of entertainment options. In addition to radio reception via DAB+ and FM/AM, you can access content through the Google Play Store, which provides a wide range of apps. Whether music streaming, podcasts, or videos, more than two million apps are available. Media Connect allows connection with iOS and Android devices, enabling the use of Apple CarPlay and Android Auto. You can stream music wirelessly via Bluetooth. The built-in storage provides ample space for media files, which can be played directly.
