Audio System HX 130 Dust Aktiv Evo 3 5" (13cm) speaker set

Name: Audio System HX 130 Dust Aktiv Evo 3 5 inch speaker set
Brand: Audio System
Price: 381.65 EUR
Availability: InStock

CYBER -15%

Max, Mikael and 53k+ customers already with Masori sound upgrade

Audio System HX 130 Dust Aktiv Evo 3 5" (13cm) speaker set

Neodymium drive, 3 ohm impedance, 140/95 watt power.
130 mm speaker, NAWI paper cone, Nomex spider.
Deep reproduction, fiber optic, 24 mm installation depth.
Mehr technische Details

00

€381,65

~~€449,00~~ €381,65

5% Rabatt mit Vorkasse

inkl. VAT , possibly plus shipping

Bequem in 12 zinsfreien Raten à €31,80 mit Klarna zahlen.

Jetzt mit kostenlosem Versand ab 50€!

Shipping cost calculator

Land/Region

PLZ

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

3 Jahre Masori Garantie Kostenlos 48 Monate Plusgarantie €34,99 60 Monate Plusgarantie Am beliebtesten €44,99

Deshalb wählen uns 100.000+ Kunden

3 Jahre Garantie

Sicher & sorglos
Blitzversand

mit DHL Express
Tiefpreisschutz

Nie zu viel zahlen

Rob

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

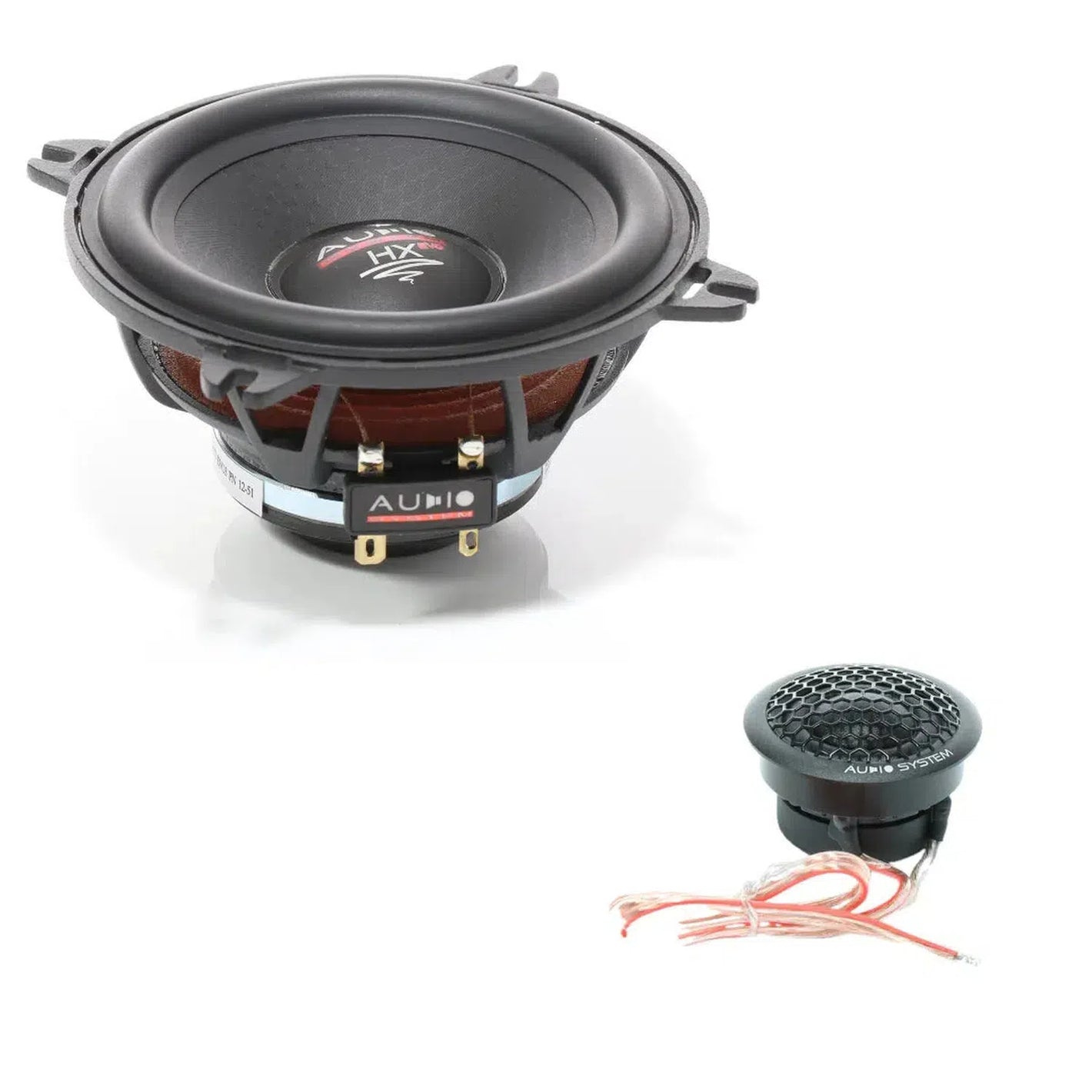

Audio SystemHX 100 Dust Aktiv Evo 3

Audio SystemHelon H-1500.1 D 24V

HX 130 Dust Aktiv Evo 3 by Audio System

The HX 130 Dust Aktiv Evo 3 from Audio System is a 5-inch speaker set that stands out with numerous high-quality features. It includes Audio System midrange drivers with neodymium drive and 130 mm HIGH-END speakers, which impress with a ventilated cast basket and an ultra-light, stable NAWI paper cone with fiberglass and Nomex spider. The deep-reaching sound reproduction, an impedance of 3 ohms, and a power rating of 140/95 watts ensure an impressive sound spectrum. The set also includes the HS 25 DUST EVO tweeters with fabric neodymium tweeters and aluminum flange, which impress with their compact design with only 24 mm installation depth. The scope of delivery includes two EX 130 DUST EVO 3 and two HS 25 DUST EVO speakers.

EX 130 DUST EVO 3 Features

Audio System midrange driver with neodymium drive
130 mm HIGH-END speaker with ventilated cast basket
Ultra-light/stable NAWI paper cone with fiberglass and Nomex spider
Deep-reaching sound reproduction
Impedance: 3 ohms
Power: 140/95 watts
Outer diameter: 133/150 mm
Installation depth: 60 mm
Installation size: 120 mm

HS 25 DUST EVO Features

Audio System HIGH-END tweeter
25 mm fabric neodymium tweeter with aluminum flange + coupled volume
Protective grille
Coupled volume
Fs: 815 Hz
Outer diameter: 50 mm
Installation depth: 24 mm
Installation size: 43 mm

Scope of delivery

2x EX 130 DUST EVO 3
2x HS 25 DUST EVO

Audio System HX 130 Dust Aktiv Evo 3 Datenblatt

Datenblatt öffnen

Frequent questions about HX 130 Dust Aktiv Evo 3

Welche technischen Merkmale hat das Lautsprecherset HX 130 Dust Aktiv Evo 3?

The HX 130 Dust Aktiv Evo 3 from Audio System features high-quality AUDIO SYSTEM midrange drivers with neodymium drive and 130 mm HIGH-END speakers. It uses a ventilated cast basket as well as a NAWI paper membrane reinforced with fiberglass and a Nomex spider. With an impedance of 3 Ohms and a power of 140/95 Watts, it offers deep sound reproduction. The outer diameter is 133/150 mm, the installation depth is 60 mm, and the installation measurement is 120 mm. The tweeters are 25 mm fabric neodymium tweeters with aluminum flange. The outer diameter is 50 mm and the installation depth is 24 mm.

Wie beeinflusst die Impedanz von 3 Ohm die Klangqualität des HX 130 Dust Aktiv Evo 3?

The impedance of 3 Ohms of the HX 130 Dust Aktiv Evo 3 speaker means that the speaker offers less electrical resistance. This can lead to a higher volume at the same amplifier power. It is important that the amplifier is compatible with this impedance to ensure the best possible sound quality. A low impedance can improve the efficiency of the system, which is particularly beneficial in complex audio setups. For deep bass reproduction and clear highs, matching the amplifier power to the speaker is important.

Was bedeutet die Leistung von 140/95 Watt beim HX 130 Dust Aktiv Evo 3?

The power specification of 140/95 watts describes the maximum and the RMS power of the speaker set HX 130 Dust Aktiv Evo 3. The 140 watts refer to the peak power that the speaker can handle temporarily, while the 95 watts indicate the continuous power consumption. These values are important for selecting the right amplifier to achieve optimal performance of the system. An amplifier that matches the RMS power consumption ensures that the speaker operates efficiently and without distortion.

Welche Materialien werden bei der Membran des HX 130 Dust Aktiv Evo 3 verwendet?

The membrane of the HX 130 Dust Aktiv Evo 3 is made from a NAWI paper membrane that is reinforced with fiberglass and uses Nomex Spider type. This combination of materials ensures a particularly lightweight yet stable structure of the membrane. The result is a deep-reaching reproduction and a clear, resonance-free sound, ideal for audio applications that require high precision. This mixture of materials allows for quick and precise membrane deflection, contributing to excellent sound quality.

Wie tief ist die Einbautiefe des HX 130 Dust Aktiv Evo 3 Lautsprechers?

The installation depth of the HX 130 Dust Aktiv Evo 3 in relation to the midrange drivers is 60 mm. This depth is crucial for installation, as it affects whether the speaker can be space-savingly mounted in various vehicles. For the tweeters, the installation depth is only 24 mm due to their compactness. These dimensions allow for a secure and flexible installation without compromising acoustic performance. When planning the installation, you should consider the existing space conditions.

Welche Rolle spielt der Neodymantrieb bei den Mitteltönern des HX 130 Dust Aktiv Evo 3?

The neodymium drive in the AUDIO SYSTEM midrange speaker of the HX 130 Dust Aktiv Evo 3 provides strong magnetic force at a comparatively small size. Neodymium is a powerful magnetic material that enables high efficiency and compactness, which is particularly advantageous for the precise movement of the diaphragm. This results in clear and dynamic sound reproduction. Especially in high-quality speaker systems, a neodymium drive significantly contributes to sound quality and is suitable for complex musical arrangements that require fast response times.

Welche Vorteile bietet der ventilierten Gusskorb im HX 130 Dust Aktiv Evo 3?

A ventilated cast basket design, like that of the HX 130 Dust Aktiv Evo 3, offers numerous acoustic advantages. It improves heat dissipation, reduces the risk of heat buildup, and ensures a more stable sound reproduction at high volumes. The cast basket provides structural stability and minimizes distortion from cabinet vibrations. Additionally, the ventilation allows for freer movement of the diaphragm, leading to a better frequency response. These features are particularly important in complete audio configurations that require precise sound reproduction.

Was zeichnet die Hochtöner des HX 130 Dust Aktiv Evo 3 aus?

The HS 25 DUST EVO tweeters of the HX 130 Dust Aktiv Evo 3 are 25 mm fabric neodymium tweeters, characterized by an aluminum flange and a protective coupling volume. This construction not only protects the tweeter but also positively affects sound reproduction by minimizing distortions. Due to their compact installation depth of 24 mm, the tweeters can be installed flexibly while providing precise reproduction of high frequencies, ensuring clear and balanced overtone reproduction.

Kann das HX 130 Dust Aktiv Evo 3 in jedem Fahrzeug eingebaut werden?

The HX 130 Dust Aktiv Evo 3 speaker set from Audio System fits many vehicle types with its dimensions. It is important to check the installation dimensions: The outer diameter of the midrange speakers is 133/150 mm, and that of the tweeter is 50 mm. The installation dimensions of 120 mm for the midrange speakers should also be noted. The compactness of the tweeters with a mounting depth of 24 mm simplifies adaptation in various audio systems. It is advisable to check the specific space conditions in the vehicle before installation to avoid compatibility issues.

Wie beeinflusst die NAWI-Papiermembran mit Glasfaser die Klangqualität des HX 130 Dust Aktiv Evo 3?

The NAWI paper membrane reinforced with fiberglass, used in the HX 130 Dust Aktiv Evo 3 speaker set, ensures an ultra-light yet stable membrane construction. These materials allow for fast, precise membrane movement, which increases sound fidelity and reduces resonances. This results in deep-reaching and clear sound reproduction, which is particularly advantageous for music with complex frequency patterns. This combination of materials makes the membrane flexible enough for dynamic music pieces while maintaining its stability for high volume levels.

Herstellerinformation/verantwortliche Person

Axel Förderer
Audio System Germany
Falltorstraße 6
76707 Hambrücken
Germany

Contact: info@audio-system.de
