Audio System HX 100 Dust Aktiv Evo 3 4" (10cm) speaker set

Name: Audio System HX 100 Dust Active Evo 3 4 inch speaker set
Brand: Audio System
Price: 381.65 EUR
Availability: InStock

CYBER -15%

Max, Mikael and 53k+ customers already with Masori sound upgrade

Audio System HX 100 Dust Aktiv Evo 3 4" (10cm) speaker set

120/85 watts power, 3 ohms impedance, 4" speaker set.
Neodymium drive, NAWI paper cone, fiberglass, Nomex spider.
HS 25 DUST EVO tweeter, 25 mm fabric neodymium, aluminum flange.
Mehr technische Details

00

€381,65

~~€449,00~~ €381,65

5% Rabatt mit Vorkasse

inkl. VAT , possibly plus shipping

Bequem in 12 zinsfreien Raten à €31,80 mit Klarna zahlen.

Jetzt mit kostenlosem Versand ab 50€!

Shipping cost calculator

Land/Region

PLZ

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

3 Jahre Masori Garantie Kostenlos 48 Monate Plusgarantie €34,99 60 Monate Plusgarantie Am beliebtesten €44,99

Deshalb wählen uns 100.000+ Kunden

3 Jahre Garantie

Sicher & sorglos
Blitzversand

mit DHL Express
Tiefpreisschutz

Nie zu viel zahlen

Rob

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

Audio SystemHX 10 EVO G

Audio SystemHX 130 Dust Aktiv Evo 3

HX 100 Dust Aktiv Evo 3 by Audio System

The HX 100 Dust Aktiv Evo 3 from Audio System is a 4-inch speaker set that impresses with first-class components. Featuring a midrange driver with a neodymium drive and a 100 mm high-end speaker with a ventilated cast basket, you get exceptional sound. The ultra-light and stable NAWI paper cone combined with fiberglass and Nomex spider ensures deep sound reproduction at an impedance of 3 ohms. The set offers a power output of 120/85 watts. It is complemented by the HS 25 DUST EVO tweeters, which are equipped with 25 mm fabric neodymium tweeters. With an elegant aluminum flange and protective grille, they provide extra safety and sound volume.

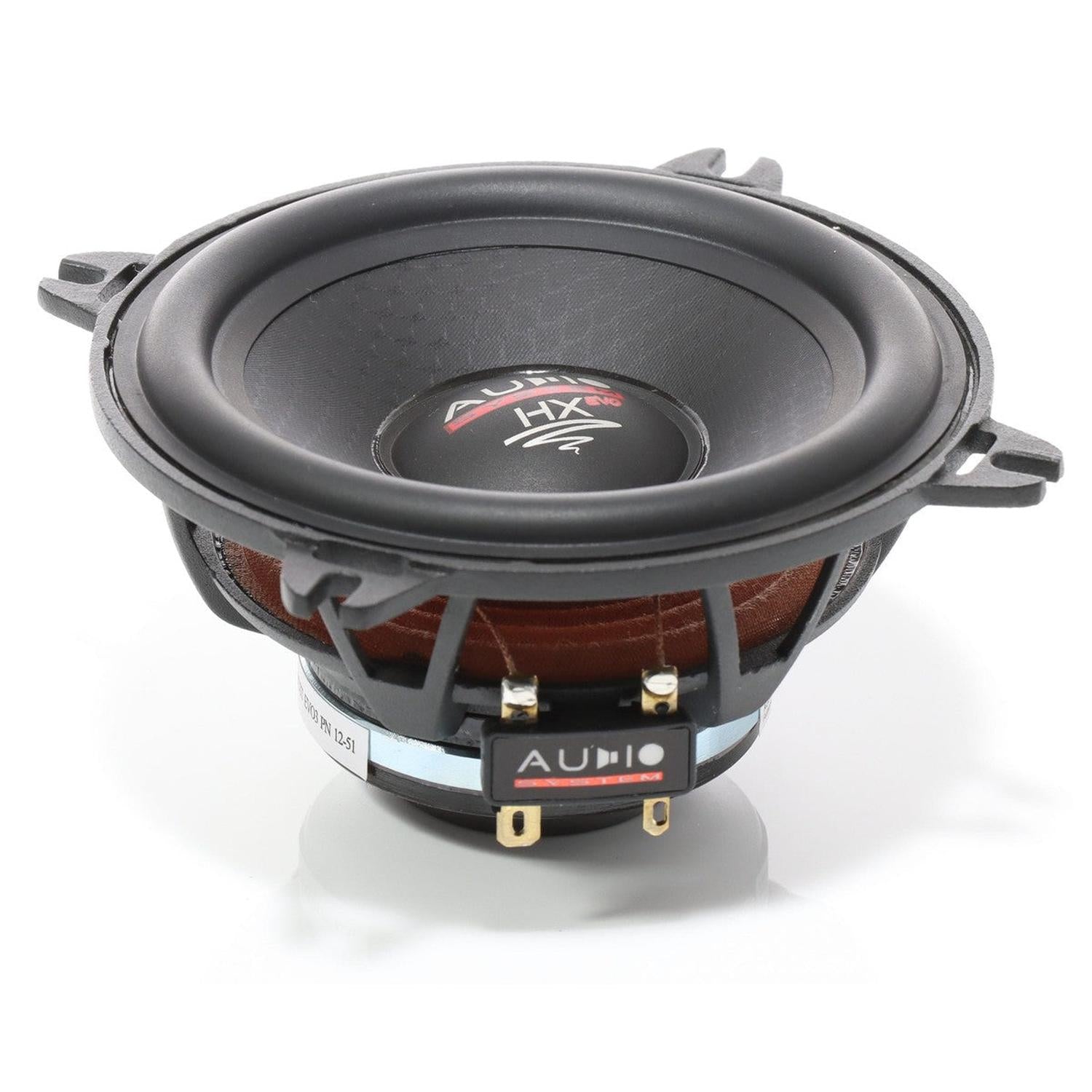

EX 100 DUST EVO 3 Features

Audio System midrange driver with neodymium drive
100 mm HIGH-END speaker with ventilated cast basket
Ultra-light/stable NAWI paper cone with fiberglass and Nomex spider
Deep sound reproduction
Impedance: 3 ohms
Power: 120/85 watts
Outer diameter: 128/104 mm
Installation depth: 49.5 mm
Installation size: 93 mm

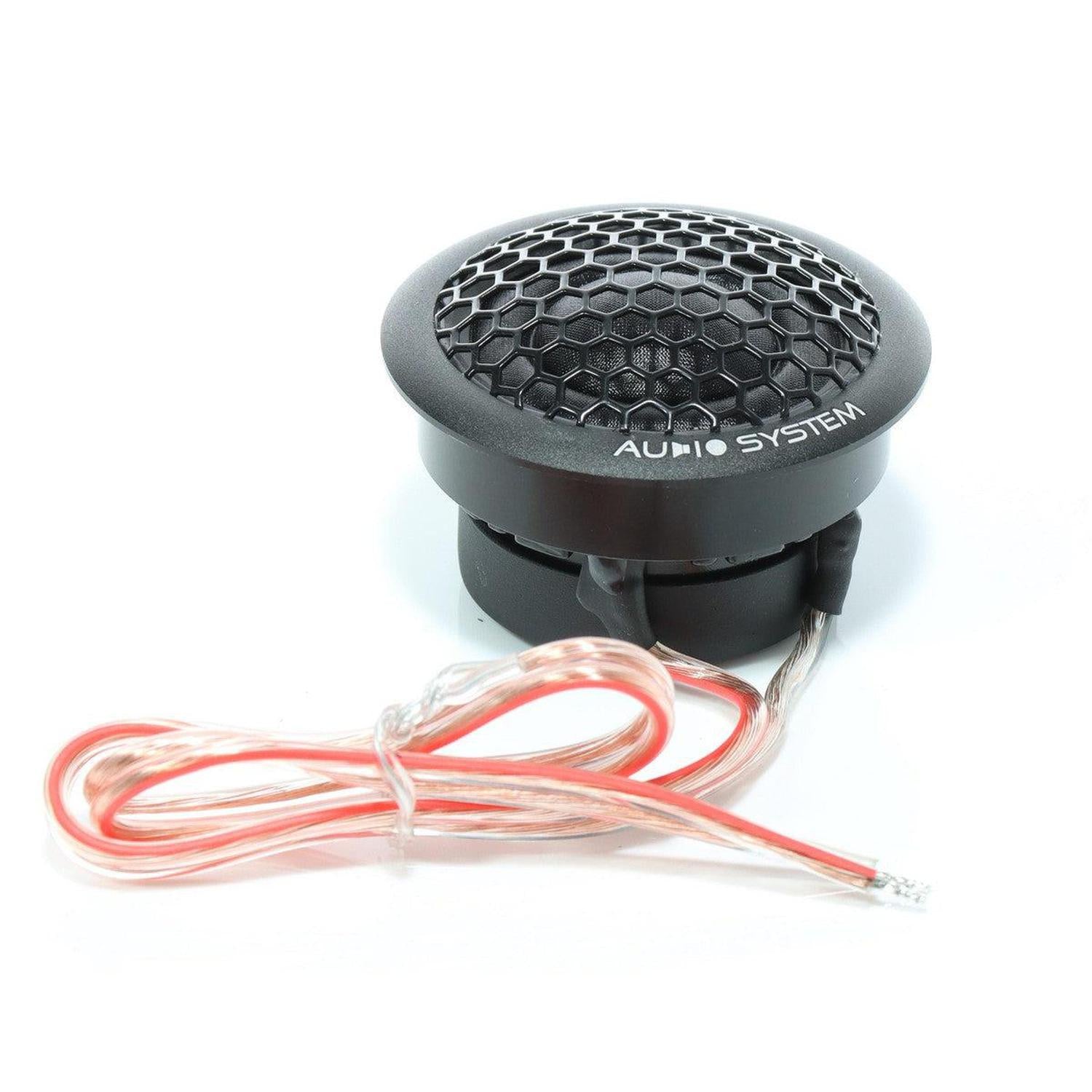

HS 25 DUST EVO Features

Audio System HIGH-END tweeter
25 mm fabric neodymium tweeter with aluminum flange + coupling volume
Protective grille
Coupled volume
Fs: 815 Hz
Outer diameter: 50 mm
Installation depth: 24 mm
Installation size: 43 mm

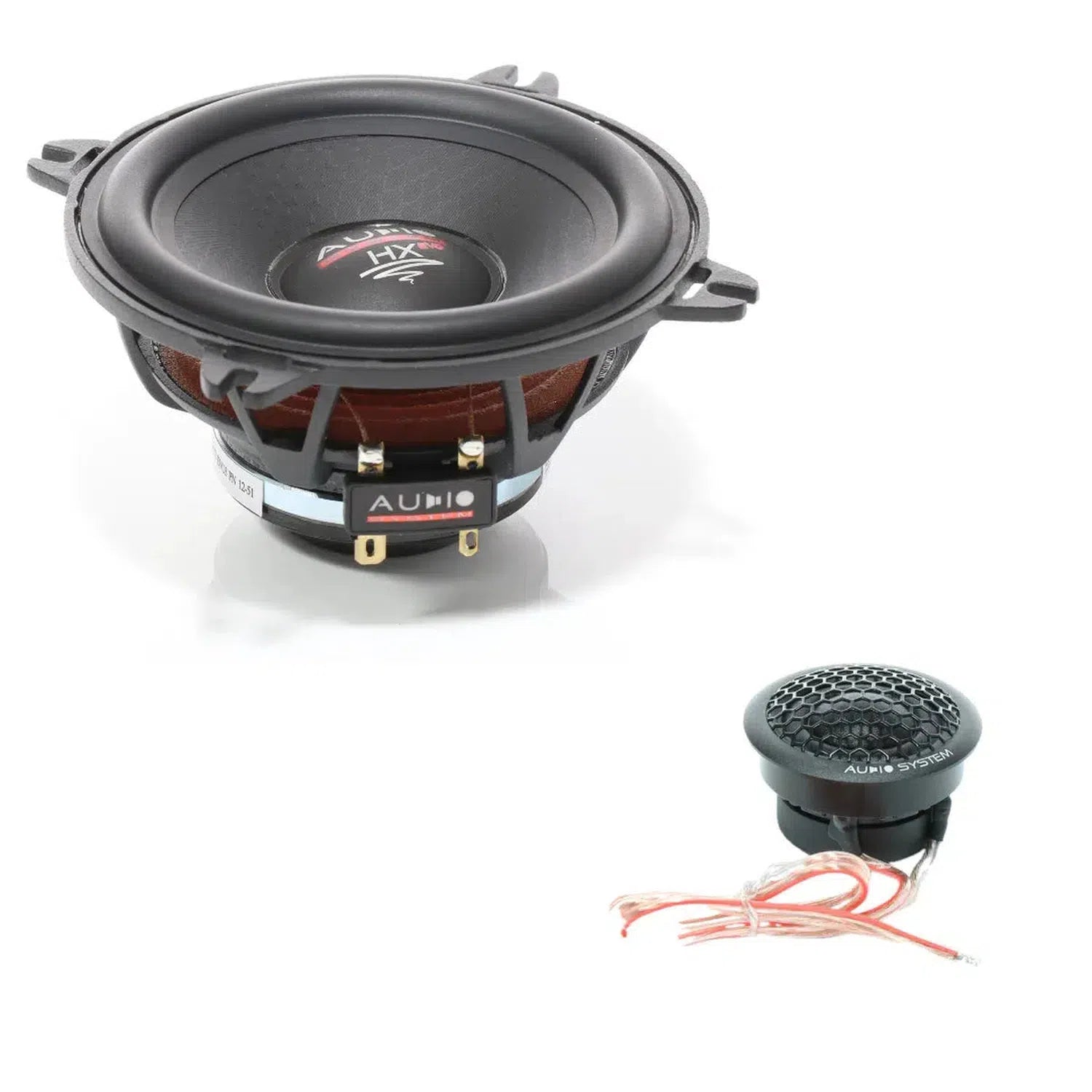

Scope of delivery

2x EX 100 DUST EVO 3
2x HS 25 DUST EVO

Audio System HX 100 Dust Aktiv Evo 3 Datenblatt

Datenblatt öffnen

Frequent questions about HX 100 Dust Aktiv Evo 3

Welche Leistung bietet das HX 100 Dust Aktiv Evo 3 Lautsprecherset?

The HX 100 Dust Aktiv Evo 3 offers a nominal power rating of 120 watts and an RMS power of 85 watts. This allows for impressive sound volumes for demanding listening environments. With an impedance of 3 ohms, it is particularly suitable for amplifiers that can optimally drive this impedance. The combination of midrange and tweeter enables a balanced sound image that is predestined for both quiet and particularly loud music enjoyment.

Was sind die Abmessungen des HX 100 Dust Aktiv Evo 3?

The speakers of the HX 100 Dust Aktiv Evo 3 have an outer diameter of 128 mm and 104 mm, and a mounting depth of 49.5 mm. The mounting diameter is 93 mm. The tweeters have an outer diameter of 50 mm, a mounting depth of 24 mm, and a mounting dimension of 43 mm. These dimensions are crucial for the correct installation in the vehicle and ensure that they fit into the designated mounting locations.

Welche Materialien werden in den Lautsprechern des HX 100 Dust Aktiv Evo 3 verwendet?

The HX 100 Dust Aktiv Evo 3 speaker set uses a NAWI paper membrane combined with fiberglass, ensuring high stability and a lightweight construction. The midrange drivers are equipped with a ventilated cast basket that minimizes distortion and contributes to sound clarity. The tweeters consist of 25 mm fabric neodymium, supported by an aluminum flange, providing optimal sound distribution.

Wie verhält sich der Neodymantrieb im HX 100 Dust Aktiv Evo 3?

The neodymium drive of the midrange drivers sets new standards in sound reproduction in the HX 100 Dust Aktiv Evo 3. Neodymium is known for its high magnetic flux density, which leads to a very efficient drive. This allows for more precise control of the diaphragm movement, resulting in clearer and more detailed audio playback. At the same time, energy consumption is reduced, which increases the overall efficiency of the speaker system.

Ist das HX 100 Dust Aktiv Evo 3 kompatibel mit meinem Auto?

To check the compatibility of the HX 100 Dust Aktiv Evo 3 with your car, the dimensions must be compared with the available installation spaces in your vehicle. The speakers have an outer diameter of 128 mm and a mounting depth of 49.5 mm, while the tweeters have an outer diameter of 50 mm. These specs are crucial for proper integration into the factory speaker mount of your car.

Welche Vorteile bietet die NAWI-Papiermembran im HX 100 Dust Aktiv Evo 3?

The NAWI paper membrane in the HX 100 Dust Aktiv Evo 3 combines lightness and stability, which are responsible for dynamic and precise sound reproduction. This special membrane ensures exceptional resonance control, achieved through the mixture of fiberglass and paper. This results in improved deep bass reproduction and an expanded soundstage, which is particularly impressive at high volumes. Especially if you enjoy listening to music loudly, you will benefit from this membrane.

Welche Rolle spielt der Aluflansch bei den Hochtönern des HX 100 Dust Aktiv Evo 3?

The aluminum flange on the tweeters of the HX 100 Dust Aktiv Evo 3 plays a crucial role in sound distribution and stability. It supports the fabric neodymium tweeters and ensures efficient radiation of high frequencies. Additionally, the aluminum flange acts as a vibration dampener and contributes to sound purity by minimizing resonances. The coupled volume optimizes the coupling behavior in the upper frequency range. A good example of this is the crystal-clear reproduction of high frequencies in movies or music pieces with complex sound structures.

Welchen Einfluss hat der ventilierten Gusskorb des HX 100 Dust Aktiv Evo 3?

The ventilated cast basket of the HX 100 Dust Aktiv Evo 3 significantly influences the thermal behavior and mechanical stability of the midrange drivers. This design improves ventilation and ensures more efficient heat dissipation, which increases the reliability and longevity of the speaker. Mechanically, the cast basket provides a robust base that ensures structural integrity even at high volumes. The combination of design and material choice reduces unwanted resonances that could negatively affect sound quality.

Welche Bedeutung hat die Impedanz von 3 Ohm beim HX 100 Dust Aktiv Evo 3?

The impedance of 3 ohms in the HX 100 Dust Aktiv Evo 3 allows the speaker to work more efficiently with amplifiers designed for low-impedance loads. A lower impedance provides a higher current flow, resulting in a higher volume without distortion. This is particularly advantageous for music lovers who want to maximize the performance of their audio systems. It also enables better control of the speaker movement and thus a more precise reproduction of sound details, even at high volumes.

Welche Komponenten sind im HS 25 DUST EVO Hochtöner des HX 100 Dust Aktiv Evo 3 enthalten?

The HS 25 DUST EVO tweeter in the HX 100 Dust Aktiv Evo 3 consists of a 25 mm textile neodymium tweeter and is equipped with a protective aluminum flange. Furthermore, it includes a coupled volume that optimizes the sound fullness in the higher frequencies. The protective grille provides additional safety, especially when installed in vehicles, and prevents damage caused by mechanical impacts. This tweeter design significantly contributes to the audio reproduction of highs and ensures crystal-clear sound fields.

Herstellerinformation/verantwortliche Person

Axel Förderer
Audio System Germany
Falltorstraße 6
76707 Hambrücken
Germany

Contact: info@audio-system.de
