Musway MG6.2C 6.5" (16,5cm) Speaker Set
SKU:  MG6.2C
EAN:  4251476405509
125 Watt

MG6.2C

SKU:  MG6.2C
EAN:  4251476405509

Technical Highlights

  • Power RMS 125 watts, impedance 4 ohms, frequency response up to 5000 Hz.
  • High-quality aluminum-paper membrane for optimal sound.
  • Tweeter frequency response up to 30000 Hz, impedance 4 Ohm, linear.
  • More technical details
€429,00
€429,00 €429,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 29, - Jun 1,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €35,75 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

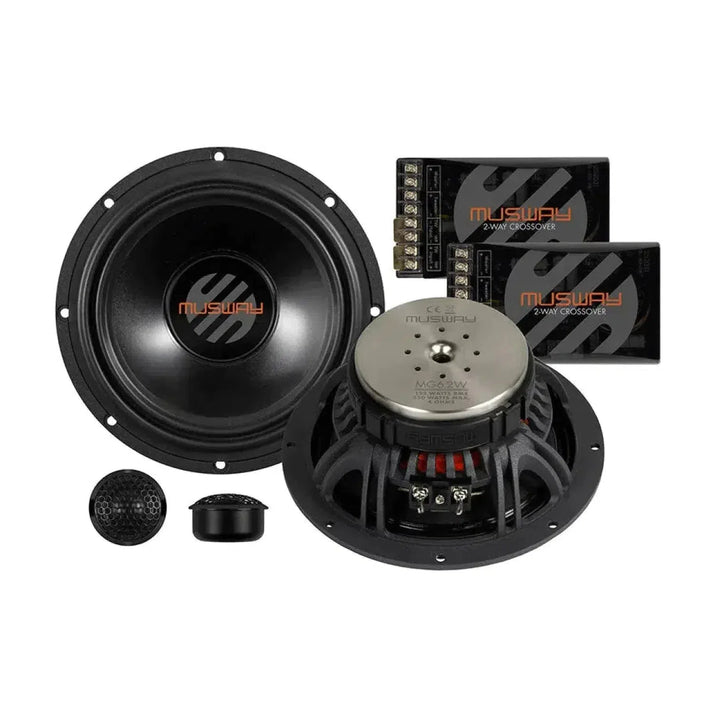

The Musway MG6.2C set includes two 5-inch speakers, two 2-way crossovers, and two tweeters, all featuring Musway branding.
€429,00
€429,00 €429,00

MG6.2C by Musway

Musway MG6.2C is a 6.5 inch (16.5 cm) passive Speaker Set from Musway featuring MG6.2W mid-bass drivers, MG6.2T Tweeters, and MG2X Crossovers. The mid-bass drivers utilize an aluminum basket with narrow struts, a turned and nickel-plated T-Plate with multiple ventilation openings, and a ventilated voice coil with a winding height of 13.4 mm. The Y30 quality magnet drive with 13.7 ounces is protected by a rubber boot. The sandwich membrane combines ultra-thin aluminum with an underlying paper layer. The frequency response of the mid-bass drivers ranges from 39 - 5000 Hz. The Tweeters feature a 26 mm silk dome with coupling volume, play up to over 25000 Hz, and can be used below 2000 Hz. The impedance is 4 Ohms. The 2-way Crossovers offer a 5-step treble level adjustment and a crossover frequency of 2800 Hz with dimensions of 85 mm width, 40 mm height, and 145 mm length. The MG6.2T achieved a rating of 1+ in the distortion category (C&H 6/2021).

Features
  • 6.5 inch (16.5 cm) passive Speaker Set
  • Consisting of 2 Tweeters (MG6.2T), 2 mid-bass drivers (MG6.2W), and 2 Crossovers (MG2X)
  • Aluminum-paper composite membrane (mid-bass driver)
  • Aluminum basket with narrow struts
  • Turned, nickel-plated T-Plate with ventilation openings
  • Ventilated voice coil
  • Voice coil winding height 13.4 mm
  • Y30 magnet drive, 13.7 ounces, with rubber boot
  • 26 mm silk dome with coupling volume (Tweeter)
  • Fabric membrane (Tweeter)
  • 2-way Crossover
  • 5-step treble level adjustment
  • Crossover frequency 2800 Hz
  • Frequency response mid-bass driver 39 - 5000 Hz
  • Frequency response Tweeter 2200 - 30000 Hz
  • Impedance 4 Ohms
  • Power handling RMS 125 Watts
  • Power handling max. 250 Watts
  • Rating 1+ in distortion (C&H 6/2021)
Technical Specifications
  • MG6.2W mid-bass driver: Power handling RMS 125 Watts
  • MG6.2W mid-bass driver: Power handling max. 250 Watts
  • MG6.2W mid-bass driver: Impedance 4 Ohms
  • MG6.2W mid-bass driver: Frequency response 39 - 5000 Hz
  • MG6.2W mid-bass driver: Installation depth 67 mm
  • MG6.2W mid-bass driver: Cutout diameter 143 mm
  • MG6.2W mid-bass driver: Outer diameter 166 mm
  • MG6.2T Tweeter: Diameter 26 mm
  • MG6.2T Tweeter: Power handling RMS 125 Watts
  • MG6.2T Tweeter: Power handling max. 250 Watts
  • MG6.2T Tweeter: Impedance 4 Ohms
  • MG6.2T Tweeter: Frequency response 2200 - 30000 Hz
  • MG6.2T Tweeter: Fabric membrane
  • MG6.2T Tweeter: Installation depth 19.5 mm
  • MG6.2T Tweeter: Cutout diameter 44 mm
  • MG6.2T Tweeter: Outer diameter 49 mm
  • MG2X Crossover: 2-way Crossover
  • MG2X Crossover: Power handling RMS 125 Watts
  • MG2X Crossover: Power handling max. 250 Watts
  • MG2X Crossover: Crossover frequency 2800 Hz
  • MG2X Crossover: 5-step treble level adjustment
  • MG2X Crossover: Width 85 mm
  • MG2X Crossover: Height 40 mm
  • MG2X Crossover: Length 145 mm

Your benefits at Masori

Musway MG6.2C Datasheet

Open datasheet

Frequently Asked Questions about MG6.2C

What is the frequency response of the Musway MG6.2C?

The Musway MG6.2C Speaker Set offers a frequency response of 39 to 5000 Hz for the mid-bass driver and 2200 to 30000 Hz for the Tweeter. This extended frequency range ensures comprehensive reproduction from deep bass to high frequencies, allowing music to be reproduced in all its detail. Especially if you enjoy hearing the nuances of your favorite music, this speaker will not miss a note. The special aluminum-paper composite diaphragm of the mid-bass driver contributes to covering this wide spectrum and ensures precise sound transmission.

What is the impedance of the MG6.2C speaker?

The Musway MG6.2C has an impedance of 4 Ohms. This impedance applies to both the mid-bass driver and the Tweeter. A 4-Ohm impedance is common in the car audio world and ensures that the speaker can efficiently work with most standard Amplifiers to provide optimal sound quality while protecting the electronics. If you already have a suitable Amplifier, the MG6.2C can be easily integrated without any adjustment issues.

What is the power handling of the MG6.2C system?

The Musway MG6.2C Speaker Set offers an RMS power handling of 125 Watts and a maximum power handling of 250 Watts. These power ratings apply to both the mid-bass drivers and the Tweeters. Thanks to this high power handling, you can operate the speaker at higher volumes without the risk of overloading or damaging the drivers. This allows for distortion-free playback even during long listening sessions, which is particularly beneficial for car enthusiasts who appreciate clear sound quality while driving in various environments.

What are the installation openings of the MG6.2C?

The installation opening of the MG6.2C mid-bass driver is 143 mm in diameter, while the Tweeter requires an installation opening of 44 mm. These specific dimensions are important for optimally integrating the speakers into existing enclosures or car doors. Proper placement ensures the best possible sound performance and protection of the components. If you plan to install the speakers in a vehicle, it is essential to ensure that these dimensions are compatible with the existing openings to allow for a smooth installation and achieve the best acoustic results.

What material properties does the membrane of the MG6.2C have?

The membrane of the Musway MG6.2C mid-woofer is made of an aluminum-paper composite. This special sandwich construction combines an upper layer of ultra-thin aluminum with a lightweight paper layer underneath. This combination provides enormous stability while keeping the mass low, which is ideal for audio playback, as it allows the membrane to respond quickly and precisely to sound impulses. This material composition also supports efficient damping and reduces unwanted distortions, resulting in a linear frequency response and clear sound quality up to 5000 Hz.

Does the Musway MG6.2C have customization options?

Yes, the Musway MG6.2C is equipped with a 5-step treble level adjustment. This feature allows you to adjust the level of the tweeter to your specific listening preferences or the acoustic conditions of the vehicle. The crossover also offers a precise crossover frequency of 2800 Hz, enabling a clean handover between the woofers and tweeters, thus providing a coherent and balanced sound image. These customization options are particularly valuable if you aim for a highly personalized audio experience or if acoustic challenges at the installation site need to be compensated.

What is the installation depth of the MG6.2C speaker?

The installation depth of the Musway MG6.2C is 67 mm for the mid-woofer and 19.5 mm for the tweeter. These specific dimensions are crucial for integrating the speaker into spaces with limited room, as is often the case with car doors. A proper adjustment to the existing spatial conditions ensures that the speaker edges can vibrate freely, avoiding sound losses. The low installation depth of the tweeter also allows for discreet placement in the vehicle interior without visual or mechanical interference. These dimensions make installation easier for you and allow for flexible application options.

What is the crossover frequency of the MG6.2C?

The crossover of the MG6.2C has a crossover frequency of 2800 Hz. This means that frequencies up to 2800 Hz are directed to the mid-bass driver and higher frequencies to the tweeter. This precise tuning allows for an optimal division of labor between the drivers to create the most balanced sound possible. Especially if you value seamless sound transition, you can experience significant acoustic advantages with this crossover frequency, as it minimizes distortion and increases fidelity between the individual music spectra. This contributes to a holistic listening experience.

What highlights does the MG6.2C speaker offer?

A particularly noteworthy highlight of the Musway MG6.2C is the sandwich membrane of the mid-bass driver, which consists of an aluminum surface and a paper backing, providing efficient damping. Additionally, the MG6.2T tweeter impresses with a 26 mm silk dome and the coupling volume, allowing it to play linearly up to over 25,000 Hz. These technical innovations enable outstanding sound fidelity and precision. Another feature is the 13.7-ounce magnet drive in Y30 quality, ensuring powerful performance. This combination of materials and design ensures that the speaker delivers rich and balanced acoustic performance.

What are the dimensions of the Musway MG6.2C tweeter?

The Musway MG6.2C tweeter has an outer diameter of 49 mm and a mounting depth of 19.5 mm. These compact dimensions are crucial for installing the tweeter discreetly in the vehicle without losing valuable space or compromising the aesthetics of the interior. Installation in existing fixtures or suitable cutouts is straightforward. The shallow depth helps ensure that the tweeter can be integrated into various vehicle models while still delivering excellent sound quality, which is particularly important for those who prioritize both design and functionality.
