  3. MG12

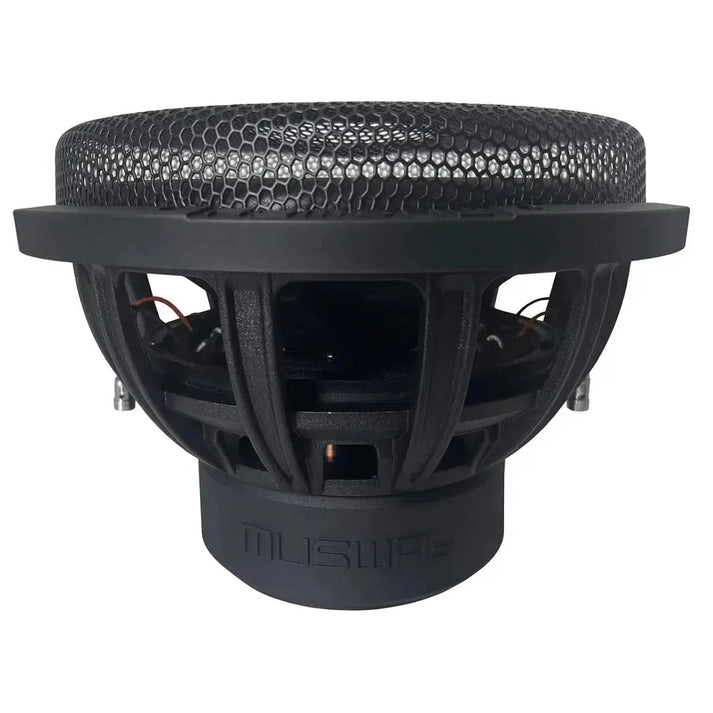

Musway MG12 12" (30cm) Subwoofer
SKU:  MG12
EAN:  4251476408685
700 Watt

MG12

SKU:  MG12
EAN:  4251476408685

Technical Highlights

  • 700 watts RMS, 1400 watts max., impedance D2 2 + 2 ohms.
  • 76 mm voice coil, Xmax +/22 mm, SPL 91 dB/2.38 V/1 m.
  • Cast aluminum basket, pre-assembled protective grille, 2 x 1.7 kg magnet.
  • More technical details
€349,00
€349,00 €349,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 29, - Jun 1,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €29,08 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Musway-MG12-12" (30cm) Subwoofer-masori-kaufen
€349,00
€349,00 €349,00

MG12 by Musway

The Musway MG12 is a 12-inch (30 cm) Subwoofer with a robust aluminum die-cast basket and pre-mounted protective grille. It operates with a 76 mm voice coil and dual magnets (2 x 1.7 kg). The impedance is configured as D2 with 2 + 2 ohms. The continuous power is 700 watts RMS, and the maximum power is 1400 watts. The MG12 is suitable for sealed enclosures and bass reflex constructions. Specifications: Fs 30 Hz, Qts 0.4, Vas 64 L, SPL 91 dB/2.38V/1m. Xmax is ±22 mm, the installation depth is 181 mm, and the cutout diameter is 285 mm. The diaphragm stroke is long and even.

Features
  • 12-inch (30 cm) Subwoofer
  • Robust aluminum die-cast basket
  • Pre-mounted protective grille
  • Dual magnet (2 x 1.7 kg)
  • 76 mm voice coil
  • Impedance D2 2 + 2 ohms
  • Suitable for sealed enclosures and bass reflex
  • Long, even diaphragm stroke
Technical Data
  • RMS power 700 watts
  • Maximum power 1400 watts
  • Resonance frequency (Fs) 30 Hz
  • Total quality factor (Qts) 0.4
  • Equivalent volume (Vas) 64 L
  • Sensitivity 91 dB/2.38V/1m
  • Xmax ±22 mm
  • Installation depth 181 mm
  • Cutout diameter 285 mm
  • Magnets 2 x 1.7 kg
  • Voice coil 76 mm

Your benefits at Masori

Musway MG12 Datasheet

Open datasheet

Frequently Asked Questions about MG12

What technical specifications does the MG12 Subwoofer offer?

The Musway MG12 has a power of 700 watts RMS and a maximum power of 1400 watts. With an impedance of D2 2 + 2 ohms and a 76 mm (3") voice coil, it is designed for demanding audio applications. The Subwoofer uses a dual magnet with a total weight of 2 x 1.7 kg (60 ounces), ensuring effective magnetic control. The MG12 has an efficiency of 91 dB/2.38V/1m, meaning it can produce loud and clear sounds even at lower power. This model is optimal for various enclosure types, from sealed to bass reflex systems.

How do the Thiele/Small parameters affect the performance of the MG12?

The Thiele/Small parameters of the MG12, particularly Fs, Qts, and VAS, are crucial for the sound characteristics. The resonance frequency parameter Fs is at 30 Hz, indicating deep bass reproduction and providing powerful low tones. The Qts value of 0.4 suggests an optimal balance between energy efficiency and sound quality. With a VAS of 64 L, the MG12 shows great diaphragm mobility, making it suitable for various enclosure volumes. These parameters enable a precise and intense listening experience by creating good cooperation between the acoustic and mechanical components of the Subwoofer.

What distinguishes the aluminum die-cast basket of the MG12?

The aluminum die-cast basket of the Musway MG12 ensures both robustness and an appealing appearance. The use of aluminum achieves high stability while keeping the weight relatively low. This construction minimizes unwanted resonances and ensures even sound distribution. The grille, rigidly integrated into the Subwoofer, effectively protects the diaphragm from external influences without compromising sound quality. The combination of basket material and diaphragm protection ensures a long lifespan and robust use of the MG12 in various audio applications.

How important is the diaphragm excursion for the sound of the MG12?

The MG12 from Musway is known for its particularly long and even diaphragm stroke, highlighting the Subwoofer's ability to produce deep and clear bass. An even diaphragm stroke is important to minimize distortion and ensure precise sound reproduction. With an Xmax of +/- 22 mm, this Subwoofer achieves significant displacement, providing powerful bass impulses. This capability allows the MG12 to play cleanly and forcefully even at high volumes, offering an impressive listening experience, especially with bass-heavy music.

What are the dimensions for installing the MG12 Subwoofer?

The installation depth of the MG12 is 181 mm and the cutout has a diameter of 285 mm. These dimensions are essential for the correct installation of the Subwoofer to achieve a perfect fit and optimal sound results. These compact measurements allow the MG12 to be accommodated in various vehicles and audio setups without compromising performance. Especially when you want to optimize space in your car, these dimensions offer flexibility and adaptability. Make sure you have enough space available to fully benefit from this powerful Subwoofer.

What advantages does the dual magnet technology of the MG12 offer?

The Musway MG12 utilizes advanced dual magnet technology, consisting of two magnets with a total weight of 2 x 1.7 kg (60 ounces). This strong magnetic force ensures that the voice coil is precisely controlled, significantly improving sound quality. The result is increased precision in music playback, especially at low frequencies. The dual magnet dynamically supports the diaphragm, allowing for clean and powerful reproduction, particularly during intense bass passages. This way, you benefit from high sound fidelity and an impressive audio experience at any volume.

Is the MG12 compatible with my existing car speakers?

The MG12 Subwoofer from Musway is compatible with many common car audio systems due to its flexible connection options. The adaptability provided by the impedance of D2 2 + 2 Ohms allows for seamless integration into existing audio systems. However, to ensure that the MG12 fits your specific vehicle, the installation dimensions are crucial. With a mounting depth of 181 mm and a cutout size of 285 mm, you can easily accommodate the subwoofer in most standard vehicles. Simply compare these dimensions with your existing system to ensure an optimal fit.

What influence does the moving mass have on the sound of the MG12?

The moving mass of the MG12 plays a crucial role in sound reproduction by determining the efficiency and precision of the subwoofer. A well-tuned moving mass ensures that the subwoofer can respond quickly and dynamically to frequency changes, resulting in clear and undistorted bass. The MG12 is designed so that this moving mass is optimally balanced to deliver a stable sound image at both low and high playback levels. This ensures that you receive a balanced audio experience with impressive bass elements.

How does the voice coil of the MG12 affect sound quality?

The MG12 Subwoofer features a powerful 76 mm (3") voice coil, which has a significant impact on sound quality. This large voice coil allows the subwoofer to handle higher power levels without distortion. It ensures efficient conversion of electrical energy into mechanical movement, resulting in precise and clear bass reproduction. The voice coil enables the MG12 to effortlessly master demanding music pieces with deep frequencies, contributing to a detailed and voluminous sound experience that combines consistency and dynamics.

How do I set up the Musway MG12 for optimal sound?

When setting up the MG12 Subwoofer from Musway, correct placement and the enclosure play an important role. You can install it in either a sealed enclosure or a bass reflex design, depending on the type of bass you prefer. A bass reflex enclosure is suitable for more powerful bass, while a sealed enclosure delivers precise and controlled sound. Make sure that the subwoofer is securely mounted and that the installation dimensions of 181 mm depth and 285 mm opening are observed to ensure optimal sound performance and a stable sound image.
