Musway MAE6.2C 6.5" (16,5cm) Speaker Set

100 Watt

Musway MAE6.2C 6.5" (16,5cm) Speaker Set

Technical Highlights

  • Power handling 100 watts RMS, max. power handling at 200 watts.
  • Impedance of 3 ohms, frequency range from 50 to 24000 Hz.
  • Reinforced paper cones, fabric neodymium dome coils.
  • More technical details
€199,00
€199,00 €199,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
Mar 22, - Mar 25,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €16,58 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Musway-MAE6.2C-6.5" (16,5cm) Lautsprecherset-masori-kaufen
€199,00
€199,00 €199,00

MAE6.2C by Musway

The MAE6.2C from Musway is a 6.5-inch speaker set that impresses with its high-quality craftsmanship. With a power handling of 100 watts RMS and a maximum power handling of 200 watts, it delivers powerful sound. The impedance is 3 ohms, while the frequency range extends from 50 to 24000 Hz. Special features include the reinforced paper cones of the mid-bass drivers and the fabric neodymium domes of the tweeters. The straightforward installation is also supported by well-thought-out housing dimensions and shapes.

Technical Data

  • Power handling RMS 100 watts
  • Power handling max. 200 watts
  • Impedance 3 ohms
  • Frequency range 50 - 24000 Hz

6.5 inch (6.5“) Mid-Bass Driver

  • Reinforced paper cones
  • 25.5 mm voice coils
  • 13.1 oz. / 369 g neodymium magnets (Y30)
  • Mounting hole Ø 144 mm
  • Mounting depth 67 mm

20 mm (0.75“) Tweeter

  • Fabric neodymium domes
  • 12dB cable crossovers
  • Optional with -3dB attenuation
  • Dimensions Ø 36 x 19 mm

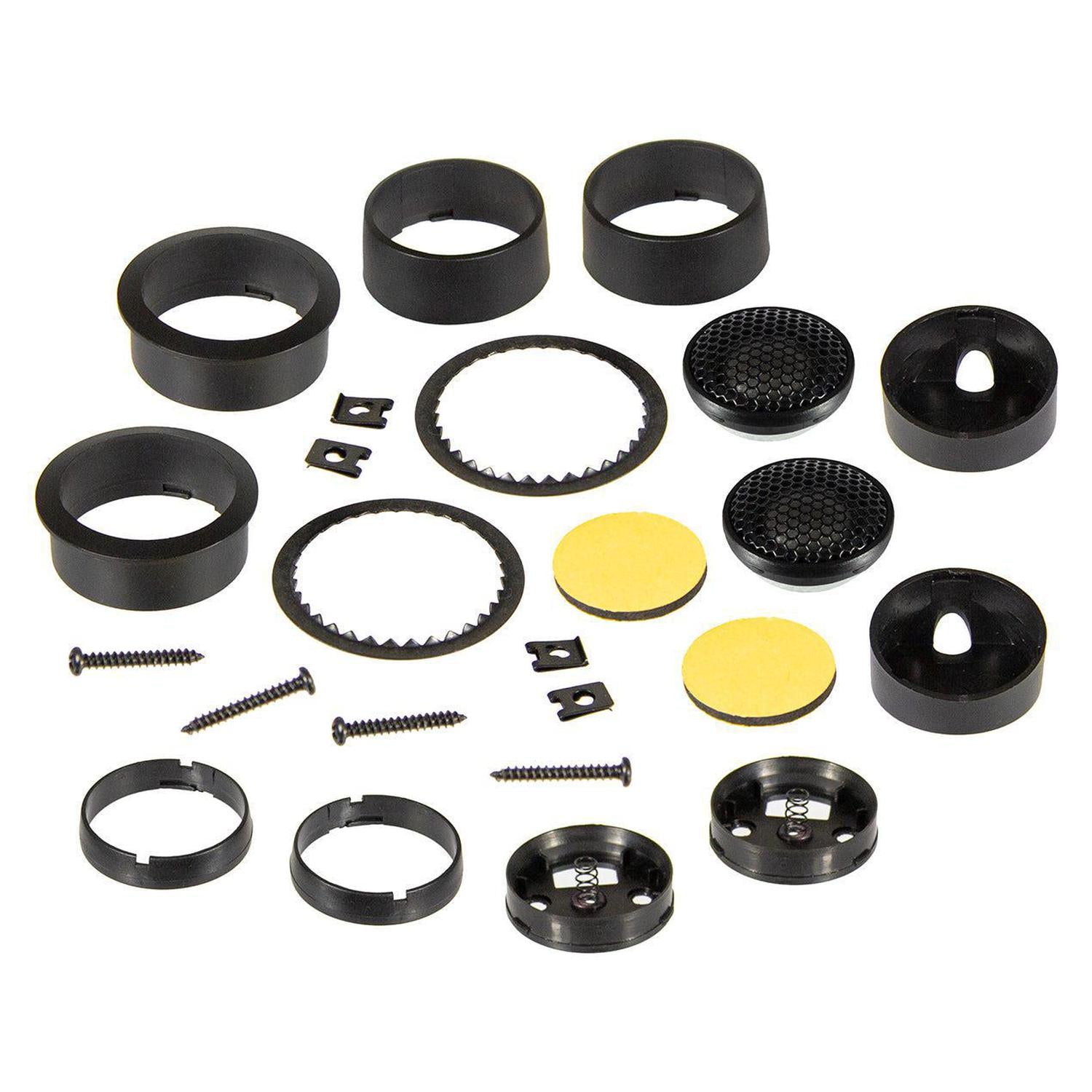

  • Surface-mount housing Ø 36 x 24 mm
  • Flush-mount housing Ø 41 x 23 mm, mounting depth 14 mm
  • Cap housing Ø 41 x 23 mm

Your benefits at Masori

Musway MAE6.2C Datasheet

Open datasheet

Frequently Asked Questions about MAE6.2C

How does the 3 Ohm impedance affect the performance of the Musway MAE6.2C Speaker Set?

The 3 Ohm impedance of the Musway MAE6.2C Speaker Set allows for more efficient power intake, which leads to improved sound reproduction, especially with powerful Amplifiers. A low impedance allows for more power through the same Amplifier, resulting in a more dynamic and powerful audio experience. Particularly in systems that support high RMS power of 100 Watts and a maximum load capacity of 200 Watts, the 3 Ohm impedance ensures an optimal balance between power and sound quality. This way, you can enjoy a clearer and distortion-free sound experience in your vehicle, even at high volumes.

What are the benefits of the reinforced paper membranes of the mid-bass driver in the Musway MAE6.2C?

The reinforced paper membranes in the mid-bass driver of the Musway MAE6.2C ensure increased stability and precision in sound reproduction. These robust membranes minimize distortion and enhance resonance frequencies, which is particularly noticeable in the frequency range of 50 to 24000 Hz. The reinforced paper membranes also contribute to the longevity of the Speaker, as they are more resistant to mechanical stress. Especially if you appreciate detailed and clear bass, this technical feature provides a balanced and powerful sound image that remains stable even with intensive use.

How does the installation depth of 67 mm support the installation of the Musway MAE6.2C in various enclosures?

The installation depth of 67 mm of the Musway MAE6.2C Speaker is optimally designed for a variety of vehicle enclosures. This specific depth allows for easy integration into standard installation openings with a diameter of Ø144 mm. The thoughtful enclosure dimensions ensure that the Speaker fits securely and firmly without the need for adjustments or additional mounts. This significantly simplifies the installation process, which is particularly beneficial for both DIY enthusiasts and professionals. Additionally, the installation depth contributes to improved acoustic performance, as it allows for optimal placement within the enclosure.

What frequency range does the Musway MAE6.2C cover and how does this affect the sound?

The Musway MAE6.2C covers an impressive frequency range of 50 to 24000 Hz, ensuring comprehensive coverage of audible tones. This wide frequency range allows for precise reproduction of both deep bass and high-frequency sounds, resulting in a balanced and detailed sound profile. In particular, the ability to reproduce frequencies up to 24 kHz ensures clear and natural sound reproduction, highlighting even subtle details in the music. You benefit from a dynamic sound that is suitable for both loud and fine music genres.

What role do the fabric neodymium domes play in the tweeter of the Musway MAE6.2C?

The fabric neodymium domes in the tweeter of the Musway MAE6.2C play a central role in high-frequency reproduction. These domes are made from high-quality neodymium and combine lightness with high magnetic efficiency, leading to precise control of the high tones. The fabric material supports the natural movement of the diaphragm, minimizing distortion and maximizing the clarity of high frequencies. Especially if you value fine details and clear sound in the highs, the fabric neodymium domes significantly contribute to the overall sound quality of the speaker by ensuring a fast and accurate response to high frequencies.

How do the neodymium magnets Y30 affect the sound quality of the Musway MAE6.2C?

The neodymium magnets Y30 in the Musway MAE6.2C are crucial for the excellent sound quality of the speaker. Neodymium magnets offer a high magnetic flux density at a low weight, leading to stronger and more precise control of the voice coil. This allows for a faster response of the diaphragm to audio signals, resulting in clearer and more dynamic sound reproduction. With a magnet weight of 13.1 oz / 369 g, the Y30 magnets ensure that the speaker operates efficiently, even under high power demands. The result is a detailed and powerful sound that remains consistent at both high and low volumes.

What options does the cable Crossover of the Musway MAE6.2C offer and how can the 3dB attenuation be utilized?

The cable Crossover in the Musway MAE6.2C allows for precise separation of audio signals between the woofer and Tweeter. With the option for a 3dB attenuation, you can individually adjust the balance between the frequency ranges. This attenuation helps to avoid overemphasis of certain frequencies and ensures a harmonious sound image. Especially when you want to fine-tune your system to achieve optimal sound balance, the Crossover of the Musway MAE6.2C provides the necessary flexibility. This is particularly advantageous when different music genres have varying frequency requirements, as you can adjust the settings accordingly.

What are the dimensions of the installation housing of the Musway MAE6.2C and how do they facilitate integration into the vehicle?

The installation housing of the Musway MAE6.2C measures Ø41 x 23 mm and has a mounting depth of 14 mm. These compact dimensions facilitate the integration of the Speaker Set into a variety of vehicle housings without extensive modifications. The standardized measurements fit into most existing installation situations, simplifying the installation process and saving time. Furthermore, these dimensions contribute to optimal acoustic performance, as the housing provides sufficient space for resonance frequencies without unwanted vibrations or sound distortions. This way, you can easily integrate the Musway MAE6.2C into your vehicle and enhance sound quality.

How does the 25.5 mm voice coil in the Musway MAE6.2C ensure stable operation at high power?

The 25.5 mm voice coil in the Musway MAE6.2C is crucial for the stability and efficiency of the speaker at high power outputs. A larger voice coil provides better heat dissipation, preventing overheating and ensuring consistent performance even under maximum load. This is particularly important with a maximum load capacity of 200 watts, as the voice coil allows for consistent control of the diaphragm movements. Thanks to the robust construction of the voice coil, the sound remains clear and distortion-free, even when the speaker is heavily used over extended periods. This ensures that your Musway MAE6.2C operates reliably and powerfully.

What significance do the dimensions Ø36 x19 mm desk enclosure have for the acoustic performance of the Musway MAE6.2C?

The desk enclosure of the Musway MAE6.2C has dimensions of Ø36 x19 mm, which supports optimal resonance frequency and sound reproduction. These specific dimensions are chosen to enhance the acoustic properties of the speaker by efficiently channeling sound waves and minimizing reflections. A well-sized enclosure helps reduce sound distortions and promotes clear and precise reproduction across various frequency ranges. Especially if you prefer a balanced and detailed sound, the Ø36 x19 mm of the desk enclosure ensures that the sound output of the Musway MAE6.2C is optimally showcased in different vehicle environments.

How does the thoughtful enclosure design of the Musway MAE6.2C facilitate installation and placement in the vehicle?

The thoughtful enclosure design of the Musway MAE6.2C, including various dimensions such as desk enclosure Ø36 x19 mm and installation enclosure Ø41 x23 mm, significantly facilitates installation and placement in the vehicle. These precise dimensions are designed to fit a variety of vehicle types and models without requiring extensive modifications. The compact design ensures that the speaker sits securely and firmly in the enclosure, supporting optimal acoustic performance. Additionally, the design allows for easy wiring and integration with existing audio systems, simplifying the installation process and enhancing the overall quality of the sound system.
