JD500/1
Technical Highlights
- Power: 500 W RMS @ 2 Ω / 250 W RMS @ 4 Ω (14.4V), Frequency response: 7 Hz 500 Hz.
- S/N ratio: \>80 dB, Damping factor: \>1000 @ 4 Ω / \>500 @ 2 Ω.
- Filter: 12 dB/octave low-pass (50-500 Hz), Dimensions: 53 x 242 x 190 mm.
- More technical details
Pay conveniently in 12 interest-free installments at €28,75 with Klarna .
Availability for pickups could not be loaded.
Rob
Max
Avoid a bad purchase? We check your setup!
Rob & Max check your project: So you are guaranteed to get the maximum performance for your budget.
-
3500 WattNormal price €399,00Normal price€399,00Selling price €399,00DeliveryJun 2, - Jun 7, -
2000 WattNormal price €329,00Normal price€329,00Selling price €329,00DeliveryJun 2, - Jun 7, -
1600 WattNormal price €249,00Normal price€249,00Selling price €249,00In stockMay 29, - May 30, -
2500 WattNormal price €349,00Normal price€349,00Selling price €349,00DeliveryDelivered automatically as soon as available from the supplier. -
900 WattNormal price €199,00Normal price€199,00Selling price €199,00In stockMay 29, - May 30,
This could also look like this for you!
A good Amplifier not only delivers watts, it controls your speakers. Many mainstream amps dazzle with high numbers but lose stability under load. Our selection of power amplifiers from Deaf Bonce and DD Audio stands for honest power ratings and maximum efficiency – so your system plays cleanly even at the limit.
JD500/1 by JL Audio Description

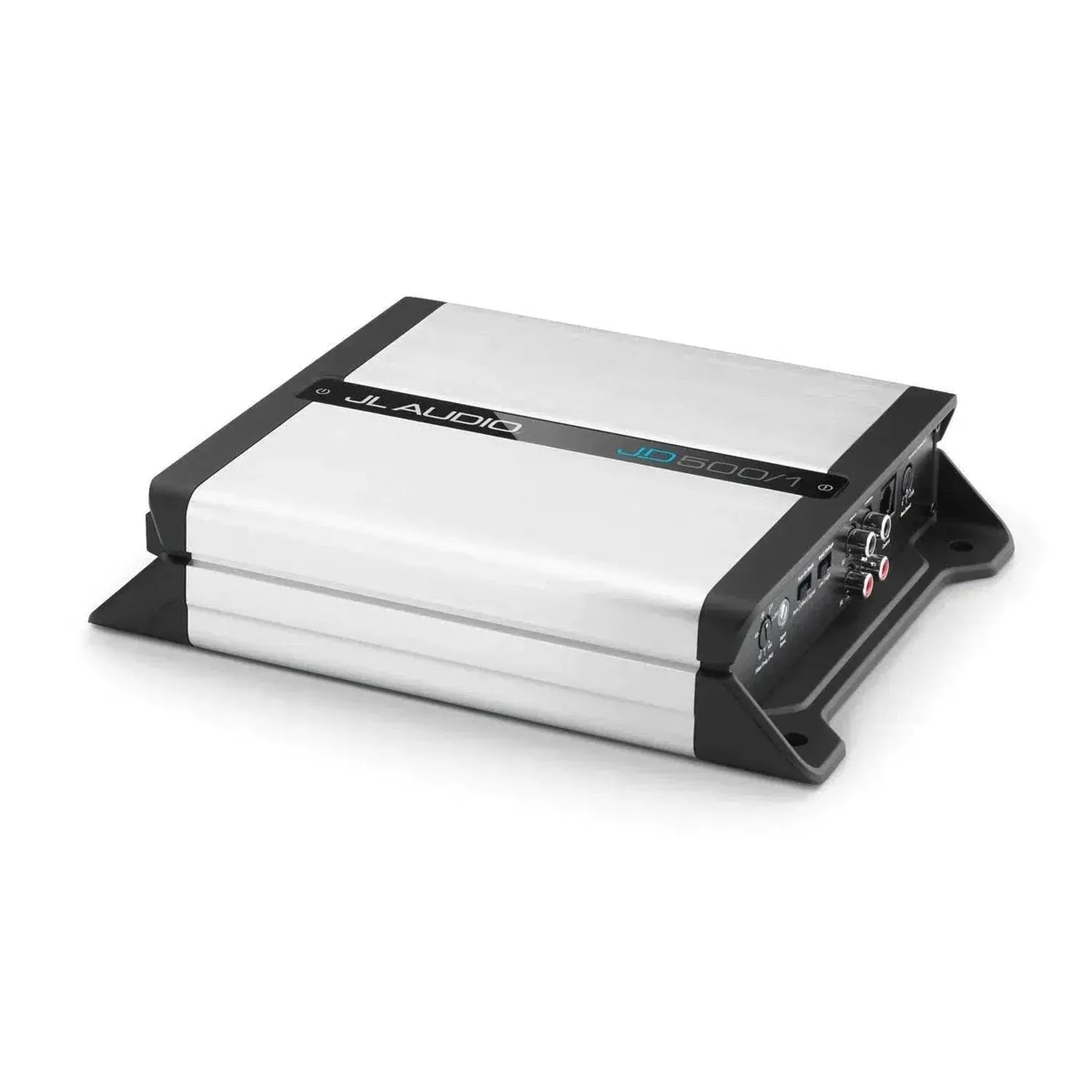

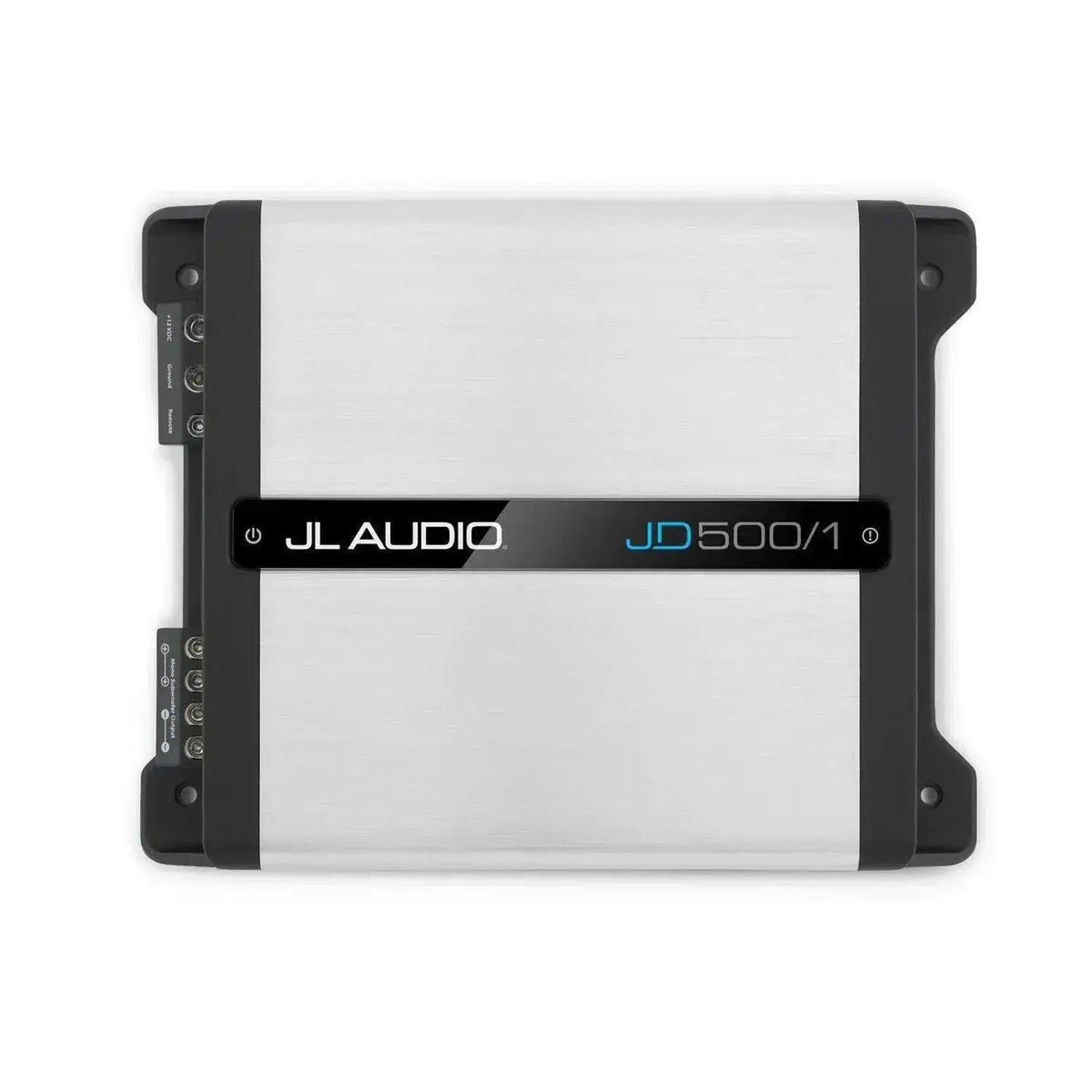

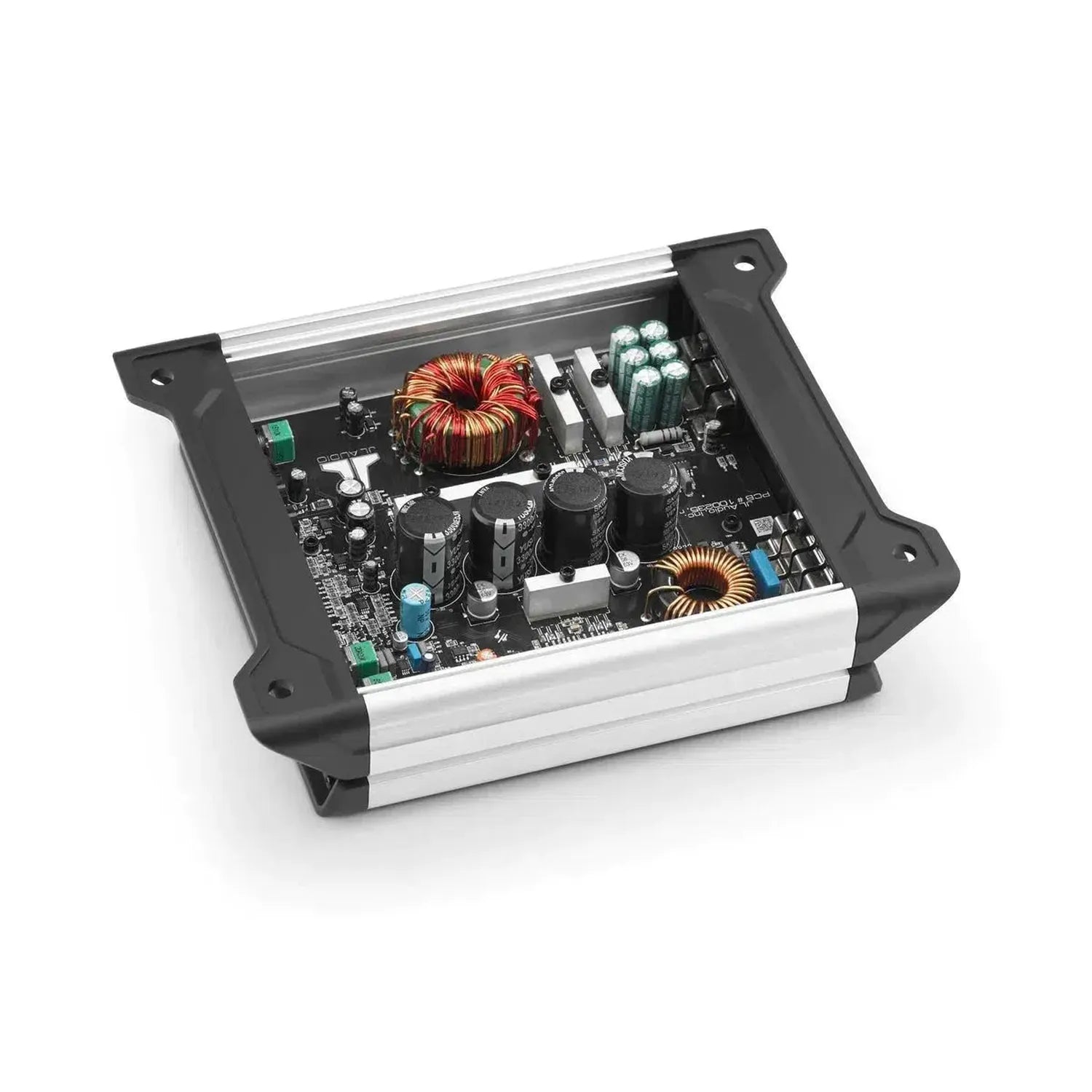

The JD500/1 is an impressive 1-channel Class D monoblock Subwoofer Amplifier from JL Audio. Designed for powerful 500 watts at 2 Ohm, it offers outstanding performance efficiency thanks to the NexD™ switching technology. With deep signal processing features and an integrated LED terminal display ring, the amplifier delivers precise audio quality in a cost-effective system.
- Monoblock Subwoofer Amplifier in Class D
- 500 W x 1 @ 2 Ω / 250 W x 1 @ 4 Ω - 14.4V
- NexD™ switching technology for high efficiency
- 12 dB/Octave low-pass filter
- Variable bass boost EQ
- LED terminal display ring for input sensitivity
- Optional RBC-1 remote control for subwoofer level
- Rated continuous power at 14.4 V: 250 W @ 4 Ω, 350 W @ 3 Ω, 500 W @ 2 Ω
- Rated continuous power at 12.5 V: 225 W @ 4 Ω, 300 W @ 3 Ω, 400 W @ 2 Ω
- Frequency response: 7 Hz - 500 Hz (+0, -1dB)
- S/N ratio: >80 dB
- Damping factor: >1000 @ 4 Ω, >500 @ 2 Ω
- THD+N: <1% @ 2 Ω
- Input voltage range: 200 mV - 8 V RMS
- Minimum cable diameter: 25mm²
- Fuse rating: 50 A
- Dimensions: 53 mm x 242 mm x 190 mm
