  3. CL-RLC
JL Audio CL-RLC bass remote control
SKU:  98117
EAN:  699440981170

2 Reviews

CL-RLC

SKU:  98117
EAN:  699440981170

2 Reviews

Technical Highlights

  • Output Impedance: 475 Ω, Frequency Response: 10 Hz – 30 kHz (+0/-1 dB).
  • Gain Range: 7.5V RMS, Max. Unclipped Output: 7.5V RMS.
  • S/N Ratio: \>117 dB at 7.5V RMS, Max. Input Level: 4V RMS, THD+N: \< 0.05%.
  • More technical details
€109,00
€109,00 €109,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 30, - May 31,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €9,08 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

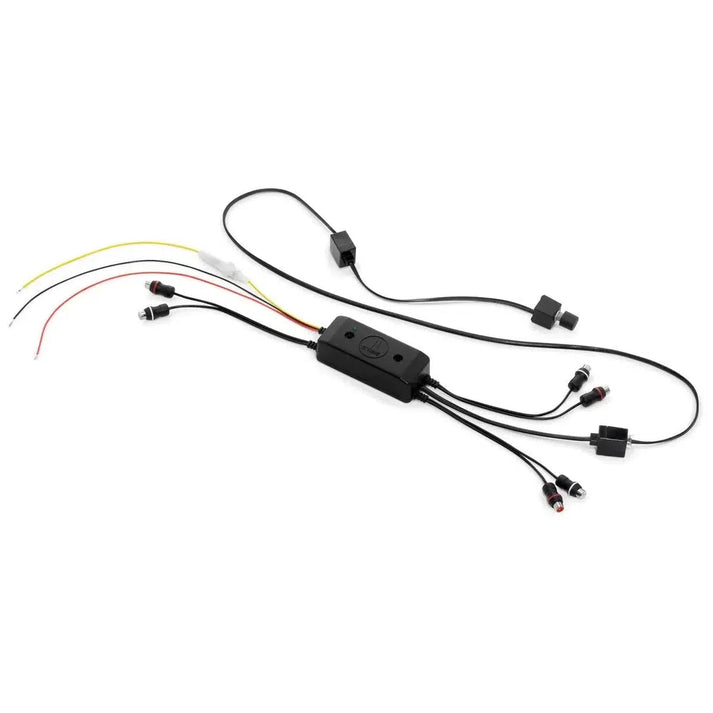

The JL Audio CL-RLC, a black electronic control module for subwoofer level with multicolored wires and connectors, is shown on a white background.
€109,00
€109,00 €109,00

CL-RLC by JL Audio

The CL-RLC from JL Audio is a versatile Bass Remote Control for line-level signals, designed as an active amplifier with differential-balanced inputs. These inputs minimize noise and allow for up to 7.5 VRMS of unclipped output power. The CL-RLC enables precise control of the Subwoofer levels and is flexible enough to be used wherever volume control is needed.

Features
  • Fully active, 2-channel remote control/line driver
  • Active level control for Subwoofers and full-range signals
  • Differential-balanced inputs for minimized noise
  • Buffered pass-through connection for additional amplifier
  • Precise Subwoofer level control from the front of the vehicle
  • Application possible in any line-level area
Technical Specifications
  • Channel separation: >80 dB
  • Output impedance: 475 Ω
  • Gain range: 7.5 V RMS
  • Max. Unclipped output: 7.5 V RMS
  • Frequency response: 10 Hz - 30 kHz (+0/-1 dB)
  • THD+N @ rated output: <0.05% at 7.5 V RMS
  • S/N ratio: >117 dB at 7.5 V RMS
  • Max. input level: 4 V RMS
  • Operating current draw: 90 mA
  • Width: 100 mm / 3.94 inches
  • Height: 31 mm / 1.21 inches
  • Depth: 41 mm / 1.63 inches
  • Net weight: 0.25 kg / 0.55 lb

Your benefits at Masori

Frequently Asked Questions about CL-RLC

Wie funktioniert die Basspegelfernbedienung des CL-RLC?

The CL-RLC from JL Audio is a bass level remote control that operates as an active preamplifier with level control. Instead of routing signals directly through the control cables, the control knob merely sends volume control signals to the preamplifier circuit. This reduces noise, as differential-balanced inputs are used, which minimize interference. With a maximum untrimmed output of 7.5 VRMS, the CL-RLC seamlessly connects signals with subwoofer amplifiers. Interestingly, the device is universally suitable for any applications with line-level signals. Especially at loud music frequencies, it ensures crisp, interference-free sound. A unique technology that enables precise audio control.

Wie beeinflussen die differential-symmetrischen Eingänge des CL-RLC den Klang?

The differential-symmetric inputs of the CL-RLC minimize noise by compensating for voltage disturbances that can occur with asymmetric signals. This ensures that the transmission of audio occurs without unnecessary distortion. With a channel separation of over 80 dB, the CL-RLC does not degrade the sound but enhances musical precision. This advanced design strengthens the musical output by maintaining maximum clarity and purity of the audio signal. Whether bass or full-range, the sound remains remarkably opaque and free from interference noise. Such a technique is particularly essential in high-quality systems.

Welche Rolle spielt der Frequenzgang des CL-RLC für den Klang?

The frequency response of the CL-RLC from 10 Hz to 30 kHz (+0/-1 dB) covers almost the entire audible spectrum. This means that the CL-RLC transmits both extremely low and high frequencies accurately. This is particularly noteworthy for audiophiles seeking absolutely detailed sound. Whether it is deep bass or high tones, the accuracy remains impressively stable. This characteristic ensures that every detail is heard without sacrificing quality. Such a wide frequency response makes the CL-RLC indispensable for anyone who wants to enjoy audiophile music.

Wie ergibt sich das hohe S/N-Verhältnis des CL-RLC?

The signal-to-noise ratio (S/N) of the CL-RLC is over 117 dB at 7.5 V RMS, which means that the electronic noise is extremely low compared to the actual audio signal. This high computing power is the result of the precise circuitry, combined with the differential-balanced inputs. The design of the preamplifier circuit ensures that the useful signal is transmitted flawlessly while unwanted noise is eliminated. Especially in complex audio environments, the sound quality remains consistent and free of interference. This high S/N capability maximizes sound fidelity and meets the demands of high-quality audio systems.

Welche Leistungsdaten definieren den Verstärkungsbereich des CL-RLC?

The amplification range of the CL-RLC is crucial for managing different signal strengths. With a maximum uncut output of 7.5 V RMS, it ensures that the CL-RLC provides high signal level control. Whether operating for subwoofers or full-range volumes, the amplifier power adapts flexibly to the respective audio requirements. This means that both quiet and loud signal strengths can be transmitted without loss of quality. These amplifier options allow the user to extract the best possible sound from a wide range of music genres. It is a performance tailored to variable audio needs.

Ist der CL-RLC mit allen Automodellen kompatibel?

The CL-RLC has no specific automotive model compatibility restrictions, as it is designed universally for line-level signal delivery. It can be easily integrated into audio systems that include a subwoofer amplifier. The dimensions, with a width of 100 mm, a height of 31 mm, and a depth of 41 mm, make installation in most dashboards straightforward. This 0.55 lb lightweight controller can also be ideally placed in vehicles with compact space conditions. However, it is important during installation to choose the placement so that the user control is always within reach and the wiring can be optimally routed.

Welche Vorteile bieten die gepufferten Durchgangsausgänge des CL-RLC?

The buffered pass-through outputs of the CL-RLC allow a signal to be reliably forwarded to a satellite amplifier. This functionality is particularly useful in complex audio systems where multiple amplifiers are connected. The advantage is that the user can use the same audio input for multiple amplifier channels without negatively affecting the signal strength. It enables the parallel operation of subwoofers and satellite amplifiers, thereby maintaining the overall performance and range of the audio system. This technique reduces signal loss and ensures consistent sound quality across all channels.

Wie unterscheidet sich der CL-RLC von einem passiven Line-Pegelregler?

The CL-RLC relies on an active preamplifier design, which, unlike passive line level controllers, does not compromise the signal. Passive controllers route signals through the control cable, which can cause signal loss and potential noise. The CL-RLC, on the other hand, uses a control knob that only sends signals to the high-quality preamplifier circuit. This guarantees maximum sound fidelity and avoids any sound distortions. Especially in systems that are meant to meet the highest sound demands, the CL-RLC shows its strengths. A technology that ensures the sound arrives exactly as it was recorded.

Welche technischen Spezifikationen bestimmen den Betrieb des CL-RLC?

Decisive specifications for the CL-RLC include a S/N ratio of >117 dB, a frequency response of 10 Hz to 30 kHz, and an output power of 7.5 V RMS. Together, these parameters guarantee interference-free and high-quality audio performance. The operating current consumption of 90 mA ensures that the digital controller is neither overloaded nor does it overload the amplifier. An output impedance of 475 Ω provides flexibility in various amplifier environments without loss. Therefore, the CL-RLC is excellent for versatile setup options.

Wie installiere ich den CL-RLC richtig in meinem Fahrzeug?

The installation of the CL-RLC is straightforward, but it requires attention to the technical conditions. The CL-RLC can be easily mounted in dashboards or center consoles due to its compact dimensions. It is important to correctly connect the differential-symmetric inputs to the audio amplifier and ensure that the power supply is stable. The use of buffered pass-through outputs is essential when multiple amplifiers are connected. The placement should be user-friendly, so that the control knob is easy to reach. Always pay attention to proper grounding to avoid any noise interference.
