JL Audio C1-650X 6.5" (16.5cm) coaxial speaker
SKU:  99042
EAN:  699440990424

C1-650X

SKU:  99042
EAN:  699440990424

Technical Highlights

  • Power: 50 W RMS, Impedance: 4 Ω, Frequency Response: 48 Hz 24 KHz.
  • Sensitivity: 90.5 dB at 1 W / 1 m, Diameter: 6.5 inches (165 mm).
  • Mounting Depth: 53 mm, Tweeter: 0.75 inches (19 mm) Aluminum Dome.
  • More technical details
Normal price €109,00
Normal price €109,00 Selling price €109,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 30, - May 31,
x pair
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €9,08 with Klarna .
Expert Image

Rob

Expert Image

Max

Avoid a bad purchase? We check your setup!

Rob & Max check your project: So you are guaranteed to get the maximum performance for your budget.

Response on weekdays within 24 hours

Your benefits at Masori


Normal price €109,00
Normal price €109,00 Selling price €109,00
DSC01014_2

This could also look like this for you!

A speaker is only as good as its construction. While mass-produced products often sound flat, brands like DD Audio focus on precision and Deaf Bonce on uncompromising dynamics. We have filtered out the systems that technically get more out of your budget and open up a new league in sound quality for you.

Discover now

C1-650X by JL Audio Description

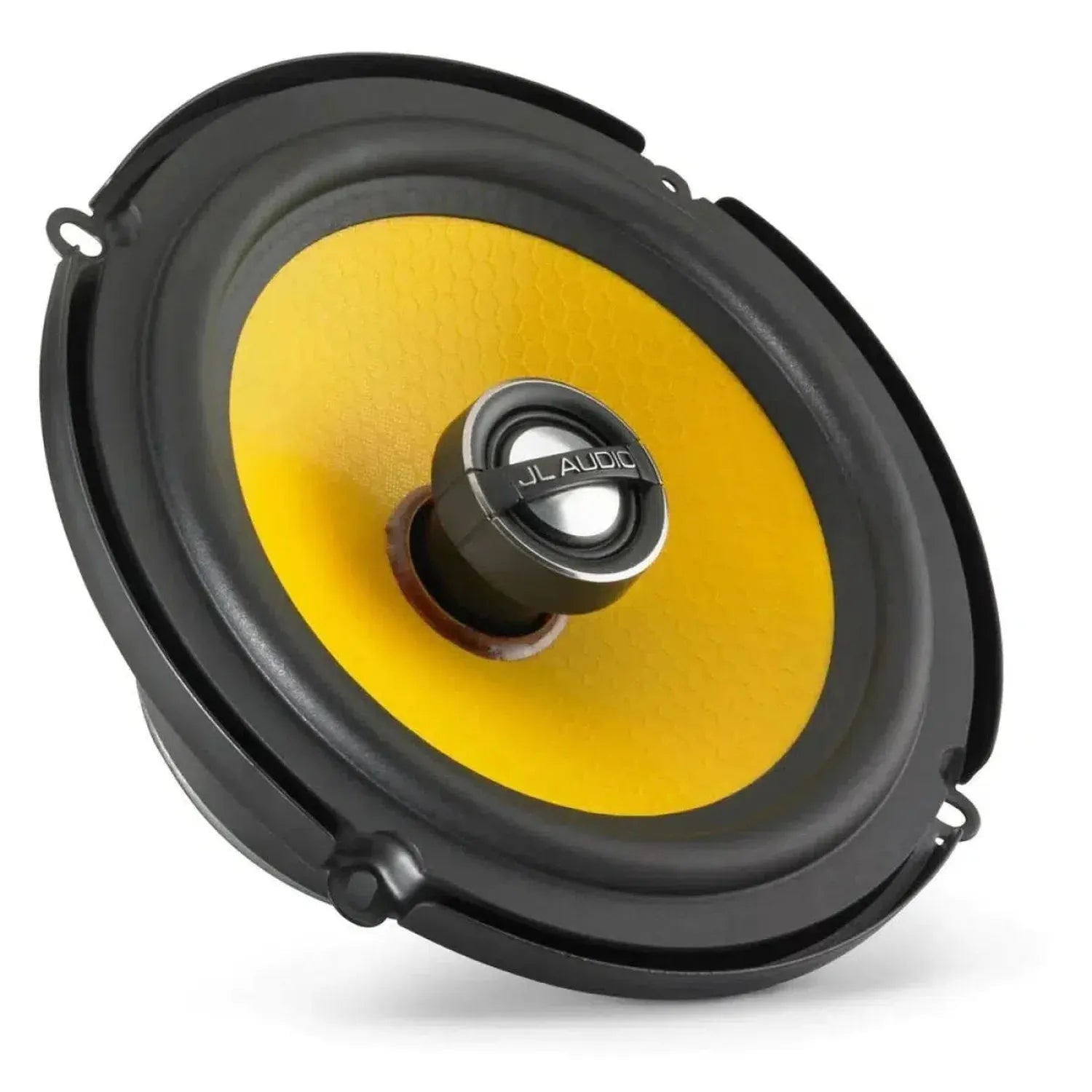

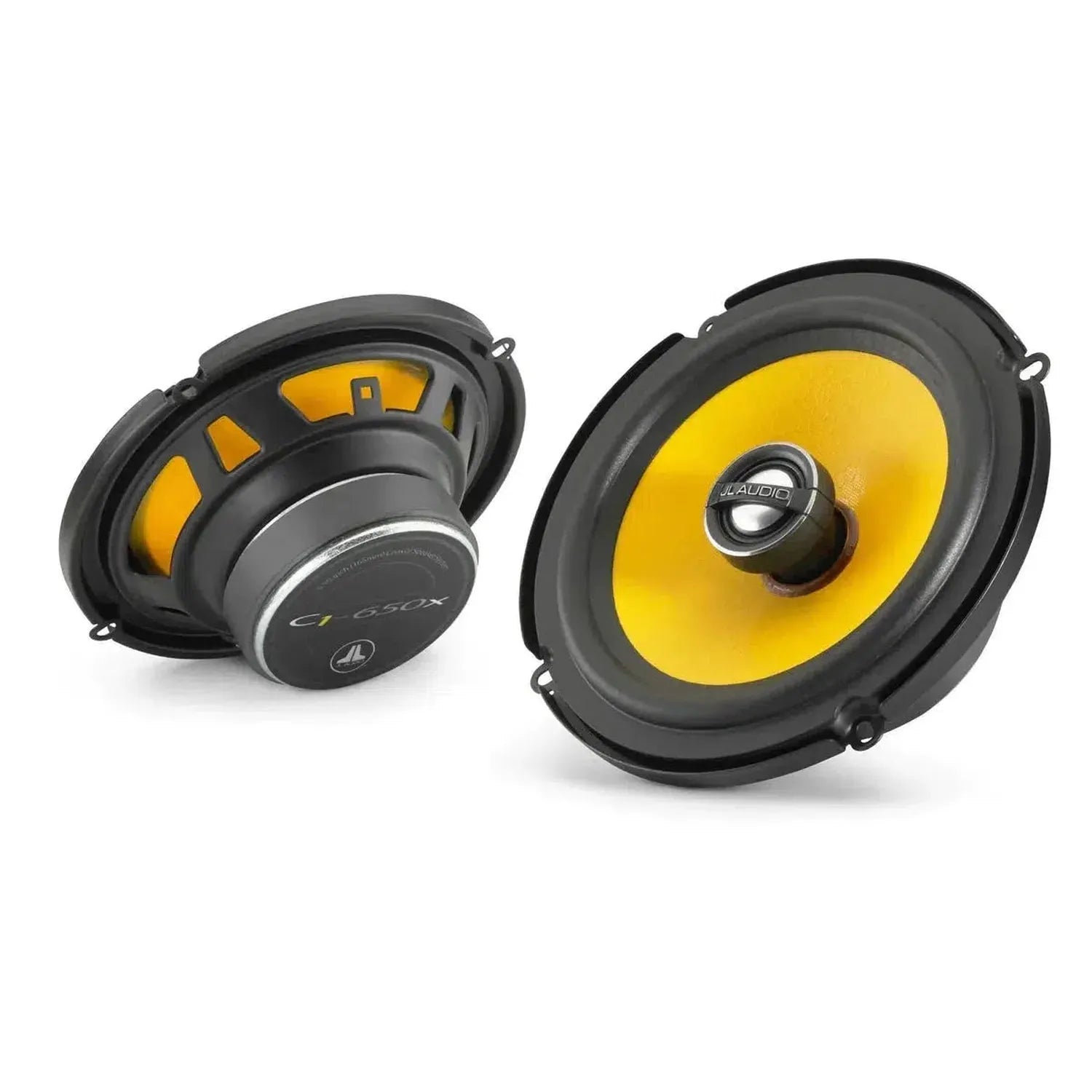

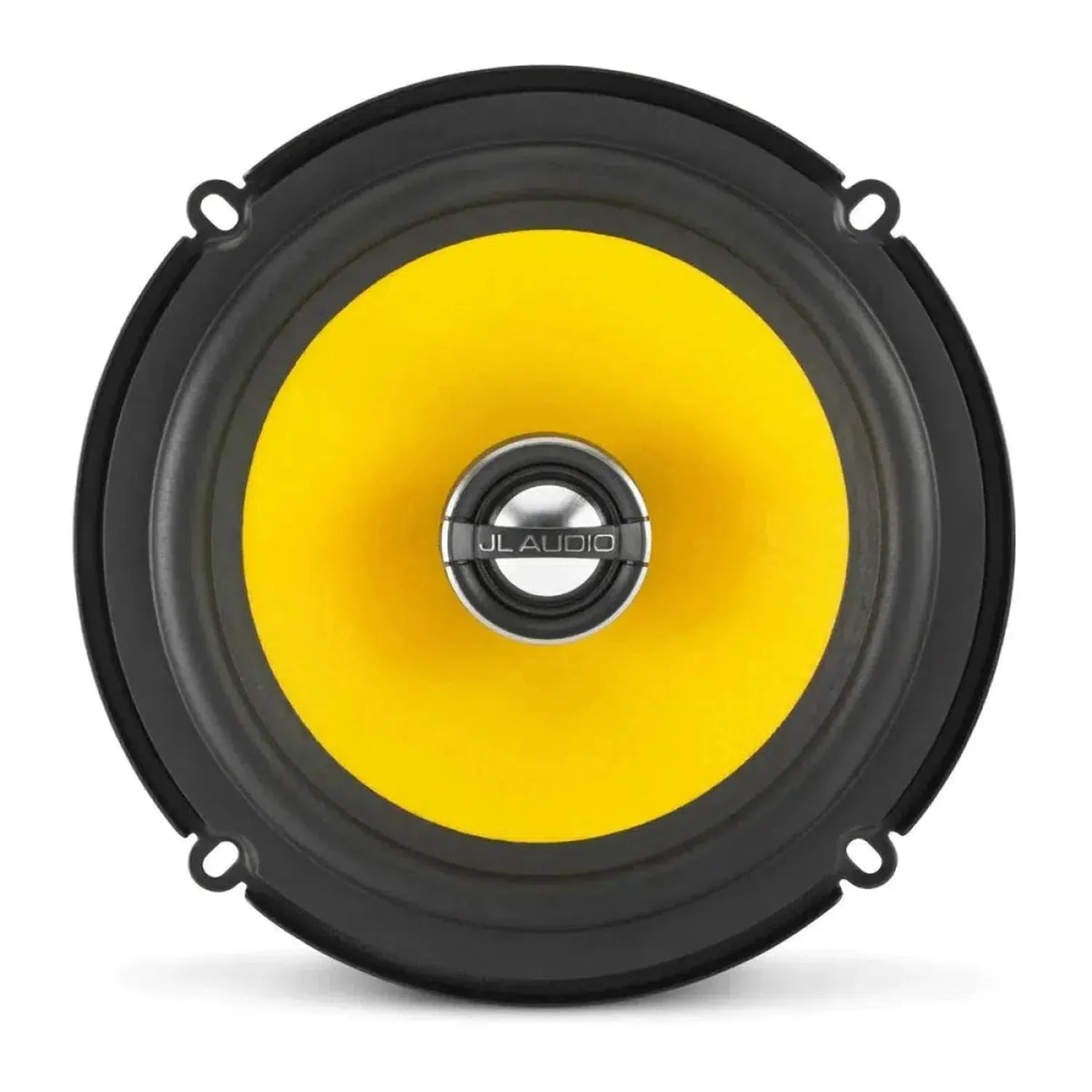

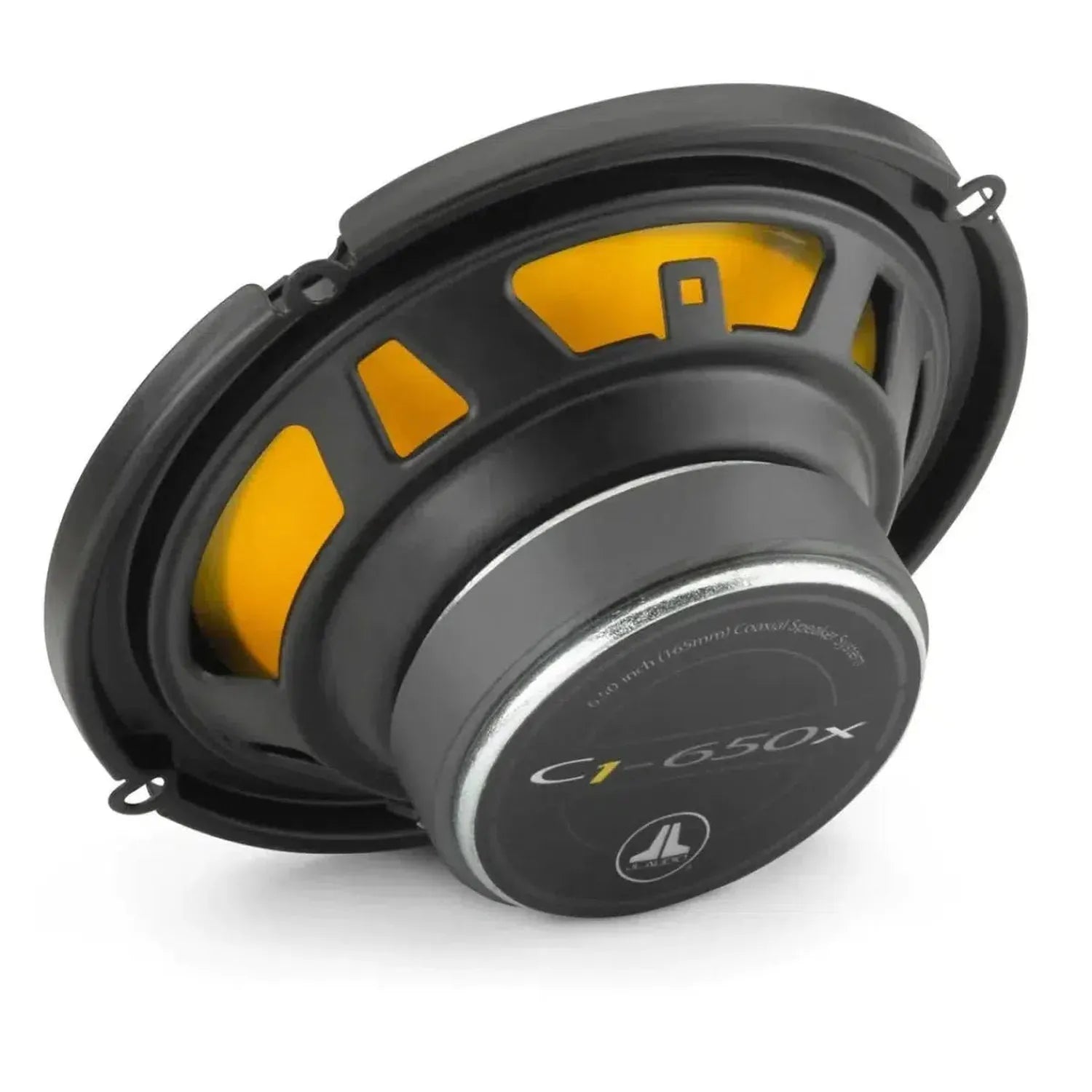

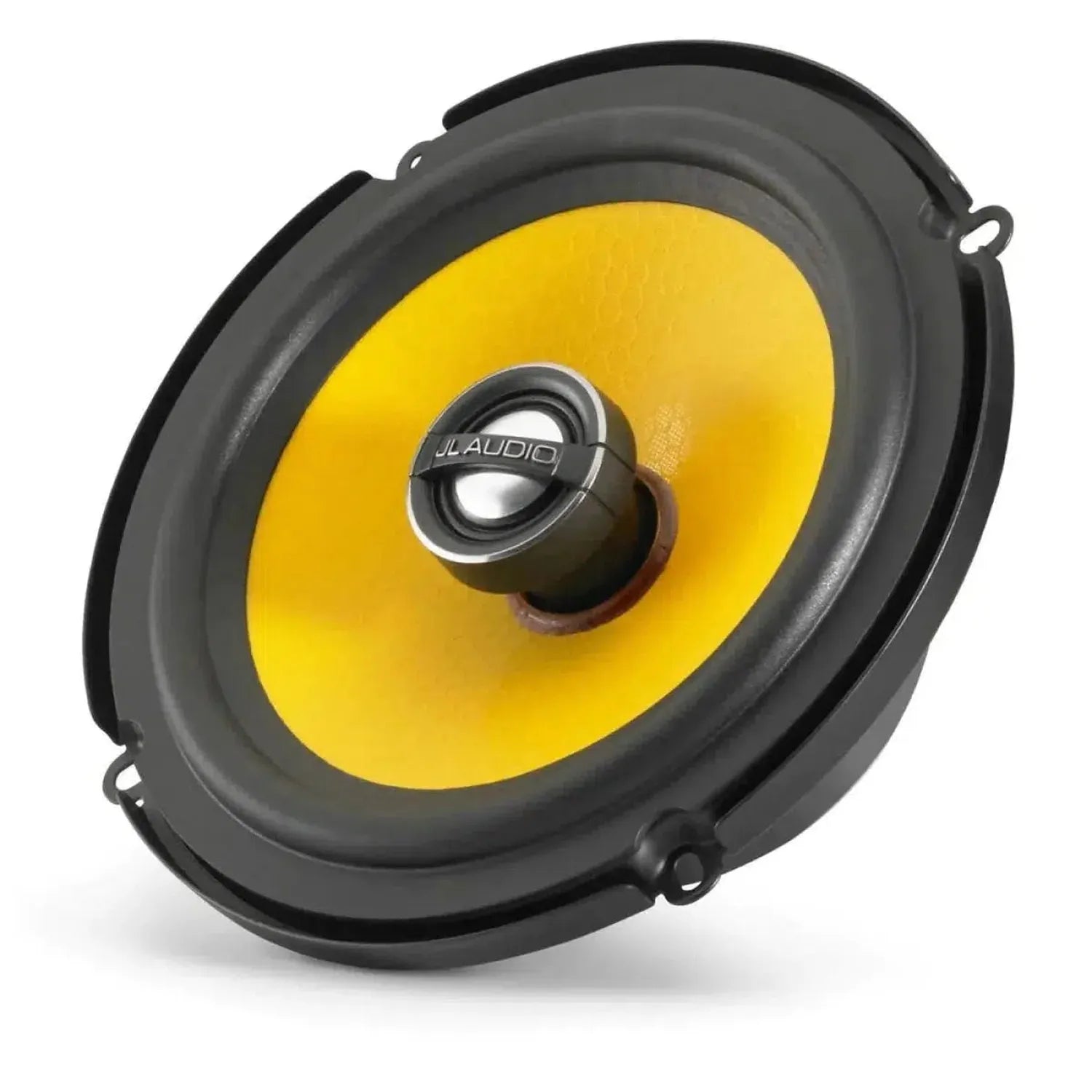

The C1-650X from JL Audio is a premium coaxial speaker system that brings top sound quality to your vehicle with a 6.5-inch (165 mm) mid-bass driver and a 0.75-inch (19 mm) aluminum dome tweeter. With FEA-optimized woofers and a DMA-optimized motor system, this system delivers impressive audio performance with easy installation. Ideal for various speaker positions and equipped with multi-application adapter rings, the C1-650X stands out for its clarity and richness of detail.

Features
  • Coaxial speaker system: 6.5-inch mid-bass driver, 0.75-inch aluminum dome tweeter
  • DMA-optimized motor system
  • Mineral-filled polypropylene cone
  • Neodymium magnet circuit
  • True 2nd order high-pass filter

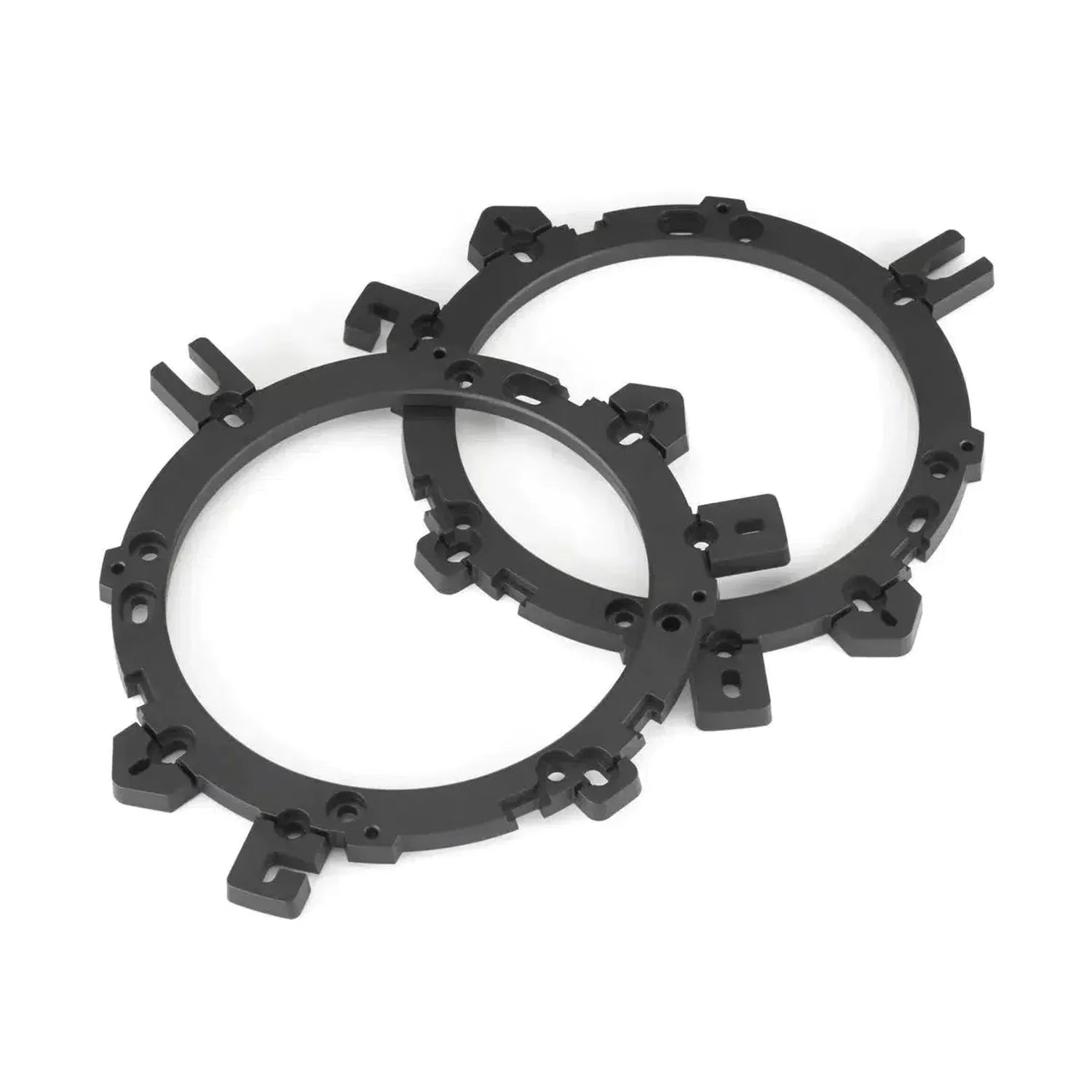

  • Multi-application adapter rings included
  • Sold as a pair
Technical Specifications
  • Continuous power handling (RMS): 50 W
  • Recommended amplifier power (RMS): 10 - 75 W / Ch.
  • System efficiency: 90.5 dB at 1 W / 1 m
  • System nominal impedance: 4 Ω
  • System frequency response: 48 Hz - 24 KHz ± 3 dB
  • Frame outer diameter: 159 mm / 6.25 inches
  • Motor outer diameter: 80 mm / 3.15 inches
  • Mounting hole diameter: 128 mm / 5.02 inches
  • Installation depth: 53 mm / 2.07 inches

Frequently Asked Questions about C1-650X


Wie hoch ist die Belastbarkeit des JL Audio C1-650X?

Die C1-650X Koaxial-Lautsprecher verfügen über eine Dauerbelastbarkeit (RMS) von 50 Watt. Für eine optimale Klangqualität und Langlebigkeit empfiehlt der Hersteller eine Verstärkerleistung zwischen 10 und 75 Watt pro Kanal.

Welche Einbaumaße haben die C1-650X Lautsprecher?

Die Lautsprecher haben einen Außendurchmesser von 159 mm und eine Einbautiefe von 53 mm. Der Durchmesser der Montagebohrung beträgt 128 mm. Dank der mitgelieferten Multiapplikations-Adapterringe ist der Einbau in Öffnungen für 6,5-Zoll und 6,75-Zoll Lautsprecher problemlos möglich.

Welche Hochtöner-Technologie wird im C1-650X verwendet?

Das System ist mit einem 19 mm (0,75 Zoll) Aluminiumkalotten-Hochtöner ausgestattet. Dieser bietet eine überlegene Klarheit und Definition im Hochtonbereich. Er profitiert von einer Seidensickenaufhängung, Ferrofluid-Kühlung und einem starken Neodym-Magneten für eine präzise Wiedergabe.

Ist der JL Audio C1-650X für den Betrieb am Werksradio geeignet?

Ja, mit einem Systemwirkungsgrad von 90,5 dB bei 1W/1m sind diese Lautsprecher sehr effizient. Sie wurden speziell so entwickelt, dass sie auch bei geringer Leistung, wie sie typischerweise von Werksradios geliefert wird, eine hervorragende Audioleistung und Substanz bieten.

Welchen Frequenzbereich decken die Lautsprecher ab?

Das C1-650X System deckt einen breiten Frequenzgang von 48 Hz bis 24 kHz (± 3 dB) ab. Dies gewährleistet eine kraftvolle Basswiedergabe durch die mineralgefüllten Polypropylen-Tieftöner und kristallklare Höhen bis weit über den menschlichen Hörbereich hinaus.
