  3. Zeus ZX6.2W
Hifonics Zeus ZX6.2W 6.5" (16,5cm) Mid-Woofer

1 Review

125 Watt
Hifonics

Zeus ZX6.2W

6.5" (16,5cm) Mid-Woofer

1 Review

Technical Highlights

  • Power 125 W/RMS, 250 W/MAX, impedance is 4 Ω.
  • Frequency response from 55 to 5000 Hz, voice coil 30.5 mm.
  • Cast aluminum basket, phase plug made of aluminum composite.
  • More technical details
€149,00
€149,00 €149,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
Apr 10, - Apr 13,
x Couple
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €12,41 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

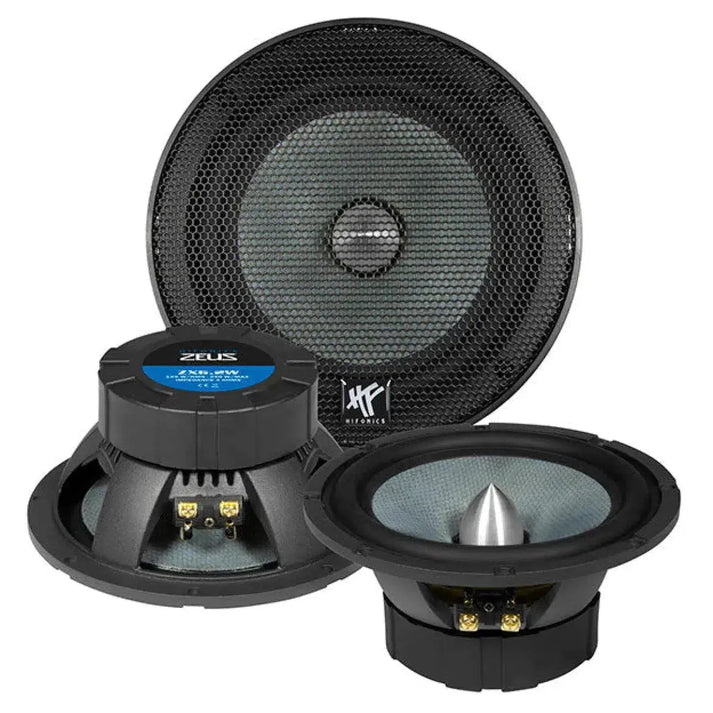

Three Hifonics Zeus ZX6.2W car speakers are shown: one upright with mesh cover, one angled to show the back label, and one forward highlighting the cone and metal center cap.
€149,00
€149,00 €149,00

Zeus ZX6.2W by Hifonics

Hifonics Zeus ZX6.2W is a 16.5 cm 6.5 inch mid-bass driver from Hifonics in the Zeus series. The driver features an aluminum die-cast basket, an aluminum phase plug, and a 3-layer fiberglass sandwich cone. The drive includes a magnet weighing 397 g and a 30.5 mm voice coil. The mechanical stroke is ±11 mm. The impedance is 4 Ohms. The power handling is 125 W RMS and 250 W Max. The frequency response ranges from 55 to 5000 Hz. The dimensions are 144 mm in diameter with a mounting depth of 70 mm.

Features
  • 16.5 cm 6.5 inch mid-bass driver
  • Aluminum die-cast basket
  • Aluminum phase plug
  • 3-layer fiberglass sandwich cone
  • Impedance 4 Ohms
  • Power RMS 125 W
  • Power Max 250 W
  • Diameter 144 mm
  • Mounting depth 70 mm
Technical Specifications
  • Frequency response 55–5000 Hz
  • Voice coil 30.5 mm
  • Magnet drive 397 g
  • Mechanical stroke ±11 mm

Your benefits at Masori

Frequently Asked Questions about Zeus ZX6.2W

What is the membrane of the Zeus ZX-6.2W made of?

The membrane of the Zeus ZX-6.2W from Hifonics is made of a triple fiberglass composite material. This sandwich construction combines the lightweight nature of fiberglass with exceptional stability. This combination ensures excellent acoustic performance and contributes to a particularly linear frequency response. The advantages of the material are its high strength and stiffness, which keep distortion to a minimum during vibration. Thus, a clear sound image is guaranteed even at high volumes, which is especially appreciated in car Hi-Fi installations.

What type of voice coil does the Zeus ZX-6.2W have?

The Zeus ZX-6.2W is equipped with a 30.5 mm voice coil. This size is crucial for the speaker's performance, as a larger voice coil can convert more electrical energy into mechanical energy. This design allows for a greater mechanical excursion, which for the Zeus ZX-6.2W is up to +/- 11 mm. This characteristic significantly enhances the efficiency and durability of the speaker, especially when it comes to reproducing low frequencies, for which the Zeus ZX-6.2W is designed as a kick bass speaker.

What enclosure depth does the Zeus ZX-6.2W require for installation?

The installation depth of the Zeus ZX-6.2W is 70 mm, which must be taken into account when planning the installation in a vehicle. The diameter of the speaker is 144 mm. Since the measurement of 70 mm is considered relatively slim, the speaker can be installed in many vehicle variants where there is little space for conventional speaker types. The aluminum die-cast basket also provides stability and helps the structure not to deform during installation. A clean installation requires precise preparation and a suitable mounting space.

How powerful is the Zeus ZX-6.2W speaker from Hifonics?

The Zeus ZX-6.2W from Hifonics has a power output of 125 Watts RMS and a maximum load capacity of 250 Watts. This means that the speaker can maintain a continuous power of 125 Watts while being capable of handling short-term peaks of up to 250 Watts. These specifications make the speaker particularly suitable for applications where high volume and powerful bass are desired, without the risk of overloading. Ideal for use in high-performance car audio systems.

What frequency range is covered by the Zeus ZX-6.2W?

The Zeus ZX-6.2W covers a frequency range from 55 Hz to 5000 Hz. This makes it the ideal kick bass speaker, efficiently reproducing low frequencies while sounding clean even in the lower midrange. The linear representation of this frequency response ensures that sound fidelity and detail reproduction are maintained in a comprehensive audio setup. Especially in combinations within a 3-way system, the separation of frequencies can be precisely tuned to optimize the individual role of each speaker component.

Is the Zeus ZX-6.2W suitable for multi-way systems?

Yes, the Zeus ZX-6.2W is designed for 3-way systems and allows for easy integration of additional speaker components. With the ZXO-2 Crossover, the optional midrange speaker ZXM3 can be seamlessly integrated. To do this, the jumpers on the crossover simply need to be switched to 3-way operation, and the midrange speaker is connected with a bandpass crossover. This flexibility in use allows for the creation of comprehensive audio experiences that are perfectly tailored to the acoustic conditions of the vehicle.

What type of magnetic drive does the Zeus ZX-6.2W use?

The Zeus ZX-6.2W utilizes a powerful magnetic drive weighing 14 ounces. This type of magnetic drive is crucial for the speaker's performance, as it allows for precise and powerful movement of the diaphragm. The combination of strong magnetic force with the large-sized voice coil maximizes the efficiency and performance of the speaker. Thus, sound can be reproduced at high volumes without distortion. The high magnetic force also improves the speaker's response speed to dynamic musical changes.

What materials are used in the construction of the Zeus ZX-6.2W?

High-quality materials are used in the construction of the Zeus ZX-6.2W. The aluminum die-cast basket provides a robust structure that offers the necessary stability and durability. The sandwich membrane consists of a triple fiberglass composite that is both lightweight and particularly stable. The aluminum phase plug improves radiation characteristics, which overall supports sound precision. This combination of materials is especially suitable for demanding audio applications where acoustic performance is paramount.

How is the Zeus ZX-6.2W installed in the car?

For the installation of the Zeus ZX-6.2W in the vehicle, attention must be paid to the installation dimensions, specifically a mounting depth of 70 mm and a diameter of 144 mm. A clean opening must be cut to securely place the speaker and properly attach the aluminum die-cast basket. Wiring also plays a crucial role, especially when connecting to the crossover. Utilizing the prepared functions for the optional midrange speaker requires a readjustment of the crossover. This is important for sound quality and integration into the audio system.

What impedance does the Zeus ZX-6.2W speaker have?

The Zeus ZX-6.2W speaker has an impedance of 4 Ω. This impedance is typical for many car hi-fi components and is compatible with most amplifiers and audio systems in vehicles designed for a 4-ohm load. The correct impedance is crucial to ensure that the speaker optimally converts electrical power. Mismatches could lead to power losses or overloads. Therefore, the 4-ohm impedance is a good choice for most standard and advanced audio systems that provide high-quality sound in the vehicle.
