SPL Show SS 15 D2
Technical Highlights
- 2400 W peak power, 75 mm dual voice coil, 2+2 ohm impedance.
- 15" cone, robust design, excellent sound quality.
- Durability, remarkable performance, non-pressed paper membrane.
- More technical details
Pay conveniently in 12 interest-free installments at €24,91 with Klarna .
Availability for pickups could not be loaded.
Shipping cost calculator
Shipping cost calculator
Rob
Max
Unsure if this product fits your car?
We help you – quickly, personally, and without obligation.
Fill out the form and we'll send you a personalised offer
This product is not universally compatible. Send us your vehicle details and we will check fitment for your model free of charge.

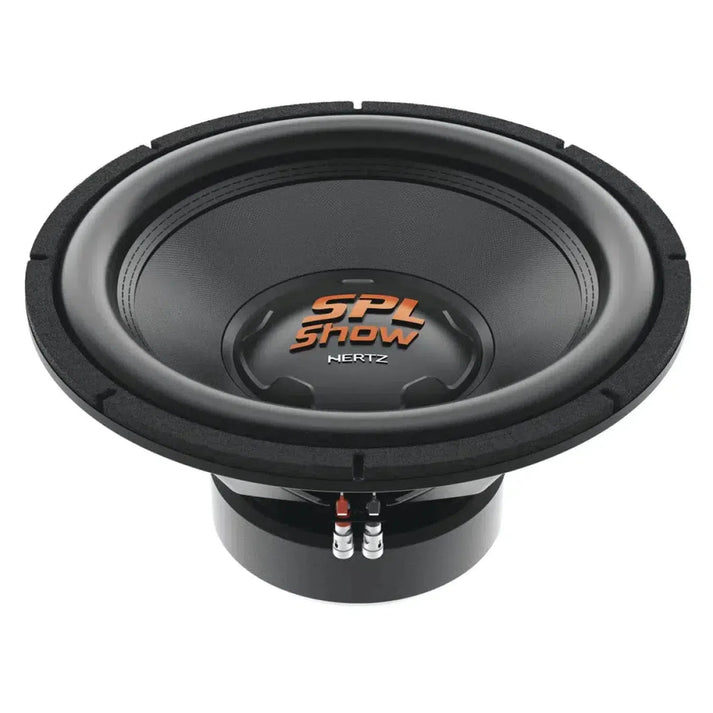

SPL Show SS 15 D2 by Hertz
Hertz SPL Show SS 15 D2 is a 15 inch Subwoofer with 38 cm nominal size and 2 + 2 Ohm dual voice coil. The voice coil has a diameter of 75 mm in 4-layer configuration, the RMS power handling is 1200 W and the peak power handling is 2400 W. The diaphragm is made of non-pressed paper with cotton fiber, the magnet is made of ferrite with dimensions 180 x 90 x 40 mm. The installation depth is 210 mm, the weight is 10.1 kg, and the total diameter is specified as 380 mm. Xmax is 15.4 mm, Xmech 20.7 mm, the resonance frequency Fs is 31 Hz and Vas is 68.83 l. Re is 0.96 Ohm, Le 1 mH, SPL 88 dB, BL 10 Tm, Qts 0.61, Qes 0.66, and Qms 7.4. Equipped with 12 AWG nickel-plated connectors, multi-layer foam surround, double-layer spider with progressive profile, as well as oversized suspension and connection cables.
- 15 inch 38 cm Subwoofer
- RMS power 1200 W
- Peak power 2400 W
- Impedance 2 + 2 Ohm
- Dual voice coil 75 mm, 4-layer
- Diaphragm non-pressed paper with cotton fiber
- Multi-layer foam surround
- Double-layer spider with progressive profile
- Oversized suspension and connection cables
- Ferrite magnet
- 12 AWG nickel-plated connectors
- Diameter 380 mm
- Installation depth 210 mm
- Mounting hole 353 mm
- Magnet size 180 x 90 x 40 mm
- Weight 10.1 kg
- Xmax 15.4 mm
- Xmech 20.7 mm
- Voice coil type dual
- Voice coil Ø 75 mm
- Re 0.96 Ohm
- Fs 31 Hz
- Le 1 mH
- Vas 68.83 l
- Mms 361 g
- Cms 0.07 mm/N
- BL 10 Tm
- Qts 0.61
- Qes 0.66
- Qms 7.4
- SPL 88 dB
- D 323 mm
- Size 380 mm
- Depth 210 mm
- Magnet Ferrite
- Weight 10.1 kg
- Magnet size 180 x 90 x 40 mm
- Physical specifications A 390 mm, B 353 mm, C 210 mm, D 188 mm
- Sealed Box Volume 80 l
- Sealed Box FC 42 Hz
- Sealed Box Qtc 0.83
- Sealed Box External dimensions W x H x D 700 x 480 x 330 mm
- Sealed Box Mounting hole 353 mm
- Sealed Box Wood thickness 19 mm
- Sheet cutting list sealed A 700 x 480 mm Quantity 2
- Sheet cutting list sealed B 700 x 292 mm Quantity 2
- Sheet cutting list sealed C 442 x 292 mm Quantity 2
- Reflex Box Volume 120 l
- Reflex Box Fb 38 Hz
- Reflex Box External dimensions W x H x D 900 x 480 x 380 mm
- Reflex Box Mounting hole 353 mm
- Reflex Box Wood thickness 19 mm
- Reflex Box BR-Port Inner diameter 160 mm
- Reflex Box BR-Port Length 220 mm
- Sheet cutting list Reflex A 900 x 480 mm Quantity 2
- Sheet cutting list Reflex B 900 x 342 mm Quantity 2
- Sheet cutting list Reflex C 442 x 342 mm Quantity 2
