Vehicle Search

  3. Radioactive GZRW 10XSPL
Ground Zero Radioactive GZRW 10XSPL 10" (25cm) Subwoofer
SKU:  GROU0191
EAN:  4037072018318

5 Reviews

800 Watt

Radioactive GZRW 10XSPL

SKU:  GROU0191
EAN:  4037072018318

5 Reviews

Technical Highlights

  • Power 800/1200 Watts, impedance 2x 2 Ohms, efficiency 82 dB.
  • Resonance frequency 44.3 Hz, total quality factor 0.749, max. displacement 30 mm.
  • 63 mm copper voice coil, 2-layer polycot centering, Ø 25 cm.
  • More technical details
00 d
00 h
00 m
00 s
€169,00
-19% €209,00 €169,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 29, - Jun 1,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €14,08 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

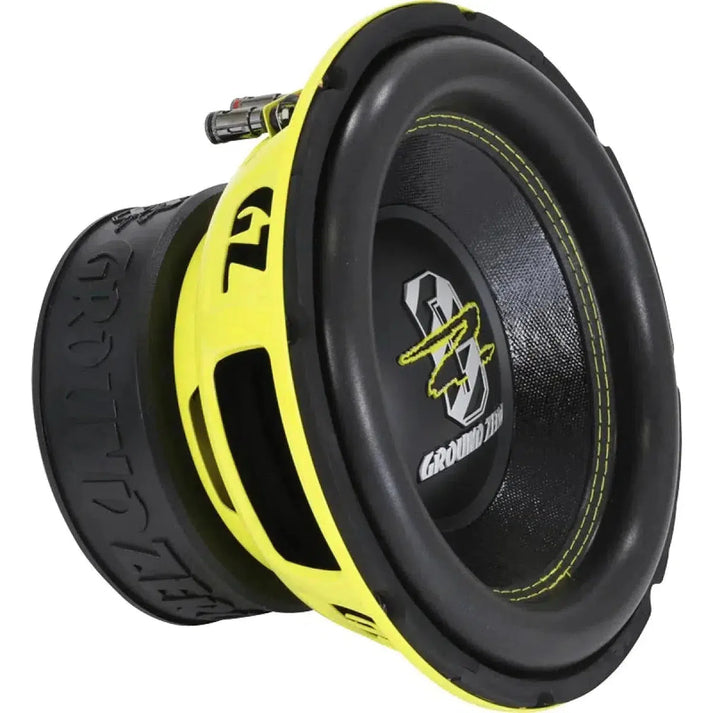

The Ground Zero Radioactive GZRW 10XSPL is a large black and yellow 10 subwoofer with cone logo and visible SPL wiring on the side.
€169,00
€209,00 €169,00

Radioactive GZRW 10XSPL by Ground Zero

Radioactive GZRW 10XSPL is a 10-inch (25 cm) Subwoofer from Ground Zero in high-quality SPL design. The construction is Klippel® optimized and uses a reinforced paper cone. A long-stroke sandwich surround and a low-resonance steel basket are integrated. A 63 mm copper voice coil and a 2-layer polycot centering are installed. The IMPP dust cap with 3D logo complements the design. Technical specifications include an impedance of 2 x 2 Ohm, an RMS power handling of 800 watts, and an SPL power handling of 1200 watts. The efficiency is 82 dB, the recommended power is 600 to 1200 watts, and the maximum excursion is 30 mm. Other values: installation diameter 228 mm and installation depth 150 mm as well as Fs 44.3 Hz, Qts 0.749, and Vas 9.0 l.

Features
  • 10-inch (25 cm) Subwoofer
  • SPL Subwoofer
  • Klippel® optimized
  • Reinforced paper cone
  • Long-stroke sandwich surround
  • Low-resonance steel basket
  • 63 mm copper voice coil
  • 2-layer polycot centering
  • IMPP dust cap with 3D logo
  • Installation diameter 228 mm
  • Installation depth 150 mm
Technical Data
  • Diameter: 25 cm
  • RMS power handling: 800 watts
  • SPL power handling: 1200 watts
  • Impedance: 2 x 2 Ohm
  • Efficiency: 82 dB
  • Recommended power: 600–1200 watts
  • Max. excursion (Xmax): 30 mm
  • Resonance frequency (Fs): 44.3 Hz
  • Total quality (Qts): 0.749
  • Equivalent air volume (Vas): 9.0 l

Your benefits at Masori

Frequently Asked Questions about Radioactive GZRW 10XSPL

What technical advantages does the Radioactive GZRW 10XSPL offer?

The Radioactive GZRW 10XSPL offers a variety of technical advantages, including a fiber-reinforced paper diaphragm that ensures clear sound quality. The Klippel® optimization improves linearity and minimizes mechanical distortions. The long-stroke sandwich surround allows for high sound enjoyment, while the resonance steel basket saves weight and reduces resonances. A 63 mm diameter copper voice coil provides high load capacity and efficiency. The 2-layer polycotton centering stabilizes the diaphragm during movement. The IMPP dust cap with a 3D logo protects and supports the stability of the sound image. All these aspects make the Subwoofer an outstanding product in the SPL range.

What is the load capacity of the Radioactive GZRW 10XSPL?

The Radioactive GZRW 10XSPL has an impressive load capacity of 800 watts RMS and 1200 watts SPL. This high load capacity, combined with the powerful 63 mm copper voice coil, allows for significant volume without compromising sound quality. The recommended amplifier power is between 600 and 1200 watts, so you can operate the Subwoofer with optimal performance and effectiveness, both in demanding SPL use and in everyday use. Especially if you enjoy listening to music loudly, this capability is a great advantage.

What is the resonance frequency of the Radioactive GZRW 10XSPL?

The resonance frequency of the Radioactive GZRW 10XSPL is 44.3 Hz. This frequency indicates the point at which the Subwoofer resonates naturally in free field. A low resonance value like this is ideal for deep, rich bass, especially in an SPL setup. Along with a total quality factor of 0.749 and an equivalent air volume of 9.0 liters, this resonance frequency ensures impressive bass that is suitable for a variety of different music styles and applications. This allows you to expect powerful and precise bass sound.

What are the installation requirements for the Radioactive GZRW 10XSPL?

The Radioactive GZRW 10XSPL has specific installation dimensions that must be considered during installation. The installation diameter is 228 mm, while the installation depth is 150 mm. These dimensions allow for relatively flexible installation in many vehicle models, as long as there is enough space to accommodate the depth of 150 mm. It is important to ensure that the Subwoofer is securely mounted in the enclosure or at the desired location to avoid compromising sound quality due to vibrations or loose parts. These are crucial steps for optimal sound reproduction.

What characterizes the membrane of the Radioactive GZRW 10XSPL?

The membrane of the Radioactive GZRW 10XSPL is made of reinforced paper, known for its lightness and stiffness. This material choice is crucial for reproducing clear and distortion-free sounds, even at high volumes. Reinforced paper allows for a quick response to changes in the music signal, thus contributing to the overall dynamics of the sound. The combination of this membrane with Klippel® optimization and the long-stroke sandwich surround ensures an extremely precise bass sound that excels in both SPL and normal applications.

Can I install the Radioactive GZRW 10XSPL in my car?

Yes, the Radioactive GZRW 10XSPL can be installed in many vehicles, provided the installation space offers enough room for the installation diameter of 228 mm and the installation depth of 150 mm. These dimensions fit into numerous standard enclosures and are suitable for custom adaptation to your vehicle's needs. The universal impedance of 2x 2 Ohm also offers many wiring options and is compatible with a wide range of Amplifiers. It is important to ensure that the amplifier power covers the recommended range of 600 to 1200 watts.

How does the Klippel® optimization affect the Radioactive GZRW 10XSPL?

The Klippel® optimization in the Radioactive GZRW 10XSPL maximizes linearity and reduces mechanical distortions. This process improves the overall performance of the Subwoofer by optimizing the movements of the voice coil under a constant magnetic field. This optimization is crucial for minimizing sonic impurities, especially at high volumes, ensuring that the sound image remains clear and precise even at high levels. The resulting sound is balanced and powerful, supported by additional technical features such as the fiber-reinforced paper diaphragm.

What is the impedance of the Radioactive GZRW 10XSPL?

The Radioactive GZRW 10XSPL features a dual voice coil configuration with an impedance of 2x 2 ohms. This flexible configuration allows for a variety of connection options that can be tailored to the available amplifier and desired sound goals. The lower impedance of 2x 2 ohms is excellent for maximizing the full power of an amplifier, resulting in powerful and precise bass sound. When selecting an amplifier, make sure it is compatible with this impedance to achieve optimal performance.

What are the Thiele-Small parameters of the Radioactive GZRW 10XSPL?

The Thiele-Small parameters of the Radioactive GZRW 10XSPL include a resonance frequency (Fs) of 44.3 Hz, a total Q factor (Qts) of 0.749, and an equivalent air volume (Vas) of 9.0 liters. These parameters are crucial for tuning the Subwoofer in a cabinet and significantly influence bass reproduction. A low resonance frequency supports deep bass playback, while the total Q factor describes the damping level and control of diaphragm movement. Together, these parameters contribute to producing a precise and powerful bass sound that impresses across a variety of music styles.

What is the maximum excursion (Xmax) of the Radioactive GZRW 10XSPL?

The Radioactive GZRW 10XSPL has a maximum excursion (Xmax) of 30 mm. This measurement indicates how far the diaphragm can move forward and backward without distortion or damage. A larger Xmax means that the Subwoofer moves more air, thus producing deeper and more powerful bass. This is especially important for SPL (Sound Pressure Level) applications, where high sound pressure is required. This technical specification is crucial if you aim for extremely powerful bass reproduction.
