Ground Zero GZFH 1.20 IL-MANL Fuse Holder
SKU:  GROU0277
EAN:  4037072011548

2 Reviews

GZFH 1.20 IL-MANL

SKU:  GROU0277
EAN:  4037072011548

2 Reviews

Technical Highlights

  • 20 mm² input and output, screw connections, anodized copper.
  • Inline Mini-ANL, waterproof design, robust construction.
  • Recommended fuse values of 90 A to 100 A at 20 mm².
  • More technical details
€7,50
€7,50 €7,50
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 29, - Jun 1,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

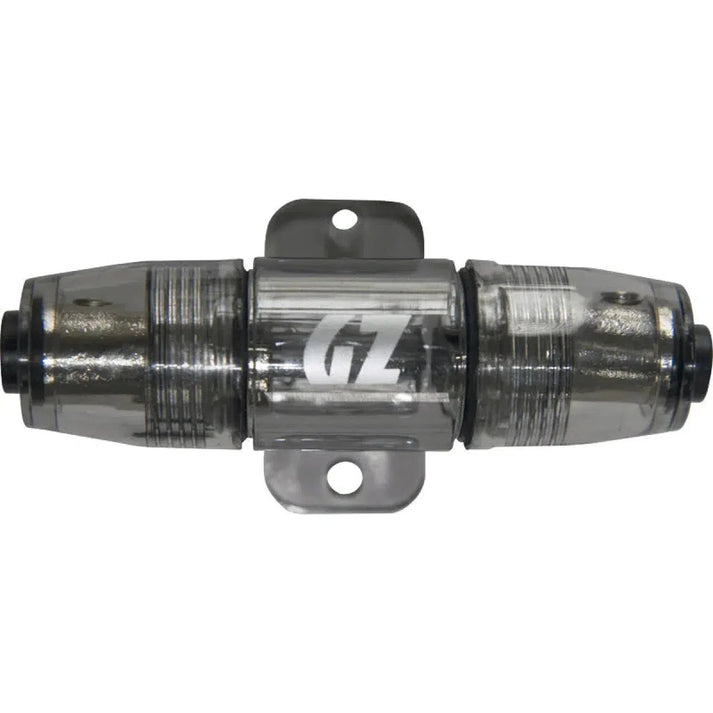

The Ground Zero GZFH 1.20 IL-MANL is a transparent 20 mm² inline Mini-ANL fuse holder with metal terminals, mounting bracket, and side GZ logo.
€7,50
€7,50 €7,50

GZFH 1.20 IL-MANL by Ground Zero

GZFH 1.20 IL-MANL is a Fuse Holder from Ground Zero in Inline Mini-ANL design. The model is waterproof. The input and output are designed for 20 mm². The connections are screw terminals made of solid anodized copper. Recommended fuse values depending on cable cross-section from 1.5 mm² to 95 mm² with optimal 10 A to a maximum of 300 A are specified.

Features
  • Fuse Holder
  • Inline Mini-ANL
  • 20 mm² input and output
  • Waterproof
  • Screw terminals made of solid anodized copper
Technical Data
  • 1.5 mm²: optimal fuse value 10 A, maximum fuse value 15 A
  • 2.5 mm²: optimal fuse value 20 A, maximum fuse value 25 A
  • 4.0 mm²: optimal fuse value 25 A, maximum fuse value 30 A
  • 6.0 mm²: optimal fuse value 35 A, maximum fuse value 40 A
  • 10 mm²: optimal fuse value 50 A, maximum fuse value 60 A
  • 16 mm²: optimal fuse value 70 A, maximum fuse value 80 A
  • 20 mm²: optimal fuse value 90 A, maximum fuse value 100 A
  • 25 mm²: optimal fuse value 100 A, maximum fuse value 125 A
  • 35 mm²: optimal fuse value 125 A, maximum fuse value 150 A
  • 50 mm²: optimal fuse value 160 A, maximum fuse value 200 A
  • 70 mm²: optimal fuse value 200 A, maximum fuse value 250 A
  • 95 mm²: optimal fuse value 250 A, maximum fuse value 300 A

Your benefits at Masori

Frequently Asked Questions about GZFH 1.20 IL-MANL

How does the Inline Mini-ANL Fuse Holder GZFH 1.20 IL-MANL from Ground Zero work?

The GZFH 1.20 IL-MANL from Ground Zero is an Inline Mini-ANL Fuse Holder that stands out primarily due to its waterproof design. The waterproofing ensures reliability under various conditions. The fuse holder features screw terminals made of solid anodized copper to ensure secure and stable connections. With an input and output cross-section of 20 mm², it allows for smooth current flow with minimal resistance. By choosing the correct fuse ratings, which are detailed in the product description, optimal performance and safe operation can be achieved.

What are the technical specifications of the GZFH 1.20 IL-MANL Fuse Holder?

The GZFH 1.20 IL-MANL Fuse Holder from Ground Zero has a 20 mm² input and output and is made of solid anodized copper. This contributes to improved conductivity and durability. It is waterproof, allowing use in damp environments without compromising functionality. The screw terminals provide a permanent and secure connection. Mini-ANL fuses are used, with recommended fuse ratings defined for different cable cross-sections to ensure optimal performance. These range from 10 A at 1.5 mm² to 300 A at 95 mm².

How do the cable cross-sections affect the use of the GZFH 1.20 IL-MANL?

The choice of cable cross-section is crucial for the safe operation of the GZFH 1.20 IL-MANL Fuse Holder. Different cross-sections require specific fuse ratings to avoid overload. For example, a fuse between 10 A and a maximum of 15 A should be used for a cable cross-section of 1.5 mm², while for 20 mm², the optimal value is 90 A and the maximum value is 100 A. It is essential to observe these values to avoid overloading the electrical system and to optimize the performance of the fuse holder. This selection ensures both efficiency and safety.

What role do the screw terminals play in the GZFH 1.20 IL-MANL Fuse Holder?

The screw connections of the GZFH 1.20 IL-MANL Fuse Holder provide a robust and secure attachment for the connection cables. Made from solid anodized copper, they ensure excellent electrical conductivity and reduce contact resistance. Especially in applications where vibrations or mechanical stresses may occur, these screw connections provide a durable connection that can easily handle high currents. Additionally, the design of the screw connections allows for easy and repeated assembly and disassembly, which is advantageous during maintenance or when replacing fuses.

Why is the waterproof design of the GZFH 1.20 IL-MANL important?

The waterproof design of the GZFH 1.20 IL-MANL Fuse Holder from Ground Zero is crucial as it allows the holder to be used in environments where moisture and water may be present. This increases its applicability in boats, outdoor installations, or in damp vehicle areas. The waterproofing protects the electrical connections from corrosion and short circuits that could otherwise arise from moisture exposure. This ensures the functionality and safety of the Fuse Holder even under adverse conditions. Therefore, it is an essential feature for applications in challenging environments.

What fuse ratings are recommended for the GZFH 1.20 IL-MANL?

For the GZFH 1.20 IL-MANL Fuse Holder, recommended fuse ratings are critical depending on the cable cross-section used. For example, a 10 A fuse should be used for 1.5 mm² cables to fully utilize the maximum current capacity, while an optimal fuse rating of 90 A is recommended for 20 mm² cables. The correct choice of these values ensures both functional efficiency and electrical safety. An excessive load from mismatched fuses can lead to overheating, which is why the presented values should be strictly adhered to in order to avoid damage.

How is the GZFH 1.20 IL-MANL suitable for different applications?

The GZFH 1.20 IL-MANL Fuse Holder is suitable for a wide range of applications due to its robust construction and technical features. Its solid structure made of anodized copper and its waterproofing make it ideal for use in vehicle environments as well as in marine or industrial setups. The various recommended fuse ratings combined with the appropriate cable cross-sections allow for tailored solutions that meet the specific requirements of each application area. Thus, it is versatile for both private and commercial needs, depending on the specific operating conditions.

How can the recommended cable cross-sections and fuse values be implemented in the GZFH 1.20 IL-MANL?

The implementation of the recommended cable cross-sections and fuse values in the GZFH 1.20 IL-MANL is crucial for its functionality. The values should be understood as guidelines to achieve the best possible operating current while maximizing safety. For example, a cross-section of 6.0 mm² can be optimally implemented with a fuse of 35 A, with the maximum value being 40 A. This specification minimizes energy losses and protects the installation from electrical damage. The selection should always be based on the specific requirements of the application as well as the maximum possible loads.

What are the advantages of the anodized copper of the screw terminals in the GZFH 1.20 IL-MANL?

The anodized copper of the screw terminals in the GZFH 1.20 IL-MANL offers numerous advantages. It ensures excellent electrical conductivity and minimizes electrical resistance, leading to efficient energy transfer. Additionally, the anodization protects the copper from oxidation and corrosion, thereby extending its lifespan and reducing the need for frequent maintenance. The robust material choice is particularly important in environments exposed to extreme temperatures or humidity. The design of the screw terminals also allows for sustainable installation, which keeps the connections stable through repeated tightening.

How do I correctly install the GZFH 1.20 IL-MANL fuse holder in the vehicle?

To correctly install the GZFH 1.20 IL-MANL fuse holder in the vehicle, several important steps are required. First, the cable cross-sections should be checked to choose the appropriate fuse values. The location should be selected to protect it from direct water exposure, even if the device is waterproof. The screw terminals must be securely fastened to ensure a stable connection. When integrating into the vehicle's electrical system, correct polarity must be observed, and the stability as well as the mechanical hold of the cables must be ensured to avoid vibration damage.
