3. Competition Pro GZCT 19N-PROX S

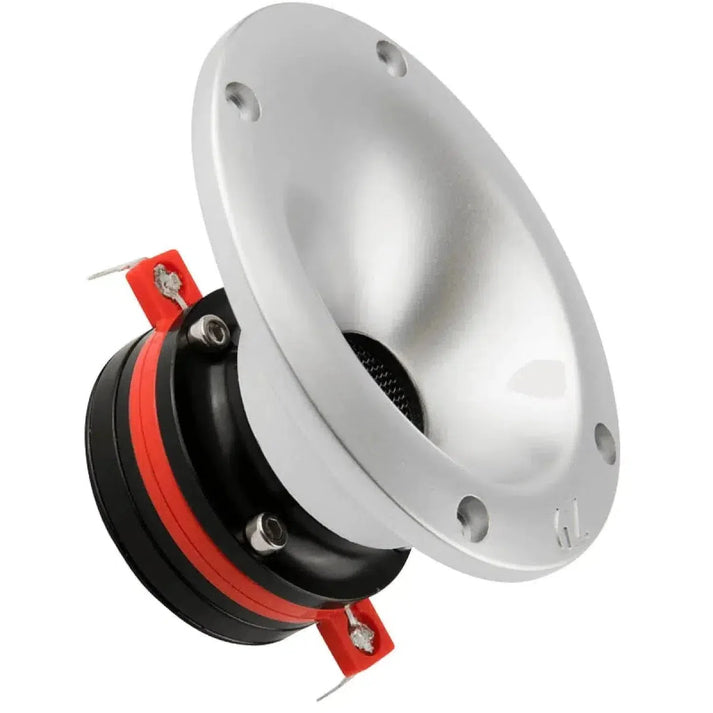

Ground Zero Competition Pro GZCT 19N-PROX S Horn tweeter

CYBER -15%

Ground Zero Competition Pro GZCT 19N-PROX S Horn tweeter

  • Power 30/100 W, impedance 4 Ohm, efficiency 109 dB.
  • Frequency response 3000 Hz–22 kHz, 25 mm CCA voice coil.
  • Neodymium magnet, titanium dome, cast aluminum housing.
  • Mehr technische Details
00
00
00
00
€135,15
€159,00 €135,15
5% Rabatt mit Vorkasse
inkl. VAT , possibly plus shipping
Klarna Bequem in 12 zinsfreien Raten à €11,26 mit Klarna zahlen.
Delivery to Home
Dec 6, - Dec 9,
x Piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa

Seen cheaper?

Shipping cost calculator

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

Deshalb wählen uns 100.000+ Kunden

Expert Image

Rob

Expert Image

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

Competition Pro GZCT 19N-PROX S by Ground Zero

The Competition Pro GZCT 19N-PROX S is a top-class horn tweeter developed by Ground Zero. This tweeter features, among other things, a 25 mm high-end compression, a neodymium drive, and a radiation angle of 60×80°. Other outstanding features include a 25 mm CCA voice coil, a polyester dome, a neodymium magnet, and an aluminum die-cast housing. Installation is made easy by the asymmetric wave guide and the solder connection. Let yourself be enchanted by the unique and impressive sound.

Features
  • High-End Compression Tweeter
  • 25 mm CCA voice coil
  • polyester cap
  • Neodymium Magnet
  • Aluminum die-cast housing
  • Asymmetric Wave Guide
  • solder connection
  • 1 pc. / packaging
data
  • Execution: High-end compression tweeter with neodymium drive
  • Diameter: 25 mm
  • Load capacity (RMS/max.): 30 / 100 Watts
  • Impedance: 4 Ohm
  • Efficiency: 109 dB
  • Frequency response: 3000 Hz – 22 kHz
  • Swing coil: 25 mm CCA
  • Kalotte: Titan
  • Installation Ø: 60 x 46 mm
  • Installation depth: 48 mm

Frequent questions about Competition Pro GZCT 19N-PROX S

Welche technischen Spezifikationen hat der Competition Pro GZCT 19N-PROX S?

The Horn Tweeter Competition Pro GZCT 19N-PROX S from Ground Zero is equipped with a 25 mm high-end compression driver and a neodymium motor. It has a radiation angle of 60×80° and combines components such as a 25 mm CCA voice coil, a polyester dome, and a neodymium magnet in a robust aluminum die-cast housing. With an RMS power handling of 30 watts and a maximum power handling of 100 watts, it delivers impressive sound and an efficiency of 109 dB. The frequency response ranges from 3000 Hz to 22 kHz, making it the ideal tweeter for high-fidelity applications, while the impedance is 4 ohms.

Wie einfach ist die Installation des Ground Zero Competition Pro GZCT 19N-PROX S?

The installation of the Competition Pro GZCT 19N-PROX S is straightforward thanks to the asymmetric Wave Guides and the solder connection. With a mounting diameter of 60 x 46 mm and a mounting depth of 48 mm, this tweeter can be seamlessly integrated into compatible installation spaces without major adjustments. The clearly defined mounting specifications and precise construction minimize installation obstacles and ensure optimal placement for ideal sound radiation. Just make sure not to overload the tweeter and operate it according to its load capacity to fully utilize the sound quality.

Welche Materialien werden beim Competition Pro GZCT 19N-PROX S verwendet?

The Competition Pro GZCT 19N-PROX S uses high-quality materials. The 25 mm CCA voice coil ensures efficient signal transmission, while the polyester dome contributes to clear sound reproduction. The neodymium magnet provides strong magnetic properties that ensure high sensitivity. The aluminum die-cast housing protects the internal components from unwanted influences and guarantees a long lifespan. These materials have been carefully selected to maximize acoustic performance while ensuring the durability and stability of the tweeter in various operating environments.

Wie verbessert der asymmetrische Wave Guide des GZCT 19N-PROX S den Klang?

The asymmetric wave guide of the Competition Pro GZCT 19N-PROX S optimizes the directional characteristics and sound distribution of the tweeter, achieving an even and wide sound coverage. The special shaping of this wave guide radiates sound energy in a controlled pattern, resulting in improved clarity and detail fidelity in sound reproduction. This technique minimizes unwanted reflections and interferences that can impair sound quality. It is particularly advantageous in acoustically demanding environments where precise sound distribution is crucial for an optimal sound image.

Welche Leistungswerte hat der Hochtöner GZCT 19N-PROX S?

The Competition Pro GZCT 19N-PROX S from Ground Zero impresses with outstanding performance specifications. It offers an RMS power handling of 30 watts and can handle peak power up to 100 watts. The impedance is 4 ohms, making it compatible with most common audio amplifiers. The efficiency of 109 dB makes it particularly efficient and ensures that high volume levels are achieved even with moderate amplifier power. The frequency response of the tweeter ranges from 3000 Hz to 22 kHz, allowing for clear and detailed reproduction of high frequencies, ideal for professional audio projects.

Welche Kompatibilität bietet der Ground Zero GZCT 19N-PROX S für gewöhnliche Fahrzeugmodelle?

The tweeter Ground Zero Competition Pro GZCT 19N-PROX S fits into many common vehicle models with its installation diameter of 60 x 46 mm and installation depth of 48 mm. The tweeter does not specifically address certain car brands, but the universal dimensions are optimized for easy adaptation in various installation spaces. When installing in a car, make sure that the dimensions do not exceed the available space and that the connection is soldered correctly to ensure maximum audiovisual enjoyment. Such adaptability makes this tweeter a valuable addition to most in-vehicle sound systems.

Was ist der Vorteil der Polyesterkalotte im Hochtöner GZCT 19N-PROX S?

The use of a polyester dome in the Competition Pro GZCT 19N-PROX S offers several acoustic advantages. Polyester is characterized by high stiffness and low weight, allowing for fast and precise sound radiation. These properties minimize distortion and contribute to the clarity and transparency of the sound. Additionally, polyester is resistant to temperature and humidity, which increases the durability and stability of the tweeter in different environments. This makes this tweeter excellent for applications where consistent sound quality is required regardless of external influences.

Wie beeinflusst der Neodym-Magnet im GZCT 19N-PROX S die Leistung?

A neodymium magnet in the Competition Pro GZCT 19N-PROX S provides high magnetic field strengths in compact dimensions. This enables a strong driving force on the voice coil, resulting in efficient and precise sound conversion. Neodymium magnets are lighter than conventional ferrite magnets, which reduces the overall mass of the tweeter and facilitates installation. Furthermore, the neodymium magnet contributes to the high sensitivity of 109 dB, ensuring that the tweeter remains particularly powerful and dynamic even at low amplifier power levels. These characteristics make the neodymium magnet optimal for use in high-quality audio systems.

Wie wirkt sich die Schwingspule des GZCT 19N-PROX S auf die Klangwiedergabe aus?

The 25 mm CCA voice coil of the Ground Zero Competition Pro GZCT 19N-PROX S significantly contributes to sound quality. The copper coating of the aluminum wire (CCA) allows for a lighter construction that ensures quick responses to input signals. This material results in lower power consumption during diaphragm movement, which means more precise response behavior and less amplifier load. As a result, the tweeter delivers a wide and rounded sound reproduction, particularly impressive in the higher frequency ranges. An efficient voice coil is therefore central to the crystal-clear sound that this tweeter offers.

Was macht das Aluminiumguss-Gehäuse des Competition Pro GZCT 19N-PROX S besonders?

The aluminum die-cast housing of the Competition Pro GZCT 19N-PROX S offers both structural integrity and efficient heat dissipation. Aluminum, a robust material, protects the internal components from mechanical influences and contributes to the long lifespan of the tweeter. The die-cast design allows for precise manufacturing tolerances, ensuring high performance and minimal noise distortion. Additionally, aluminum acts as an effective coolant, efficiently dissipating the heat generated by the magnet and the voice coil. This keeps the sound reproduction consistent and distortion-free even under high power demands, which is essential for demanding audio projects.
