  3. Xtreme EDX12D2-E3
Edge Xtreme EDX12D2-E3 12" (30cm) Subwoofer
SKU:  EDX12D2-E3
EAN:  5060661894764

3 Reviews

2000 Watt

Xtreme EDX12D2-E3

SKU:  EDX12D2-E3
EAN:  5060661894764

3 Reviews

Technical Highlights

  • 12" subwoofer, 2000W RMS, 4000W peak power.
  • Unpressed paper cone, bass reflex enclosure recommended.
  • 3 inch aluminum coil, 190mm magnet, 321mm diameter.
  • More technical details
00 d
00 h
00 m
00 s
€302,51
-24% €399,99 €302,51
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 2, - Jun 7,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €25,20 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Edge-Xtreme EDX12D2-E3-12" (30cm) Subwoofer-masori-kaufen
€302,51
€399,99 €302,51

Compatible with Xtreme EDX12D2-E3

  • Deaf Bonce-Apocalypse Atom 2.5K Pro-1-Kanal Verstärker-masori-kaufen Deaf Bonce-Apocalypse Atom 2.5K Pro-1-Kanal Verstärker-masori-kaufen
    2500 Watt

    Apocalypse Atom 2.5K Pro

    Deaf Bonce
    €349,00
    €349,00 €349,00
    Delivery
    Delivered automatically as soon as available from the supplier.
  • Soundigital-3000.1 EVO6-1-Kanal Verstärker-masori-kaufen Soundigital-3000.1 EVO6-1-Kanal Verstärker-masori-kaufen
    3000 Watt

    3000.1 EVO6

    Soundigital
    €269,00
    €269,00 €269,00
    Delivery
    May 29, - Jun 1,
  • DD Audio-UE-12.1-12" (30cm) Subwoofergehäuse-masori-kaufen DD Audio-UE-12.1-12" (30cm) Subwoofergehäuse-masori-kaufen

    UE-12.1

    DD Audio
    €149,00
    €149,00 €149,00
    Delivery
    Jun 2, - Jun 7,
  • DD Audio-UE-12.2-12" (30cm) Subwoofergehäuse-masori-kaufen DD Audio-UE-12.2-12" (30cm) Subwoofergehäuse-masori-kaufen

    UE-12.2

    DD Audio
    €269,00
    €269,00 €269,00
    Delivery
    Jun 2, - Jun 7,
  • A spool of Masori LSK2x2,5mm² OFC verdrillt blue speaker cable on a black reel is shown against a white background. A black spool of Masori LSK2x2,5mm² OFC verdrillt Lautsprecherkabel is displayed on a plain white background.

    LSK2x2.5mm² OFC twisted

    Masori
    €24,00
    €24,00 €24,00
    €2,40 m
    In stock
    May 29, - May 30,
  • Ground Zero-GZST 2B-Lautsprecherterminal-masori-kaufen
    SALE -33%

    GZST 2B

    Ground Zero
    €10,00
    €15,00 €10,00
    Delivery
    May 29, - Jun 1,

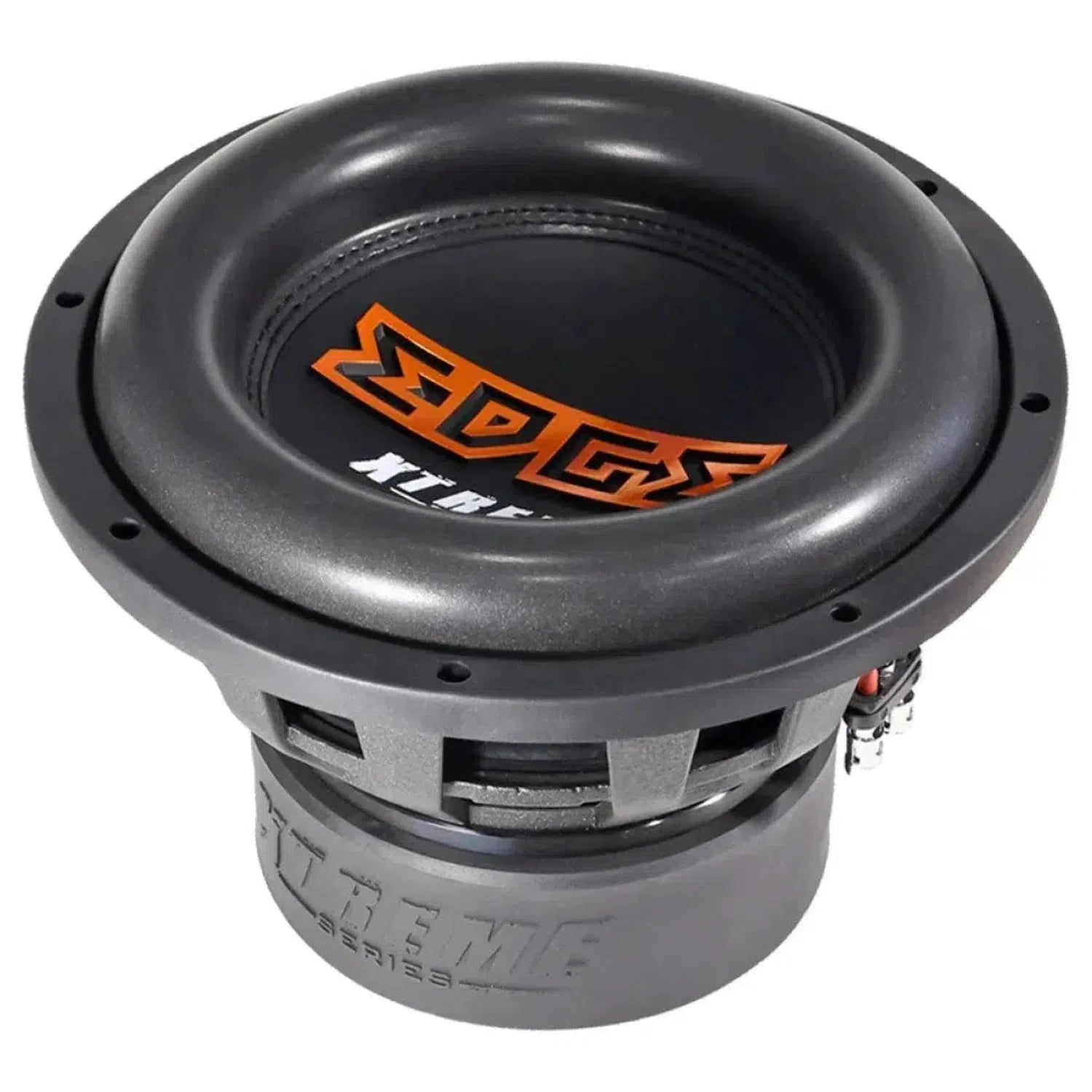

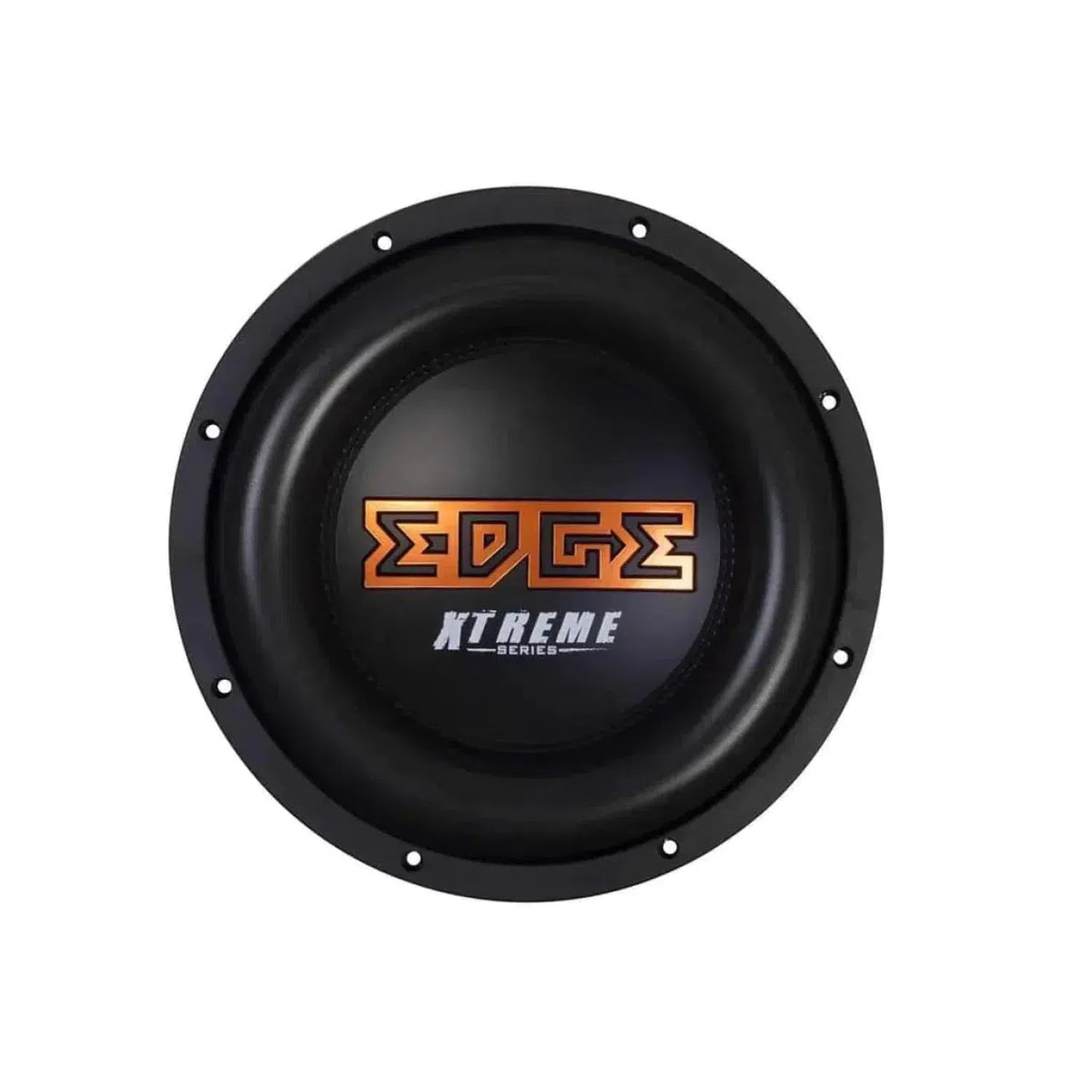

Xtreme EDX12D2-E3 by Edge

The Xtreme EDX12D2-E3 is a 12-inch (30 cm) Subwoofer from EDGE with an RMS power of 2000 W and a peak power of 4000 W. The impedance is double 2 Ohm. The cone is made of unpressed paper membrane, the surround is made of large roll foam, double stitched, and the dust cap is a custom processed IMPP. A 76.2 mm coil made of black aluminum and a spider made of 4 pieces of black Nomex are integrated. Other features include a rubber gasket, a 15 mm black anodized top plate, and a 15 mm flat, black anodized T-bar. The connection is made via a spring-loaded Plug with fittings for 8 mm² cables. The magnet is designed with 190 mm x 95 mm x 3 pieces. For the enclosure, a bass reflex with 49.5 liters and 133 cm² port at 40 cm length or 65 liters and 174 cm² port at 50 cm length is recommended, with a tuning frequency of 30–34 Hz; closed enclosure is not recommended, the dimensions are 321 mm outer diameter, 281 mm installation diameter, and 171 mm installation depth.

Features
  • 12-inch (30 cm) Subwoofer
  • Membrane: unpressed paper membrane
  • Surround: large roll foam, double stitched
  • Dust cap: custom processed IMPP
  • Gasket: rubber
  • Top plate: 15 mm, black anodized
  • T-bar: 15 mm, flat, black anodized
  • Dimensions: outer diameter 321 mm
  • Installation diameter: 281 mm
  • Installation depth: 171 mm
  • Enclosure: closed enclosure not recommended
  • Bass reflex enclosure minimum: 49.5 liters, port 133 cm², length 40 cm
  • Bass reflex enclosure optimal: 65 liters, port 174 cm², length 50 cm
  • Recommended tuning frequency: 30–34 Hz
Technical Data
  • Impedance: double 2 Ohm
  • RMS power: 2000 W
  • Peak power: 4000 W
  • Coil: 76.2 mm, black aluminum
  • Spider: 4 pieces, black Nomex

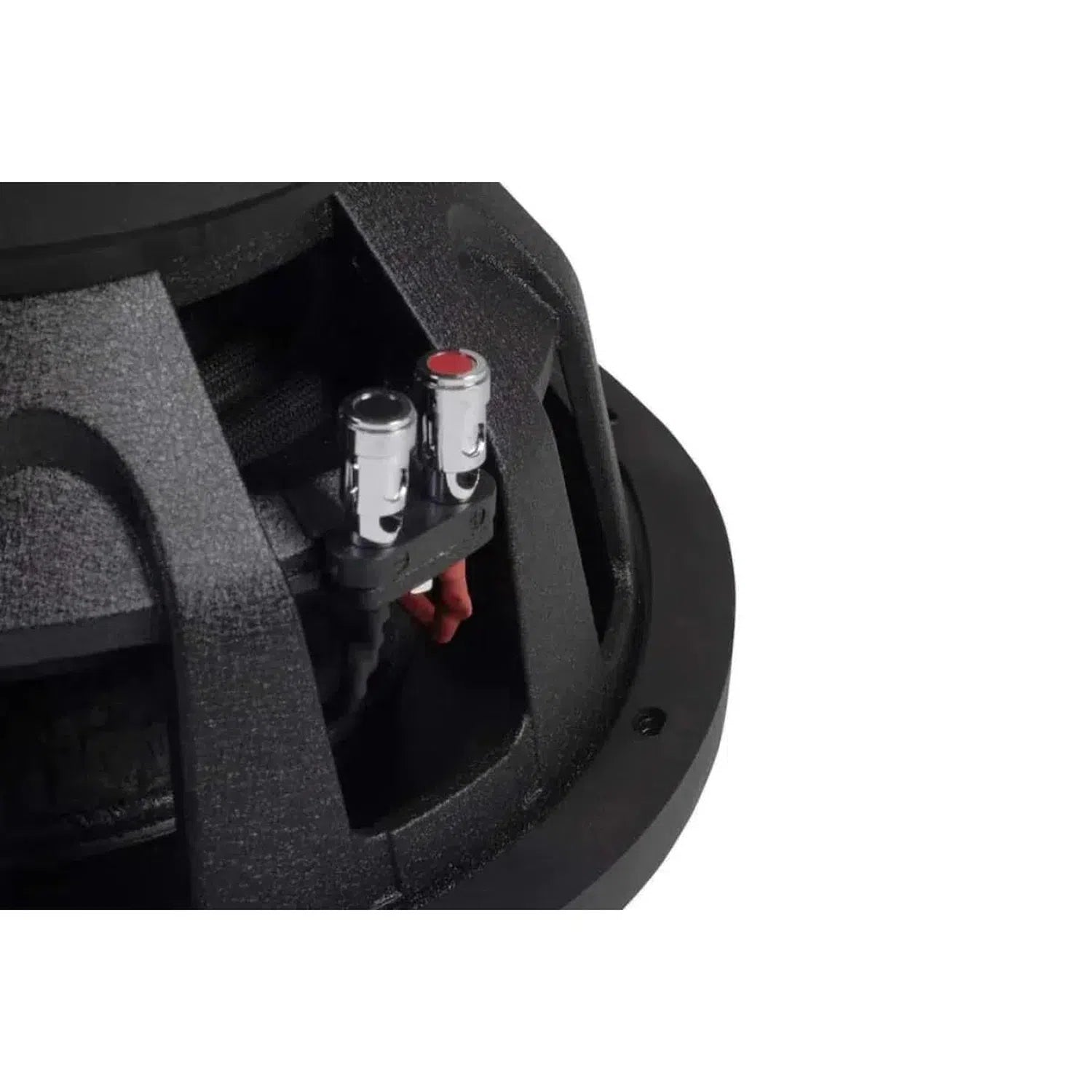

  • Terminal/Wire: spring-loaded Plug
  • Fittings: for 8 mm² cables

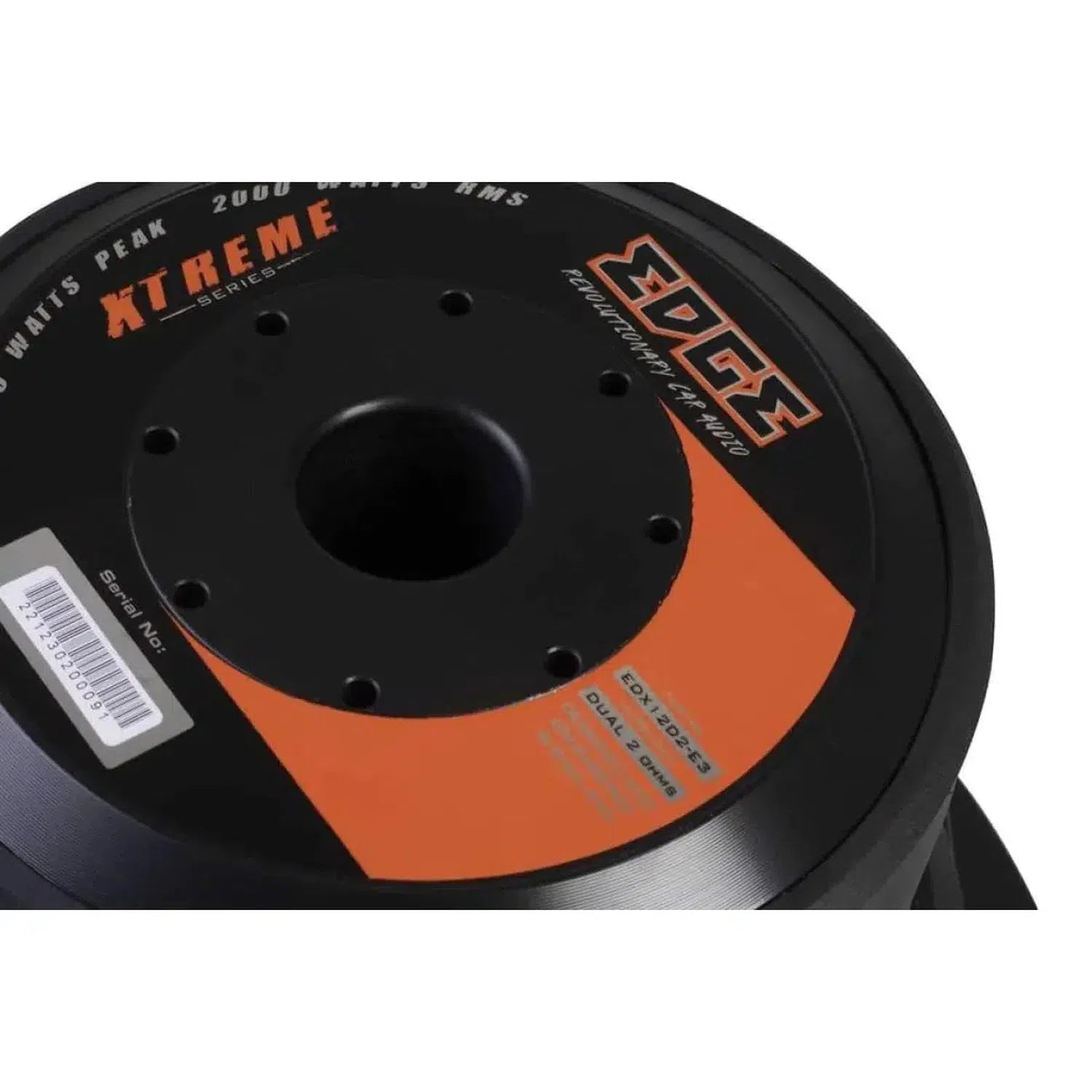

  • Magnet: 190 mm x 95 mm x 3 pieces

Your benefits at Masori

Edge Xtreme EDX12D2-E3 Datasheet

Open datasheet

Frequently Asked Questions about Xtreme EDX12D2-E3

How much power does the Xtreme EDX12D2-E3 Subwoofer have?

The Xtreme EDX12D2-E3 Subwoofer from Edge Car Audio offers an RMS power of 2000W, ensuring impressive sound quality and depth in the bass range. With a peak power of up to 4000W, you can experience clear and distortion-free sound even at high sound pressure levels. This makes it ideal for music lovers who value powerful and precise bass. By combining these power specifications with high-quality craftsmanship and special materials, the Subwoofer achieves top sound in the car. Perfectly tuned for a bass reflex enclosure, it also sustainably optimizes low-frequency reproduction.

What are the dimensions of the Xtreme EDX12D2-E3?

The Xtreme EDX12D2-E3 Subwoofer has specific dimensions that need to be considered for installation in various vehicles. Its outer diameter is 321mm, while the cutout diameter is 281mm. The mounting depth is designed to be 171mm. These measurements are important when planning and integrating into existing audio systems to ensure a precise installation. Correctly considering these dimensions protects against unexpected complications during installation and ensures optimal connection options and sound performance within the vehicle.

What enclosure is recommended for the Xtreme EDX12D2-E3?

A bass reflex enclosure is recommended for the Xtreme EDX12D2-E3 Subwoofer to optimally showcase its sound characteristics. A sealed enclosure is not suitable. The minimum enclosure recommendation is 49.5 liters with a port of 133cm² and 40cm in length, while the optimal enclosure has a volume of 65 liters with a port of 174cm² and 50cm in length. The correct tuning frequency should be between 30 and 34 Hz to effectively utilize the bass resonances. These specifications help you integrate the Subwoofer into your system in the best possible way.

What is the construction of the membrane of the Xtreme EDX12D2-E3?

The Xtreme EDX12D2-E3 Subwoofer uses an unpressed paper cone that ensures excellent sound quality and increases flexibility. A robust cone allows the subwoofer to operate precisely and without distortion even under high load. Combined with the custom-processed IMPP dust cap, stability is further enhanced, while the large roll foam serves as a base with a double approach to excellently handle mechanical stresses. These components ensure that the subwoofer delivers full sound quality and performance even at high volumes.

What impedance does the Xtreme EDX12D2-E3 Subwoofer have?

The Xtreme EDX12D2-E3 from Edge Car Audio features a dual impedance of 2 ohms. This configuration allows for flexible integration into various audio systems and enables the subwoofer to be integrated into both parallel and series connections with amplifiers. With a dual 2 ohm impedance, energy consumption efficiency can be maximized, resulting in better performance output. This is particularly advantageous for users who want to fully exploit the potential of their powerful sound systems.

What materials are used for the voice coil of the Xtreme EDX12D2-E3?

The voice coil of the Xtreme EDX12D2-E3 Subwoofer is made of a 3-inch black aluminum, which provides high thermal resilience. Aluminum is chosen for its excellent conductivity and light weight, allowing for efficient conversion of electrical energy into acoustic signals. The large dimension of the coil enables a high power limit to be reached while still ensuring precise and seamless playback. This is especially important to maintain consistent sound quality even at extreme volumes without compromising the integrity of the subwoofer.

What features does the spider of the Xtreme EDX12D2-E3 Subwoofer have?

The Xtreme EDX12D2-E3 Subwoofer is equipped with a spider made of 4 pieces of black Nomex, which provides excellent mechanical stability and heat resistance. Nomex is a material known for its high heat and flame resistance, making it ideal for applications in high-performance speakers. The 4-part construction allows for an even distribution of mechanical stress and also helps minimize distortion at high power levels. This technical finesse ensures that the Subwoofer remains fully operational under extreme conditions.

How is the Xtreme EDX12D2-E3 secured in the vehicle?

The securing of the Xtreme EDX12D2-E3 Subwoofer in the vehicle is done via spring-loaded terminals designed for 8mm² cables. These terminals allow for a secure connection and guarantee lossless signal transmission. The rubber seal ensures stable support and minimizes vibrations, enhancing overall performance. It is essential to carefully consider the dimensions of the Subwoofer and ensure that there is enough space for the 321mm outer diameter to allow for proper integration into your car's audio system and to avoid acoustic leaks.

What magnet does the Xtreme EDX12D2-E3 use?

The Xtreme EDX12D2-E3 Subwoofer uses a powerful magnet that consists of three parts and has dimensions of 190mm x 95mm. This robust magnet structure provides a strong magnetic field effect necessary to efficiently drive the voice coil, thus producing dynamic and deep bass. The high-quality construction of the magnet ensures concentric force distribution, so that even with intense use, there is no loss in sound quality. Such a construction underscores the high-performance claim of the Subwoofer.

Can the Xtreme EDX12D2-E3 be installed in a XYZ car?

The installation of the Xtreme EDX12D2-E3 Subwoofer in your vehicle heavily depends on the available space and installation depth. With a depth of 171mm and an outer diameter of 321mm, it is crucial to check the installation space in the respective model. There is no specific compatibility list for car brands or models, as the fit depends on the individual vehicle design. So make sure that appropriate measurements are available in the trunk or passenger area to allow for the perfect integration of the Subwoofer. A look at vehicle manuals or forums could provide additional insights.
