  3. Power Tuned 9912b ESP
DD Audio Power Tuned 9912b ESP 12" (30cm) Subwoofer
2500 Watt

Power Tuned 9912b ESP

Technical Highlights

  • Load capacity: RMS 2500 W, Peak 10000 W, Impedance: 1/2 Ohm.
  • DC resistance: 0.9 Ohm, Frequency response: 10-500 Hz.
  • Xmax: ±22 mm, Magnet weight: 1500 Oz, Aluminum die-cast basket.
  • More technical details
€1.399,00
€1.399,00 €1.399,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Impedance: D1 (2x1 Ohm)
SuperCharge: Yes
Delivery
May 21, - May 26,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €116,58 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

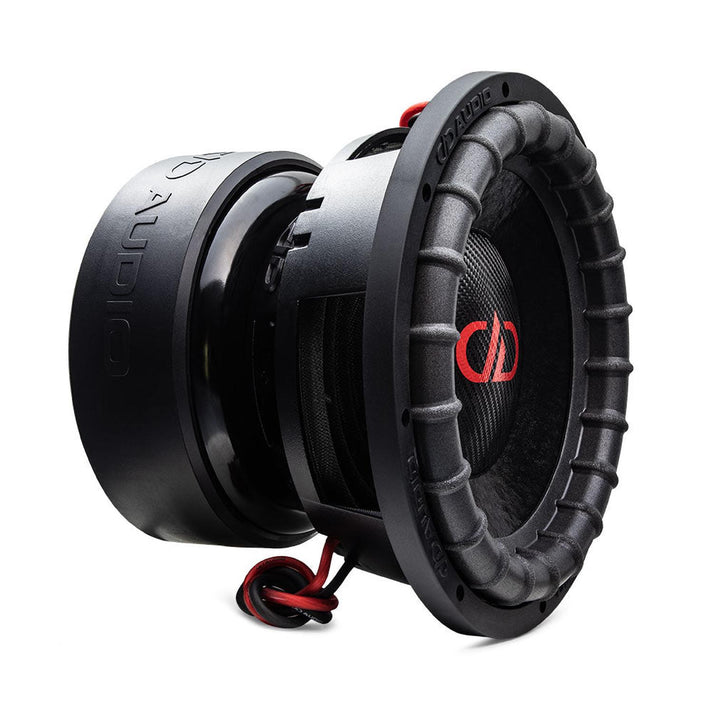

The DD Audio Power Tuned 9912b ESP is a 12 subwoofer with a rugged rim, carbon fiber cone, red wiring, and a red logo in the center, shown against a white background.
€1.399,00
€1.399,00 €1.399,00

Compatible with Power Tuned 9912b ESP

  • DD Audio-SS3000-1-Kanal Verstärker-masori-kaufen DD Audio-SS3000-1-Kanal Verstärker-masori-kaufen
    3000 Watt

    SS3000

    DD Audio
    €399,00
    €399,00 €399,00
    Delivery
    May 11, - May 16,
  • DD Audio-M2500-1-Kanal Verstärker-masori-kaufen DD Audio-M2500-1-Kanal Verstärker-masori-kaufen
    2500 Watt

    M2500

    DD Audio
    €799,00
    €799,00 €799,00
    Delivery
    May 11, - May 16,

Power Tuned 9912b ESP by DD Audio

The DD Audio Power Tuned 9912b ESP is a 12 inches (30 cm) Subwoofer with Carbon Fiber Blend Cone (CFB) and Vario-Density Extended Range of Motion Surround (V-ROM). The Tuned Spider System (TSS) and the Super-Frame (SFrame) are designed for excursion and heat flow. The RMS power is 2500 watts, and the peak power is 10000 watts. Impedance options are available in Dual 1 Ohm or Dual 2 Ohm. A patented ferrite magnet system, lossless linear suspension, and a ribbed foam surround are integrated. A magnet protection cap with grille in front of the pole core drilling and an aluminum die-cast basket are present. The SuperCharge option utilizes a shaped neodymium short-circuit ring and increases the usable motor strength by 20–25 percent.

Features
  • 12 inches (30 cm) Subwoofer
  • Carbon Fiber Blend Cone (CFB)
  • Vario-Density Extended Range of Motion Surround (V-ROM)
  • Tuned Spider System (TSS)
  • Super-Frame (SFrame)
  • Patented ferrite magnet system
  • Lossless linear suspension
  • Ribbed foam surround
  • Magnet protection cap with grille in front of the pole core drilling
  • Aluminum die-cast basket
  • SuperCharge option with neodymium short-circuit ring and 20–25 percent increased usable motor strength
Technical specifications
  • RMS power: 2500 watts
  • Peak power: 10000 watts
  • Impedance options: Dual 1 Ohm or Dual 2 Ohm
  • VCD: 10.16 cm
  • Piston diameter: 27.94 cm
  • Fs: 31.63 Hz
  • Qms: 5.398
  • Qes: 0.377
  • Qts: 0.352
  • Vas: 23.63 liters
  • Xmech: 62 mm
  • Xmax: 22 mm
  • Frame diameter: 34.01 cm
  • Frame including gasket: 34.29 cm
  • Mounting diameter: 30.96 cm
  • Installation depth: 24.62 cm
  • Motor diameter: 26.23 cm
  • Motor depth: 11.58 cm
  • Woofer volume: 9.35 liters
  • Enclosure with port: 73.93–78.53 liters
  • Shipping weight: approx. 36.74 kg

DD Audio Custom Subwoofer – Design your own!

Our DD Audio Custom Subwoofers are not only a highlight in sound – they are built exactly according to your wishes! Choose colors for the basket, dust cap, diaphragm, and more. Additionally, a selection of logos is available to you.

Available colors for diaphragm & dust cap:
Red
(Carbon)
Black
(Carbon)
Light Blue
(Carbon)
Blue
(Carbon)
Platinum
(Carbon)
White
(Carbon)
Yellow
(Kevlar)

Do you want more than standard? Now customize your Subwoofer and discover all options:

To the Custom Options

Your benefits at Masori

Frequently Asked Questions about Power Tuned 9912b ESP

What technical features does the Power Tuned 9912b ESP have?

The Power Tuned 9912b ESP from DD Audio is a 12-inch Subwoofer with a power handling capacity of up to 10000 watts. It uses a Carbon Fiber Blend Cone for an optimal strength-to-weight ratio, while the Vario-Density Extended Range of Motion Surround provides precise linear control. The Tuned Spider System ensures specific performance characteristics, and the Super-Frame maximizes the spider diameter for improved excursion. Igneousium magnets and a 4-inch voice coil diameter ensure high performance. The frequency range extends from 10Hz to 500Hz, with a resonance frequency of 31.63 Hz.

How does the SuperCharge option affect the sound of the 9912b ESP?

The SuperCharge option of the Power Tuned 9912b ESP allows for tighter and cleaner bass by utilizing a specially shaped neodymium short-circuit ring to use magnetic energy more efficiently. By redirecting lost magnetic energy, the motor strength is increased by 20-25%, leading to more efficient energy use. Although the SPL rate does not increase, you benefit from clearer sound reproduction at high volumes without compromising heat dissipation or voice coil area. The SuperCharge option does not change the basic power handling capacity and is made to order, requiring an additional delivery time of 4-6 weeks.

What impedance options does the Power Tuned 9912b ESP offer?

The Power Tuned 9912b ESP offers two impedance options: a dual 1-ohm and a dual 2-ohm configuration. This flexibility allows you to optimally match the Subwoofer to your existing audio landscape, whether through parallel wiring for lower impedance or series connection for higher impedance. This ensures broad compatibility with various amplifiers, and by choosing the impedance, the power output and operation of the system can be finely tuned. Therefore, it is possible to adjust the system's power requirements to the vehicle's conditions or the preferred configuration.

How does the Carbon Fiber Blend Cone (CFB) of the 9912b ESP ensure better performance?

The 12-inch Woofer Power Tuned 9912b ESP uses a Carbon Fiber Blend Cone (CFB) for superior performance characteristics. This special CFB composition significantly improves the strength-to-weight ratio, which directly results in precise control and reduced distortion at high levels. The Carbon Fiber Blend provides a balance between stability and lightness, contributing to high responsiveness and a smoother transition across different frequency ranges. This gives you bass that is not only powerful but also clear and detailed, across the entire sound spectrum.

What is the Vario-Density Extended Range of Motion Surround (V-ROM) in the 9912b ESP and what does it do?

The Vario-Density Extended Range of Motion Surround (V-ROM) of the Power Tuned 9912b ESP is a highly advanced environment that ensures ultimate linear control. It allows for dynamic bass reproduction thanks to the compressed control ribs, which, when controlled harder, provide increased control. This construction reduces mechanical distortions and allows for extended freedom of movement, resulting in smoother bass notes. The V-ROM optimizes the density ratios within the surround structure, ensuring that bass reproduction remains particularly powerful and linear during long excursions of the diaphragm. This contributes to the overall excellence and efficiency of the 9912b ESP.

How does the load capacity differ between RMS and peak power in the Power Tuned 9912b ESP?

The Power Tuned 9912b ESP Subwoofer offers an RMS load capacity of 2500 watts and a peak load capacity of an impressive 10000 watts. The RMS load capacity represents the maximum continuous power intake that the subwoofer can maintain without damage over extended periods. In contrast, the peak load is the maximum power value that the subwoofer can handle for short moments. This means that during dynamically intense audio signals that require more energy in the short term, the subwoofer can manage these peaks. However, when planning the audio system, the RMS load capacity should primarily be considered to ensure stable and long-term performance.

What frequencies can the Power Tuned 9912b ESP reproduce?

The playback range of the Power Tuned 9912b ESP is between 10Hz and 500Hz. This allows you to reproduce extremely low-frequency sounds with this Subwoofer, which are particularly important for bass-heavy music. The ability to reproduce up to 500Hz also allows for seamless integration with other speakers in the system, which often cover the mid to high frequency range. The resonance frequency of the 9912b ESP is at 31.63 Hz, meaning it can work particularly strongly in this frequency range to create a powerful bass foundation, especially in music tracks that emphasize a heavy bass line.

What advantages does the Tuned Spider System (TSS) of the 9912b ESP Subwoofer offer?

The Tuned Spider System (TSS) in the Power Tuned 9912b ESP optimizes performance by tuning into the strongest characteristics of the suspension for High Definition, Power Handling, and X-Stiff Control. Each component is calibrated to maximize its respective potential, resulting in exceptionally precise sound experiences. The tuned spider ensures extended freedom of movement while providing structural support to prevent collapses or distortions at maximum displacements. TSS contributes to improved dynamics and sensitivity, allowing the Subwoofer to deliver impressively stable sound results even at high excursion levels.

What is the diameter of the coil and magnet used in the Power Tuned 9912b ESP?

The Power Tuned 9912b ESP is equipped with a 4 inch (101.6mm) voice coil, which, in conjunction with the large magnet weight of 1500 Oz, enables effective power transfer. The generous coil diameter allows for processing larger amounts of energy while maintaining linearity and precision throughout the entire excursion. The significant magnet weight ensures that the coil is held precisely in place, guaranteeing a reliable and powerful audio experience. This combination of coil diameter and magnet provides powerful bass with excellent responsiveness even at higher volumes.

What makes the Super-Frame (SFrame) of the Power Tuned 9912b ESP unique?

The Super-Frame (SFrame) of the Power Tuned 9912b ESP maximizes the spider diameter and excursion while functioning as a secondary short-circuit ring. This design improves heat dissipation, thereby increasing the efficiency of the Subwoofer. Since the cone diameter and suspension excursion are maximized, the SFrame allows for improved air circulation around the voice coil and reduces heat build-up, enabling longer usage times while maintaining performance. Additionally, it strengthens the structural integrity of the Subwoofer by effectively buffering external forces, leading to consistent sound reproduction even under high-performance conditions.
