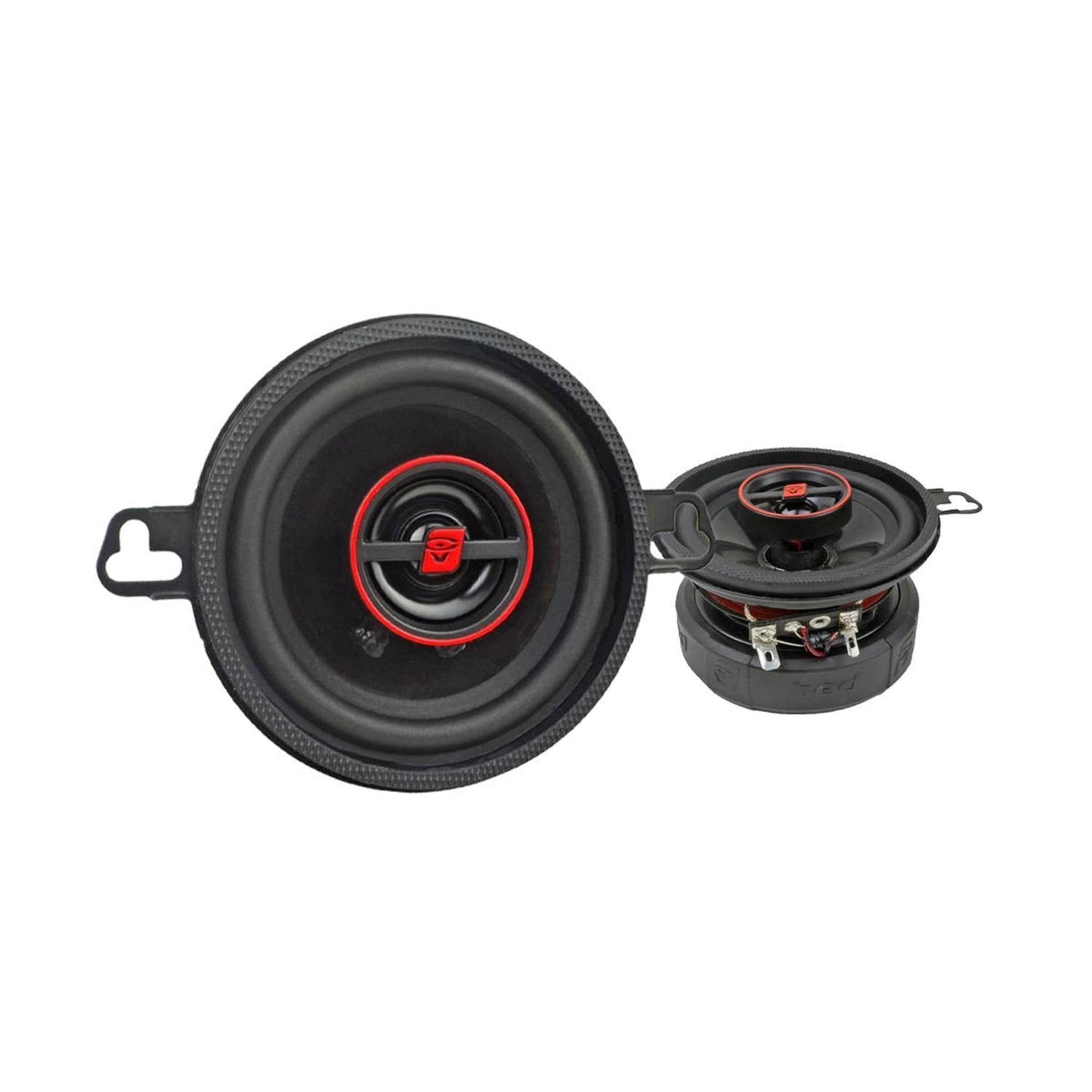

Cerwin Vega HED Series H735 3" (8cm) coaxial speaker

Name: Cerwin Vega HED Series H735 3 Inch Coaxial Speaker
Brand: Cerwin Vega
Price: 44.1 EUR
Availability: InStock

CYBER -10%

Max, Mikael and 53k+ customers already with Masori sound upgrade

Cerwin Vega HED Series H735 3" (8cm) coaxial speaker

Peak power of 250 W, impedance of 4 ohms, 30 W power.
Frequency response from 100 to 20,000 Hz, stamped steel frame.
25 mm PEI dome tweeter, depth of 43 mm, improved clarity.
Mehr technische Details

00

€44,10

~~€49,00~~ €44,10

5% Rabatt mit Vorkasse

inkl. VAT , possibly plus shipping

Jetzt mit kostenlosem Versand ab 50€!

Shipping cost calculator

Land/Region

PLZ

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

3 Jahre Masori Garantie Kostenlos 48 Monate Plusgarantie €14,99 60 Monate Plusgarantie Am beliebtesten €19,99

Deshalb wählen uns 100.000+ Kunden

3 Jahre Garantie

Sicher & sorglos
Blitzversand

mit DHL Express
Tiefpreisschutz

Nie zu viel zahlen

Rob

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

HED Series H735 by Cerwin Vega

Meet the HED Series H735 from Cerwin Vega, a 3-inch coaxial speaker that offers extensive options for your vehicle upgrade. This speaker impresses with a peak power handling of 250 watts each and an effective power of 30 watts. It is made from high-quality materials such as a stamped steel frame and a graphite-reinforced cone, making it particularly durable. A 25 mm PEI dome tweeter ensures clear audio reproduction, while its compact design with a depth of 43 mm allows for easy installation in your vehicle. With an impedance of 4 ohms and a frequency response of 100 to 20,000 Hz, it delivers an enhanced listening experience.

Advantages

Comprehensive range: Available in various sizes from 89 mm to 102 x 254 mm and coaxial configurations of 2-way, 3-way, or 4-way speakers, providing flexibility for any vehicle upgrade.
Powerful: 30 Watt RMS / 250 Watt peak
These speakers deliver loud and clear sound for an improved listening experience.
Durable construction: High-quality materials, including a stamped steel frame and reinforced cone, ensure long-lasting performance.
Enhanced audio clarity: The balanced PEI dome tweeter made of black polypropylene provides clear and distinct high frequencies.

Technical Specifications

76-25/51 mm HED Series 2-way coaxial car speaker
Power handling:
Peak: 500 watts per pair / 250 watts each
RMS: 60 watts per pair / 30 watts each
Graphite-reinforced spun cone material
25 mm PEI (polyetherimide) balanced dome tweeter
19 mm voice coil
Stamped steel frame
Linearly woven, treated red centering spider

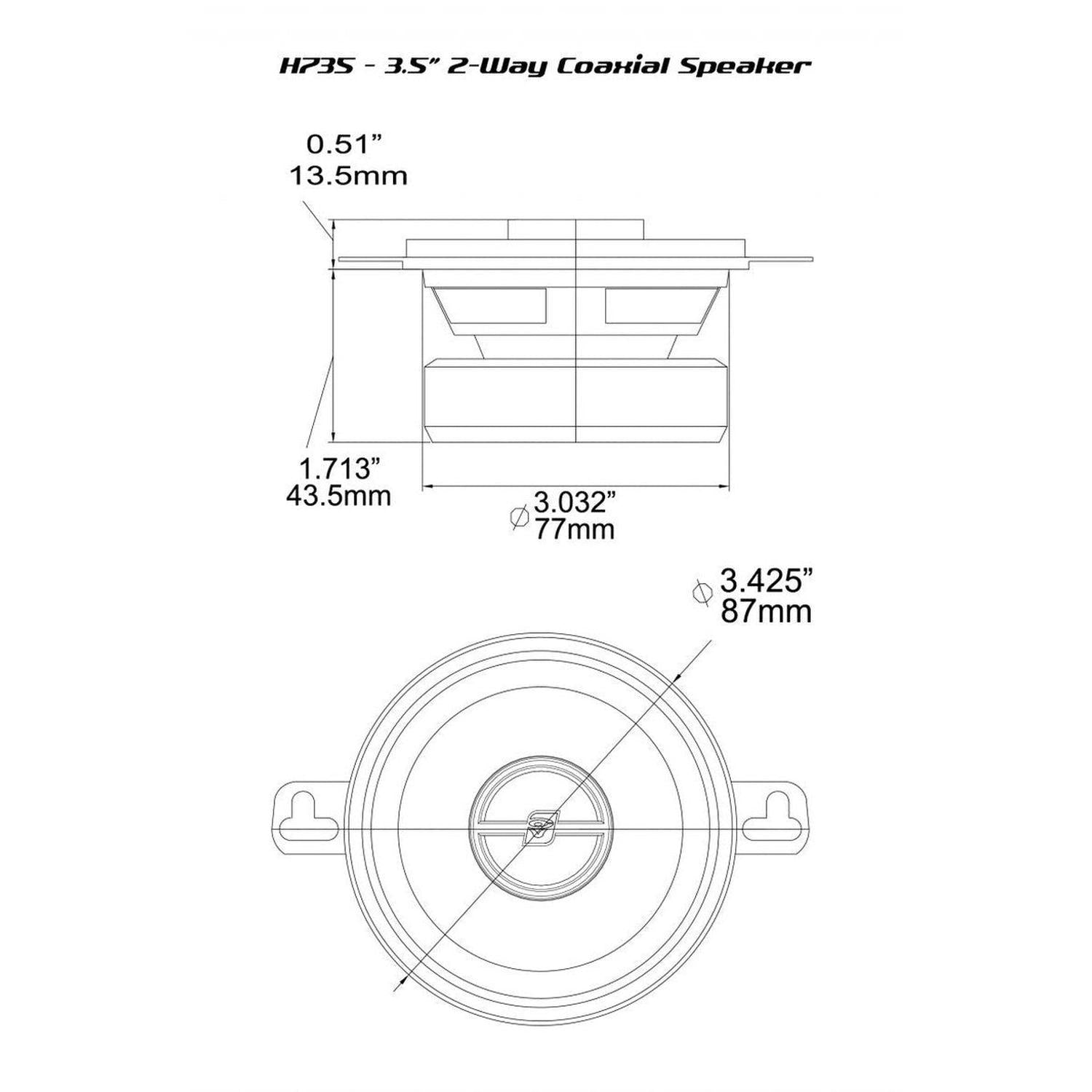

Top mount depth: 43 mm
Cutout dimensions: 77 mm
Impedance: 4 ohms
Frequency response: 100 - 20,000 Hz
Sensitivity: 84.5 dB

Cerwin Vega HED Series H735 Datenblatt

Datenblatt öffnen

Frequent questions about HED Series H735

Welche Leistungsdaten bietet der HED Series H735 Lautsprecher?

The HED Series H735 from Cerwin Vega impresses with a peak power handling of 250 watts per speaker, while simultaneously offering an effective nominal power of 30 watts. This allows for a powerful yet clear sound that performs well both at low volumes and at full volume. Particularly noteworthy is the use of a graphite-reinforced cone material, which, in conjunction with the powerful 25 mm PEI dome tweeter, ensures excellent clarity and richness of detail. An impedance of 4 ohms emphasizes the easy integration of the speaker into existing sound systems, making it a flexible and adaptable choice.

Wie beeinflusst das Konusmaterial den Klang der HED Series H735?

The graphite-reinforced cone material of the HED Series H735 by Cerwin Vega is a key factor in the sound quality of this speaker. Graphite reinforcement provides increased resistance to deformation and vibrations, allowing for more precise reproduction of bass tones. This stability is crucial for minimizing distortion, especially at high volumes. If you enjoy listening to music loudly, this speaker offers consistent and dynamic performance, which is reflected in a balanced acoustic response across the entire frequency spectrum, from powerful lows to detailed highs.

Wie einfach ist die Installation des HED Series H735 in einem Fahrzeug?

The HED Series H735 from Cerwin Vega is designed with a mounting depth of 43 mm, particularly for vehicles with limited space. The cut-out dimensions of 77 mm allow for a space-saving installation, which is especially advantageous in smaller installation spaces. Thanks to its stamped steel frame, the speaker can be easily secured while providing a robust and low-vibration base. The impedance of 4 ohms ensures seamless integration without additional adjustments to most standard amplifier systems, making installation easier for both experienced and average users.

Welchen Frequenzbereich deckt der HED Series H735 ab?

The frequency response of the HED Series H735 speaker from Cerwin Vega ranges from 100 Hertz to 20,000 Hertz. This wide frequency range provides a complete audio reproduction that encompasses everything from deep bass notes to crystal-clear highs. The 25 mm PEI dome tweeter plays a crucial role in ensuring an uncolored and detailed representation of the high frequencies. At the same time, the graphite-reinforced cone guarantees precise and distortion-free bass reproduction, which is especially beneficial for music lovers who value accurate music playback.

Welche Vorteile bietet der 25 mm PEI-Kalottenhochtöner im HED Series H735?

The 25 mm PEI dome tweeter in the HED Series H735 plays a central role in the optimal reproduction of high frequencies. PEI, or polyetherimide, is known for its excellent thermal and acoustic properties, allowing for clear and accurate high-frequency reproduction. The tweeter helps ensure that details in the music are reproduced with particular precision, without distortion or alteration. Its balanced design results in a natural timbre, which, combined with the graphite-reinforced cone, provides a homogeneous and powerful sound carpet. Especially when precision in the high-frequency range is desired, this is where its strength lies.

Welche Abmessungen hat der HED Series H735 Lautsprecher?

The HED Series H735 speaker has specific dimensions that must be considered when installing it in a vehicle. The installation depth is 43 mm and the cut-out dimensions are 77 mm. These proportions make it extremely versatile for various vehicles and enclosure types. Thanks to its compact design, the speaker can be easily integrated into existing mounts without the need for major modifications. The robust construction with a stamped steel frame is essential to ensure stability and durability, especially when used in vibrating vehicle environments.

Warum ist der gestanzte Stahlrahmen des HED Series H735 wichtig?

The stamped steel frame of the HED Series H735 is a crucial construction element that combines both strength and durability. Steel provides a reliable platform that keeps the speaker stable, thereby minimizing vibrations, which reduces distortion in sound. A stable frame is particularly important to keep the components precisely aligned and to ensure longevity. The use of steel also allows for higher load capacity, as the material withstands extreme conditions. Thus, the speaker remains consistent and high-performing even under intense usage scenarios or in demanding installations in vehicles.

Welche Rolle spielt die 19 mm Schwingspule im HED Series H735?

The 19 mm voice coil of the HED Series H735 speaker from Cerwin Vega is essential for the efficient conversion of electrical signals into acoustic vibrations. Its size and composition affect both the load capacity and the precision of sound reproduction. A well-sized voice coil allows for higher thermal load capacity, making it less susceptible to overheating at high volumes. This ensures a constant and low-distortion sound radiation even during intense use. Its role is to precisely control the movement of the cone to ensure accurate bass reproduction and overall sound performance.

Wie wirkt sich die Impedanz von 4 Ohm auf den HED Series H735 aus?

The impedance of 4 ohms makes the HED Series H735 speaker particularly compatible with common car radios and amplifier systems. An impedance of this magnitude allows more current to flow through the speaker, which theoretically leads to a higher power output. This means that the speaker can produce a more efficient and powerful sound result, especially at moderate volume levels. This reduces the load on the amplifier, which can extend its lifespan. This adaptability arises from the need to harmonize with various electrical systems that are widely used in modern vehicles.

Warum ist die Empfindlichkeit von 84,5 dB für den HED Series H735 wichtig?

The sensitivity of 84.5 dB means that the HED Series H735 speaker from Cerwin Vega is capable of producing a high level of volume at a given power input. This figure indicates how efficiently the speaker converts sound energy. Higher sensitivity ensures that less amplifier power is needed to reach a certain sound pressure level, which is particularly advantageous in smaller vehicle installations. This characteristic provides a dynamic and vibrant playback quality that remains consistently impressive in both quiet and loud passages, without overloading the amplifier.
