Axton AE369 6"x9" coaxial speakers

SKU: AE369

EAN: 7612309104476

160 Watt

AE369

Name: Axton AE369 Coaxial Speakers (6x9") | Buy Now
Brand: Axton
Price: 71.1 EUR
Availability: InStock

SKU: AE369

EAN: 7612309104476

Technical Highlights

Nominal power handling: 160 W, nominal impedance: 4 Ohm, sensitivity: 87 dB.
Frequency response: 60 Hz–20 kHz, mounting diameter: 15 x 23 cm.
50 mm midrange speaker, 13 mm Mylar dome, mounting depth: 72 mm.
More technical details

00 d

00 h

00 m

00 s

€71,10

-10% ~~€79,00~~ €71,10

5% discount with credit card

inkl. VAT , possibly plus shipping

Pay conveniently in 12 interest-free installments at €5,92 with Klarna .

Free shipping on this item!

Rob

Max

Avoid a bad purchase? We check your setup!

Rob & Max check your project: So you are guaranteed to get the maximum performance for your budget.

Response on weekdays within 24 hours

Your benefits at Masori

3 Year Warranty

Exclusive at Masori
Price Drop Protection

Up to 90 days after purchase
Lowest Price Guarantee

Nowhere cheaper

Axton-AE369-6"x9" Koaxial-Lautsprecher-masori-kaufen

€71,10

~~€79,00~~ €71,10

More power than AE369 here!

Show all

GDB-65

Normal price €9,00

Normal price ~~€9,00~~ Selling price €9,00

Delivery

Delivered automatically as soon as available from the supplier.
200 Watt

Ω S4

Apocalypse AP-X69A

2 Overall ratings

Normal price €140,40

Normal price ~~€150,00~~ Selling price €140,40

Delivery

Jun 8, - Jun 12,
90 Watt

Ω S4

S2-C6.2

1 Overall ratings

Normal price €199,00

Normal price ~~€199,00~~ Selling price €199,00

Delivery

Jun 9, - Jun 14,
GR-MR Grill 5-8 inch

Normal price From €10,00

Normal price ~~€10,00~~ Selling price From €10,00

In stock

Jun 5, - Jun 6,
75 Watt

Ω S4

DC6.5a

2 Overall ratings

Normal price €199,00

Normal price ~~€199,00~~ Selling price €199,00

Delivery

Jun 19, - Jun 24,

AE369 by Axton Description

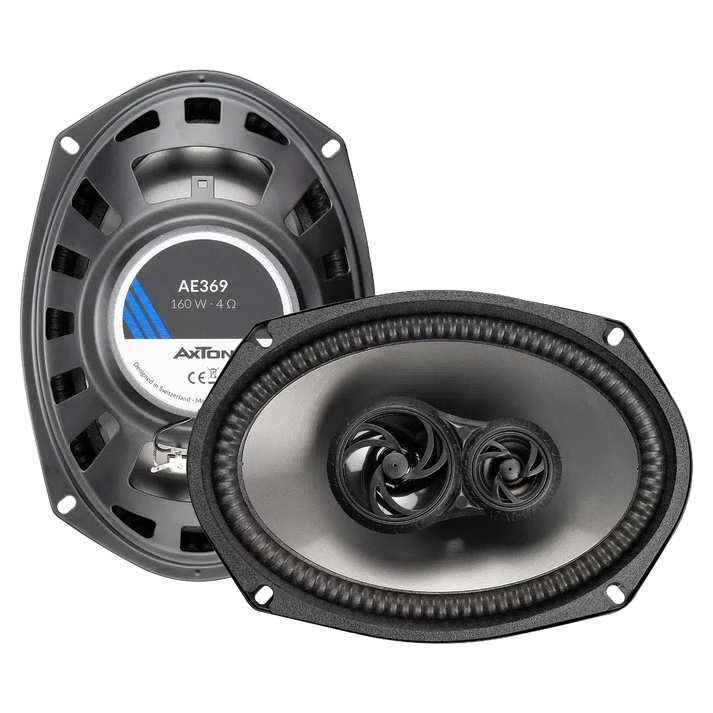

The AE369 is a 6x9 inch coaxial speaker from Axton. This 18 x 23 cm 3-way triaxial system features a compact steel basket construction and a powerful strontium ferrite magnet. The lightweight injection-molded polypropylene cone ensures precise reproduction across the entire frequency range. With a polyurethane foam surround, a 50 mm midrange driver with a Mylar dome, and a 13 mm Mylar dome with a ferrofluid-cooled neodymium driver, the speaker delivers impressive performance. The speaker grille is included.

Highlights

18 x 23 cm 3-way triaxial system
Compact steel basket construction
Powerful strontium ferrite magnet
Lightweight injection-molded polypropylene cone for precise reproduction across the entire frequency range
Polyurethane foam surround
50 mm midrange driver with Mylar dome
13 mm Mylar dome with ferrofluid-cooled neodymium driver
Speaker grille included

Specifications

Frequency response: 60 Hz – 20 kHz
Nominal impedance: 4 Ohm
Sensitivity (1 W/1 m): 87 dB
Nominal power handling: 160 W
Mounting diameter: 15 x 23 cm / 6 x 9"
Mounting depth: 72 mm

Frequently Asked Questions about AE369

Wie beeinflusst die kompakte Korbkonstruktion des AE369 die Klangqualität?

The compact basket construction of the AE369 made of steel sheet improves sound quality by minimizing unwanted resonances. Steel sheet provides a robust structure that effectively absorbs vibrations, keeping the playback clear and uncolored. This design supports the precise reproduction of the lightweight polypropylene injection-molded diaphragm, which ensures accurate sound transparency during music playback. The low-vibration construction optimally supports the full sound of the 3-way triaxial system and prevents distortions that could occur at high volumes. This is particularly advantageous with a nominal power handling of 160 W and a sensitivity of 87 dB.

Welche Vorteile bietet der Strontium-Ferritmagnet im AE369?

The powerful strontium ferrite magnet in the AE369 significantly contributes to efficient sound reproduction, as it generates a strong magnetic field that optimizes the movement of the diaphragm. This leads to a higher energy yield in the conversion of electrical signals into acoustic vibrations. The magnet also positively influences the width of the frequency response, which ranges from 60 Hz to 20 kHz, ensuring that both low and high frequencies are reproduced clearly and precisely. In combination with the lightweight polypropylene diaphragm, a balanced and dynamic sound reproduction is achieved, which is particularly advantageous at higher volumes.

Wie trägt die Polyurethan Schaumstoffsicke zur Leistung des AE369 bei?

The polyurethane foam surround of the AE369 allows for a flexible suspension of the diaphragm, which provides a large displacement range. This flexibility enhances the movement dynamics of the diaphragm and thus supports deep bass reproduction. The elastic nature of the foam surround also increases the durability of the speaker in demanding applications. In conjunction with the frequency response of 60 Hz to 20 kHz, the surround aids in producing clear and distortion-free sounds, even at high levels, making it ideal for music lovers who prefer high volumes.

Wie beeinflusst die Verwendung von Mylarkalotten im AE369 die Klangqualität?

The 50 mm midrange Mylark dome and the 13 mm Mylark dome with ferrofluid-cooled neodymium drive in the AE369 provide outstanding mid and high-frequency reproduction. Mylark domes are known for their stiffness and lightness, allowing for precise reproduction of fine details in the higher frequencies. The ferrofluid cooling additionally ensures improved heat dissipation and increases the load capacity of the tweeter. The specially tuned neodymium system offers high driving strength at low weight, promotes rear damping, and minimizes distortion, resulting in a clearer and more detailed audio reproduction overall.

Welche Installationsanforderungen gibt es für den AE369 Lautsprecher?

The AE369 speaker requires an installation cutout diameter of 15 x 23 cm and a mounting depth of 72 mm. These dimensions allow for placement in various speaker openings, but may be problematic for vehicles with limited installation space. The compact design facilitates accommodation in the vehicle; however, it should be checked before installation whether the specified dimensions of the opening in the vehicle are compatible with those of the speaker. The included speaker grille provides additional protection and an easy mounting option without additional requirements for the installation process.

Was zeichnet den Frequenzgang des AE369 aus?

The frequency response of the AE369 ranges from 60 Hz to 20 kHz, ensuring a wide audio reproduction from deep bass to highs. This is particularly advantageous for music genres that cover large frequency ranges, such as classical or electronic music. The wide frequency response is made possible by the use of a powerful strontium ferrite magnet and the lightweight polypropylene injection-molded diaphragm, which together provide accurate and vibrant sound reproduction. This creates a balanced sound image without frequency spikes and ensures consistently high audio quality at different volume levels.

Wie steuert die Nennimpedanz von 4 Ohm die Leistung des AE369?

With a nominal impedance of 4 Ohms, the AE369 speaker is designed for efficient energy transfer, allowing amplifiers to deliver maximum power. This promotes a high response speed and minimizes power loss, which is particularly important for playback at high volumes. A low impedance generally allows compatible amplifiers to feed more current into the speaker, increasing the achievable volume. Combined with a sensitivity of 87 dB, the speaker delivers powerful performance even in demanding acoustic environments.

Welche Rolle spielt die Empfindlichkeit von 87 dB beim AE369?

The sensitivity of 87 dB in the AE369 is an indicator of how efficiently the speaker converts electrical power into acoustic vibration. A higher sensitivity means that less power amplification is needed to achieve a high volume, which reduces the need for powerful amplifiers. The AE369 offers an optimal balance between performance and efficiency, allowing for high volume with minimal distortion potential. This is particularly useful for event organizers of music events or sound enthusiasts who want to enjoy high-quality sound without significant power consumption.

Wie trägt die leichte Spritzgussmembran aus Polypropylen zur Klangqualität bei?

The lightweight polypropylene injection-molded diaphragm in the AE369 optimizes sound quality through its high stiffness and low mass. These properties allow for a precise response to rapid sound changes without significant delay, resulting in clear and detailed sound reproduction. The diaphragm ensures that even the subtlest nuances in the music are discernible while simultaneously minimizing distortion at high volumes. Its robust construction helps it withstand both mechanical and thermal stresses over the long term, making this diaphragm suitable for many music styles.

Ist der AE369 von Axton mit gängigen Automarken kompatibel?

The compatible installation diameter of 15 x 23 cm and the installation depth of 72 mm make the AE369 from Axton potentially suitable for many vehicles, including models from well-known car brands. In vehicles from different manufacturers such as VW, Ford, or Audi, these sizes may already be supported as standard. However, it is advisable to check the exact installation dimensions of the vehicle before installation to ensure a smooth installation. Although certain models may cover the mounting at the factory, adjustments may be necessary to ensure optimal sound reproduction in the specific vehicle.
