ESX Quantum QXE6.2CV2 6.5" (16,5cm) Speaker Set
SKU:  QXE62CV2
EAN:  4251476408975
125 Watt

Quantum QXE6.2CV2

SKU:  QXE62CV2
EAN:  4251476408975

Technical Highlights

  • 6.5" speaker set, 125/250 watts, 4 ohm impedance.
  • Polypropylene graphite cones, 25 mm fabric neodymium tweeter.
  • Frequency range 55-24000 Hz, newly designed.
  • More technical details
€249,00
€249,00 €249,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 5, - Jun 8,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €20,75 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
FocalAccess 165AS
Focal-Access 165AS-6.5" (16,5cm) Lautsprecherset-masori-kaufen
ETON-PRA 13-5" (13cm) Lautsprecherset-masori-kaufen
ETONPRA 13
ESX-Quantum QXE6.2CV2-6.5" (16,5cm) Lautsprecherset-masori-kaufen
€249,00
€249,00 €249,00

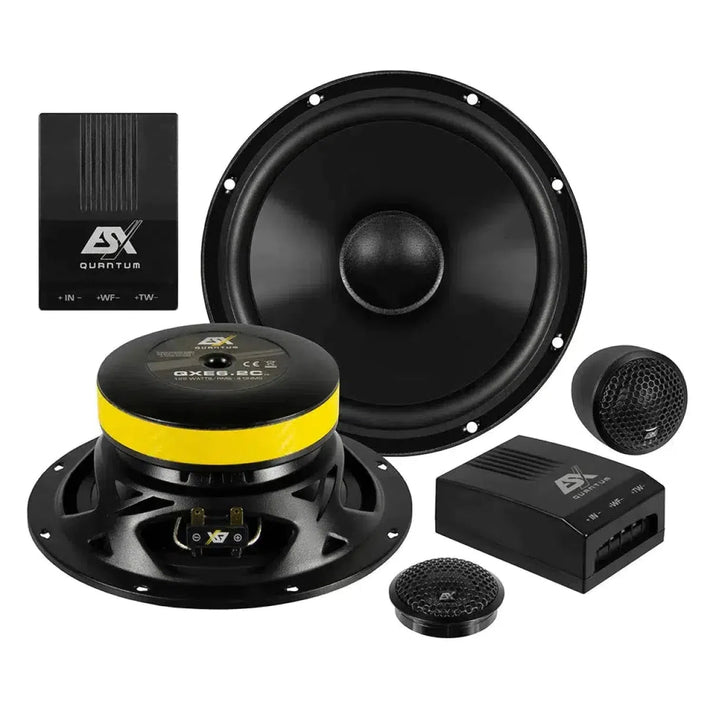

Quantum QXE6.2CV2 by ESX

Quantum QXE6.2CV2 is a 6.5 inch (16.5 cm) Speaker Set from ESX. The 2-way component system uses polypropylene-graphite composite membranes. A 6.5 inch mid-bass driver with a new basket and a 25 mm textile neodymium tweeter are integrated. 30.5 mm voice coils on Kapton carriers and 12 dB crossovers with high-frequency adjustment are present. Magnet Y30 with 482 g. The power handling is 125 Watts RMS and 250 Watts Max, the frequency range is 55 - 24000 Hz, and the impedance is 4 Ohms. Installation depth is 65 mm and installation opening is 143 mm.

Features
  • 6.5 inch (16.5 cm) Speaker Set
  • 2-way component system
  • 6.5 inch mid-bass driver with new basket
  • 25 mm textile neodymium tweeter
  • Polypropylene-graphite composite membranes
  • 30.5 mm voice coils on Kapton carriers
  • 12 dB crossovers with high-frequency adjustment
  • Magnet Y30, 482 g
  • Installation depth 65 mm
  • Installation opening 143 mm
Technical Specifications
  • Power handling RMS 125 Watts
  • Max power 250 Watts
  • Frequency range 55 - 24000 Hz
  • Impedance 4 Ohms

Your benefits at Masori

ESX Quantum QXE6.2CV2 Datasheet

Open datasheet

Frequently Asked Questions about Quantum QXE6.2CV2

What technical features does the Quantum QXE6.2CV2 Speaker Set have?

The Quantum QXE6.2CV2 Speaker Set from ESX offers a variety of technical features. It is a 6.5 inch (6.5”) 2-way component system with a power handling of 125 Watts RMS and a maximum power of 250 Watts. The frequency range extends from 55 to 24000 Hz, while the impedance is at 4 Ω. The set includes polypropylene-graphite composite membranes and 30.5 mm voice coils on a Kapton carrier. The construction features a new basket design and a 25 mm fabric neodymium tweeter. Also important are the 12 dB crossovers with high-frequency adjustment, which optimize sound quality.

What is the power handling of the Quantum QXE6.2CV2?

The power handling of the Quantum QXE6.2CV2 Speaker Set from ESX is 125 Watts RMS and a maximum of 250 Watts, which means this system delivers considerable power. These high power handling values allow the Speaker Set to be used for various audio applications in vehicles without overheating or low-frequency distortion. The performance is achieved through the improved 6.5 inch mid-bass driver and the new 25 mm fabric neodymium tweeter, which together provide clear and dynamic sound. This performance is ideal for users who prioritize high volumes in music playback.

What frequency ranges does the Quantum QXE6.2CV2 cover?

The Quantum QXE6.2CV2 Speaker Set from ESX covers a frequency range from 55 Hz to 24000 Hz. This wide frequency range allows for excellent sound quality, encompassing both deep bass and fine highs. The 6.5 inch mid-bass driver ensures precise reproduction of lower frequencies, while the 25 mm fabric neodymium tweeter focuses on the high frequencies. The 12 dB crossovers with high-frequency adjustment further contribute to the clarity and detail of the acoustics by optimally distributing the signals between the components.

What material properties does the Quantum QXE6.2CV2 have?

The Quantum QXE6.2CV2 Speaker Set is equipped with polypropylene-graphite composite membranes, known for their lightness and stability. These materials give the membranes high strength and low weight, resulting in responsive bass reproduction. The new basket of the 6.5-inch mid-bass driver is designed to provide structural integrity and improved acoustic performance. The 25 mm fabric neodymium tweeter uses a neodymium magnet system for increased sensitivity and clarity. Together with the Kapton carriers of the voice coils, a consistent and reliable audio performance is achieved.

How deep can the Quantum QXE6.2CV2 speakers be installed?

The installation depth of the Quantum QXE6.2CV2 speakers is 65 mm, ensuring that they can be installed in a variety of vehicles without extensive modifications. The installation opening has a diameter of 143 mm. These dimensions are important to determine whether the Speaker Set fits into existing speaker mounts or if adjustments are necessary. The compact size of the system facilitates installation and fits easily into most door and dashboard areas without compromising the vehicle structure or altering the interior design.

What makes the tweeters of the Quantum QXE6.2CV2 special?

The tweeters of the Quantum QXE6.2CV2 Speaker Set feature an innovative 25 mm fabric neodymium design. These tweeters use a neodymium magnet system known for its strength and small size, making the construction more compact while providing high sensitivity and sound fidelity. The fabric of the tweeter ensures refined and accurate reproduction of high frequencies. These design features allow the tweeters to effortlessly reproduce even the finest sound nuances, which is particularly beneficial for music lovers who pay attention to sonic details.

What magnet technology is used in the Quantum QXE6.2CV2?

The Quantum QXE6.2CV2 Speaker Set uses Y30 ferrite magnets weighing 17 oz. (482 g), known for their stability and efficiency. These magnets provide a strong magnetic field strength, which is central to the precision and performance of audio quality. The use of this magnet technology enhances the reproduction of clear and powerful bass. Furthermore, the magnet system allows for optimal control of membrane movement, resulting in consistent and distortion-free sound production. The strong magnetic force also contributes to the long-lasting performance of the Speaker Set.

What role do the crossovers play in the Quantum QXE6.2CV2?

The 12 dB crossovers in the Quantum QXE6.2CV2 Speaker Set are essential for dividing the audio signals between the mid-bass driver and the tweeter. These crossovers ensure precise separation of frequency ranges, allowing each speaker to reproduce only the frequencies intended for it. This enables clean and detailed sound reproduction. Additionally, the crossovers offer a treble adjustment that allows for fine-tuning the sound according to personal listening preferences. This ensures that music pieces are reproduced in the most natural way possible.

How does the voice coil technology of the Quantum QXE6.2CV2 affect performance?

The Quantum QXE6.2CV2 Speaker Set uses 30.5 mm voice coils mounted on a Kapton carrier. This special combination ensures durability and consistent audio performance. The Kapton carriers are known for their excellent thermal conductivity and stability, which reduces the risk of overheating at high volumes. The size of the voice coils, in combination with the other component elements of the speaker, supports high load capacity and allows for stronger and more accurate diaphragm movement, which is reflected in a clear and resonance-free sound image.

How does the Quantum QXE6.2CV2 Speaker Set fit into common car models?

The Quantum QXE6.2CV2 Speaker Set fits many common car models with its installation depth of 65 mm and an installation opening of 143 mm, as these dimensions correspond to the standard sizes of most vehicle speakers. Since no specific car brands are mentioned in the product description, compatibility should be checked by measuring the installation fixtures in the vehicle before installation. Due to the standardized size and innovative design of the components, the Speaker Set can be used in a wide range of vehicles and promises an easy and secure installation option.
