Xcelsus Ultra XU6.2C 6.5" (16,5cm) Speaker Set
SKU:  XU6-2C
EAN:  755838572327

2 Reviews

120 Watt

Ultra XU6.2C

SKU:  XU6-2C
EAN:  755838572327

2 Reviews

Technical Highlights

  • Power: 120 W RMS, 200 W max, Impedance: 4 Ohm.
  • 35 mm voice coil, magnet size: 110 mm, frequency range: 50-25,000 Hz.
  • Tweeter diameter: 28 mm, crossover frequency: 4500 Hz.
  • More technical details
00 d
00 h
00 m
00 s
€246,87
-45% €446,90 €246,87
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 9, - Jun 14,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €20,57 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Ground ZeroTitanium GZTC 165.2X
Ground Zero-Titanium GZTC 165.2X-6.5" (16,5cm) Lautsprecherset-masori-kaufen
Hifonics-Vulcan VX6.2E-6.5" (16,5cm) Lautsprecherset-masori-kaufen
HifonicsVulcan VX6.2E

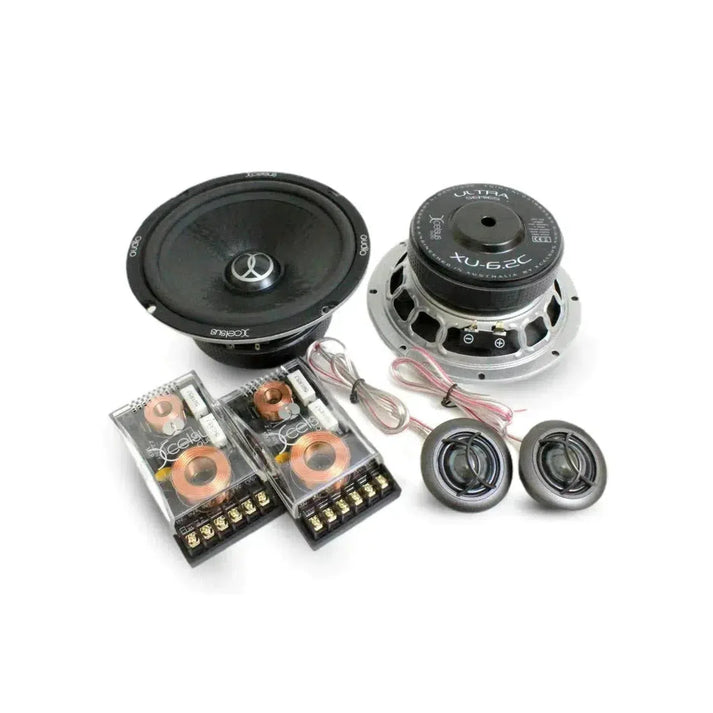

The Xcelsus Ultra XU6.2C set includes two 5 speakers, two tweeters, wiring, and two crossovers, shown on a white background.
€246,87
€446,90 €246,87

Ultra XU6.2C by Xcelsus

The Xcelsus Ultra XU6.2C is a 6.5 inch 16.5 cm Speaker Set with a semi-pressed paper diaphragm, 35 mm Hi-Power voice coil, and high-performance magnet system. The Tweeter uses a 28 mm soft textile dome with a liquid-cooled neodymium motor. The Crossover operates with a 12 dB slope for LP and HP at 4500 Hz. Technical specifications include 120 Watts RMS, 200 Watts Max, and 300 Watts peak power. The impedance is 4 Ohms, the frequency range is from 50 to 25,000 Hz, and the sensitivity is 88.9 dB 1W 1m. The Woofer measures 165 mm, the magnet size is 110 mm, the installation depth is 75 mm, and the installation diameter is 140 mm. The Crossover measures 145 x 95 x 45 mm.

Features
  • 6.5 inch 16.5 cm Speaker Set
  • Semi-pressed paper diaphragm
  • 35 mm Hi-Power voice coil
  • High-performance magnet system
  • Tweeter with 28 mm soft textile dome
  • Liquid-cooled neodymium motor on the Tweeter
  • Woofer 165 mm
  • Crossover with 12 dB LP and 12 dB HP
  • Crossover frequency 4500 Hz
Technical Data
  • RMS power 120 Watts
  • Max power 200 Watts
  • Peak power 300 Watts
  • Impedance 4 Ohms
  • Frequency range 50 to 25,000 Hz
  • Sensitivity 88.9 dB 1W 1m
  • Magnet size 110 mm
  • Installation depth 75 mm
  • Installation diameter 140 mm
  • Crossover size 145 x 95 x 45 mm

Your benefits at Masori

Frequently Asked Questions about Ultra XU6.2C

What characterizes the sound properties of the Ultra XU6.2C?

The Ultra XU6.2C features a unique sound signature created by a semi-pressed paper diaphragm and a 28-mm soft textile dome tweeter. These components work together to produce a musical and accurately balanced reproduction. The tweeter is supported by a liquid-cooled neodymium motor, which further enhances performance. With a frequency range of 50 - 25,000 Hz, the Ultra XU6.2C covers a wide spectrum of tones, while the crossovers with phase-shifted components ensure that the sound remains natural and pleasant.

What power specifications does the Ultra XU6.2C offer?

The Ultra XU6.2C provides an RMS power handling of 120 W and a maximum power of 200 W, with a peak power handling of 300 W. These power specifications indicate that the system is designed for demanding audio signals and remains distortion-free even at high volumes. The 6.5-inch woofer supports this with a 35-mm hi-power voice coil. Together with the 4-ohm impedance and a sensitivity of 88.9 dB (1W/1m), the system ensures dynamic audio reproduction without power losses.

What technical features does the tweeter of the Ultra XU6.2C have?

The tweeter of the Ultra XU6.2C is a 28-mm textile dome tweeter, known for its precise and clear high-frequency reproduction. It is equipped with a liquid-cooled neodymium motor that allows for efficient heat dissipation, minimizing distortion. This tweeter can cover a frequency range of up to 25,000 Hz, making it ideal for high-resolution audio content. The combination of soft textile dome and high-performance design ensures a clear and balanced sound, particularly excelling in complex musical pieces.

How do the crossovers affect the sound quality of the Ultra XU6.2C?

The crossovers of the Ultra XU6.2C are equipped with a 12/12 dB slope (LP/HP) and have a crossover frequency of 4500 Hz. This technical design allows for precise division of the audio signal between the woofer and tweeter, enabling each speaker to optimally reproduce its specific frequencies. The phase-shifted crossover components contribute to a harmonious transition between frequency ranges, resulting in a natural and balanced sound image. These crossovers also support the effectiveness of the overall audio output.

What are the dimensions of the Ultra XU6.2C and what should be considered during installation?

The Ultra XU6.2C has a mounting depth of 75 mm and a mounting diameter of 140 mm. During installation, it should be ensured that there is enough space to accommodate these dimensions. The crossover measures 145 x 95 x 45 mm, which should also be taken into account. It is important to measure the installation space accurately beforehand and ensure that there are no obstacles in the way. Proper placement significantly affects sound quality, especially regarding the direction and distance of the speakers to the listening position.

How does the paper diaphragm of the Ultra XU6.2C contribute to sound quality?

The semi-pressed paper diaphragm of the Ultra XU6.2C plays a crucial role in sound reproduction. Paper as a diaphragm material is known for its neutral sound characteristics and its ability to quickly dampen vibrations. These material properties contribute to a clear and uncolored sound image, particularly noticeable in the mid frequencies. The combination of the paper diaphragm and the 35 mm hi-power voice coil ensures high fidelity and fast response times, especially in complex musical compositions with a lot of detail requirements.

What impedance and sensitivity does the Ultra XU6.2C have and how does this affect performance?

The Ultra XU6.2C has an impedance of 4 Ohms and a sensitivity of 88.9 dB (1W/1m). This technical configuration allows the speaker system to generate considerable sound pressure even at low input voltage. A lower impedance also means that the system requires less electrical energy to achieve high volume levels. The sensitivity of 88.9 dB indicates that the Ultra XU6.2C is efficient in converting electrical signals into acoustic signals, positively influencing both power consumption and overall volume.

How does the neodymium motor affect the performance of the Ultra XU6.2C?

The neodymium motor of the Ultra XU6.2C, especially in the tweeter, enhances performance through strong magnetic fields that effectively excite the voice coil. Neodymium is known for its high magnetic density and allows for a more compact design, resulting in more efficient energy transfer. This leads to improved dynamics and clarity in high-frequency reproduction. The liquid-cooled construction increases heat dissipation, preventing distortion even at high power. This design of the neodymium motor significantly contributes to optimizing the overall performance of the speaker.

Why is the slope of the crossover in the Ultra XU6.2C important?

The 12/12 dB slope of the crossover in the Ultra XU6.2C ensures that the transitions between frequency ranges are smooth and precise. This steepness of the transitions minimizes unwanted interference and allows for a clean separation of high and low frequencies. This creates a harmonious sound image characterized by high detail fidelity and a clear delineation of individual tonal ranges. The crossover made from high-quality, phase-shifted components ensures that these transitions are fluid, significantly improving the overall acoustics of the system.

How is the woofer of the Ultra XU6.2C constructed and how does it affect sound performance?

The woofer of the Ultra XU6.2C measures 6.5 inches and is equipped with a 35 mm high-power voice coil, achieving improved control of low frequencies. The large magnet size of 110 mm enhances the driving force on the diaphragm, enabling powerful and precise bass reproduction. The design ensures that low frequencies are reproduced accurately and with low distortion, ideal for powerful music passages and dynamic soundtracks. The stable components also ensure consistent performance even at high power, further optimizing the listening experience.
