Musway ML6.3A 6.5" (16,5cm) Speaker Set
SKU:  ML6.3A
260 Watt

ML6.3A

SKU:  ML6.3A

Technical Highlights

  • 100 watts RMS, 200 watts max, 4 ohm impedance, 16.5 cm woofer.
  • 25 mm neodymium tweeter, 100 watts RMS, 4 ohms impedance, fabric cone.
  • 7.5 cm midrange driver, 60 watts RMS, frequency response from 200-10000 Hz.
  • More technical details
€329,00
€329,00 €329,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 5, - Jun 8,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €27,41 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

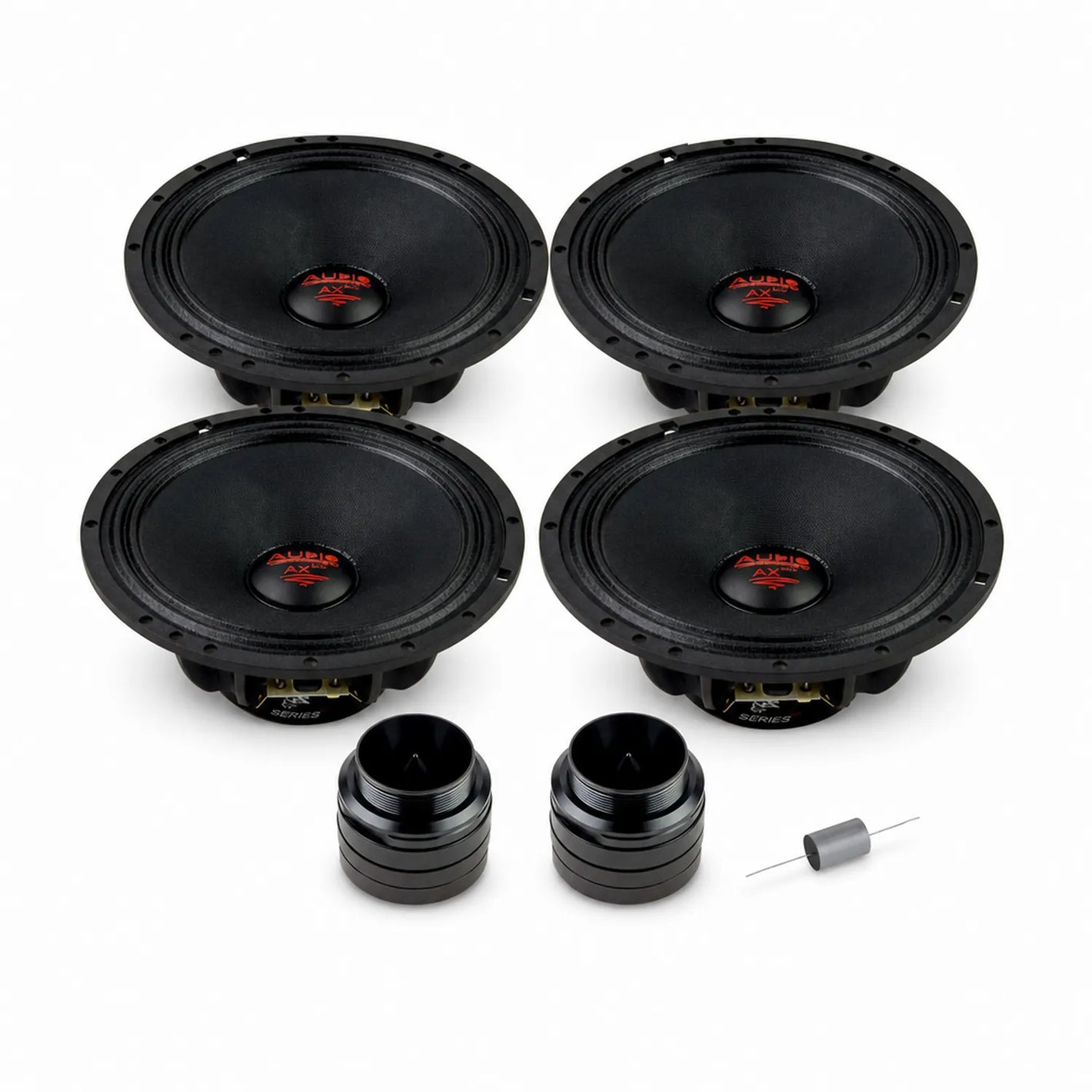

Audio SystemHelon H 165 PA-4
Audio System-Helon H 165 PA-4-6.5" (16,5cm) Lautsprecherset-masori-kaufen
Sundown Audio-E-6.5CS-6.5" (16,5cm) Lautsprecherset-masori-kaufen
Sundown AudioE-6.5CS
Musway-ML6.3A-6.5" (16,5cm) Lautsprecherset-masori-kaufen
€329,00
€329,00 €329,00

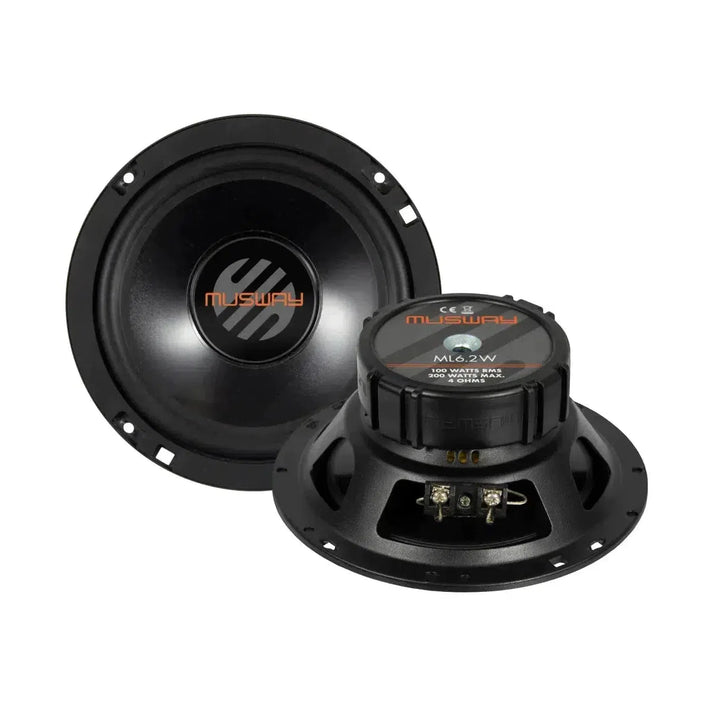

ML6.3A by Musway

ML6.3A is a 6.5 inches (16.5 cm) Speaker Set from Musway. The set includes ML6.2W 6.5 inches woofers, ML6.2T 25 mm neodymium tweeters, and ML3M 7.5 cm midrange drivers, each as a pair. The ML6.2W use aluminum cones, steel baskets, and a cooling solution for the 25 mm long-stroke voice coil. The ML6.2T are made with fabric cones. The ML3M use paper cones. All drivers operate with 4 Ohm impedance and cover specified frequency ranges. Power ratings per driver: ML6.2W 100 Watt RMS and 200 Watt max., ML6.2T 100 Watt RMS and 200 Watt max., ML3M 60 Watt RMS and 120 Watt max.

Features
  • 6.5 inches (16.5 cm) Speaker Set
  • Consisting of ML6.2W woofer (pair), ML6.2T tweeter (pair), ML3M midrange driver (pair)
  • Aluminum cone woofer
  • Fabric cone tweeter
  • Paper cone midrange driver
  • Steel baskets
  • Neodymium tweeter 25 mm
  • Cooling solution for 25 mm long-stroke voice coil
  • Impedance 4 Ohm
Technical specifications
  • ML6.2W Woofer pair
    • Size 6.5 inches (165 mm)
    • Power handling RMS 100 Watt
    • Power handling max. 200 Watt
    • Impedance 4 Ohm
    • Frequency response 50 - 5000 Hz
    • Cone aluminum
    • Installation depth 65 mm
    • Cutout opening 143 mm
    • Outer diameter 166 mm
  • ML6.2T Tweeter pair
    • Size 25 mm (1 inch)
    • Power handling RMS 100 Watt
    • Power handling max. 200 Watt
    • Impedance 4 Ohm
    • Frequency response 3200 - 30000 Hz
    • Cone fabric
    • Installation depth 13 mm
    • Cutout opening 49 mm
    • Outer diameter 58 mm
  • ML3M Midrange driver pair
    • Size 75 mm (3 inches)
    • Power handling RMS 60 Watt
    • Power handling max. 120 Watt
    • Impedance 4 Ohm
    • Frequency response 200 - 10000 Hz
    • Cone paper
    • Installation depth 39 mm
    • Cutout opening 72 mm
    • Outer diameter 89 mm

Your benefits at Masori

Musway ML6.3A Datasheet

Open datasheet

Frequently Asked Questions about ML6.3A

What makes the ML6.3A front system from Musway particularly special?

The ML6.3A front system from Musway is distinguished by its successful combination of high-quality craftsmanship and thoughtful technology. You benefit from 6.5-inch woofers with a clever cooling solution for the 25 mm long-stroke voice coil. This keeps the temperature stable even under high demand, ensuring you get powerful bass and clear mids. Additionally, the 25 mm neodymium tweeter provides clear highs and is ideal for a fine sound spectrum. Especially if you enjoy listening to music at high volumes, you will appreciate the added durability and dynamics. Musway also relies on steel baskets and a solid construction to ensure you enjoy your sound for years to come. If you want to learn more, feel free to visit Musway or check our internal pages for more details.

How does the aluminum diaphragm support the sound in this system?

The aluminum diaphragm of the ML6.2W mid-woofer contributes significantly to the precise sound. Aluminum is lightweight yet stable, allowing for fast and accurate reproduction of even fine details. This results in powerful bass without distortion or annoying resonances. Especially at higher volume levels, as experienced when enjoying rock or electronic music, this material choice shows its strengths. The diaphragm can control vibrations very well, delivering a clean, dynamic sound. Musway ensures that you have a balanced sound image from deep bass to upper mids. This way, you will be spoiled with rich sound quality not only in everyday use but also on longer journeys. A look at our internal product description will provide you with more information about the specific characteristics of this diaphragm.

What role does the 25 mm long-stroke voice coil play in performance?

The 25 mm long-stroke voice coil in the mid-bass driver ensures that large membrane excursions can be handled effortlessly. If you enjoy listening to music at high volumes, this is a real advantage, as the voice coil can generate high sound pressure without overheating. Musway has also integrated special cooling to efficiently dissipate heat. This leads to consistent performance and a low distortion factor, even when you push the speakers for an extended period. The combination of the long-stroke voice coil and robust steel basket results in a stable foundation for clear mids and a solid bass range. This not only saves you from having to readjust the sound setup but also provides you with an autonomous, balanced sound for various music styles. You can find a detailed overview on our Musway page.

What advantages does the 25 mm neodymium tweeter offer for the high-frequency range?

The 25 mm neodymium tweeter delivers finely nuanced highs that particularly shine in complex music arrangements. Neodymium is an exceptionally powerful magnet, allowing the tweeter to achieve excellent sound dynamics despite its compact design. This means for you: sonic transparency in the high-frequency range and a clean, detailed reproduction of elements like hi-hats or string instruments. Additionally, this 25 mm tweeter is a car audio tweeter specifically tuned to the requirements in vehicles. Musway pays attention to a smart enclosure design that minimizes vibrations and allows the sound to feel spatial. This quickly transforms your car radio into a high-end car tweeter experience that you won't find in most production vehicles. If you want more detailed data, take a look at the internal product details for this system.

Regarding installation: How do the installation opening and installation depth affect the mounting effort?

The installation opening of 143 mm for the mid-bass driver and 49 mm for the tweeter are important values that help you assess whether the system fits in your door panels or A-pillars. With an installation depth of only 65 mm for the mid-bass driver and 13 mm for the tweeter, the ML6.3A front system from Musway offers a slim design. This often means you won't need to make significant modifications to the vehicle. Especially if you have limited space behind the panel, these compact dimensions make installation easier. Thanks to the sturdy steel baskets and solid mounting points, the system sits securely once everything is properly screwed in. The result is a low-vibration installation, which contributes to a pure sound image. For a precise installation guide, feel free to check out more information on our product page.

Is the ML6.3A front system from Musway suitable for vehicles from BMW, Audi, VW, and Mercedes?

Although each vehicle model has individual door panels and space conditions, the ML6.3A front system from Musway can generally be integrated into many BMW, Audi, VW, and Mercedes models. It is important that you check the installation openings and installation depths against your vehicle's manufacturer specifications beforehand. With flexible dimensions of 6.5 inches for the mid-bass driver and a manageable depth, the system can often be installed relatively easily. Especially for high-quality brand vehicles, such an upgrade is worthwhile because it enhances the vehicle's interior and provides significantly improved sound. If adjustments are necessary, you can also find information about available adapters or mounting rings. More technical details on custom-fit variants can be found directly in the Musway product details.

What is the significance of the crossover and how does it work with the individual components?

The crossover is the centerpiece that optimally coordinates your speaker components in the ML6.3A system. By dividing the audio signal into different frequency ranges, each driver receives only the sound range for which it is designed. This means that the mid-bass driver primarily delivers bass and midrange, while the 25 mm neodymium tweeter is responsible for clear highs. The separate 3-inch midrange driver plays the frequencies between mid-high and low range. This targeted division helps you avoid overloads, distortions, and phase issues, providing you with a coherent and balanced sound image. Musway places great importance on a harmonious tuning of all components so that you receive a top-notch audio experience at any volume and music genre. A detailed overview can be found in our technical documentation for the ML6.3A.

What are the load limits (RMS and maximum) of the individual speakers?

The load values of the ML6.3A front system from Musway are impressive. The 6.5-inch woofers deliver 100 watts RMS per pair and up to 200 watts maximum. This means that even at high volumes, you will experience minimal distortion as long as you stay within this power range. The 25 mm tweeters are also rated for 100 watts RMS and 200 watts maximum, which is quite decent for a car audio tweeter. The 3-inch midrange driver offers 60 watts RMS and 120 watts maximum. Especially if you enjoy listening to music loudly—whether on a long road trip or during short city drives—you will benefit from this power reserve. Musway has designed its system so that all components work harmoniously together without overheating or being overwhelmed. For all the details on the technical specifications, feel free to check out our internal overviews.

How do steel baskets and robust materials affect durability and sound quality?

Steel baskets provide your speaker with a very solid frame, which pays off in two ways: On one hand, stability is increased, so mechanical influences like vibrations or small bumps do not negatively affect the sound. On the other hand, the robust material leads to excellent resonance damping, minimizing unwanted vibrations. Musway relies on a mix of high-quality materials here, so you can enjoy your system for a long time. Additionally, this construction works excellently with the aluminum diaphragm and the long-stroke voice coil to deliver you a clear, powerful sound. If you often listen away from standard levels and indulge in rich bass, you will especially appreciate the robust build. You can find more information on stability in our internal installation notes or on the Musway product page.

In what way does the 3-inch midrange driver with paper diaphragm improve the sound image?

The 3-inch midrange driver with paper diaphragm covers the frequency range between approximately 200 and 10,000 Hz in the ML6.3A system. Paper is a particularly lightweight material that can still be surprisingly stable when processed correctly. Musway has taken advantage of this to provide you with a midrange driver that makes voices and instruments sound very natural. Thanks to the lightweight diaphragm material, it can quickly respond to dynamic fluctuations, delivering you a detailed reproduction without annoying rattling. Especially with acoustic music, podcasts, or audiobooks, you will be impressed by the clarity in the mids. This addition between the bass and treble ranges creates a well-balanced sound image that allows you a complete listening experience for almost all genres. If you wish, feel free to check out more technical tips on this midrange driver in our internal FAQ lists.
