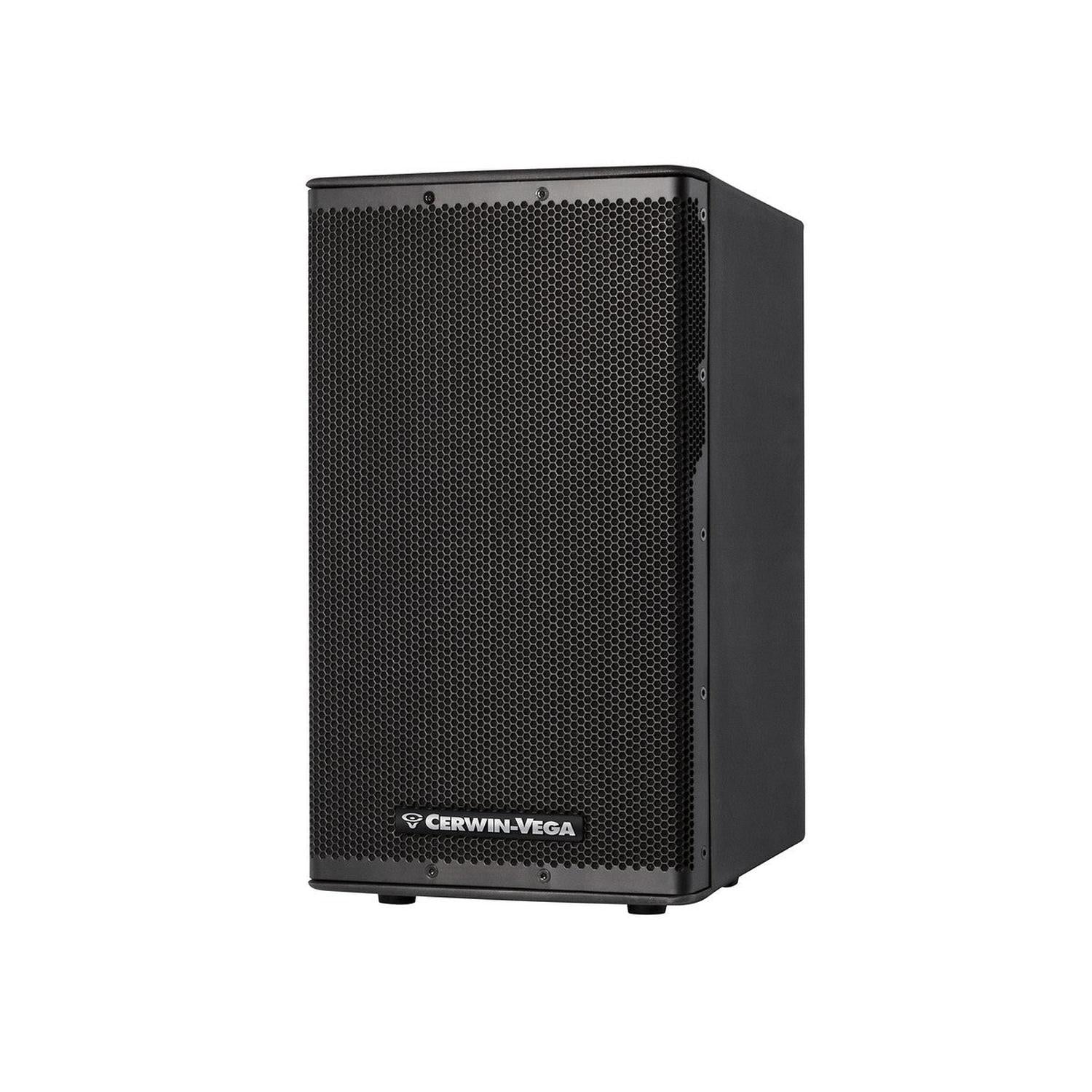

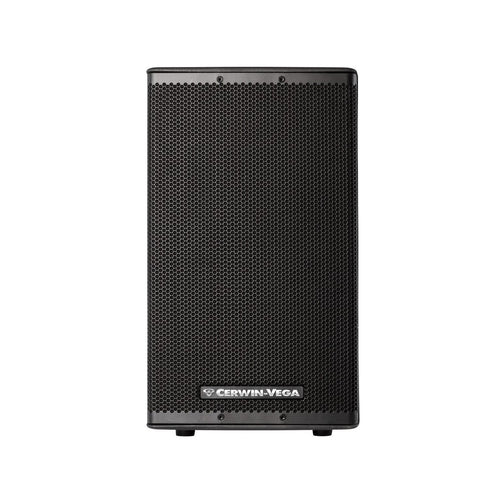

Cerwin Vega CVX Series CVX-10 10" (25cm) Active PA Subwoofer

Name: Cerwin Vega CVX Series CVX-10 10 Inch Active PA Subwoofer
Brand: Cerwin Vega
Price: 1259.1 EUR
Availability: InStock

CYBER -10%

Max, Mikael and 53k+ customers already with Masori sound upgrade

Cerwin Vega CVX Series CVX-10 10" (25cm) Active PA Subwoofer

10" subwoofer, 1500W amplifier, 90°x60° dispersion, 134dB SPL.
Frequency response 62Hz-20kHz, robust polymer housing, compact.
XLR/TRS inputs, main/monitor mode, versatile connections.
Mehr technische Details

00

€1.259,10

~~€1.399,00~~ €1.259,10

5% Rabatt mit Vorkasse

inkl. VAT , possibly plus shipping

Bequem in 12 zinsfreien Raten à €104,92 mit Klarna zahlen.

Jetzt mit kostenlosem Versand ab 50€!

Shipping cost calculator

Land/Region

PLZ

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

3 Jahre Masori Garantie Kostenlos 48 Monate Plusgarantie €124,99 60 Monate Plusgarantie Am beliebtesten €149,99

Deshalb wählen uns 100.000+ Kunden

3 Jahre Garantie

Sicher & sorglos
Blitzversand

mit DHL Express
Tiefpreisschutz

Nie zu viel zahlen

Rob

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

Cerwin VegaSL Series SL-8

Cerwin VegaXLS Series XLS 12S

CVX Series CVX-10 by Cerwin Vega

The CVX Series CVX-10 from Cerwin Vega is a 10-inch active PA subwoofer featuring a powerful 1500-watt Class D amplifier. Equipped with a 1" HF driver and a 10-inch LF driver, it offers a dispersion of 90° x 60°. The frequency response ranges from 62 Hz to 20 kHz, while the maximum sound pressure reaches an impressive 134 dB. With versatile connections, including two combo XLR/TRS inputs and three XLR outputs, it fits into any sound environment. Additional switch options such as main/monitor mode and live/playback EQ provide flexible usage possibilities. Its robust polymer enclosure and compact design make it ideal for mobile use.

Technical Specifications

1" HF driver
10" LF driver
Dispersion 90° x 60°
Powerful 1500-watt Class D amplifier
Frequency response (+/- 3 dB) 62 Hz - 20 kHz
Frequency range (-10 dB) 54 Hz - 22 kHz
Maximum sound pressure 134 dB

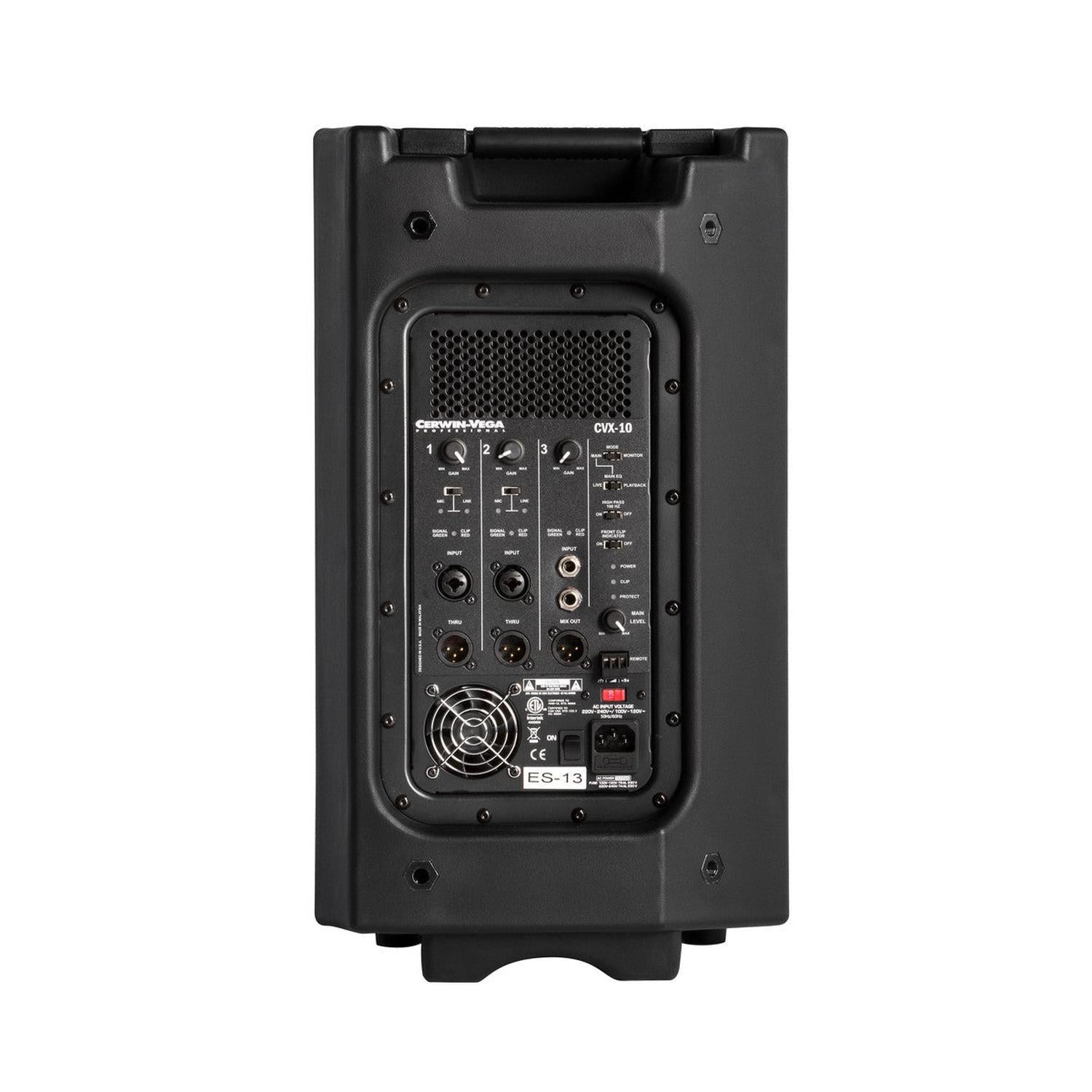

Input/Output
- (2) Combo XLR/TRS inputs
- (1) TS pair input
- (3) XLR outputs
Switches
- Main/monitor mode
- Live/playback EQ
- High-pass filter
- Front clip indicator
Robust polymer enclosure
Dimensions (H x W x D) 541 mm x 312 mm x 303 mm
Weight (lbs) 38.8

Cerwin Vega CVX Series CVX-10 Datenblatt

Datenblatt öffnen

Frequent questions about CVX Series CVX-10

Wie beeinflusst der 1500-Watt Klasse D Verstärker des CVX Series CVX-10 die Klangqualität?

The powerful 1500-watt Class D amplifier in the CVX Series CVX-10 from Cerwin Vega ensures highly efficient conversion of electrical energy into sound energy, contributing to the strong sound quality of the PA subwoofer. This means not only powerful sound but also reduced heat generation, which improves reliability during intense use. The amplifier delivers enough power to ensure clear and distortion-free sound even at a maximum sound pressure of 134 dB, making it ideal for dynamic music genres and loud environments by effectively driving the LF and HF drivers.

Welche Frequenzbereiche deckt der CVX Series CVX-10 ab?

The frequency response of the CVX Series CVX-10 ranges from 62 Hz to 20 kHz. This means that the subwoofer accurately reproduces the deep bass, which typically includes music-emphasized undertones below 100 Hz, up to the higher frequencies. In the extended frequency range, the coverage is from 54 Hz to 22 kHz, which is particularly important for richly sounding music styles. Therefore, the CVX-10 reaches both the deep frequencies that are crucial for bass sound and the finer details in the higher ranges up to 22 kHz clearly. This ensures a well-rounded sound.

Welche technischen Eigenschaften machen den CVX Series CVX-10 zu einem mobilen Subwoofer?

The CVX Series CVX-10 is particularly suitable for mobile applications thanks to its robust polycarbonate housing and compact format. With dimensions of 541 mm in height, 312 mm in width, and 303 mm in depth, as well as a weight of 38.8 pounds, it allows for easy transport and quick installation. The durable housing protects the subwoofer from damage that can occur during frequent handling. Additionally, the versatile connection options enable flexible integration into various sound systems, making the CVX-10 easy to use in mobile setups or at temporary events.

Wie helfen die Abstrahlcharakteristiken des CVX Series CVX-10 bei der Klangverteilung?

The CVX Series CVX-10 has a radiation pattern of 90° x 60°, which allows for sound distribution in a wide sound field. This characteristic is particularly advantageous for broad areas, as it ensures an even distribution of high and mid tones throughout the space. This directivity means that listeners in different positions can experience a consistent sound. Especially in larger venues or with PA systems, where sound needs to be evenly distributed, the CVX-10 operates effectively. The targeted radiation angle also prevents unnecessary sound loss at the room walls.

Welche Anschlüsse bietet der CVX Series CVX-10 und wofür sind sie geeignet?

The CVX Series CVX-10 is equipped with two combo XLR/TRS inputs and three XLR outputs, allowing for seamless integration into various audio systems. These inputs enable the connection of microphones or line devices, while the outputs are used for routing sound to additional speakers or audio mixers. An additional TS pair input provides further connection options for device sources. The subwoofer can be flexibly used in both main and monitor systems. This versatility makes the CVX-10 ideal for applications in setups of varying sizes with different audio conditions.

Was bewirken die Schalteroptionen am CVX Series CVX-10 und wie werden sie angewendet?

The CVX Series CVX-10 features important switch options, including Main/Monitor mode, Live/Playback EQ, and High-pass filter. The Main/Monitor mode allows for sound adjustment depending on the application, whether for front-of-house sound or as a stage monitor. The Live/Playback EQ optimizes the frequency curve to ideally represent either natural sounds or digital audio experiences. The High-pass filter cuts off low-frequency signals to reduce unnecessary bass components in certain applications. These switches optimize usability according to acoustic requirements and ensure a sound-adapted use of the system.

Welche maximale Schallpegel kann der CVX Series CVX-10 erreichen und warum ist das wichtig?

The CVX Series CVX-10 achieves a maximum sound pressure level of 134 dB. This means that it is capable of transmitting sound clearly and distinctly even in loud environments or large venues, without any loss of quality due to distortion. A high maximum sound pressure is particularly important to ensure that sound is consistently perceivable over long distances and to ensure that every listener can experience the music or speech at the desired volume and quality. This makes the CVX-10 especially effective for professional and demanding audio setups.

Wie beeinflusst der 10'' LF-Treiber des CVX Series CVX-10 die Leistung?

The 10'' LF driver of the CVX Series CVX-10 is crucial for bass reproduction. Its design allows for the efficient and precise transmission of low frequencies, which contributes to the powerful and robust sound of the subwoofer. The size of the driver enables sufficient air displacement to handle the bass range with high intensity while still maintaining clarity and fidelity. When used in PA systems or mobile setups, the LF driver ensures that the bass is strongly present, regardless of the volume, thus providing a clearly defined, immersive sound.

Welche Vorteile bietet das Polymergehäuse des CVX Series CVX-10?

The robust polycarbonate housing of the CVX Series CVX-10 offers several key advantages, including increased stability and shock resistance, which are crucial for mobile use. The material withstands physical stresses that can occur during frequent transport and protects the internal components from damage. At the same time, the lightweight and weather-resistant material contributes to overall mobility without compromising durability or sound quality. Additionally, the specific design ensures optimal vibration characteristics, leading to improved sound radiation, which is essential for high-quality audio enjoyment.

Wie berücksichtige ich die Abmessungen des CVX Series CVX-10 bei der Installation im Auto?

For the installation of the CVX Series CVX-10 in a vehicle, it is crucial to consider the dimensions of 541 mm in height, 312 mm in width, and 303 mm in depth. Ensure that the available space in the car can easily accommodate these dimensions, especially in the trunk or when using custom-made enclosures. Note that any vibrations should be dampened during installation to avoid affecting the acoustic performance. By implementing the correct fitting and damping measures, you can ensure that the CVX-10 provides the best possible audio enjoyment in the vehicle.
