JL Audio VX800/8I 8-channel DSP amplifier
SKU:  98633
EAN:  699440986335
100 Watt

VX800/8I

SKU:  98633
EAN:  699440986335

Technical Highlights

  • Power: 100 W RMS x 8 @ 2 Ω / 75 W RMS x 8 @ 4 Ω, Frequency Response: 12 Hz 24 kHz.
  • S/N Ratio: 101 dB, Damping Factor: >100 @ 4 Ω, THD+N: <1% @ 2 Ω.
  • Dimensions: 54 x 287 x 168 mm, Fuse Rating: 80 A.
  • More technical details
00 d
00 h
00 m
00 s
€1.499,90
-24% €1.965,00 €1.499,90
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
May 18, - May 19,
x Piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €124,99 with Klarna .
Expert Image

Rob

Expert Image

Max

Avoid a bad purchase? We check your setup!

Rob & Max check your project: So you are guaranteed to get the maximum performance for your budget.

Response on weekdays within 24 hours

Your benefits at Masori

JL Audio13W7AE
JL Audio-13W7AE-12" (30cm) Subwoofer-masori-kaufen

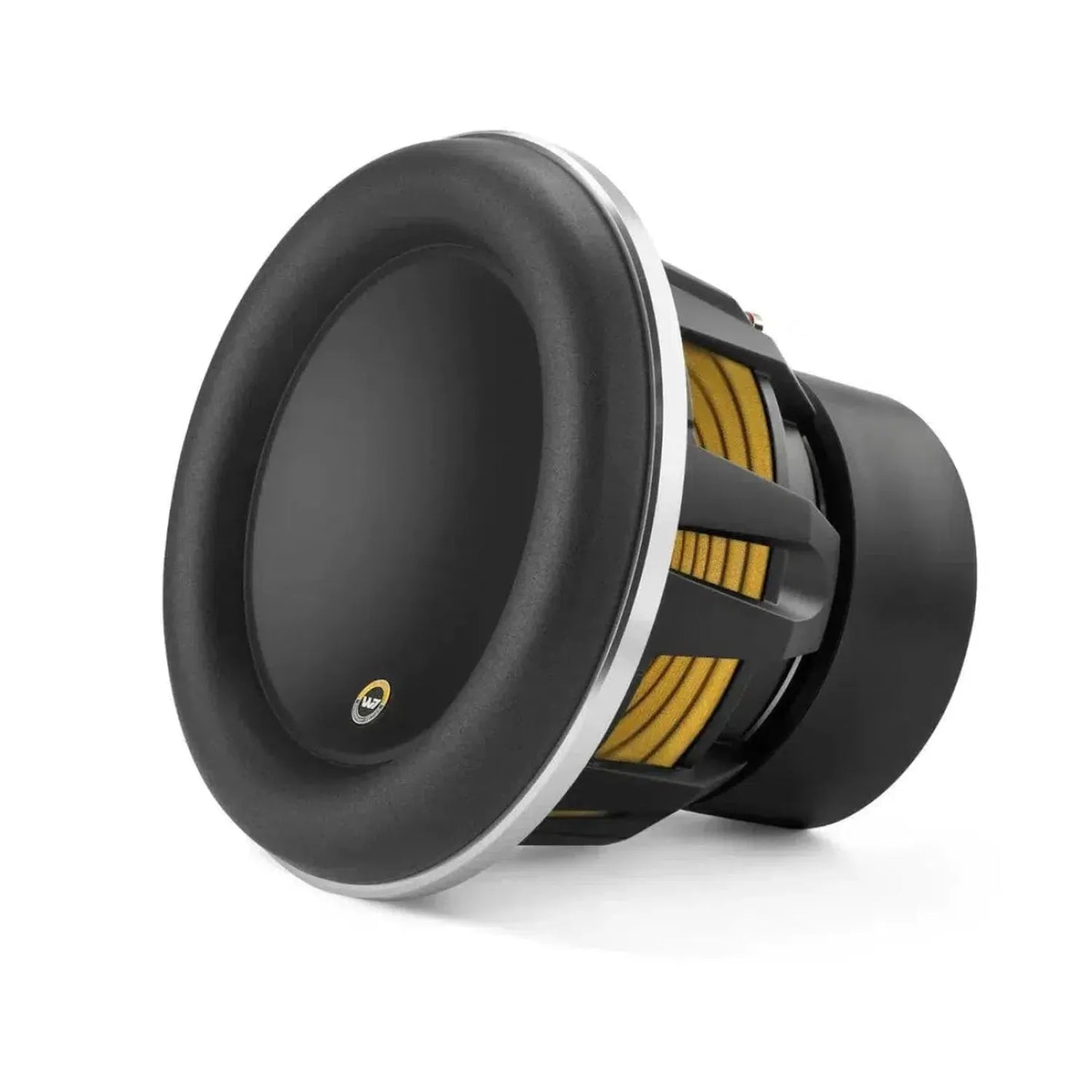

JL Audio-12W7AE-12" (30cm) Subwoofer-masori-kaufen
JL Audio12W7AE
JL Audio-VX800/8I-8-Kanal DSP-Verstärker-masori-kaufen
€1.499,90
€1.965,00 €1.499,90

More power than VX800/8I here!

Show all
  • Deaf Bonce-Apocalypse Atom 3.5K Pro-1-Kanal Verstärker-masori-kaufen
    3500 Watt

    Apocalypse Atom 3.5K Pro

    €399,00
    €399,00 €399,00
    Delivery
    May 21, - May 26,
  • Deaf Bonce-Apocalypse Atom 2000.1 Pro-1-Kanal Verstärker-masori-kaufen
    2000 Watt

    Apocalypse Atom 2000.1 Pro

    €329,00
    €329,00 €329,00
    Delivery
    May 21, - May 26,
  • Deaf Bonce-Apocalypse Atom 1600.1 PRO-1-Kanal Verstärker-masori-kaufen
    1600 Watt

    Apocalypse Atom 1600.1 PRO

    €249,00
    €249,00 €249,00
    Delivery
    Delivered automatically as soon as available from the supplier.
  • Deaf Bonce-Apocalypse Atom 2.5K Pro-1-Kanal Verstärker-masori-kaufen
    2500 Watt

    Apocalypse Atom 2.5K Pro

    €349,00
    €349,00 €349,00
    Delivery
    Delivered automatically as soon as available from the supplier.
  • Deaf Bonce-Machete Light MLA-900.1-1-Kanal Verstärker-masori-kaufen
    900 Watt

    Machete Light MLA-900.1

    €199,00
    €199,00 €199,00
    Delivery
    May 21, - May 26,
DSP_Verstaerker_bestseller

This could also look like this for you!

A good Amplifier not only delivers watts, it controls your speakers. Many mainstream amps dazzle with high numbers but lose stability under load. Our selection of power amplifiers from Deaf Bonce and DD Audio stands for honest power ratings and maximum efficiency – so your system plays cleanly even at the limit.

Discover now

VX800/8I by JL Audio Description

The VX800/8i from JL Audio is a powerful 8-Channel DSP Amplifier with advanced NexD2™ technology that delivers outstanding audio playback. With a power output of up to 100 Watts per channel at 2 Ohm and an ultra-compact chassis, it is ideal for installations in tight spaces. Configuration is easily done via external devices using the TüN™ software.

Features
  • 8-Channel Class D Amplifier with integrated DSP
  • Power: 100 W x 8 @ 2 Ω, 75 W x 8 @ 4 Ω
  • Bridged: 200 W x 4 @ 4 Ω
  • NexD2™ technology for exceptional efficiency
  • Ultra-compact design for easy installation
  • Configuration via PC, tablet, or smartphone
  • Includes 35mm² power connection, wiring harnesses, USB cable
Technical Specifications
  • RMS power @ 14.4 V: 75 W x 8 @ 4 Ω, 100 W x 8 @ 2 Ω, 200 W x 4 Bridged @ 4 Ω
  • RMS power @ 12.5 V: 60 W x 8 @ 4 Ω, 90 W x 8 @ 2 Ω, 180 W x 4 Bridged @ 4 Ω
  • Frequency response: 12 Hz - 24 kHz
  • S/N ratio: 101 dB (A-weighted)
  • Damping factor @ 4 Ω: >100 / at 50 Hz
  • THD+N: <1% @ 2 Ω per channel
  • Input voltage range: 200 mV - 16 V RMS
  • Cable diameter: 25mm³-35mm²
  • Fuse rating: 80 A
  • Dimensions: H: 54 mm, W: 287 mm, D: 168 mm
  • Weight: 2.95 kg

Frequently Asked Questions about VX800/8I

Wie groß ist der Frequenzbereich des VX800/8I?

The frequency range of the VX800/8I is between 12 Hz and 24 kHz, allowing for nearly complete audio reproduction from the deepest bass to the highest treble. This preserves room for tonal nuances, which, together with the NexD2™ Technology, ensures amazing sound fidelity. This bandwidth is optimal for precise and detailed audio reproduction, and especially with digital sources, the signal-to-noise ratio of 101 dB ensures that even the finest details are reproduced cleanly.

Welche Leistung bietet der VX800/8I pro Kanal?

The VX800/8I delivers up to 100 watts per channel at 2 ohms and 75 watts at 4 ohms at a voltage of 14.4 volts. This allows for powerful sound distribution in your vehicle. At a lower voltage of 12.5 volts, this is 90 watts at 2 ohms and 60 watts at 4 ohms. The power varies according to the impedance of the speakers, which should be considered when selecting components to ensure optimal sound reproduction. If needed, channels can be bridged to achieve even more power with 200 watts at 4 ohms.

Wie funktioniert die NexD2™ Technology im VX800/8I?

The NexD2™ Technology of the VX800/8I utilizes a combination of DSP control and DirectFET™ outputs for outstanding sound fidelity and efficiency. It reduces the loop area within the amplifier, thereby minimizing unwanted distortion. The result is a sound with very low noise and high dynamics, ensuring a clear, precise sound especially at high volumes or with demanding pieces of music. This technology is a central component of the performance of this 8-channel DSP amplifier.

Welche Vorteile bietet das ultrakompakte Chassis des VX800/8I?

The ultra-compact chassis of the VX800/8I significantly simplifies installation, especially in tight spaces. With a height of 54 mm, a width of 287 mm, and a depth of 168 mm, it can be easily accommodated in various vehicles. All connections are located on one side, making integration into the existing audio system easier. For vehicles with limited space, this amplifier offers excellent performance without compromising on installation options, making it ideal for use in cars with confined space.

Muss ich zusätzliche Software für den VX800/8I verwenden?

Yes, to fully utilize the diverse functions of the VX800/8I, the JL Audio TüN™ software is required. This application is compatible with PC, tablet, and smartphone and offers an intuitive user interface for configuring all amplifier settings and DSP functions. Instead of physical control knobs, adjustments are made digitally, allowing for more precise settings for a customized listening experience. The software allows for adjustments to room acoustics and preferred sound profiles, making this integration a central aspect of operating the amplifier.

Wie beeinflusst die Impedanz die Leistung des VX800/8I?

The impedance of the connected speakers significantly affects the performance of the VX800/8I. At 4 ohms, the amplifier delivers 75 watts per channel, while at 2 ohms it delivers 100 watts per channel. A lower impedance means more power, but also greater demands on the power supply and cooling. Additionally, the ability to bridge channels at 4 ohms allows for a power output of 200 watts for larger speakers. It is important to pay attention to the power specifications to efficiently drive the speakers and achieve the desired audio performance.

Welche Anschlussmöglichkeiten bietet der VX800/8I?

The VX800/8I offers comprehensive connection options, including a power connection for 35mm² cables, RCA inputs with a voltage range of 200 mV to 16 V RMS, and a speaker output wiring harness. The versatility of this amplifier allows for efficient connection of both low- and high-impedance speaker models. A supplied 1.8m A/B USB cable also enables a direct connection to external devices for DSP configuration. It is important to use appropriate connections and cables during installation to ensure optimal performance and safety.

Wie wird der VX800/8I im Auto installiert?

When installing the VX800/8I in the car, you need to consider the compact dimensions to find the best location. With dimensions of 54 mm in height, 287 mm in width, and 168 mm in depth, it fits in many vehicles, even those with limited space. It should be mounted in a well-ventilated area; you may need adapter kits or additional cables for the connection in the car. Note that all connections are located on one side of the chassis, allowing you to optimally utilize the existing wiring in the car without having to reposition large components.

Welches Signal-Rausch-Verhältnis bietet der VX800/8I?

The VX800/8I offers an impressive signal-to-noise ratio of 101 dB, A-weighted, within the frequency range of 20 Hz to 20 kHz. This high ratio is crucial for particularly clear and detailed reproduction, as it minimizes background noise and allows even fine audio elements to come through untainted. With digital signal sources, these factors are even more significant, as they guarantee perfect sound. This technical feature is especially important for audio enthusiasts who want to achieve the highest sound quality with minimal distortion and background noise.

Welche Sicherheitsvorkehrungen sind für den Einsatz des VX800/8I erforderlich?

When using the VX800/8I, it is important to install the intended safety devices properly. The amplifier requires an 80 A (AFS, AGU, or MaxiFuse™) fuse to prevent electrical short circuits and protect the components. Additionally, the power cable must be laid with a minimum diameter of 25mm² to 35mm² to handle high current flow. These installations ensure safe operation and a long lifespan of the unit. Since the chassis consolidates all connections on one side, all safety cables could be securely installed and wired, which increases the overall protection of the system.
