JBL Stadium 52CF 5" (13cm) speaker set
80 Watt

Stadium 52CF

Technical Highlights

  • Power 80W RMS, impedance 3 Ohm, frequency response 55Hz-40kHz.
  • Plus One™ fiberglass woofer, provides impressive bass quality.
  • Tweeter output level adjustable, optimizes sound linearly.
  • More technical details
€405,00
€405,00 €405,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
Apr 29, - May 5,
x Couple
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €33,75 with Klarna .
Expert Image

Rob

Expert Image

Max

Avoid a bad purchase? We check your setup!

Rob & Max check your project: So you are guaranteed to get the maximum performance for your budget.

Response on weekdays within 24 hours

Your benefits at Masori

JBLClub 194T
JBL-Club 194T-Kalotten-Hochtöner-masori-kaufen
JBL-BassPro HUB-10" (25cm) Aktiv-Gehäusesubwoofer-masori-kaufen
JBLBassPro HUB
JBL-Stadium 52CF-5" (13cm) Lautsprecherset-masori-kaufen
€405,00
€405,00 €405,00

More power than Stadium 52CF here!

Show all
  • The Deaf Bonce GDB-65 is a round black metal speaker grille with honeycomb mesh and small mounting holes, made for 165 mm Apocalypse Serie Tiefmitteltöner.

    GDB-65

    €9,00
    €9,00 €9,00
    Delivery
    May 10, - May 15,
  • Deaf Bonce-Apocalypse AP-X69A-6"x9" Koaxial-Lautsprecher-masori-kaufen
    200 Watt

    Apocalypse AP-X69A

    €150,00
    €150,00 €150,00
    Delivery
    Apr 30, - May 5,
  • The DD Audio DC6.5a Lautsprecherset includes a large Speaker, sleek Tweeter, and compact Crossover Box on a white background.
    75 Watt

    DC6.5a

    €199,00
    €199,00 €199,00
    Delivery
    May 10, - May 15,
  • Ai-Sonic-S2-C6.2-6.5" (16,5cm) Lautsprecherset-masori-kaufen
    90 Watt

    S2-C6.2

    €199,00
    €199,00 €199,00
    In stock
    Apr 26, - Apr 27,
  • DD Audio-GR-MR Grill 5-8 Zoll-Lautsprechergitter-masori-kaufen

    GR-MR Grill 5-8 inch

    From €10,00
    €10,00 From €10,00
    In stock
    Apr 26, - Apr 27,
DSC01014_2

This could also look like this for you!

A speaker is only as good as its construction. While mass-produced products often sound flat, brands like DD Audio focus on precision and Deaf Bonce on uncompromising dynamics. We have filtered out the systems that technically get more out of your budget and open up a new league in sound quality for you.

Discover now

Stadium 52CF by JBL Description

JBL offers the STADIUM 52CF, a high-quality 5" (13cm) front system set, based on 75 years of audio excellence. The Stadium series front system is available in various sizes and delivers the iconic JBL sound in any car. Benefit from powerful and deep bass quality thanks to the Plus One™ fiberglass woofers from Stadium. Also included are 3/4" textile dome tweeters with edge-driven design, enabling impressive highs up to 40 kHz. You also have the option to upgrade two-way component systems to three-way systems.

properties

  • High-resolution 40kHz aluminum dome tweeter
  • Stadium edge-driven aluminum dome tweeters with oversized voice coils provide an unforgettable sound experience with impressive thermal endurance and a high resolution of 40kHz. Make every ride your personal concert.
  • Patented Plus One™ Fiber Optic Subwoofer
  • The patented Plus One™ fiber glass woofers provide a visceral bass experience for the whole body due to their lighter weight and higher stiffness. Dare to listen.
  • 0dB or -3dB tweeter output level control
  • The push button on the angled tweeter allows for the adjustment of the tweeter output level to 0dB or -3dB, in order to optimize the linearity of the system depending on the placement.
  • Sleek and powerful industrial design
  • Intelligent design that complements the aesthetics of every vehicle while filling it with top-notch sound.

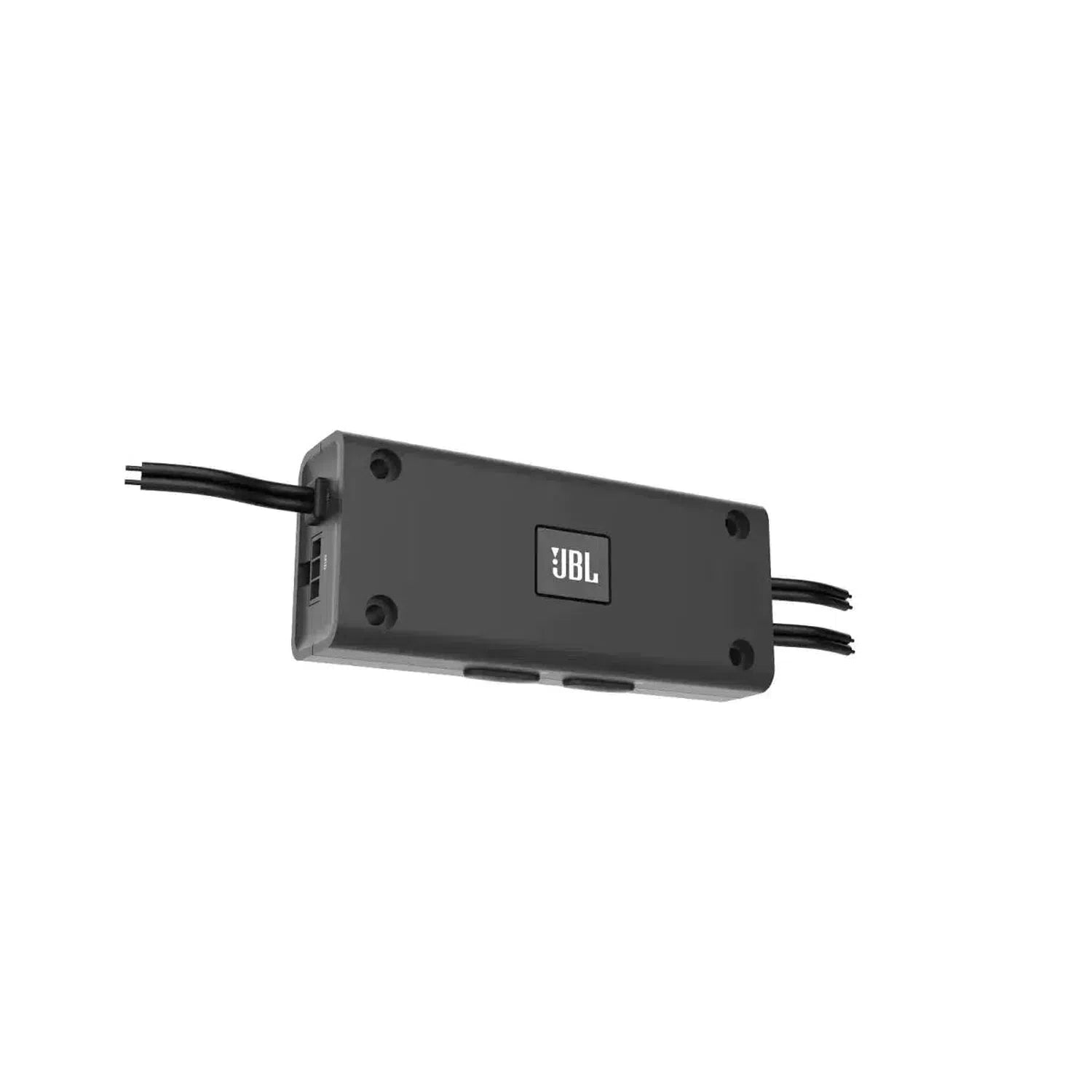

  • Slim and intelligent frequency crossover design
  • The Stadium component systems feature very slim crossovers that are equipped with a connection cable for easy installation. The push button on the crossover allows for adjustment of the tweeter output level to 0dB or -3dB, in order to optimize the system's linearity depending on the placement.

General Specifications

  • Load capacity 80Wrms, 240W peak
  • Sensitivity (@ 2.83V) 93dB
  • Frequency response 55Hz - 40kHz
  • Impedance 3.0 Ohm

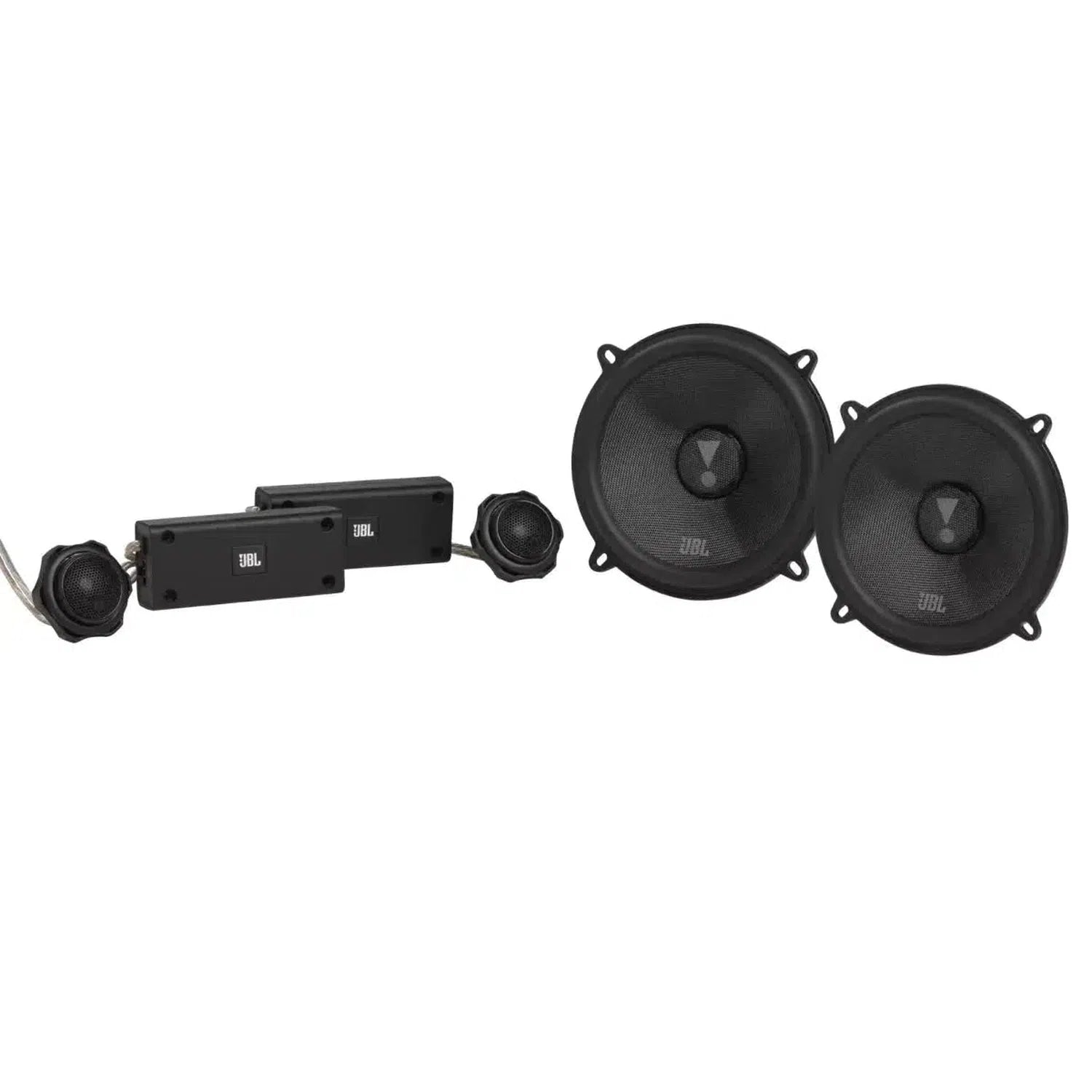

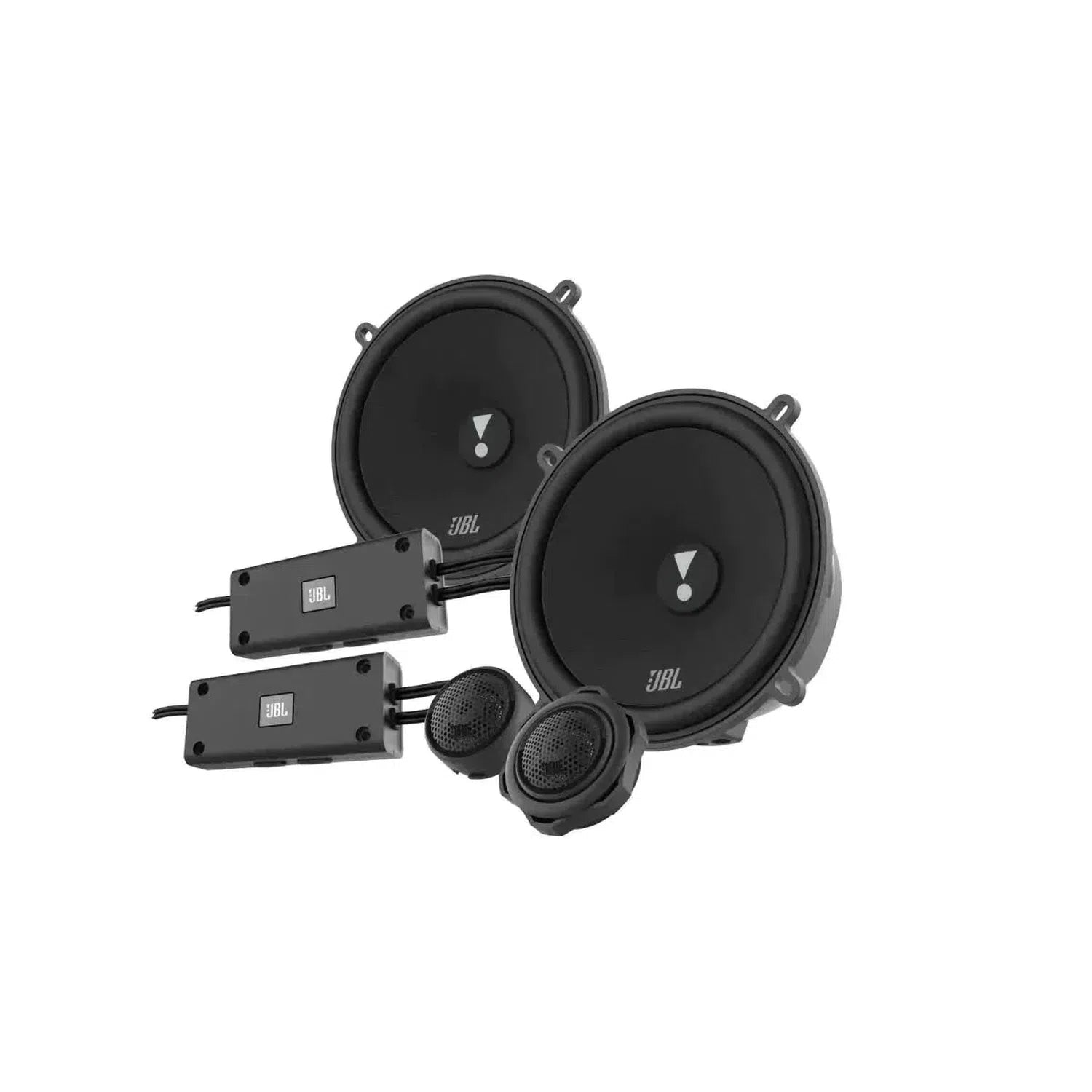

What is included in the delivery?

  • 2 x STADIUM 52CF speakers
  • 2 x foam seals
  • 2 x crossovers
  • 2 x tweeters
  • 2 x adapter for flush mounting with thread
  • 2 x plastic lock nuts
  • 2 x surface-mounted cups
  • 2 x starfish tweeter mounts
  • 22 x screws
  • 16 x quick release
  • 1 x hexagon bit (2.5 mm)
  • 2 x JBL logo stickers
  • 2 x brand stickers
  • 1 x User Manual

JBL Stadium 52CF Datasheet

Open datasheet

Frequently Asked Questions about Stadium 52CF

Welche technischen Spezifikationen hat das JBL Stadium 52CF?

The JBL Stadium 52CF is a high-quality 5" (13 cm) front system set. It has a power handling capacity of 80 W RMS and 240 W peak. The sensitivity is 93 dB at 2.83 V, while the frequency response ranges from 55 Hz to 40 kHz. The impedance is 3.0 Ohms. The tweeters are 3/4" textile dome with edge-driven design, and the woofers are patented Plus One™ fiberglass woofers. This combination is known for deep bass quality and outstanding high-frequency reproduction. The tweeter output level can be set to 0 dB or -3 dB to vary the linearity of the system.

Wie funktionieren die JBL Stadium Plus One™ Glasfaser-Tieftöner?

The Plus One™ fiberglass woofers from JBL Stadium are characterized by low weight and high stiffness. This patented technology maximizes the diaphragm area and thus improves sound emission, resulting in remarkable low-frequency performance. The visceral bass experience is particularly dynamic due to the increased strength and reduced weight of the fiberglass membranes. This achieves a precise bass drum with less distortion that fills the entire vehicle interior and creates an immersive listening experience.

Was sind die Vorteile der JBL Stadium 52CF Hochtöner mit Kantenantrieb?

The tweeters with edge-driven technology in the JBL Stadium 52CF offer several technical advantages that contribute to their outstanding sound quality. These 3/4" textile dome tweeters are specifically designed to reproduce impressive and clear highs up to 40 kHz. The innovative edge-driven construction allows for precise movement of the tweeter diaphragm, optimizing thermal resilience. The result is high resolution and a wide soundstage that reproduces every genre of music in detail. The adjustable tweeter output level further enhances linearity.

Welche Komponenten sind im JBL Stadium 52CF Set enthalten?

The JBL Stadium 52CF Set includes essential components for top-notch sound output. It contains two STADIUM 52CF speakers and two crossovers for optimized sound separation. Additionally, there are two tweeters and matching adapters for flush mounting with threads. Also included are two foam gaskets, two plastic lock nuts, and two surface-mounted cups. Two Starfish tweeter brackets, 22 screws, 16 quick-release fasteners, and a hex bit (2.5 mm) complete the set. Finally, two JBL logo stickers, two brand stickers, and a user manual are included.

Wie installiert man das JBL Stadium 52CF im Fahrzeug?

The installation of the JBL Stadium 52CF requires precise measures to achieve optimal sound quality. The speakers are designed as 5-inch (13 cm) units, making their installation easier in most standard seats. Check the vehicle dimensions and choose the appropriate mounting location. The installation process is supported by the included adapters and brackets. Customized foam seals and plastic locking nuts help minimize vibrations and ensure a stable installation. Be sure to connect the crossovers correctly and align the tweeters to maximize acoustic performance.

Welche Hochtöner-Einstellungen sind beim JBL Stadium 52CF möglich?

The JBL Stadium 52CF offers variable adjustment options for the tweeter to adapt the sound quality to the vehicle's interior. With a special push button on the angled tweeter, you can set the output level of the tweeter to 0 dB or -3 dB. This adjustment allows you to optimize the linearity of the audio system depending on the installation location. Adapting to different passenger compartments and acoustic profiles is thus facilitated, which is particularly advantageous in changing environmental conditions. The sound remains balanced even in loud or quiet driving environments.

Welche Frequenzweichenmerkmale hat das JBL Stadium 52CF?

The crossovers of the JBL Stadium 52CF are slim and intelligently designed to allow for easy installation, supported by the included connection cables. The design strategy also includes a flexibly adjustable tweeter output level of 0 dB or -3 dB, optimized depending on the specific installation location. This smart solution helps ensure that the highs, mids, and lows of the sound remain balanced. The design of the crossovers allows installers to find the best acoustic location without compromising system performance.

Wie gut ist der Bass des JBL Stadium 52CF?

The bass of the JBL Stadium 52CF is exceptionally deep and resonant thanks to the patented Plus One™ fiberglass woofers. These woofers are known for their stiffness and low weight, which ensures excellent sound emission and minimal distortion. This configuration not only allows for powerful bass but also a tuning for visceral lows, meaning that the entire interior of your vehicle resonates with rich, precise bass. Listeners who enjoy R&B, hip-hop, or bass-heavy music will particularly appreciate the advantage of this advanced bass reproduction.

Kann das JBL Stadium 52CF zu einem Drei-Wege-System erweitert werden?

Yes, the JBL Stadium 52CF offers the possibility to upgrade from a two-way component system to a three-way system. This expandability is made possible by the clever design of the crossovers and the adaptability of the tweeters. This means that if you want to further customize and enhance your audio system, you can integrate additional component units. This option provides flexibility for the ambitious car audio enthusiast who is looking for an even more detailed and comprehensive sound experience, such as by integrating a midrange driver.

Wie kompatibel ist das JBL Stadium 52CF mit den meisten Fahrzeugen?

The JBL Stadium 52CF is compatible with a variety of vehicles due to its thoughtful dimensions of 5 inches (13 cm) and the included mounting adapters. The compact size of the speakers makes it easier to integrate into the front speaker locations of most cars. Additionally, the included fasteners and seals are designed to adapt to different mounting locations. The universal brackets allow for adjustment to different doors and dashboards, which is beneficial for both new vehicles and older models, provided that the installation locations have appropriate dimensions.
