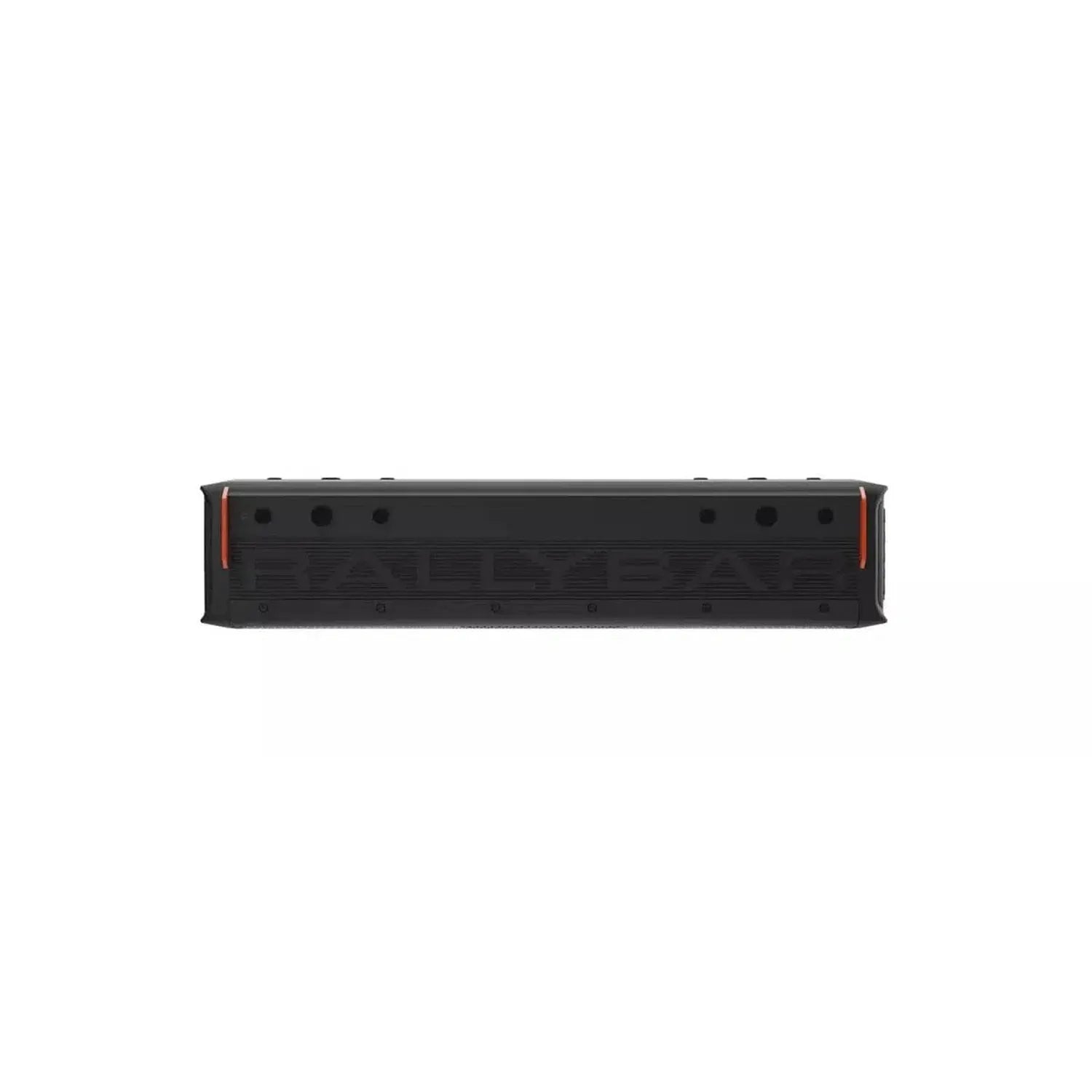

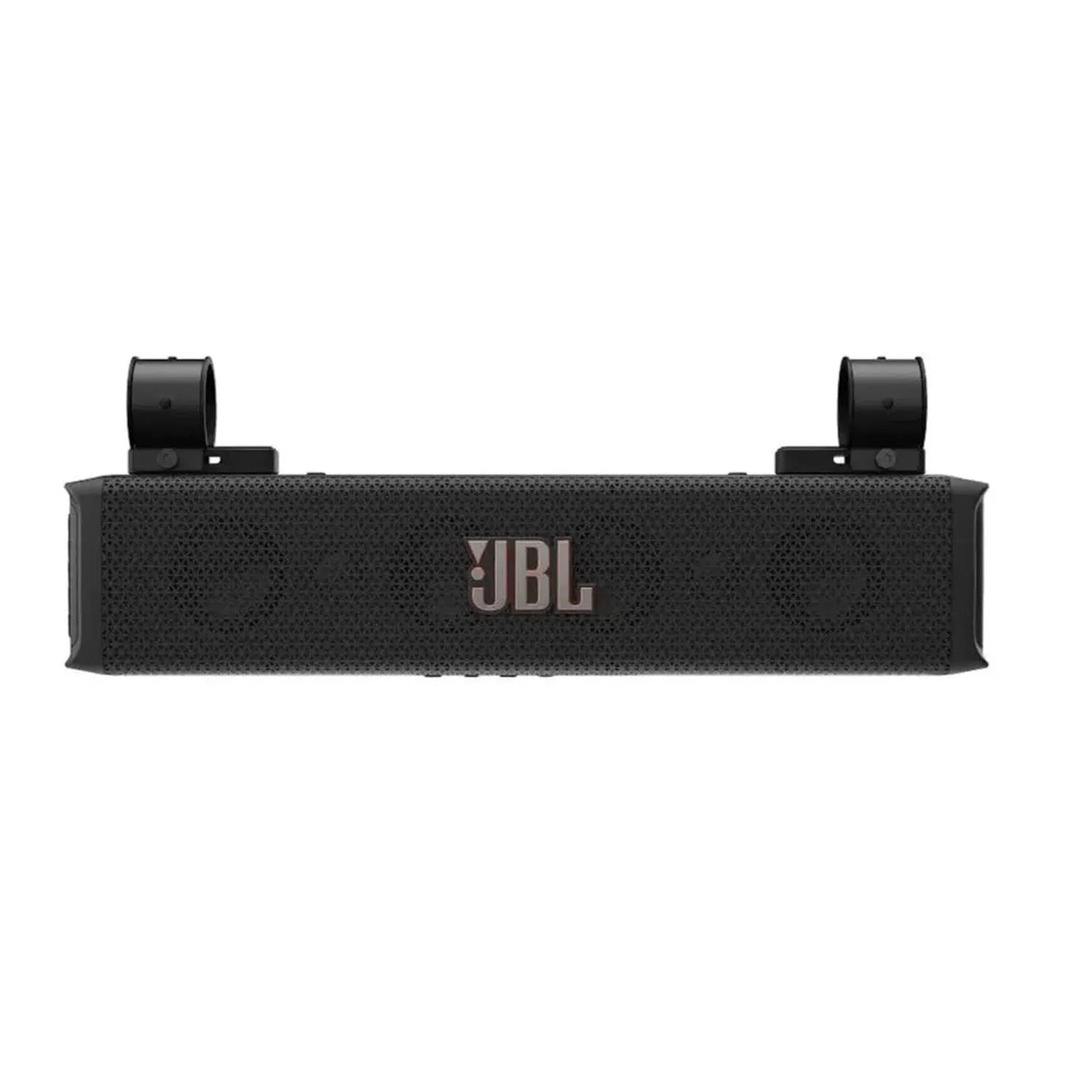

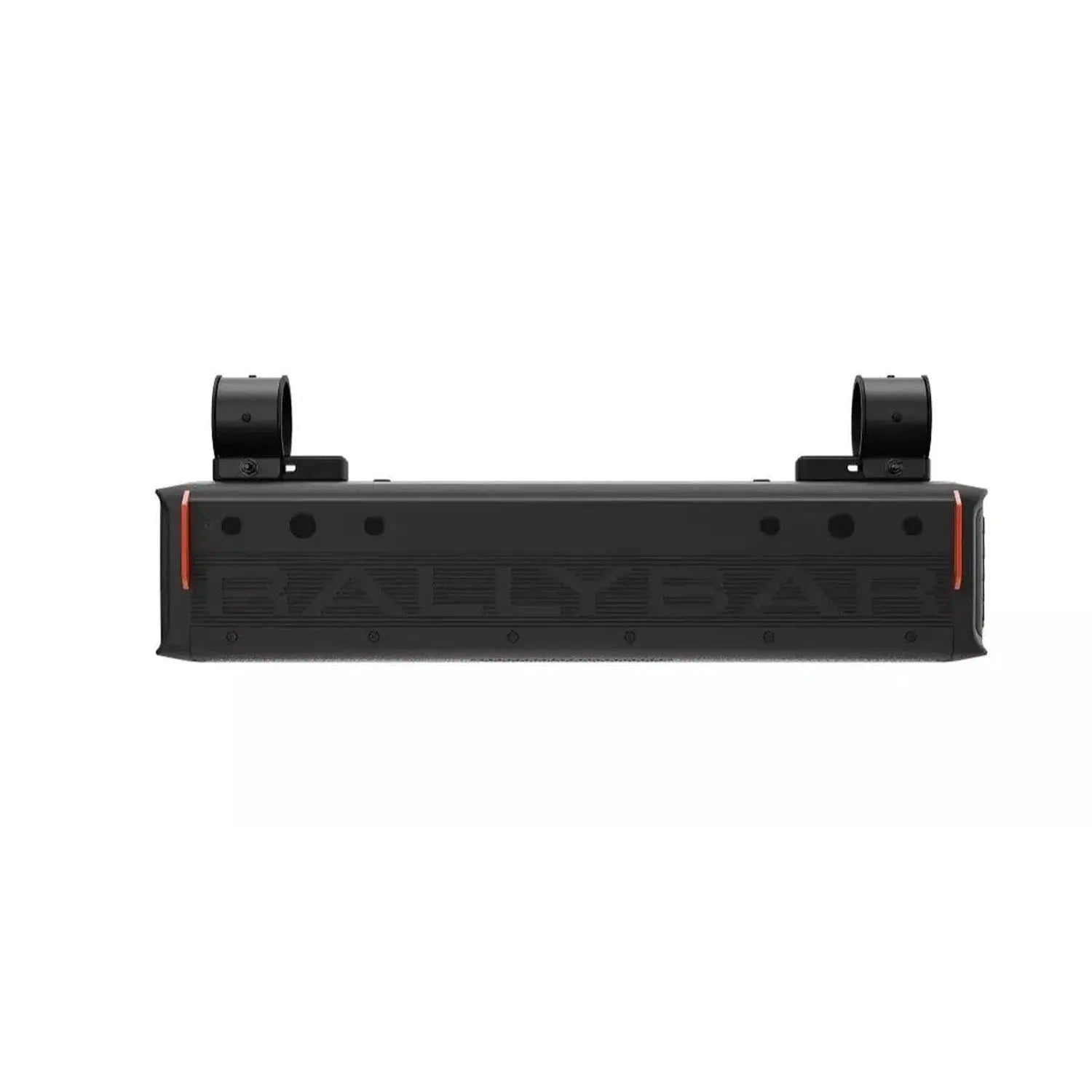

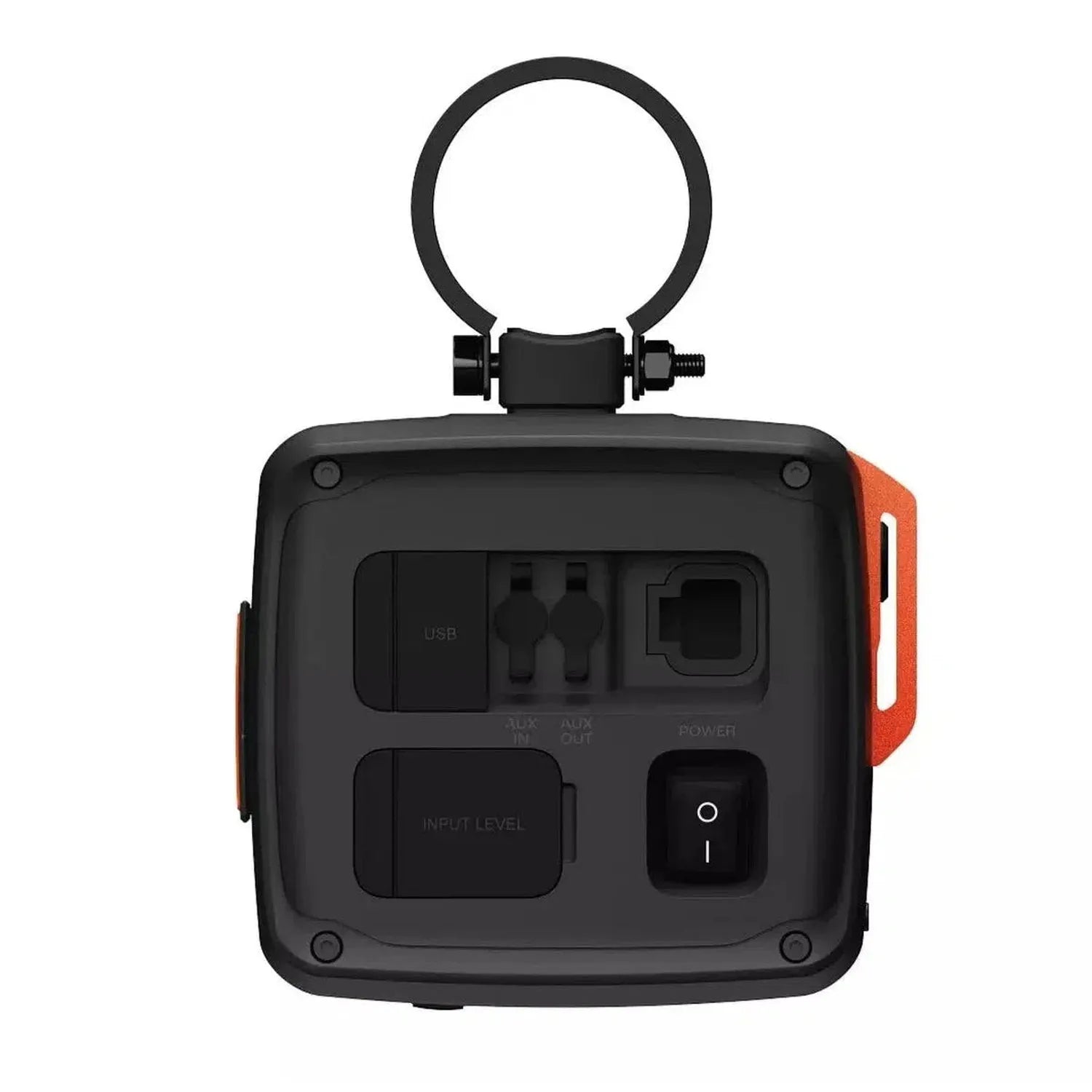

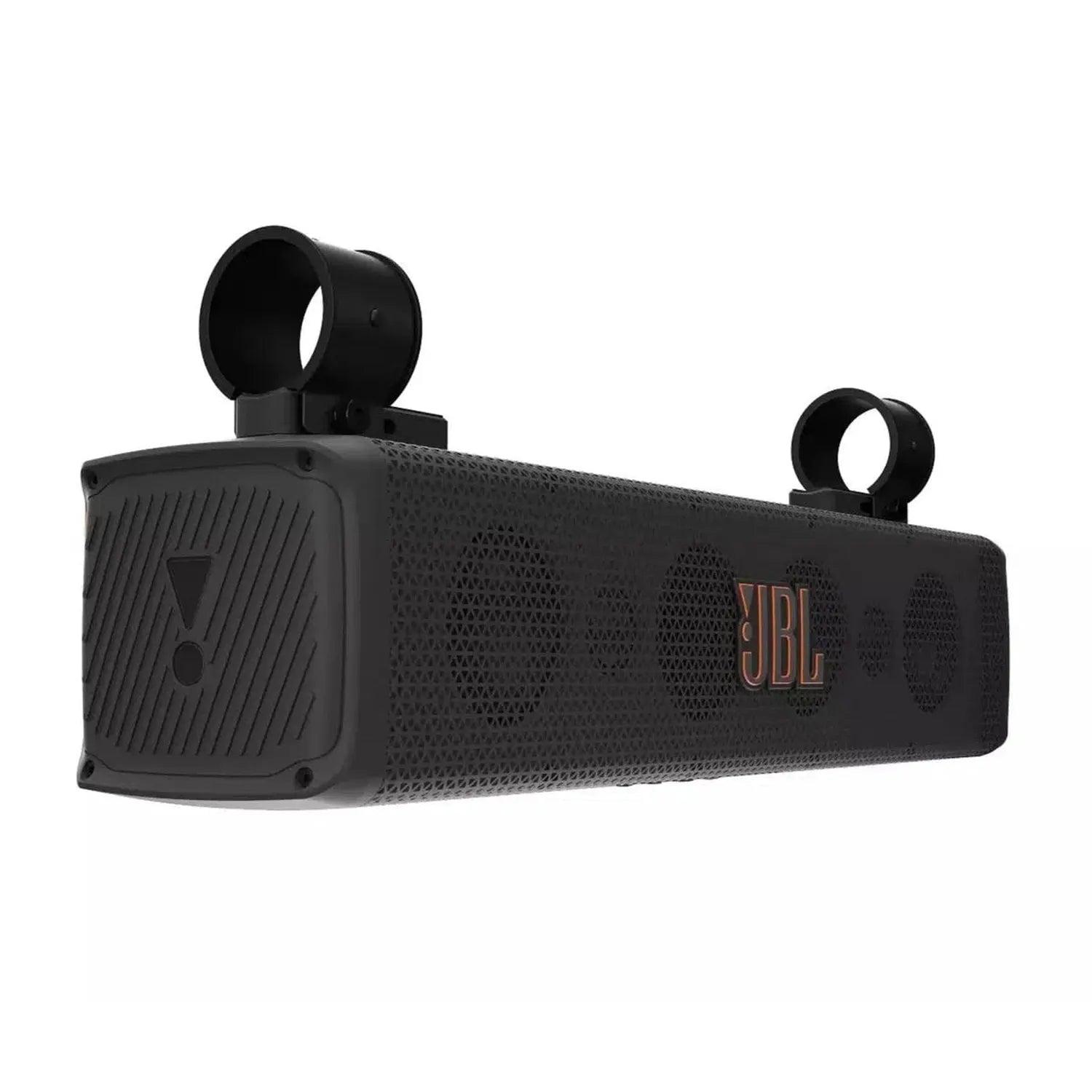

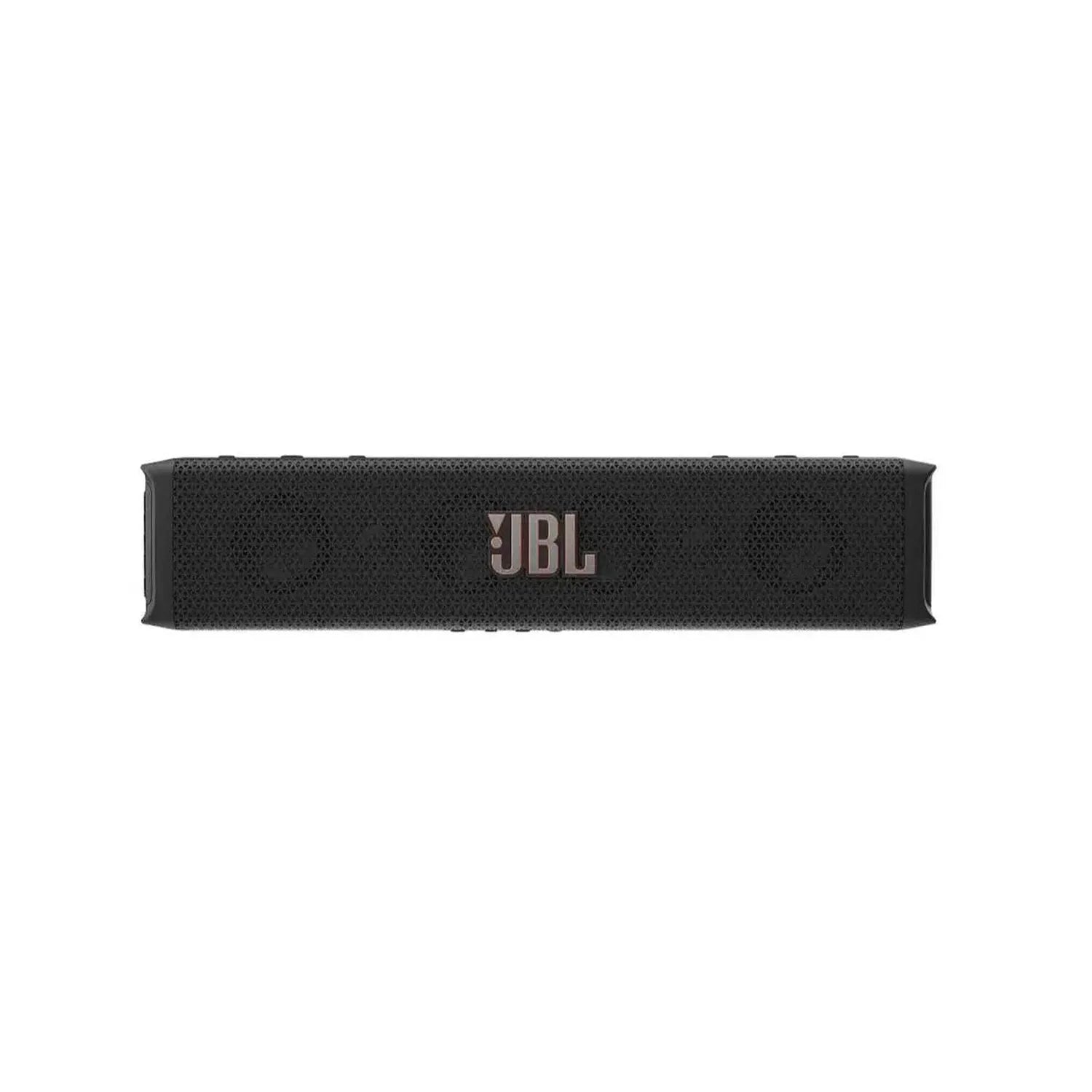

RALLYBAR S

Awaken your music to life with the RALLYBAR S, an advanced enclosure speaker from JBL. This speaker is more than just an audio device, featuring a 150W RMS Class D amplifier that delivers rich sounds. The RALLYBAR S is IP66 certified and comes with a built-in broadcast mode, allowing multiple Rallybars to use the same audio source simultaneously. Whether via Bluetooth, USB, or Aux input - you decide where your music comes from.

Features

• 150W RMS Class D amplifier integrated
• IP66 Certified
• Broadcast Mode (multiple Rallybars use the same audio source)
• Bluetooth, USB and Aux input

Technical Data

• Enclosure loudspeakers with 4x 2.75" (70mm) woofers, 2x 1" (25mm) tweeters, 2x 7.2" (182.8mm) x3" (76.2mm) racetrack passive radiators
• Output power 150WRMS, 300W PEAK (IEC60268)
• THD at rated RMS power < 1%
• Voltage range 9.6 - 16VDC
• Standby current consumption < 0.9A
• Maximum current draw 25A
• Frequency response 45Hz-40kHz
• Signal-to-noise ratio > 80 dB
• Cable Type 12AWG
• Length of the cable 3.66 m
• Bluetooth® Version 5.3
• Bluetooth® Profile A2DP V1.3, AVRCP V1.6
• Bluetooth® transmission frequency range 2400 MHz - 2483.5 MHz
• Bluetooth® transmission power ≤ 15 dBm (EIRP)
• Aux-In 2Vrms(0.35Vrms - 2Vrms), 4Vrms(0.7Vrms - 4Vrms), 6Vrms(1.05Vrms - 6Vrms) (3.5 mm connection)
• Aux output 2 Vrms (3.5 mm plug)
• USB Format FAT16, FAT32
• Dimensions of the soundbar (L x W x H) 537.5 x 126.7 x 118mm
• Weight of the soundbar 5.2kg

Scope of delivery

• 1x Soundbar
• 2x safety cables
• 1x Small Wrench
• 1 x L- Small Allen key
• 1xT-Grip Allen Key
• 2x straps with Velcro
• 1X G-Clip
• 1x keychain
• 1x 3.66m (12ft) power/ground wiring harness
• 2x rubber covers on top
• 2x fastening clips
• 2x short M8 screws
• 2x short M5 screws
• 2x long M5 screws
• 2x M5 nuts
• 4X washers
• 2X C-Clamps (2" )
• 2X C-Clamps (1.75" )
• 2x thick rubber strips (for 1.5" rod)
• 2x Thin rubber strips (for 2" & 1.75" rod)
• 1x Quick Start Guide
• 1x Safety Data Sheet & Warranty Card
