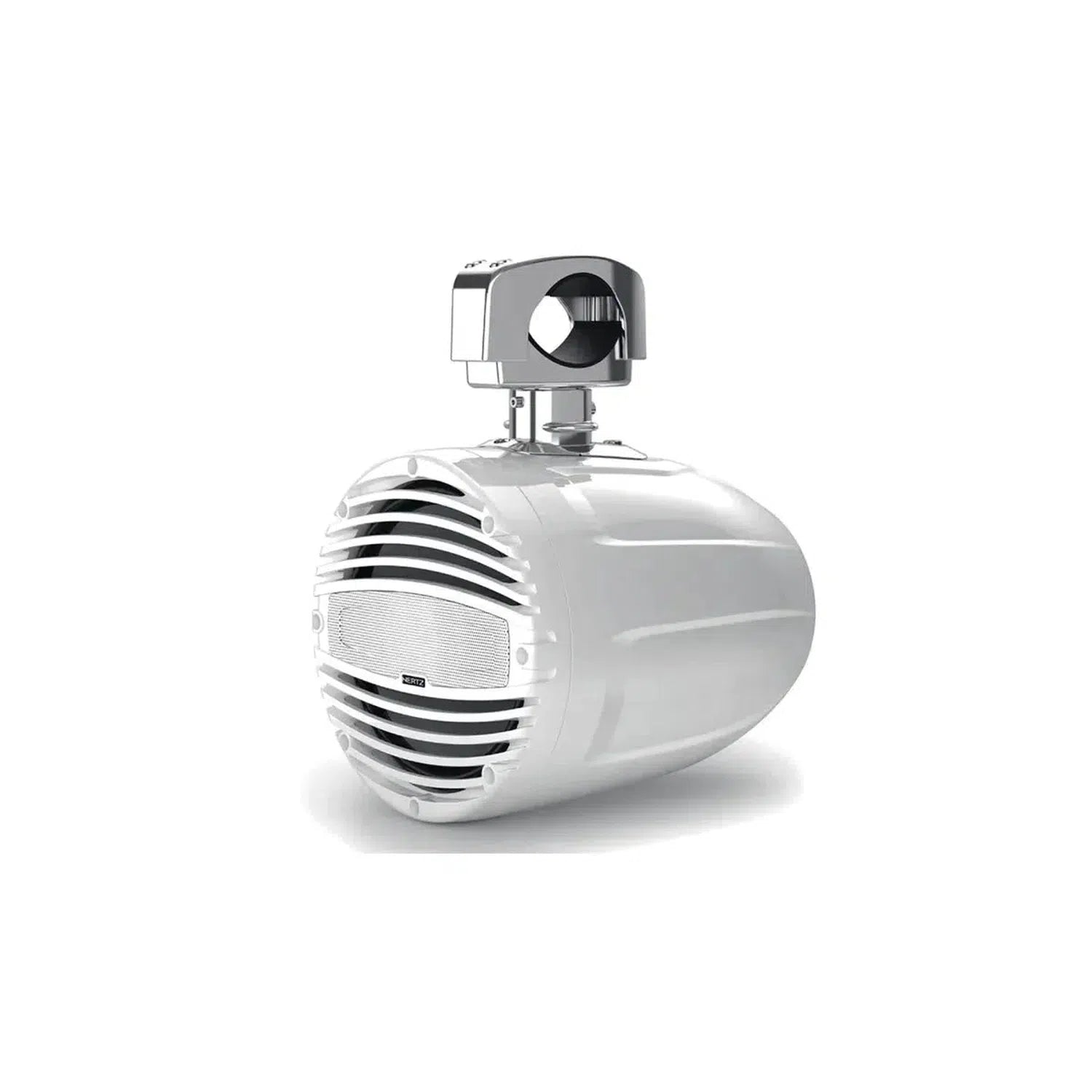

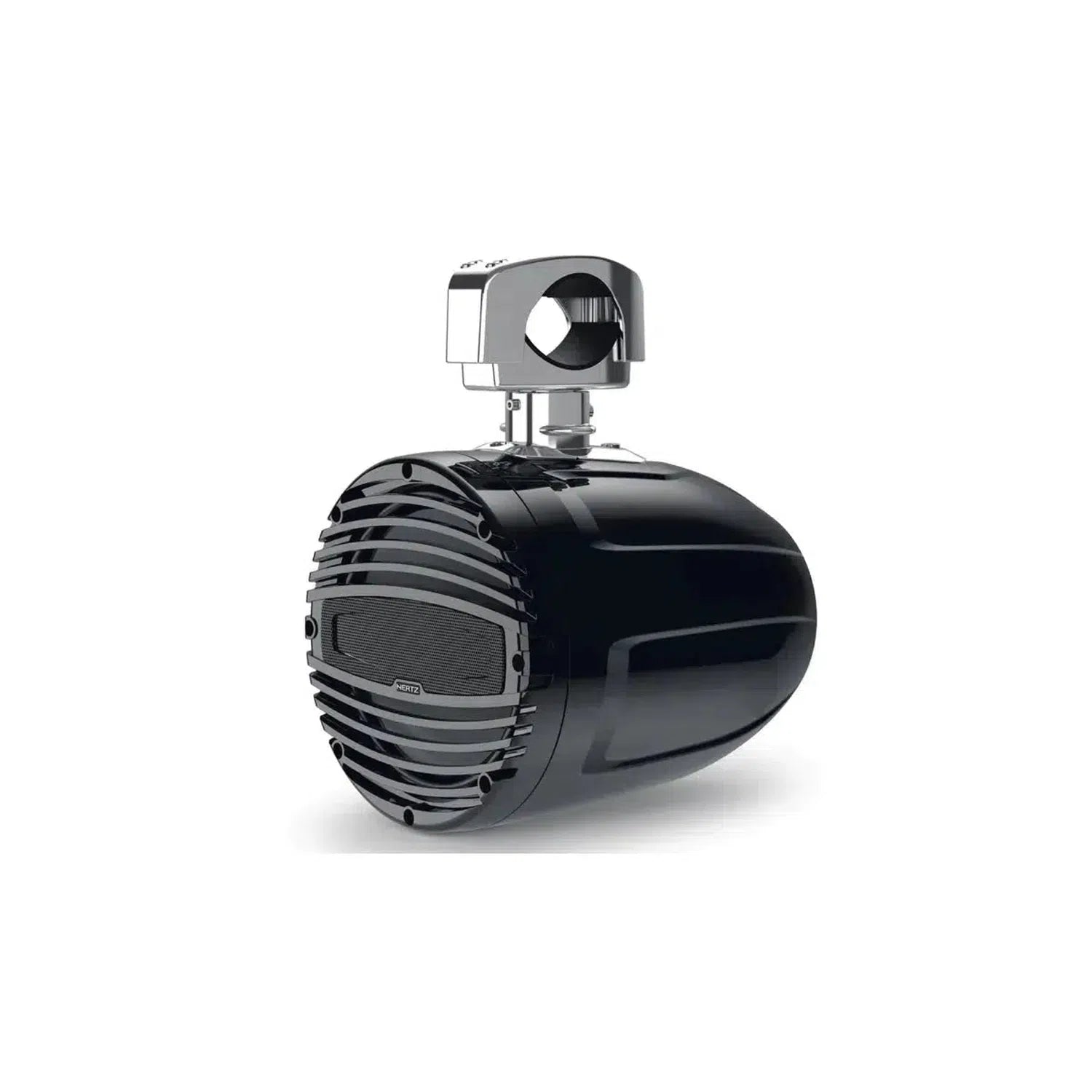

The HTX 8 M-CL-TC are 8-inch marine enclosure speakers from Hertz. They are ideal for water sports and recreational activities, deliver impressive audio performance, and offer cool colored lighting quality. The enclosure speakers feature a solid 316 stainless steel clamp mount, perfect for round or square profile tube applications. They also utilize the patented Q-OS² technology (Quick Orientation & Release for Sound & Safety) for quick and easy orientation and sound delivery. Another highlight is the adjustable logo, which helps when arranging multiple towers without compromising the correct alignment of the Hertz logo.

Technical Data

• Size mm 200
• Power Handling - RMS W 100
• Power Handling - Peak W 200
• Impedance Ohm 4
• Depth mm 288
• Woofer Voice Coil Ø mm 32
• Tweeter Voice Coil Ø mm 20
• Frequency Response Hz 45 - 25k
• Woofer Magnet Size W x D x H mm 90 x 40 x 20
• Tweeter Magnet Size W x H mm 19.7 x 3
• Weight per Speaker kg 5.4
• Woofer Magnet High-Density Ferrite
• Tweeter Magnet Neodymium
• Cone Polypropylene with UV Inhibitors
• Xmech mm ±8.5

Electro-Acoustic Specifications

• D mm 174
• Re Ohm 3.4
• Fs Hz 51
• Le mH 0.46
• Vas l 26.1
• Mms g 30
• Cms mm/N 0.33
• Bl T*m 6.33
• Qts 0.78
• Qes 0.82
• Qms 14.7
• Spl dB 91

Physical Specifications

• A 225 mm
• B 288 mm
• D 50 mm
• G 38-76 mm
• H 12 mm

Accessories

HTX RGB WITH LOGO.1

• The optional white Hertz LED logo on the back creates the same refined atmosphere as the front LED.

HTX RGB C LOGO.1

• The optional black Hertz LED logo on the back creates the same refined atmosphere as the front LED.

HM-RGB-1-BK

• Radio frequency remote control with a variety of functions, from selecting the color that matches your boat to creating a light show that reacts to the music tempo.

Features

• Hertz Pure Marine Certified Product stamp with IP65 protection rating, ASTM-D4329 standards for UV resistance, and ASTM-B117 for salt spray operability.
• Equipped with a dedicated 8-inch coaxial speaker with a 32-mm long-throw woofer (1.26") with polypropylene cone injected with UV inhibitors, and a 1.4-inch neodymium magnet tweeter.

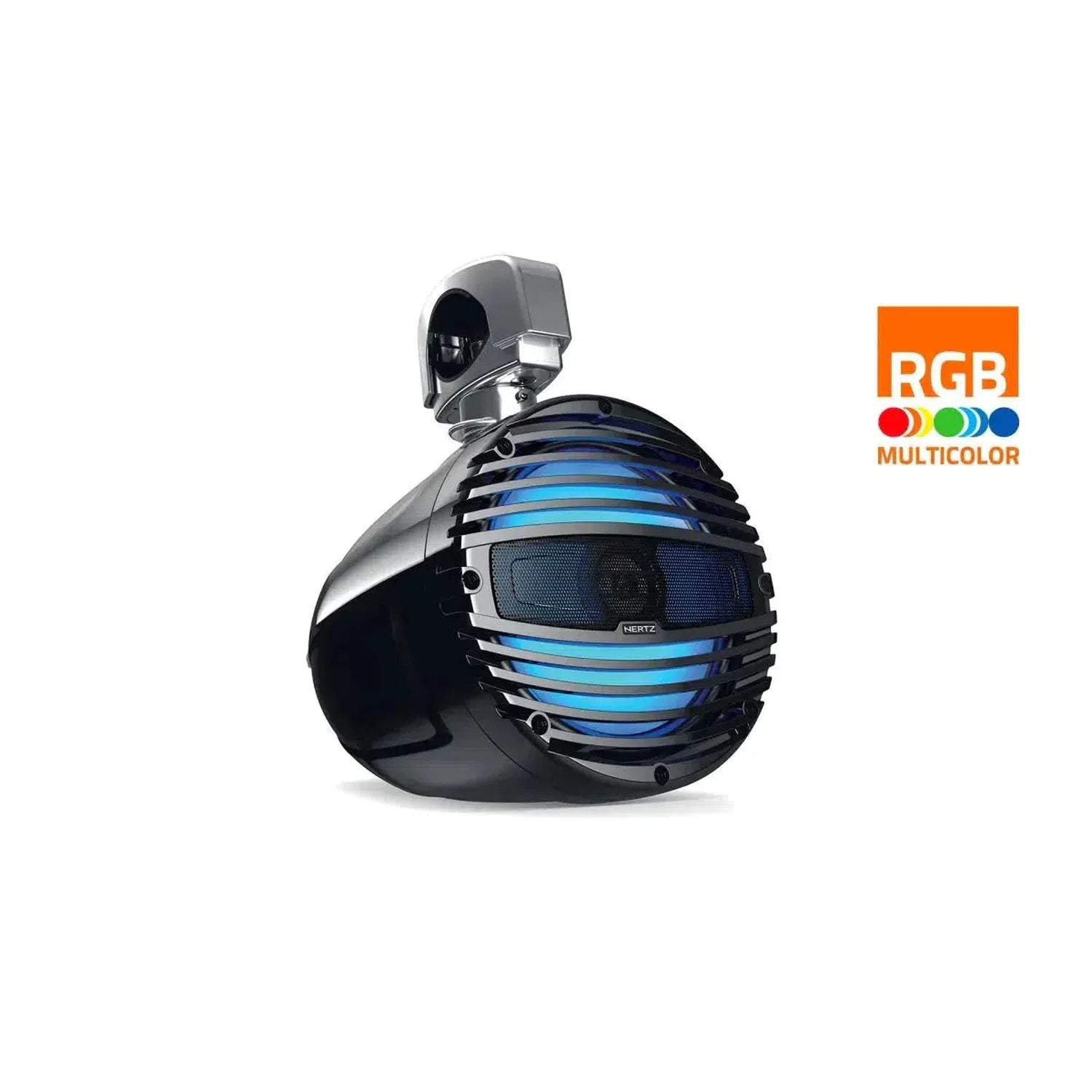

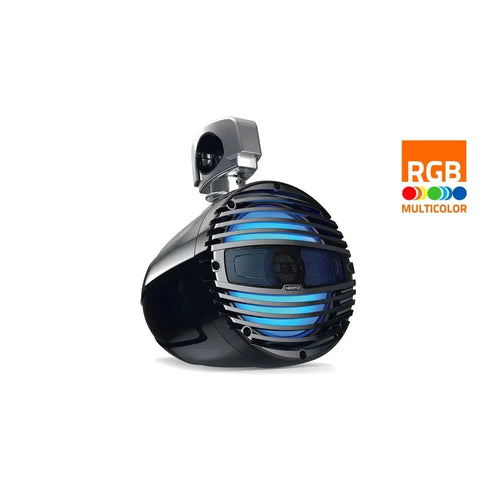

• RGB LED lighting creates a refined atmosphere and adds plenty of class to your vessel. The front RGB lighting is integrated into the front grille, while the rear RGB lighting is an add-on with the specially designed HTX RGB LOGO.1 accessory (available in both black and white).
• Q-OS² technology (Quick Orientation & Release for Sound & Safety).
• Durability thanks to the solid tone-on-tone front grille matched to the color of the grille;

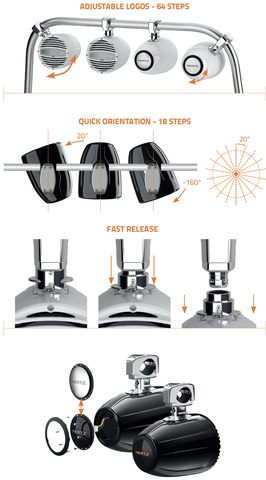

• The tower can be quickly aligned within 18 steps (each 20°) along the horizontal axis to ensure optimal sound projection and distribution across the listening area;
• Quick mechanical/electrical release for safety/theft protection and cleaning;
• Multipole high-current connector integrated into the clamp structure;
• The clamp structure includes rubber inserts for vibration damping and fits both round roll bars [38 mm, 76 mm (1-1/2" to 3")] and square roll bar or roof mounting by removing the upper part of the clamp base. Optional mounting accessories for major OEM brands available.
• "Adjustable Logo" allows positioning multiple towers without compromising the correct alignment of the Hertz logo. The front and rear logo can be aligned in 64 steps.
