Ground Zero GZBT 2.50 MANL-POS battery terminal clamp

Name: Ground Zero GZBT 2.50 MANL-POS Battery Terminal Clamp | Masori
Brand: Ground Zero
Price: 33.15 EUR
Availability: InStock
Rating: 4.67 (3 reviews)

3 Reviews

CYBER -15%

Max, Mikael and 53k+ customers already with Masori sound upgrade

Ground Zero GZBT 2.50 MANL-POS battery terminal clamp

3 Reviews

Two 50mm² outputs, one fused, one direct.
Made of solid, anodized copper, with plastic cover.
Integrated fuse holder, screw terminals, flexible.
Mehr technische Details

00

€33,15

~~€39,00~~ €33,15

5% Rabatt mit Vorkasse

inkl. VAT , possibly plus shipping

Jetzt mit kostenlosem Versand ab 50€!

Shipping cost calculator

Land/Region

PLZ

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

3 Jahre Masori Garantie Kostenlos 48 Monate Plusgarantie €14,99 60 Monate Plusgarantie Am beliebtesten €19,99

Deshalb wählen uns 100.000+ Kunden

3 Jahre Garantie

Sicher & sorglos
Blitzversand

mit DHL Express
Tiefpreisschutz

Nie zu viel zahlen

Rob

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

Ground ZeroNuclear GZNW 38C

Ground ZeroGZFH 1.50/2.20 ANL/MANL

GZBT 2.50 MANL-POS by Ground Zero

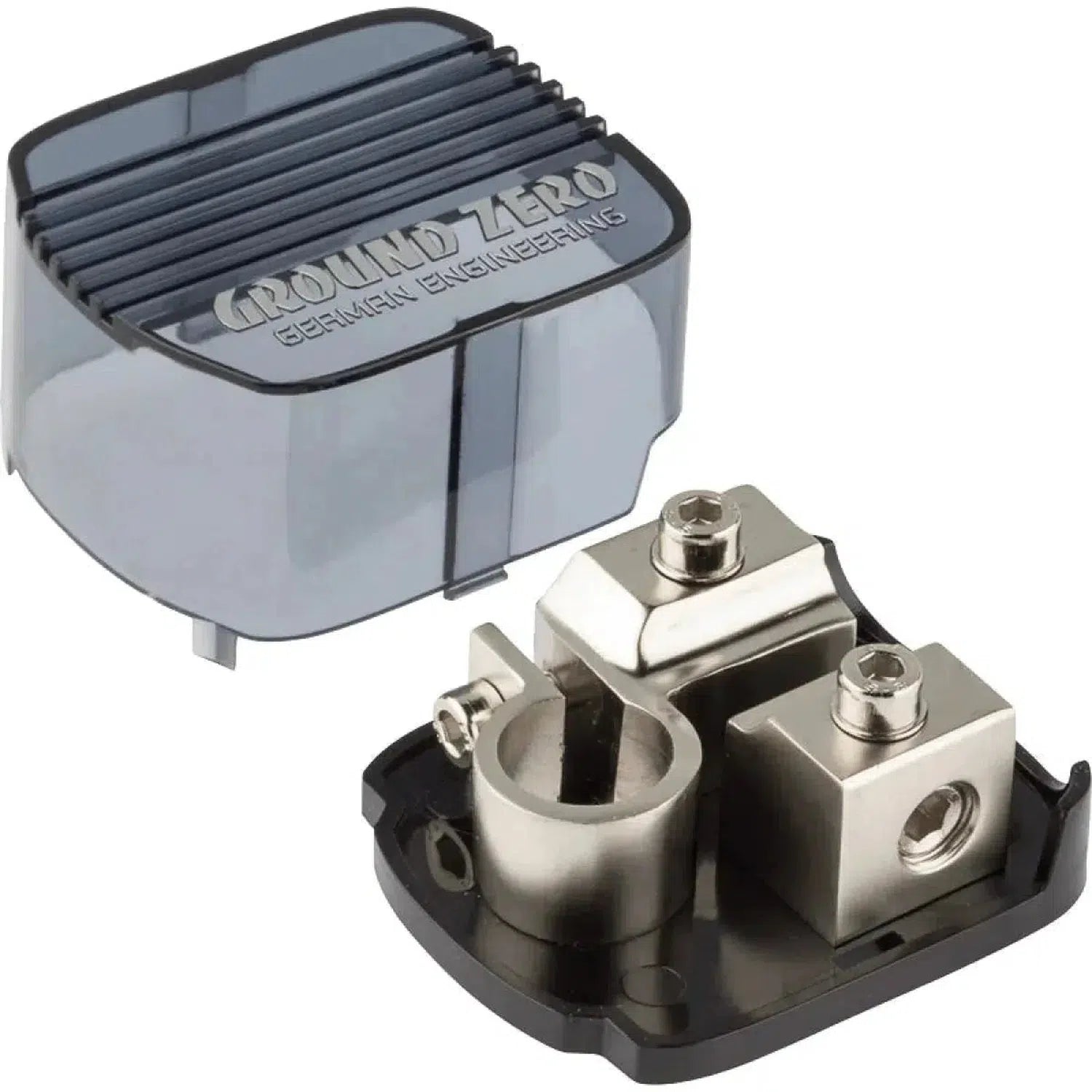

The GZBT 2.50 MANL-POS is a robust battery terminal clamp from Ground Zero, specially designed for the positive terminal. Made from solid, anodized copper, this clamp ensures a reliable connection. With two 50mm² outputs, one of which is fused and the other direct, it scores points for flexibility. A special feature is the integrated fuse holder for MINI ANL fuses. Additionally, a plastic cover is included in the delivery, and installation is straightforward using screw connections. Also, check the recommended fuse values to ensure optimal performance.

features

Battery terminal clamp with fuse holder for MINI ANL fuses
2x 50 mm² output (1x fused, 1x direct)
Massive anodized copper
Incl. plastic cover
screw connections

Recommended backup values:

cable cross-section	optimal collateral value	maximal collateral value
1.5 mm²	10 A	15 A
2.5 mm²	20 A	25 A
4.0 mm²	25 A	30 A
6.0 mm²	35 A	40 A
10 mm²	50 A	60 A
16 mm²	70 A	80 A
20 mm²	90 A	100 A
25 mm²	100 A	125 A
35 mm²	125 A	150 A
50 mm²	160 A	200 A
70 mm²	200 A	250 A
95 mm²	250 A	300 A

Frequent questions about GZBT 2.50 MANL-POS

Was macht die GZBT 2.50 MANL-POS Batteriepolklemme besonders?

The GZBT 2.50 MANL-POS from Ground Zero is unique due to its robust construction made of solid, anodized copper. It features two 50 mm² outputs, one of which is direct and the other is protected by an integrated fuse holder for MINI ANL fuses. This configuration ensures both flexibility and safety in power supply. Particularly noteworthy is the plastic cover included in the package and the use of simple screw terminals for installation. If you value flexible connections and reliable power distribution, this component is ideally suited.

Wie installiere ich die GZBT 2.50 MANL-POS richtig?

The installation of the GZBT 2.50 MANL-POS is done through easy-to-handle screw connections. First, the battery terminal clamp must be attached to the positive terminal of your vehicle's battery, with the solid, anodized copper construction ensuring a stable connection. Make sure that the integrated fuse holder for the MINI ANL fuses is installed correctly. The included plastic cover should be placed on as protection to avoid accidental short circuits. Adhere to the recommended fuse values to ensure safe and optimal operation of the system.

Welche Sicherungswerte sind für die GZBT 2.50 MANL-POS empfohlen?

The recommended fuse values for the GZBT 2.50 MANL-POS are based on the cable cross-section. For 1.5 mm² cables, the optimal fuse value is 10 A and the maximum is 15 A. For a 2.5 mm² cross-section, 20 A is optimal and 25 A is the maximum. For 4.0 mm², Ground Zero recommends 25 A or 30 A. A 6.0 mm² cable should be optimally fused with 35 A and maximally with 40 A. The table goes up to 95 mm², where the optimal value is 250 A and the maximum is 300 A. These specifications ensure safety and the full performance of the battery terminal.

Welche Vorteile bietet das massive Kupfer der GZBT 2.50 MANL-POS?

Massive, anodized copper offers the GZBT 2.50 MANL-POS from Ground Zero significant advantages in terms of electrical conductivity and durability. Copper is known for its excellent conductivity, resulting in minimal resistance and minimal energy losses. Anodized copper also provides increased corrosion resistance, which is particularly important in the harsh environment of an engine compartment. This not only ensures a stable and lasting connection but also allows for consistent power transmission, so your electrical components operate reliably, even under demanding conditions.

Warum sind zwei 50 mm² Ausgänge bei der GZBT 2.50 MANL-POS sinnvoll?

Two 50 mm² outputs at the GZBT 2.50 MANL-POS allow for flexible use by providing both a protected and a direct connection. The protected connection safeguards your system with an integrated fuse holder for MINI ANL fuses, while the direct output allows for unobstructed power transmission for high-demand applications. This combination of features is particularly advantageous when you want to operate multiple consumers or install an additional power source without having to compromise on safety and flexibility.

Wofür ist der integrierte Sicherungshalter bei der GZBT 2.50 MANL-POS nützlich?

The integrated fuse holder of the GZBT 2.50 MANL-POS is an essential safety measure that houses the MINI ANL fuses and facilitates the replacement of blown fuses. This function reduces the risk of electrical overloads and thus protects sensitive components of your vehicle. This protection is particularly crucial in vehicles with powerful sound systems or other energy-intensive modifications to prevent short circuits and subsequent damage. The easy accessibility simplifies maintenance and replacement, which increases the overall reliability and protection of the system.

Ist die GZBT 2.50 MANL-POS mit meinem Auto kompatibel?

The GZBT 2.50 MANL-POS is a universal battery terminal clamp designed for the positive terminal of vehicle batteries and can be used in most vehicles regardless of the brand. Since it is mounted with screw connections, the size of the positive terminal plays a crucial role in compatibility. It is important to ensure that there is enough space in the engine compartment to guarantee a stable connection using the solid copper construction. If your vehicle has specific restrictions, the terminal compatibility may be limited.

Welche Rolle spielt die Kunststoffabdeckung bei der GZBT 2.50 MANL-POS?

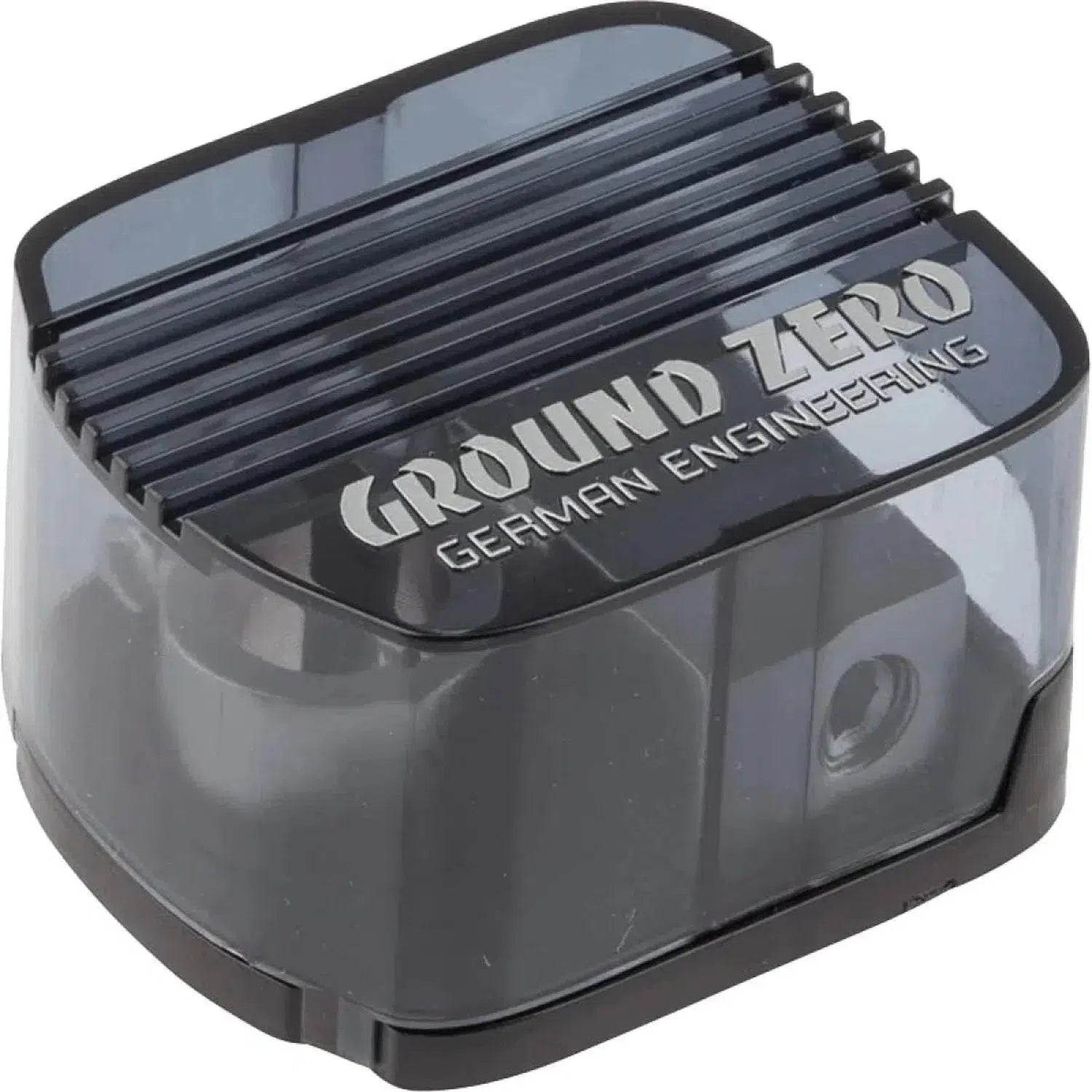

The plastic cover of the GZBT 2.50 MANL-POS serves as additional protection against short circuits and external influences. It protects the battery terminal from accidental contact with metallic objects in the engine compartment, which could potentially cause short circuits. Additionally, the cover protects the terminal from dirt and corrosion, thereby extending its lifespan. In aggressive weather conditions or high humidity, this cover is particularly important to maintain electrical integrity and ensure consistent performance, thereby increasing operational safety.

Wie kann die GZBT 2.50 MANL-POS zur Optimierung der Stromzufuhr beitragen?

The GZBT 2.50 MANL-POS optimizes the power supply by providing excellent conductivity through a massive, anodized copper construction, thereby minimizing electrical resistance at the connection points. With two 50 mm² outputs, it allows for the safe connection of various electrical loads, which is crucial for trouble-free operation. The direct and protected output, along with the integrated MINI ANL fuse holder, ensures that optimal and safe current flows according to requirements, which can be essential in high-power systems in vehicles.

Was sollte bei der Nutzung der GZBT 2.50 MANL-POS beachtet werden?

When using the GZBT 2.50 MANL-POS, you should ensure to choose the correct fuse value according to the cable cross-section to guarantee optimal performance and safety. Check that the terminal is correctly and securely connected to the battery, and make sure that the plastic cover is properly attached to prevent metallic objects from coming into contact with the terminal. Regular checks for corrosion or loose connections are also recommended to ensure long-lasting and trouble-free operation.
